QS205 20*4.0/24*4.0/26*4.0 170mm Dropout 48‑72V 5000W Hub Motor Wheel Kit | FarDriver ND72680 Controller + DKD/TFT Display

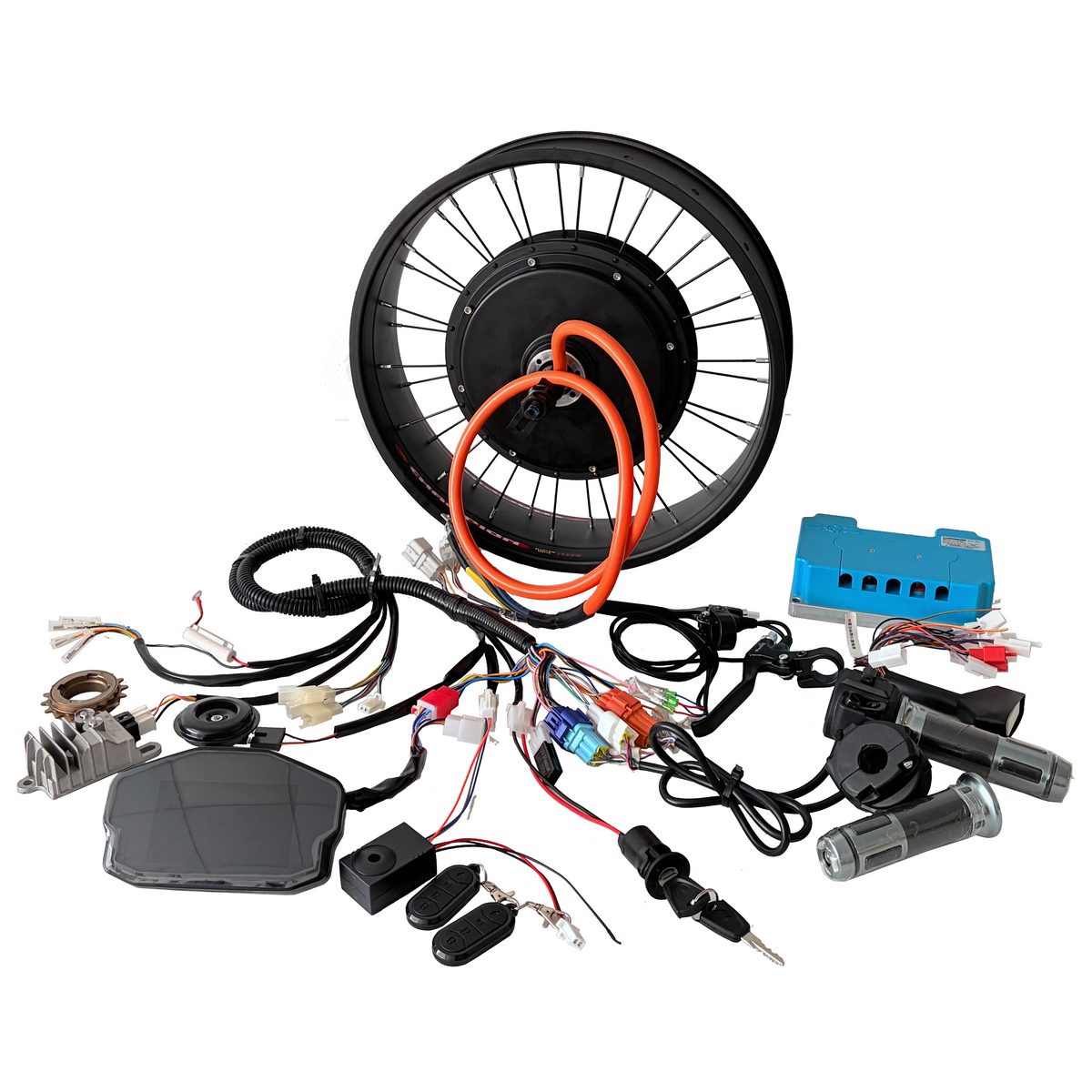

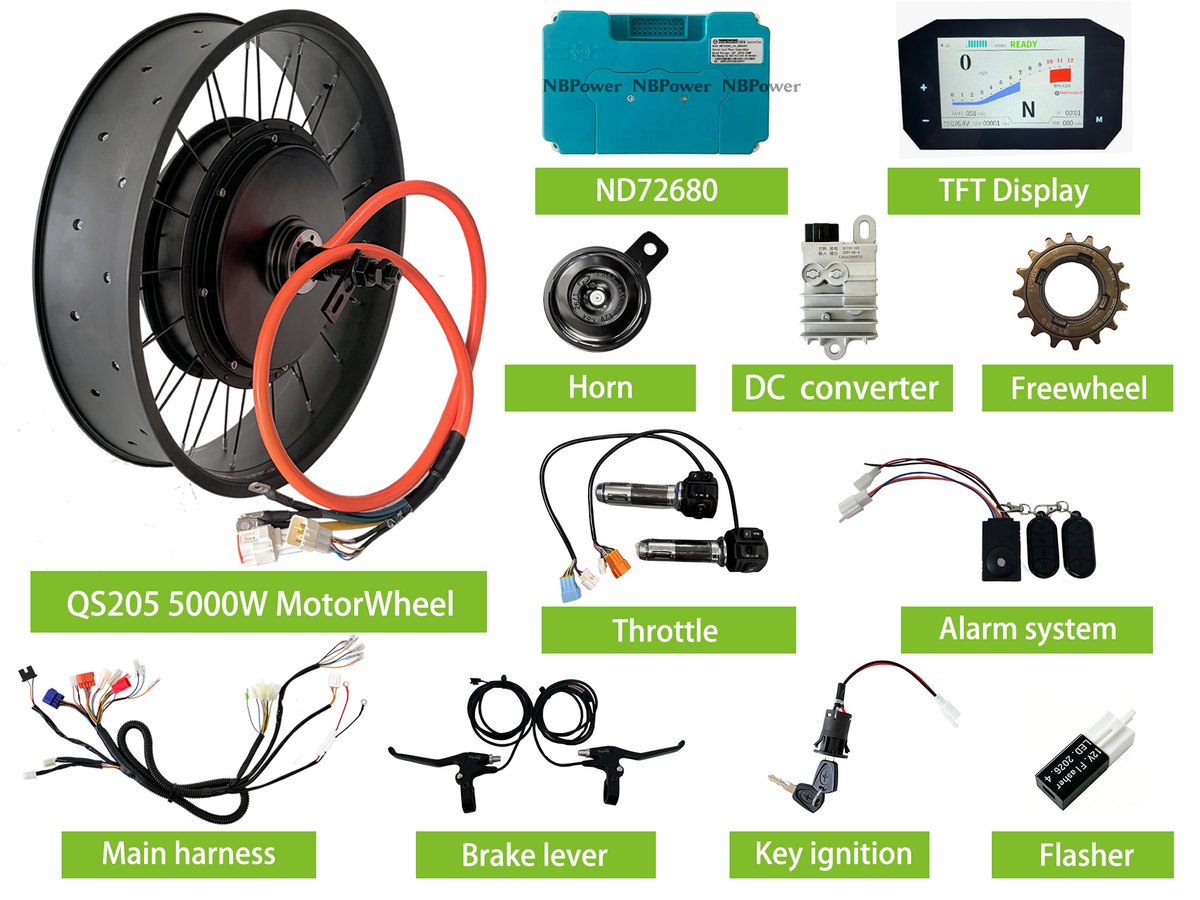

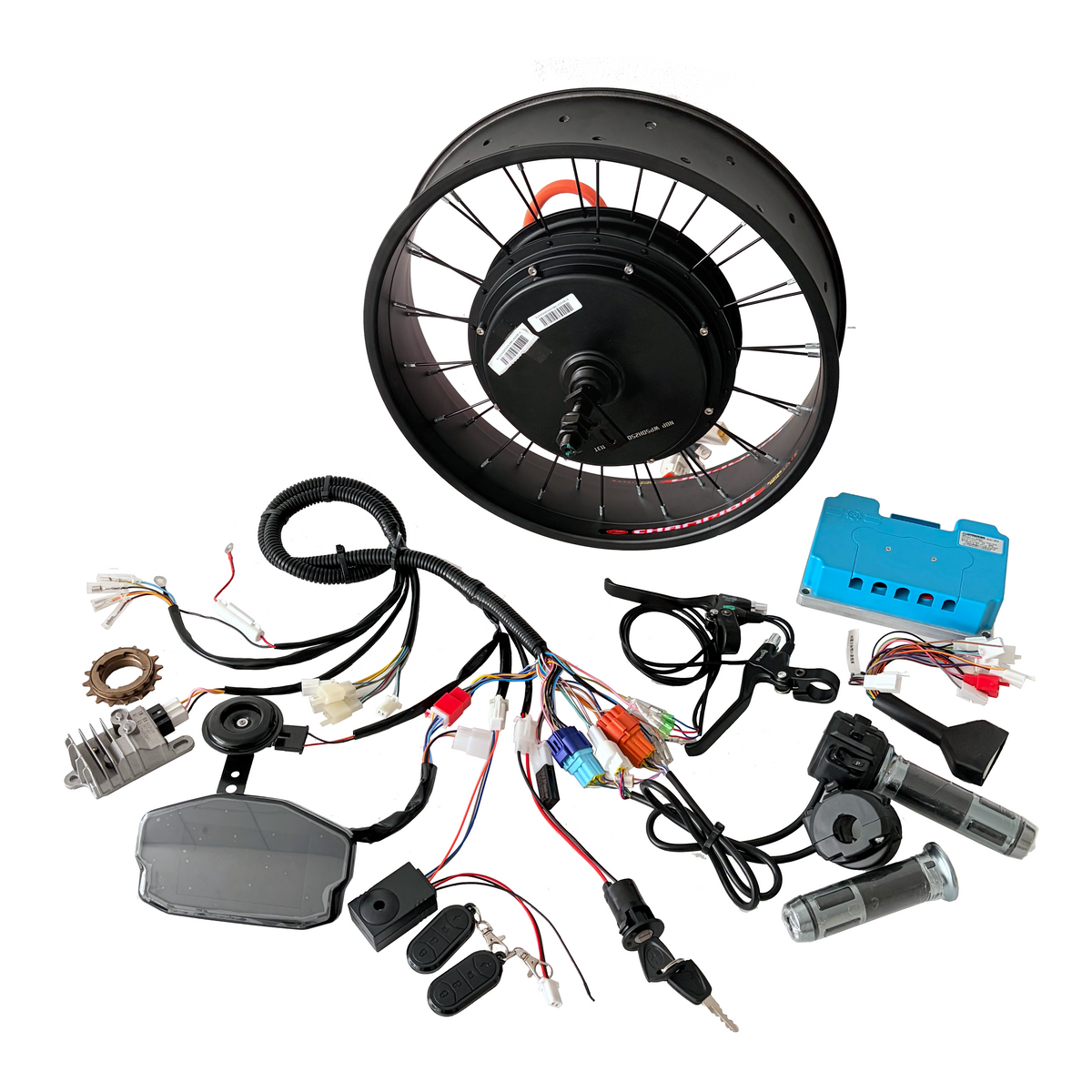

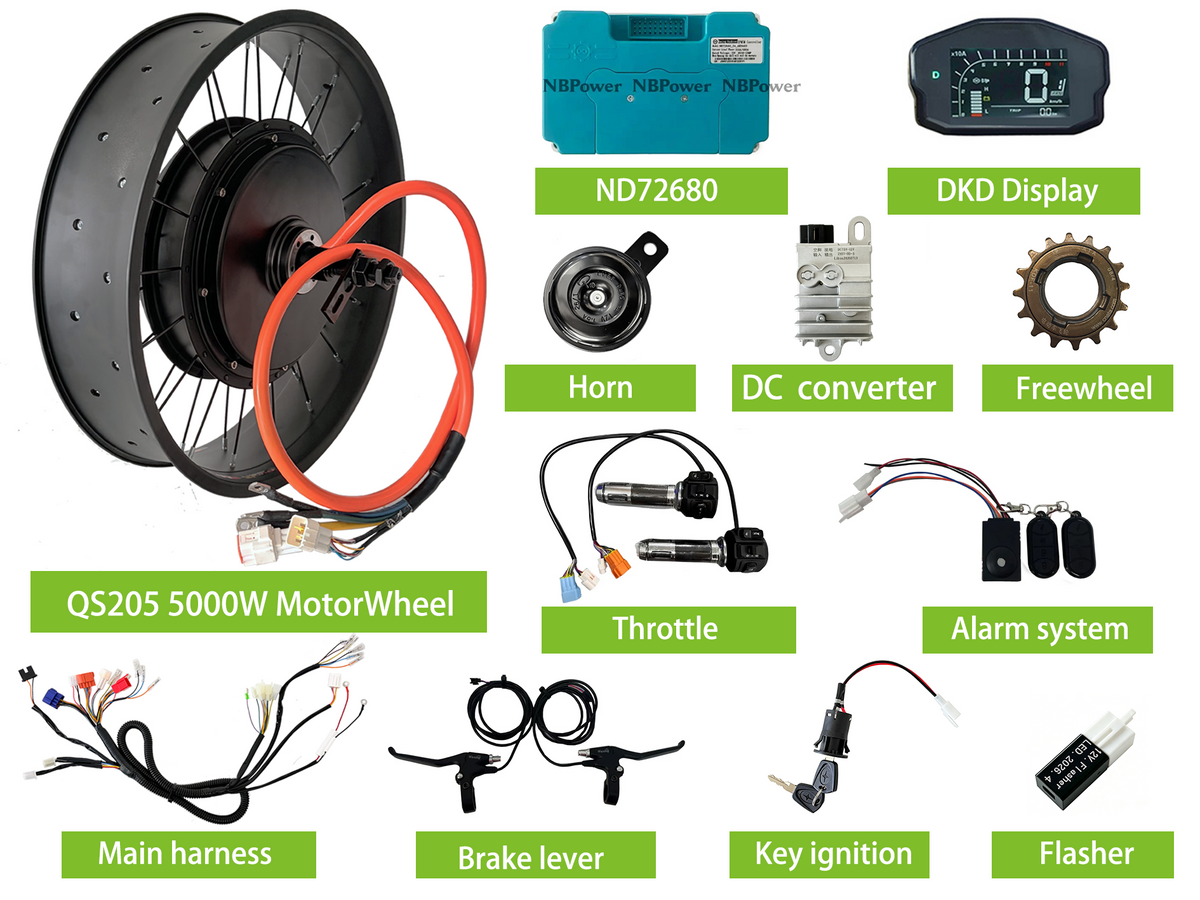

What you will receive

1. QS205 20*4.0/24*4.0/26*4.0 inch 5000W 3T/3.5T/4T/5T Hub Motorwheel

2. Fardriver ND72680 Controller

3. DKD Display/TFT Display

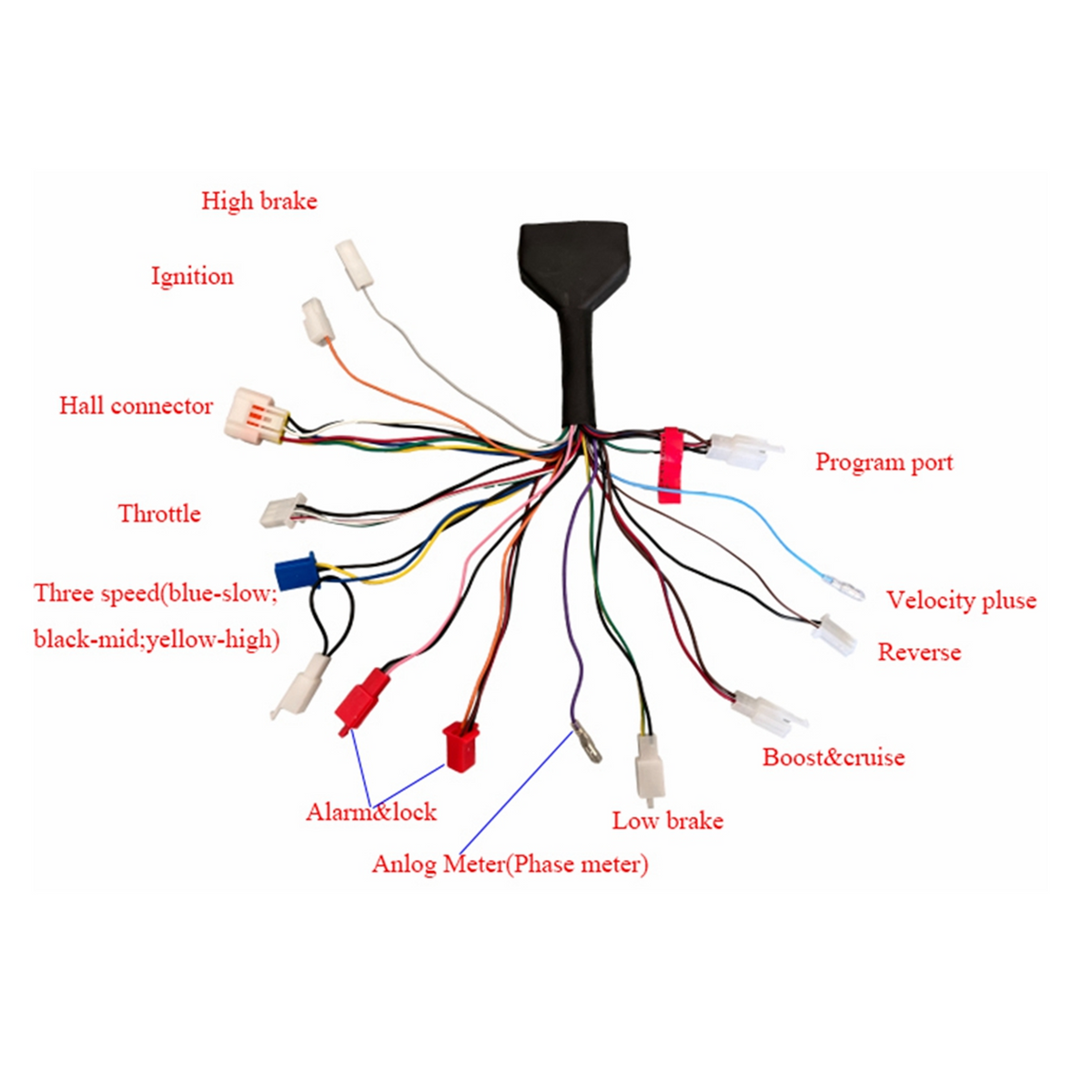

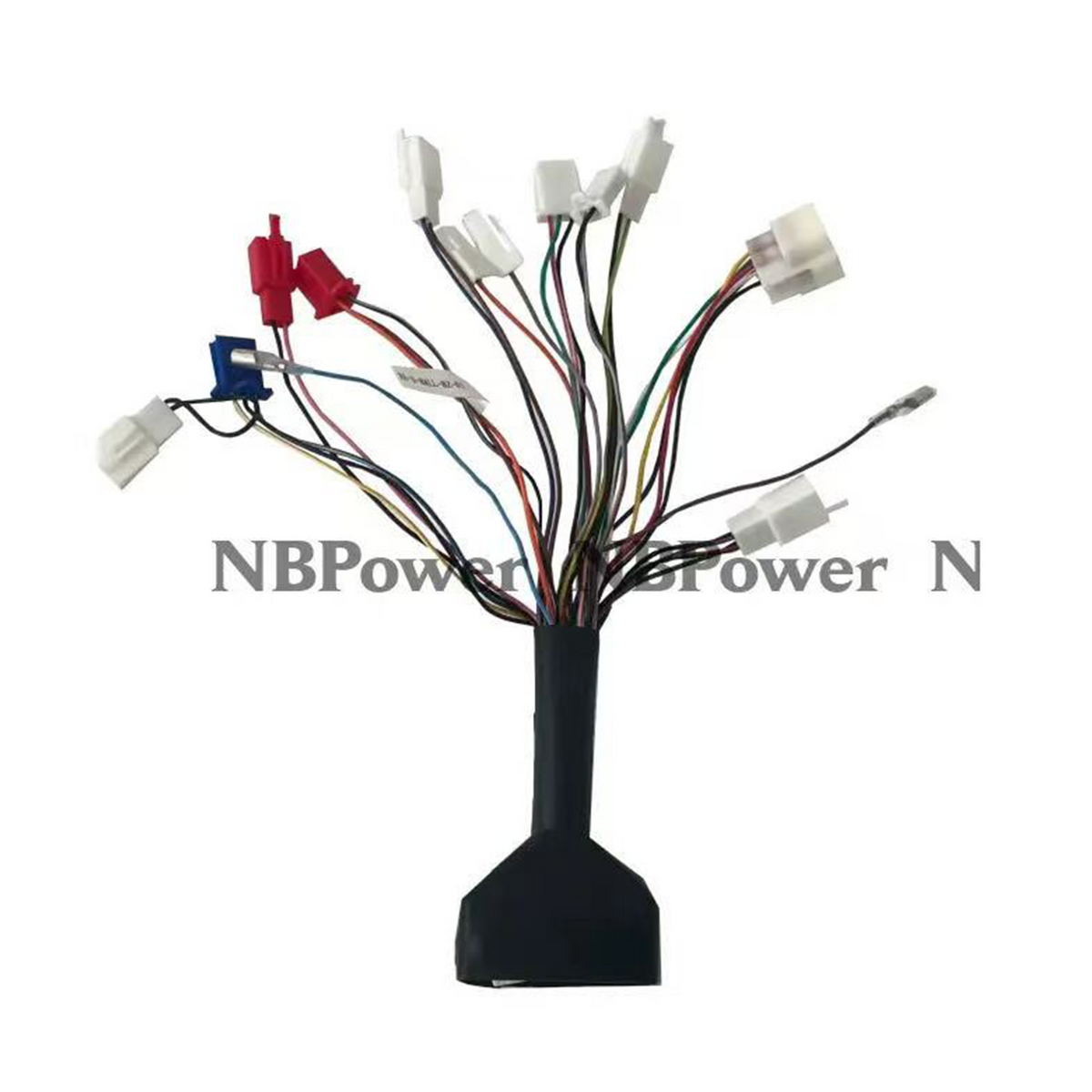

4. Main Connection Harness

5. Multifunctional Motorcycle‑Style Throttle

6. Electric Key Lock

7. Flasher

8. Horn

9.DC-DC Converter

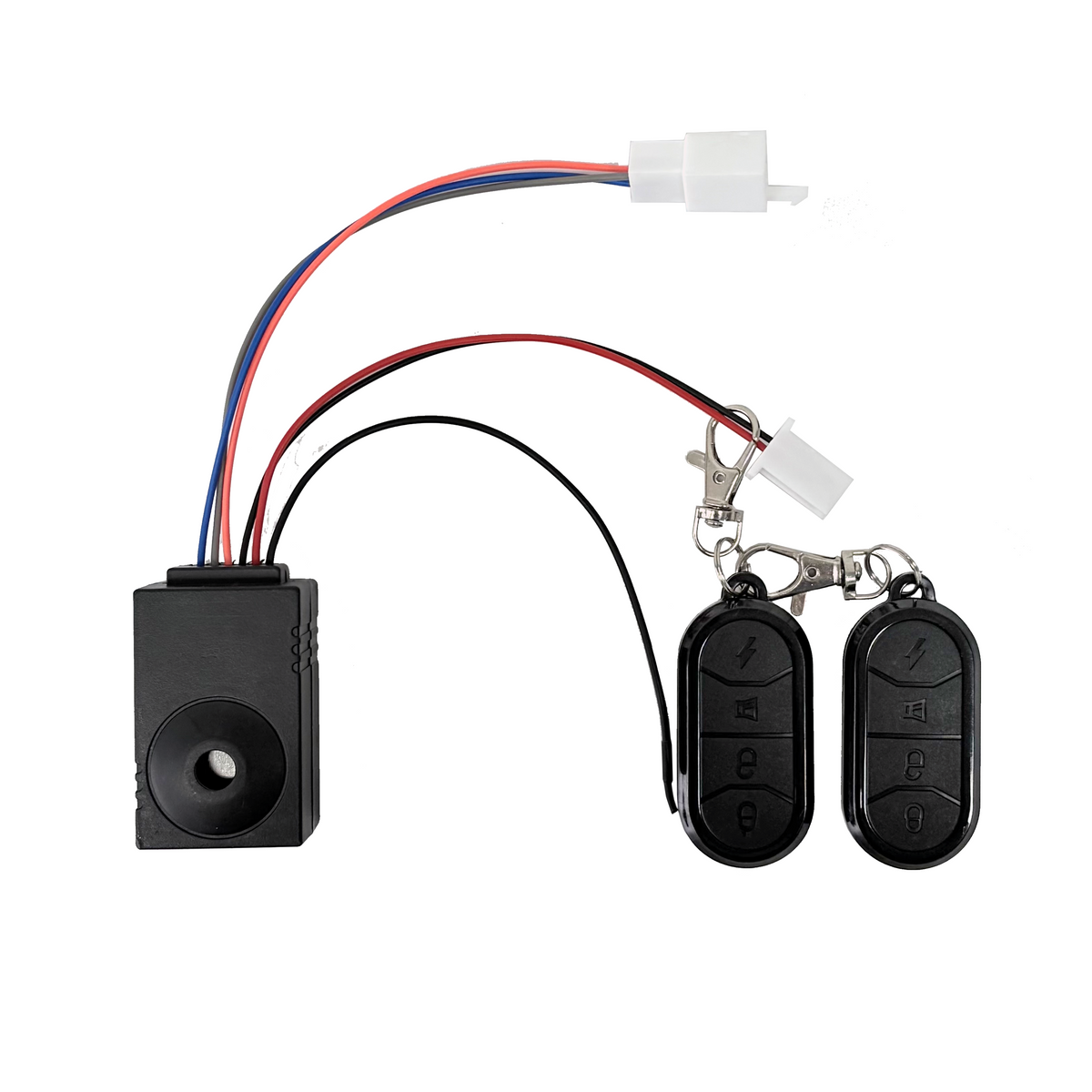

10.Alarm system

Specifications

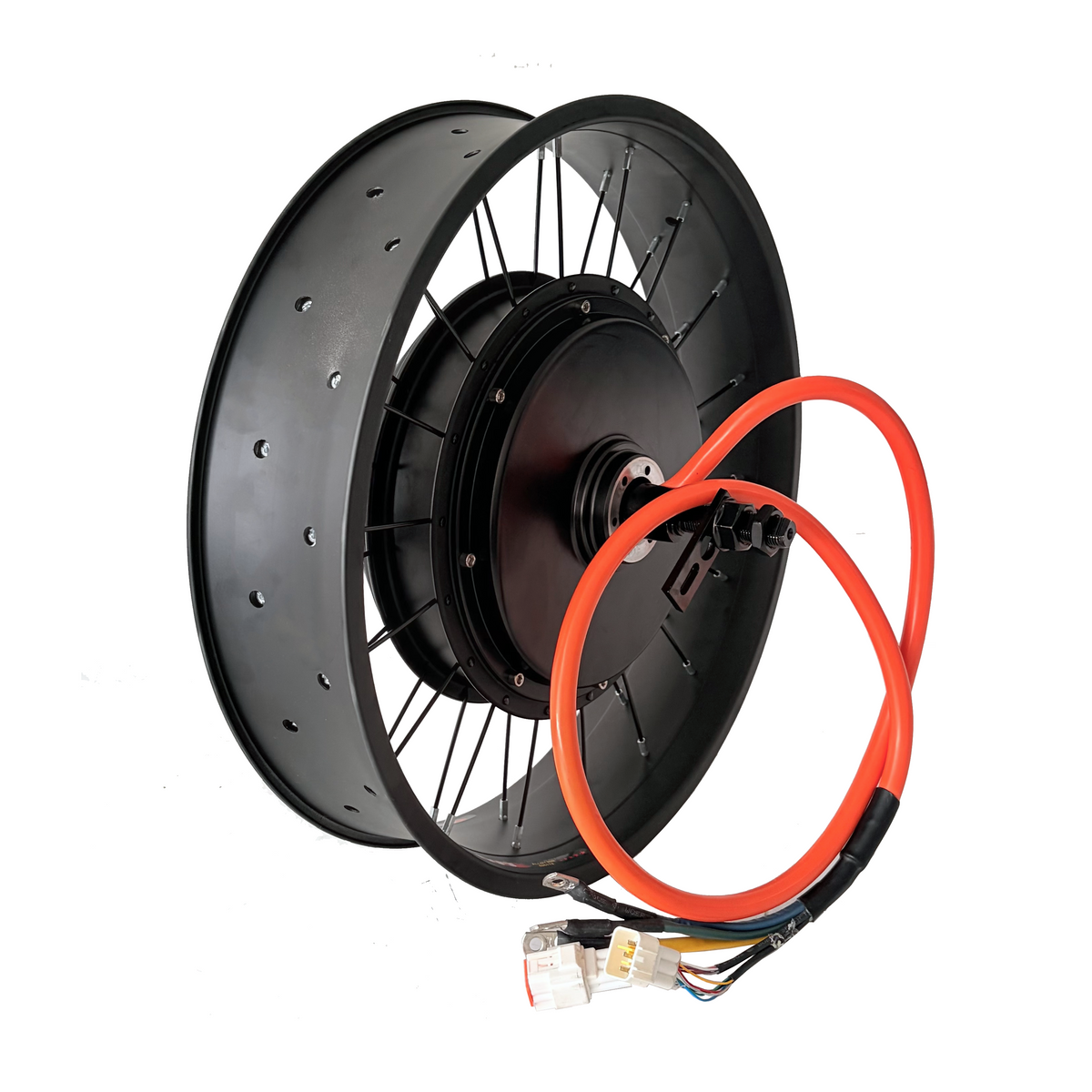

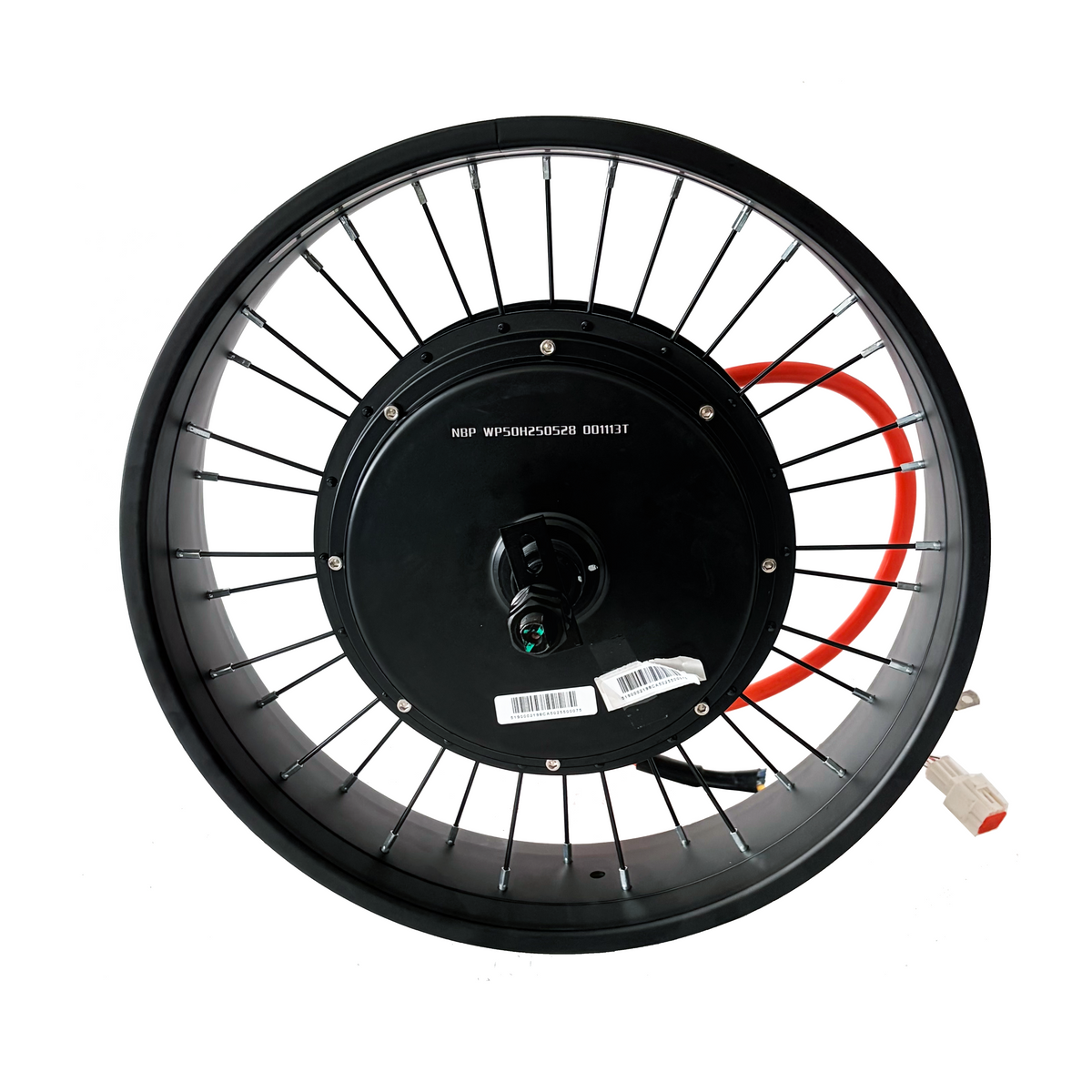

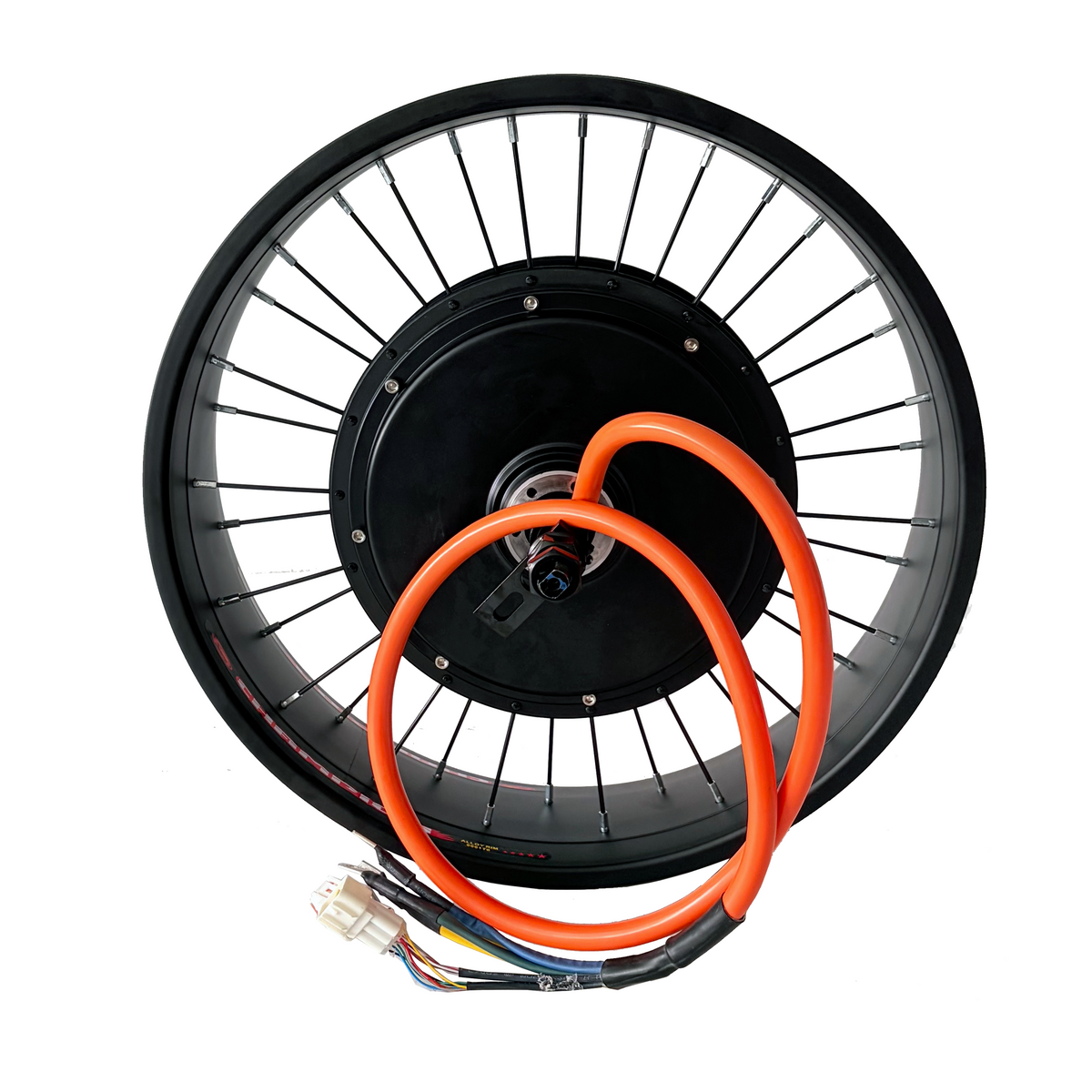

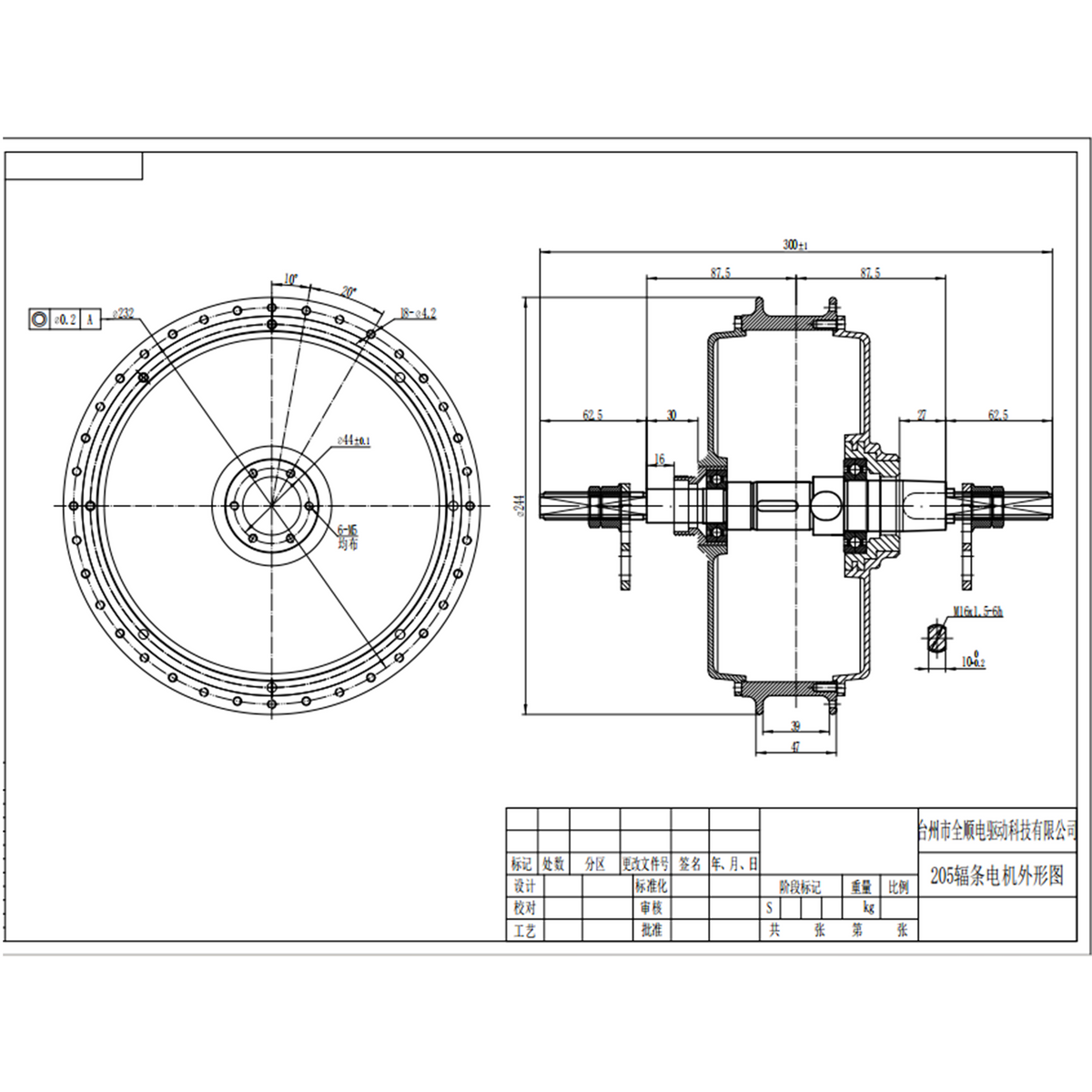

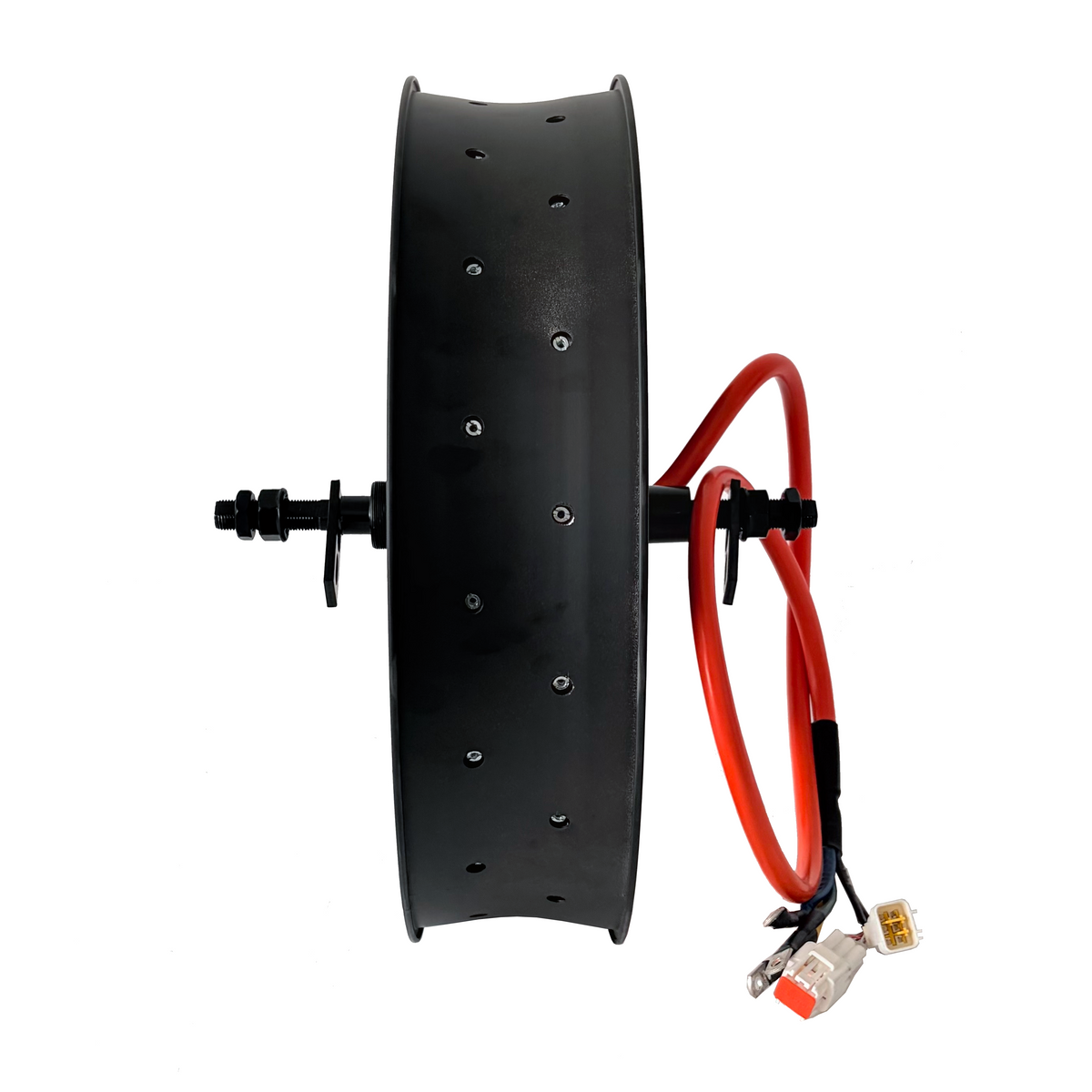

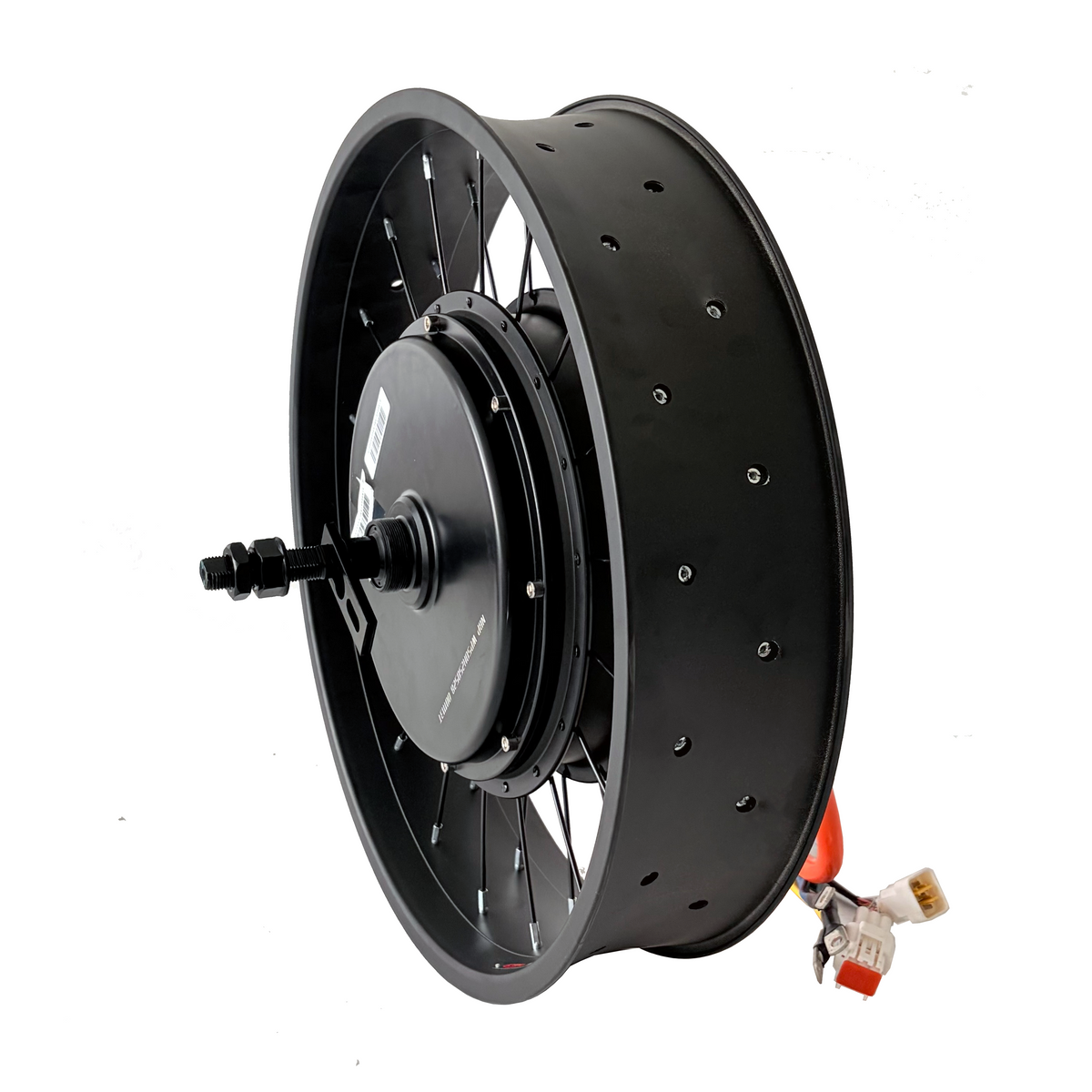

QS205 5000W Hub Motorwheel

1. Motor Type: BLDC In-Wheel Hub Motor
2. Motor Design: Double Axle with Rim
3. Matched Tire: 20*4.0/24*4.0/26*4.0inch
4. PCD: 6*44mm
5. Stator: Aluminum Core
6. Rated Power: 5000W
7. Peak Power: 10000W in few seconds
8. Rated Voltage: 72V
9. Speed: 3T: 1020RPM 3.5T: 840RPM  4T: 770RPM  5T: 650RPM
10. Drop-outs: 150mm
11. Max Torque:3T:160N.M 3.5T: 180N.M 4T: 200N.M 5T: 220N.M
12. Max Efficiency: approx 91%
13. Suggest Peak Phase Current: N/A
14. Thermic Probe: KTY83/122(as default)
15. Working Temperature: 70-120℃, peak 150℃
16. Brake Type: Disc Brake
17. Hall Sensor: Dual hall set with waterproof connector
18. Phase Wire:2*5mm²Cross
19. Hall Sensor Phasing Angle: 120 degree
20. Waterproof Grade: IP65

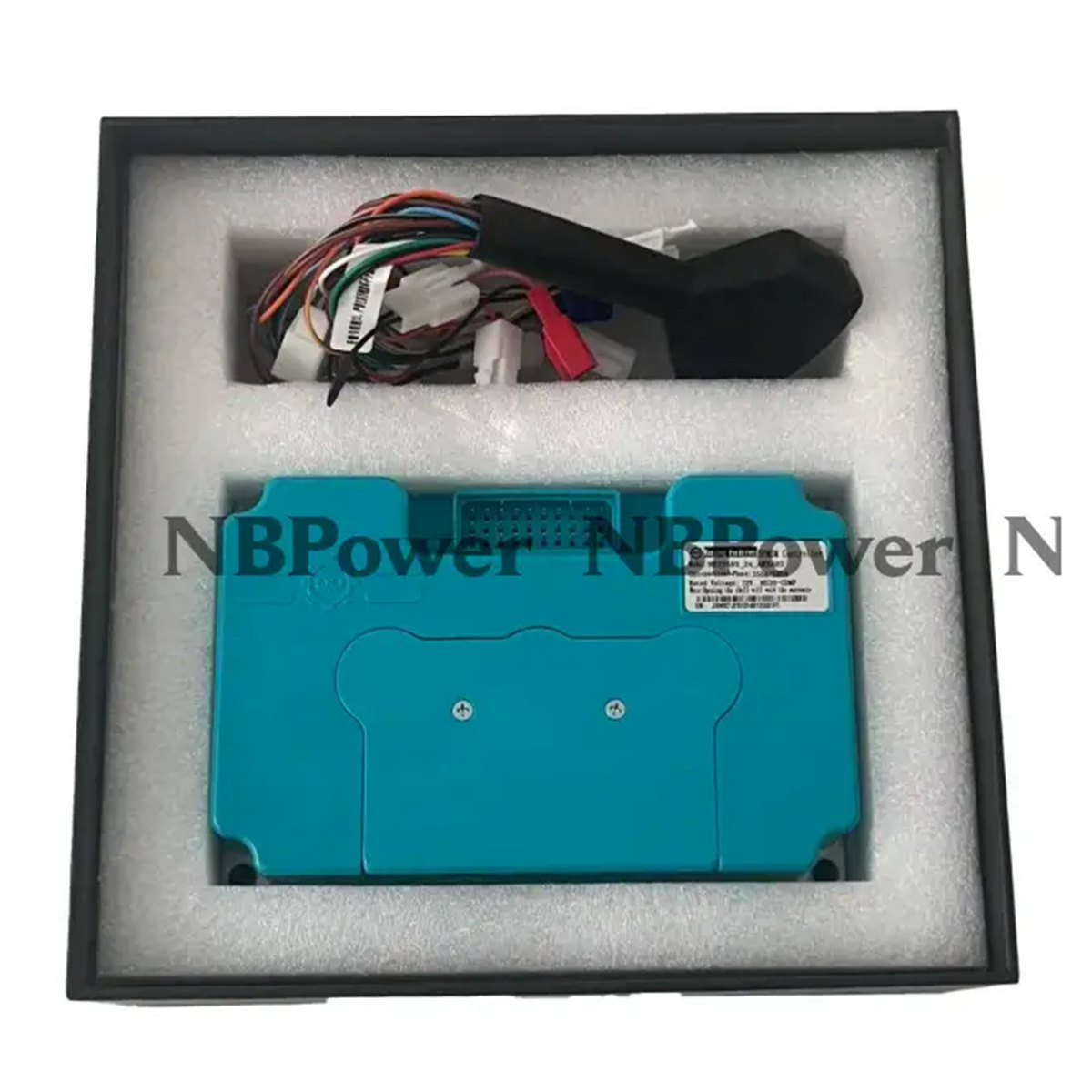

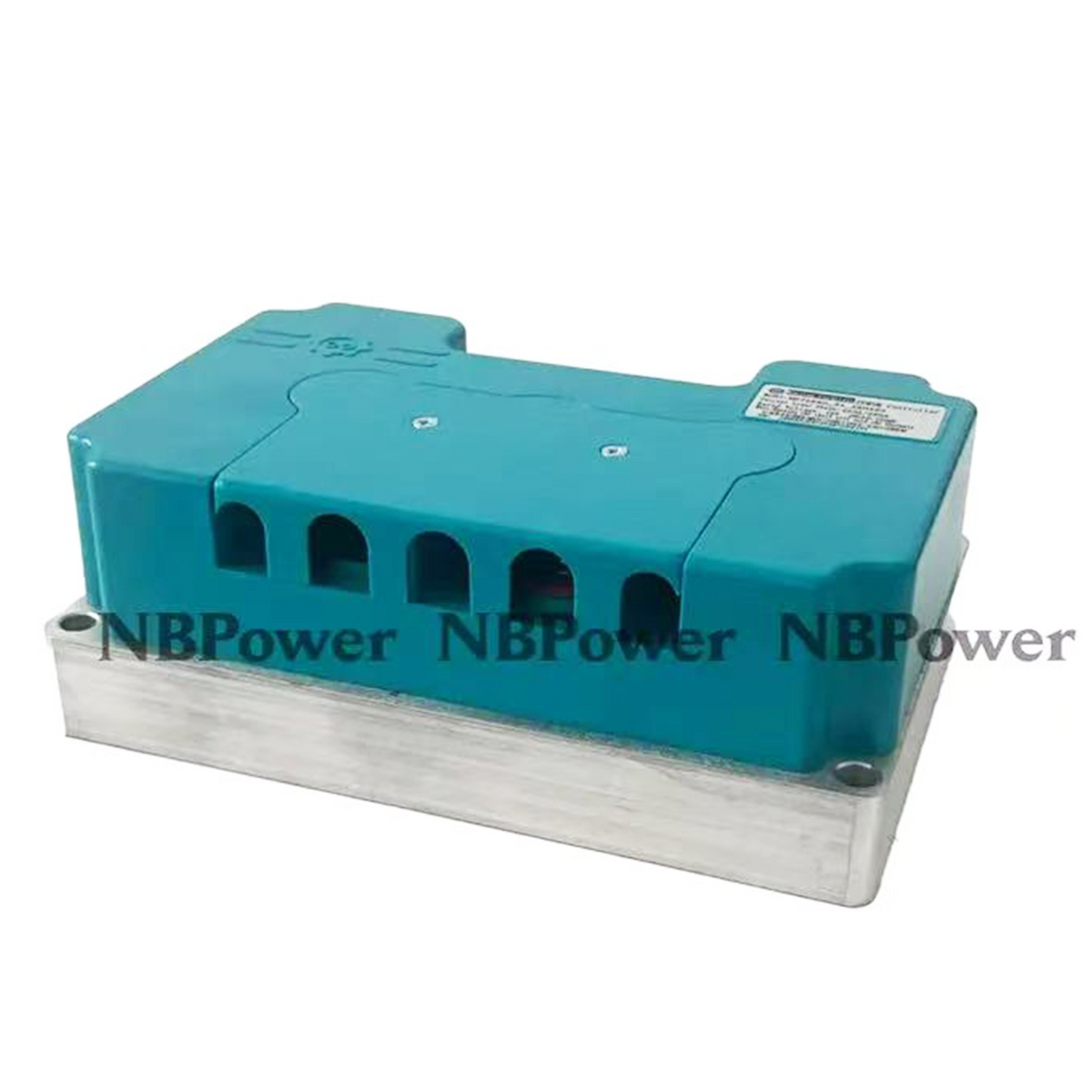

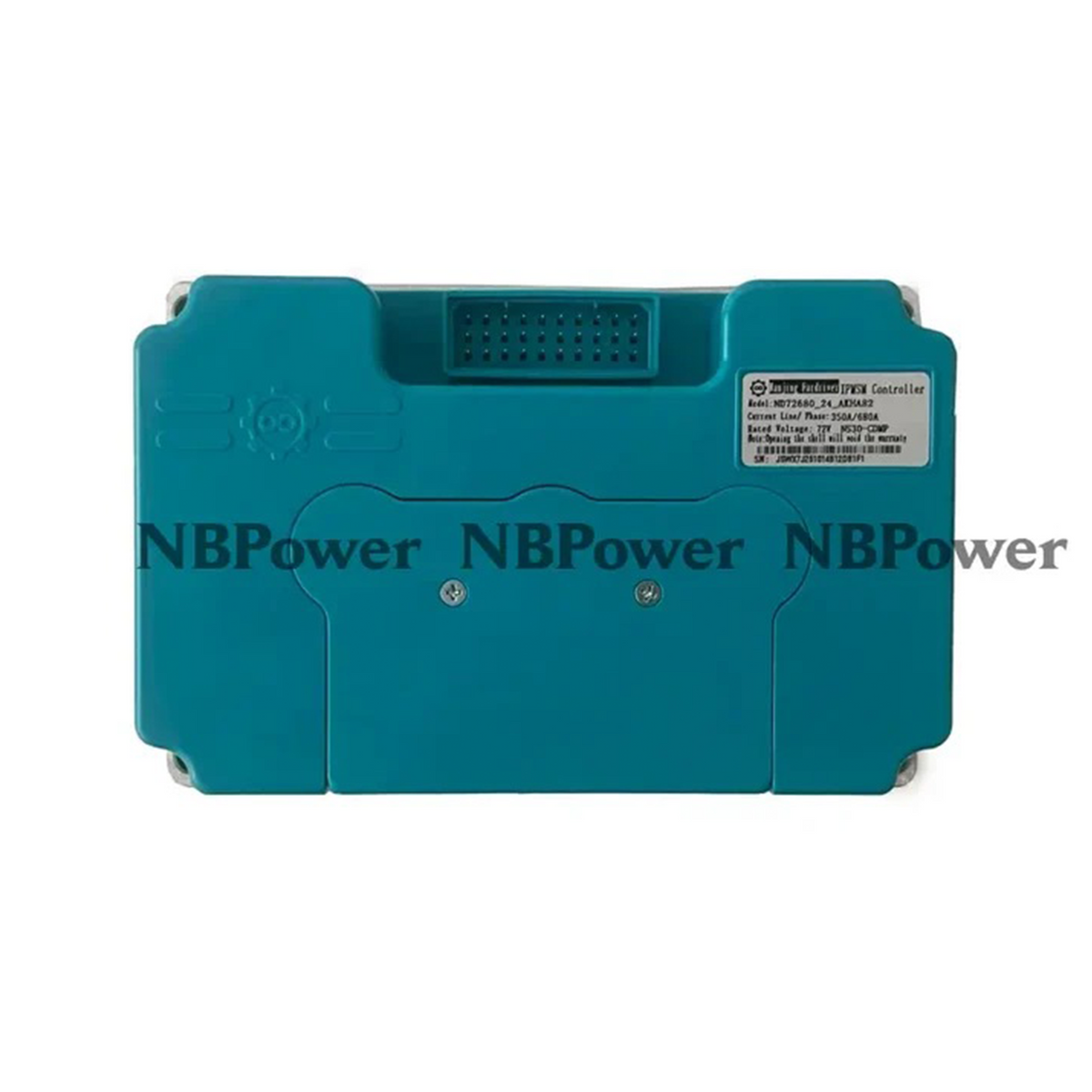

Fardriver Controller

1    Model: ND72680
2    Working Communication: Hall Sensor
3    Available Rated Battery Voltage: 72V
4    Peak  Voltage: 88V
5    Available Motor Power: 4000W - 6000W
6    Defaut Throttle Working Voltage: 0V - 5V
7   Max DC Current: 350A
8    Peak Phase Current: 680A
9    Mosfets Detail: 30 FET
10  Weight: 3.1kgs
11  Instaliing Size: 189mm * 120mm * 60mm
12  Controller Design: Sine Wave BLDC
13  Case Material: Aluminum
14  Support    Programmable: PC & Phone
