QS138-A 6000W 100H Air-Cooling Mid Drive Motor With Synchronous Pully | FarDriver ND721000 Controller,TFT Display Convention Kit

Name: QS138-A 6000W 100H Air-Cooling Mid Drive Motor With Synchronous Pully | FarDriver ND721000 Controller,TFT Display Convention Kit
Brand: QS Motor
Price: 1129.00 USD
Availability: InStock

$1,129.00 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

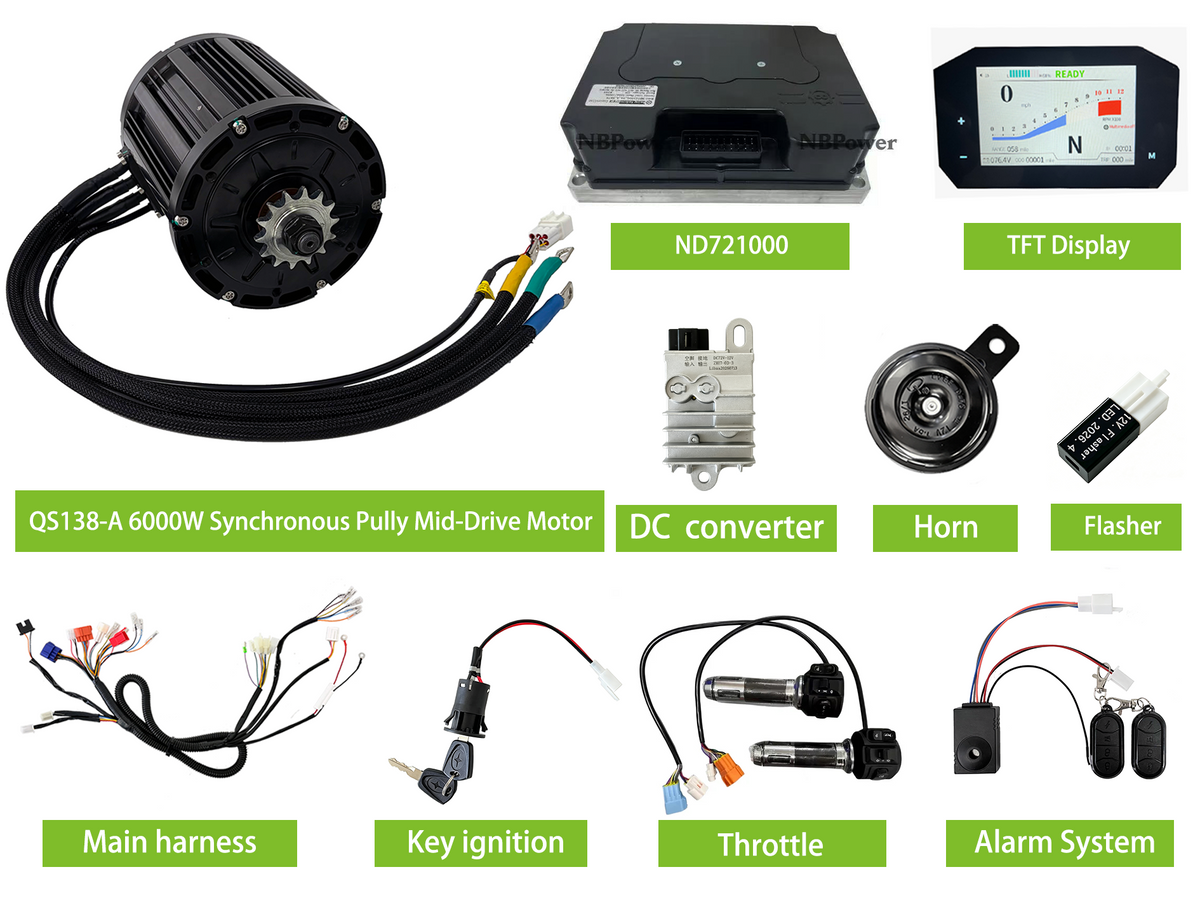

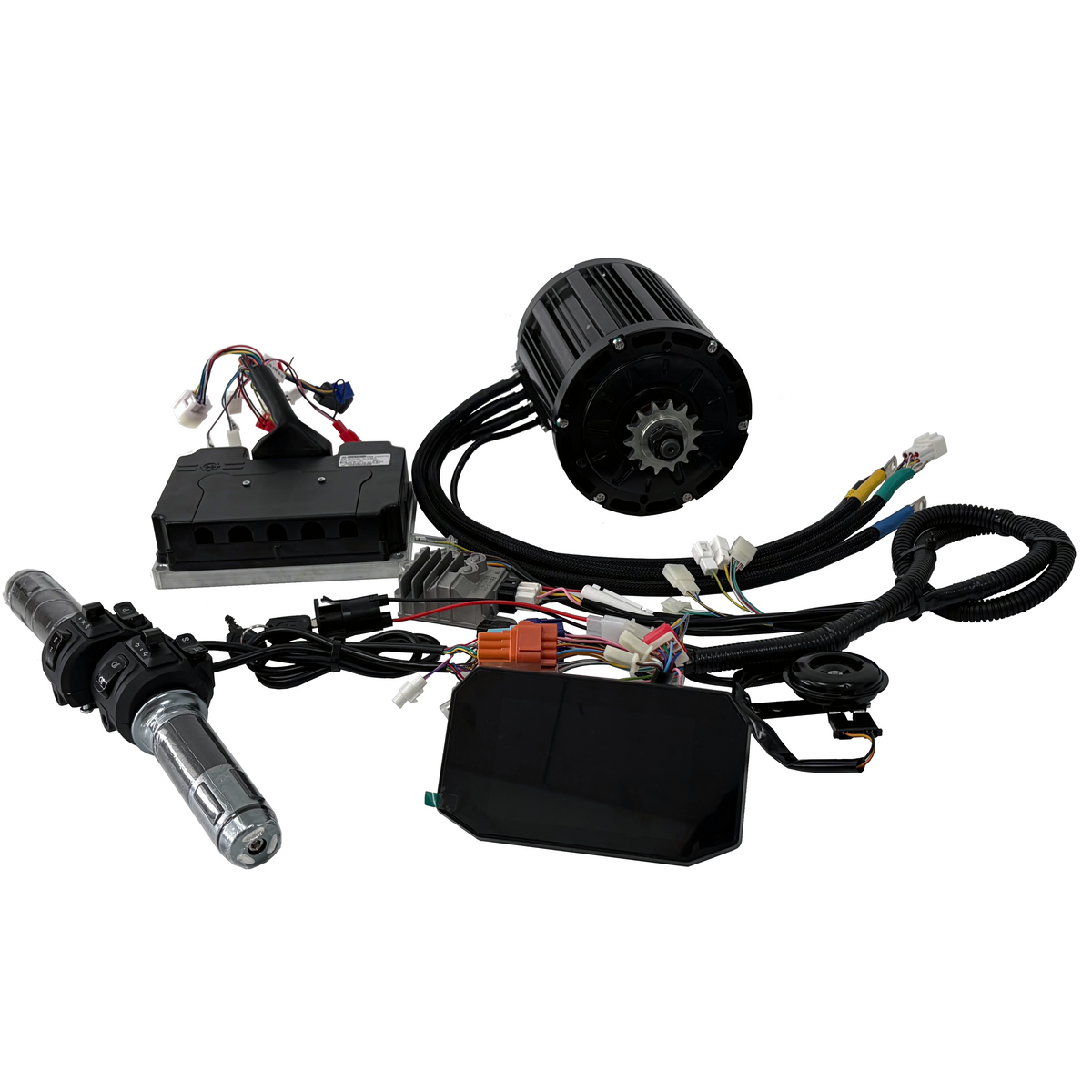

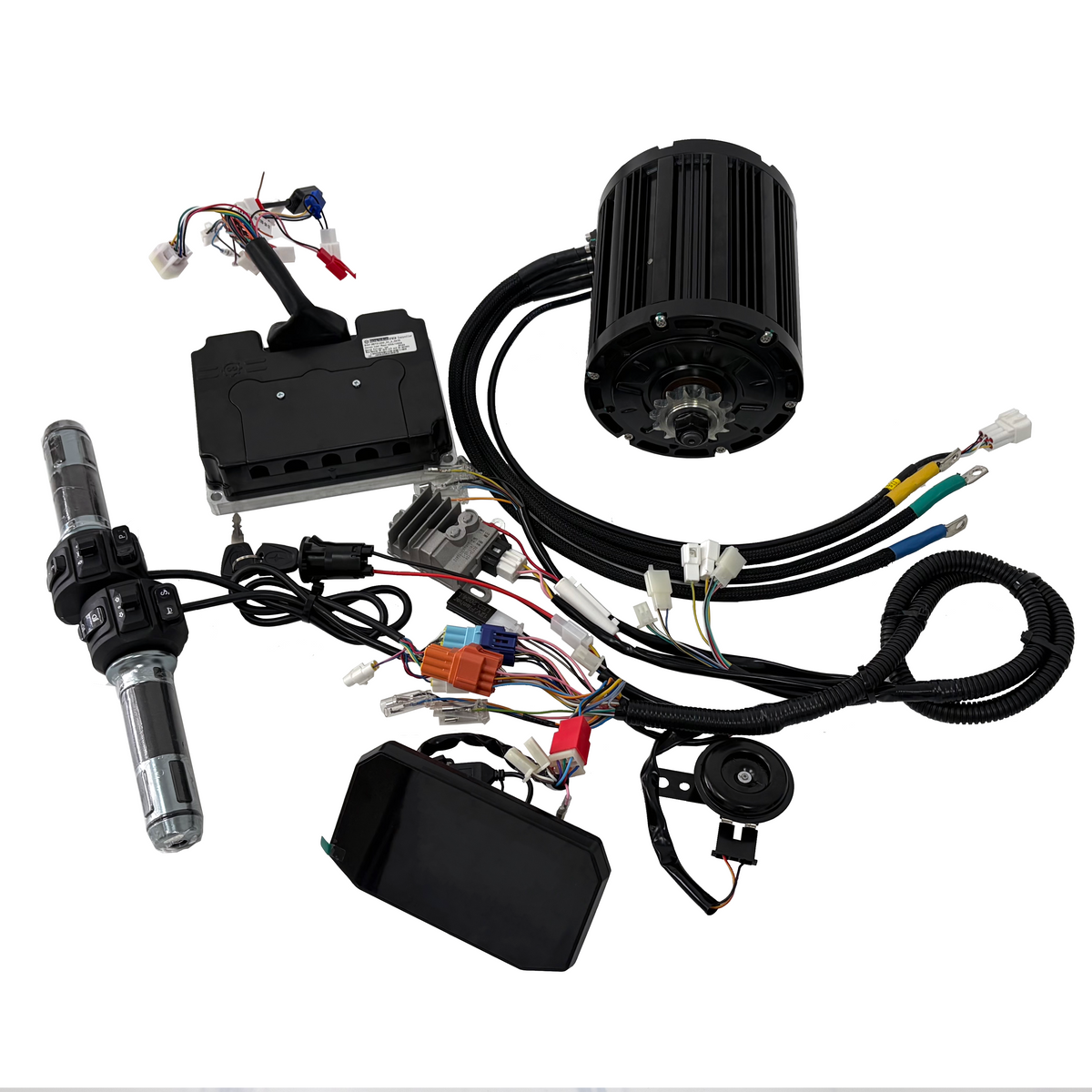

What you will receive

1.QS138-A 6000W 100H Mid Drive Motor

2.ND721000

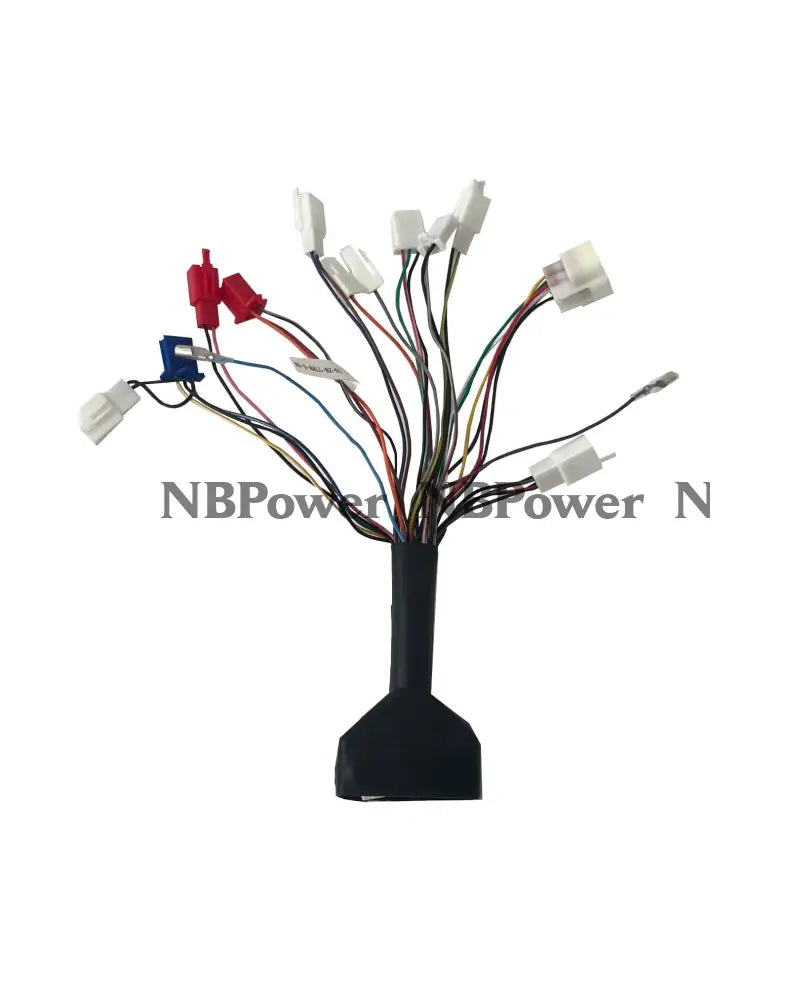

3.Main Harness

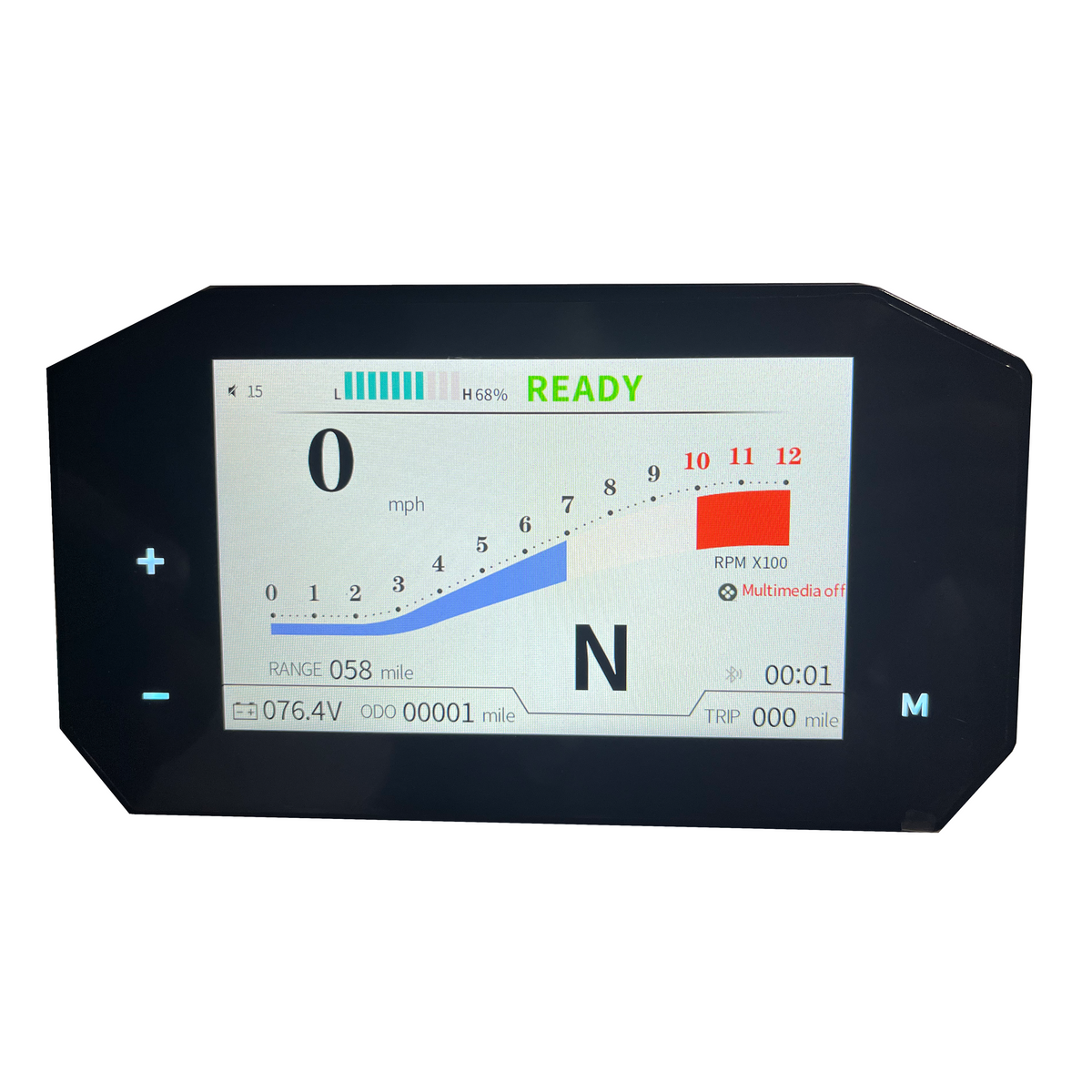

4.TFT Dispaly

5.Motorcycle-Style Throttle

6.12V DC Converter

7.Key ignition

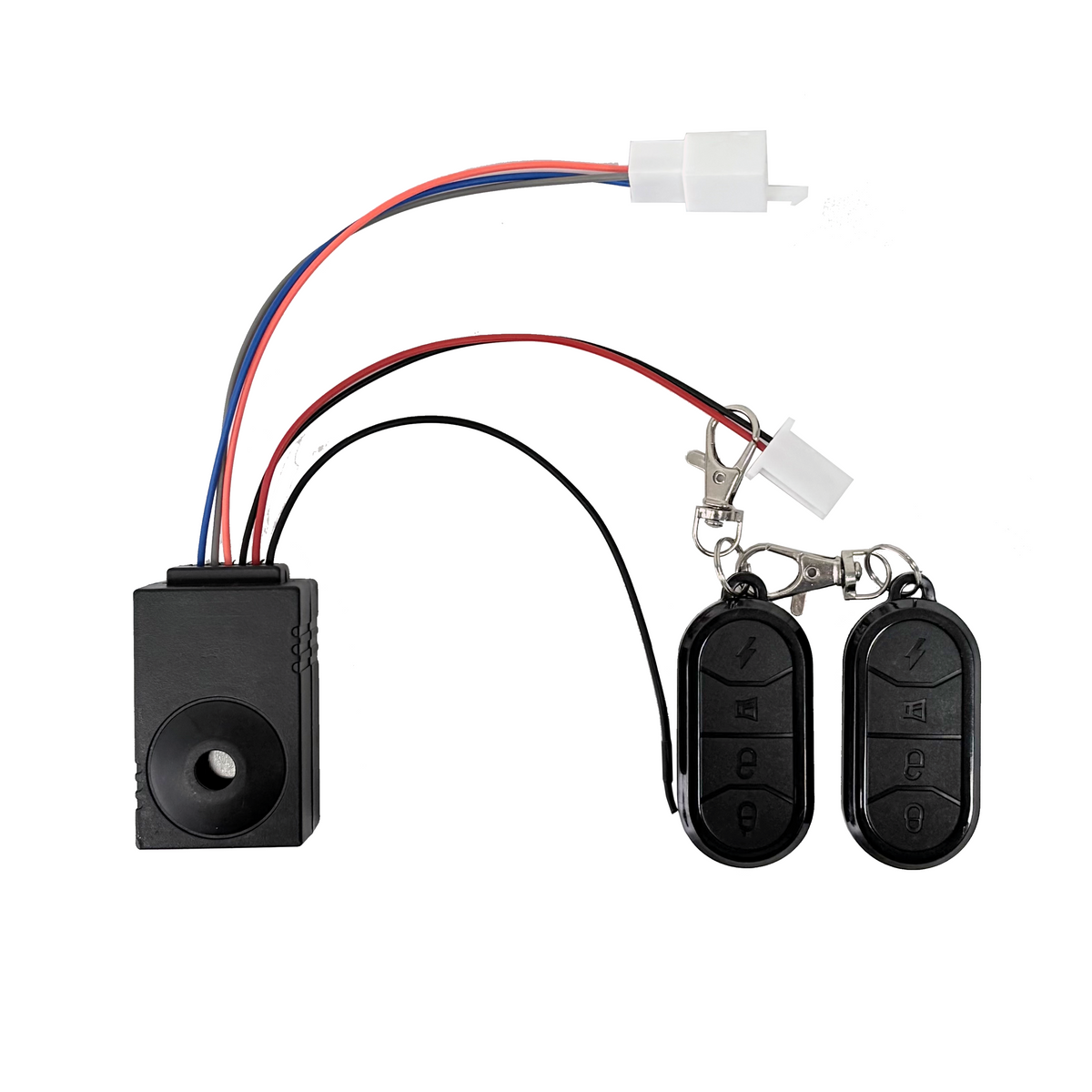

8.Alarm system

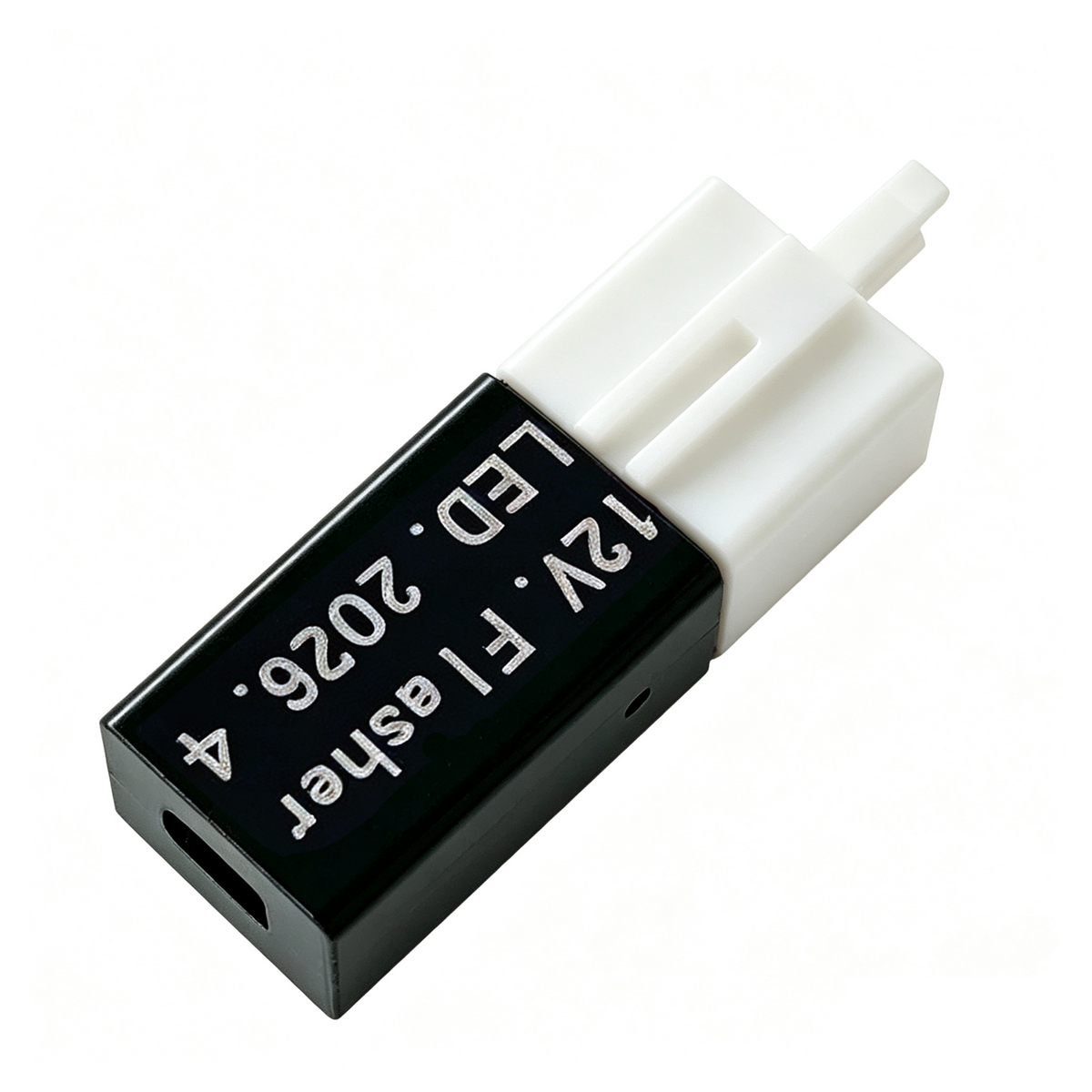

9.Flasher

10.Horn

QS138-A 6000W 100H Mid Drive Motor

🔧 DETAILED SPECIFICATIONS

Motor Type:	PMSM Inner Rotor Motor
Brand:	QS Motor, QSMOTOR
Pole Pair:	5 Pole Pairs
Magnet Height:	100mm
Rated Power:	6000W
Peak Power:	20000W
Rated Voltage:	72V
Speed:	6000RPM
With Flux Weakening:	8000RPM
Max Torque:	>83N.m
Recommended Max. Current	350A/1200A
Max Efficiency:	>90%
Cooling Method:	Air Cooling
Thermic Probe:	KTY83/122 (as default)
Sensor:	Single Hall Sensor Set with waterproof connectors
Max Operating Temperature	50°C
Max Working Temperature	150°C
Waterproof Grade:	IP67
Color:	Black
N.W./G.W.	14.2kg/16kg
Package Dimension:	34cm34cm33cm/piece

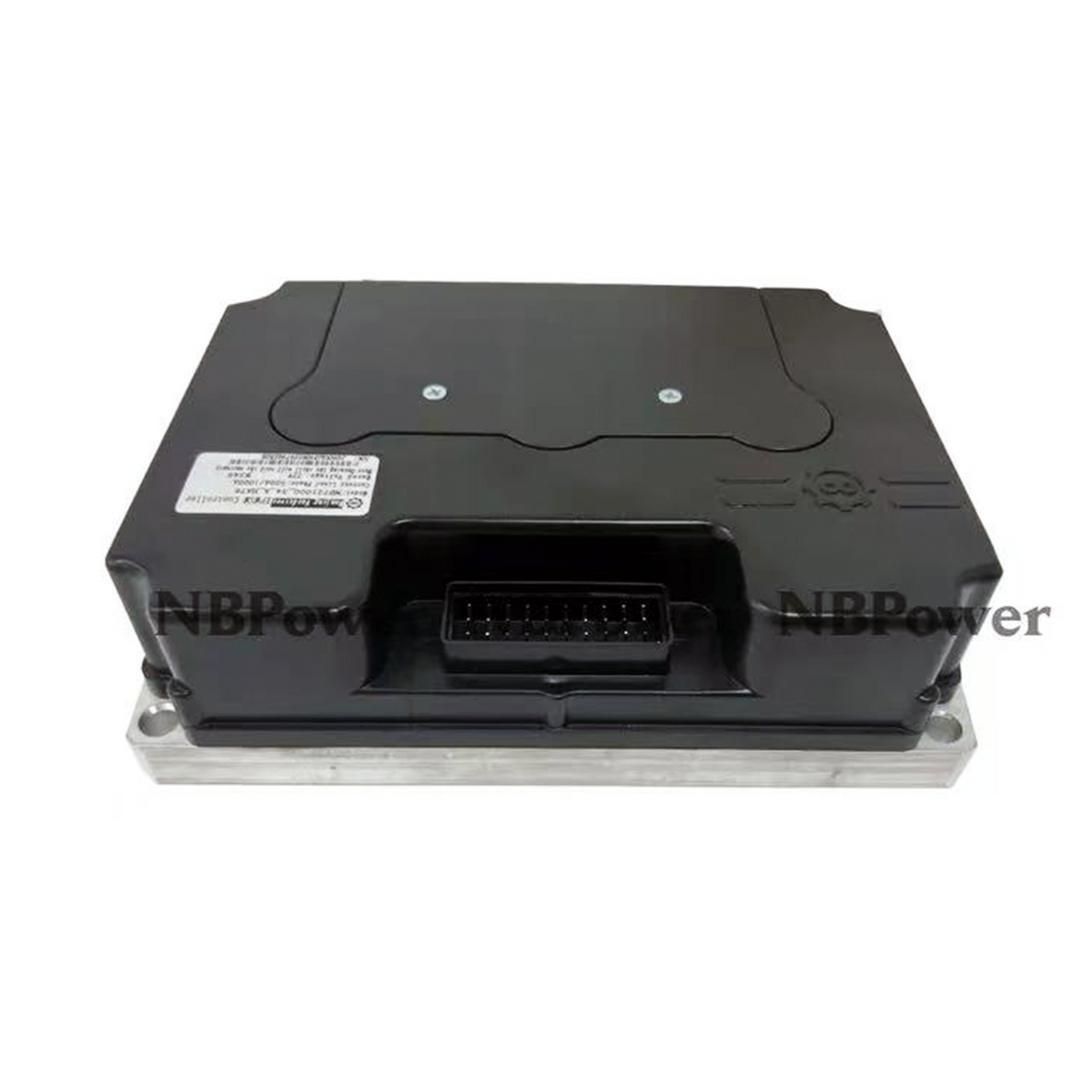

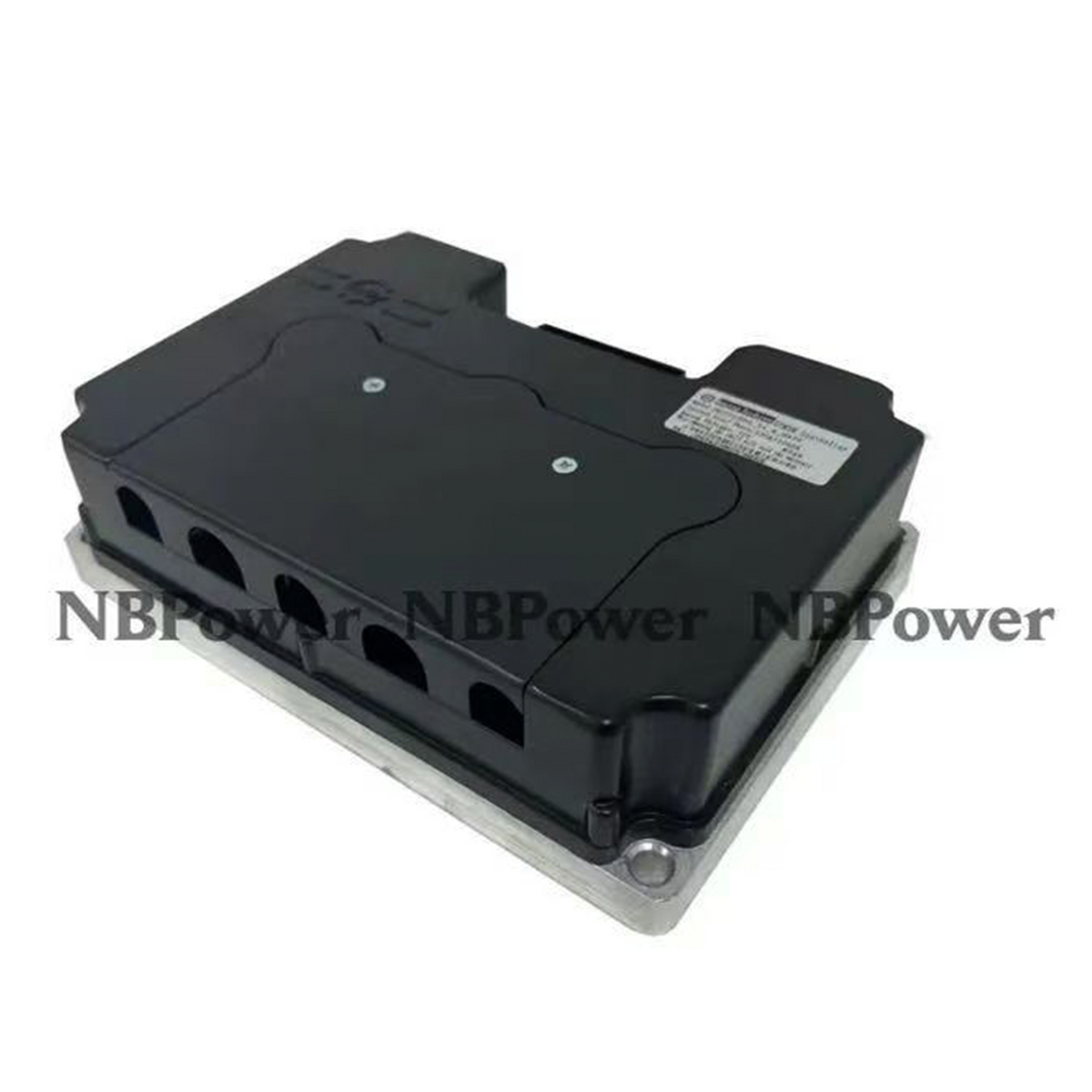

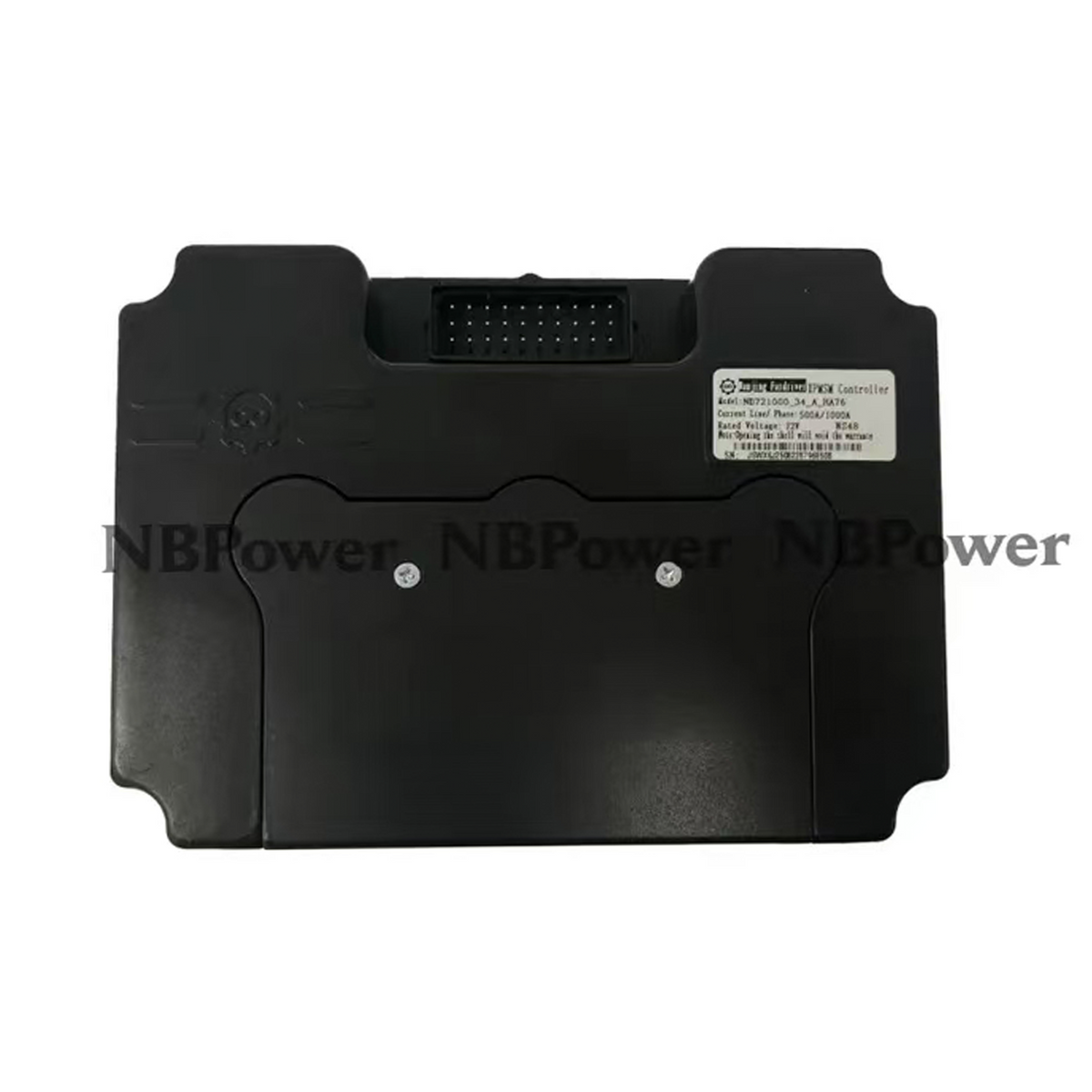

ND721000

1.Model: Fardriver Controller ND721000
2.Working Communication: hall
3.Available Rated Battery Voltage: 48V/60V/72V
4.Peak Battery Voltage: 88V
5.Available Motor Power: 8000W
6.Defaut Throttle Working Voltage: 0V - 5V
7.Peak DC Current: 500A
8.Peak Phase Current: 1000A
9.Mosfets Detail: 48 FET
10.Weight: 2.55kgs

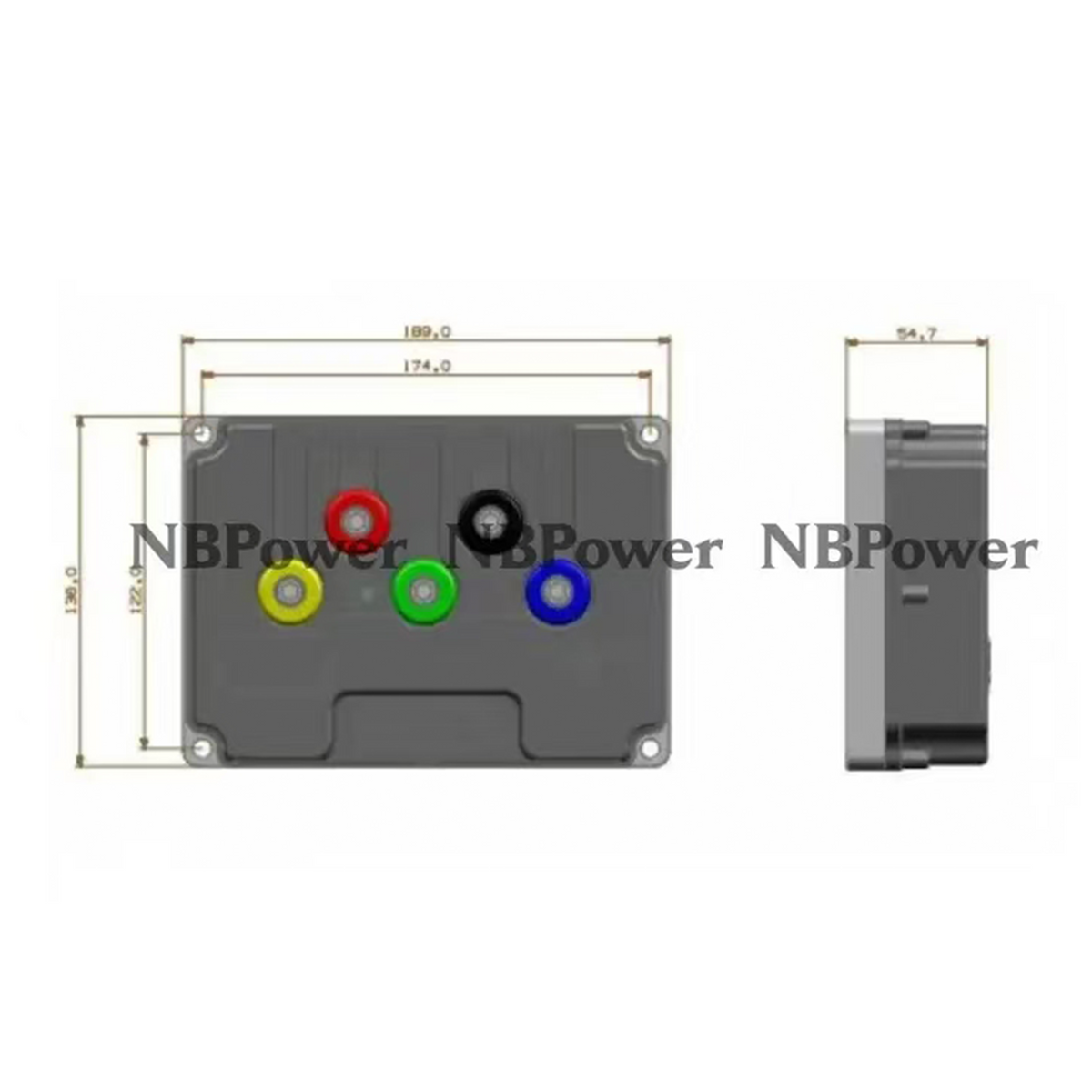

11.Instaliing Size: 189mm * 136mm * 55mm
12.Controller Design: Sine Wave BLDC
13.Case Material: Aluminum
14.SupportProgrammable: PC & Phone
15.Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV
