QS165 72V 50H 10000W Encoder Vision PMSM Mid Drive Motor,FarDriver 721000B Controller,DKD Display Kit
QS165 72V 50H 10000W Encoder Vision PMSM Mid Drive Motor,FarDriver 721000B Controller,DKD Display Kit
Precio habitual
$1,099.00 USD
Precio habitual
$699.00 USD
Precio de oferta
$1,099.00 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro

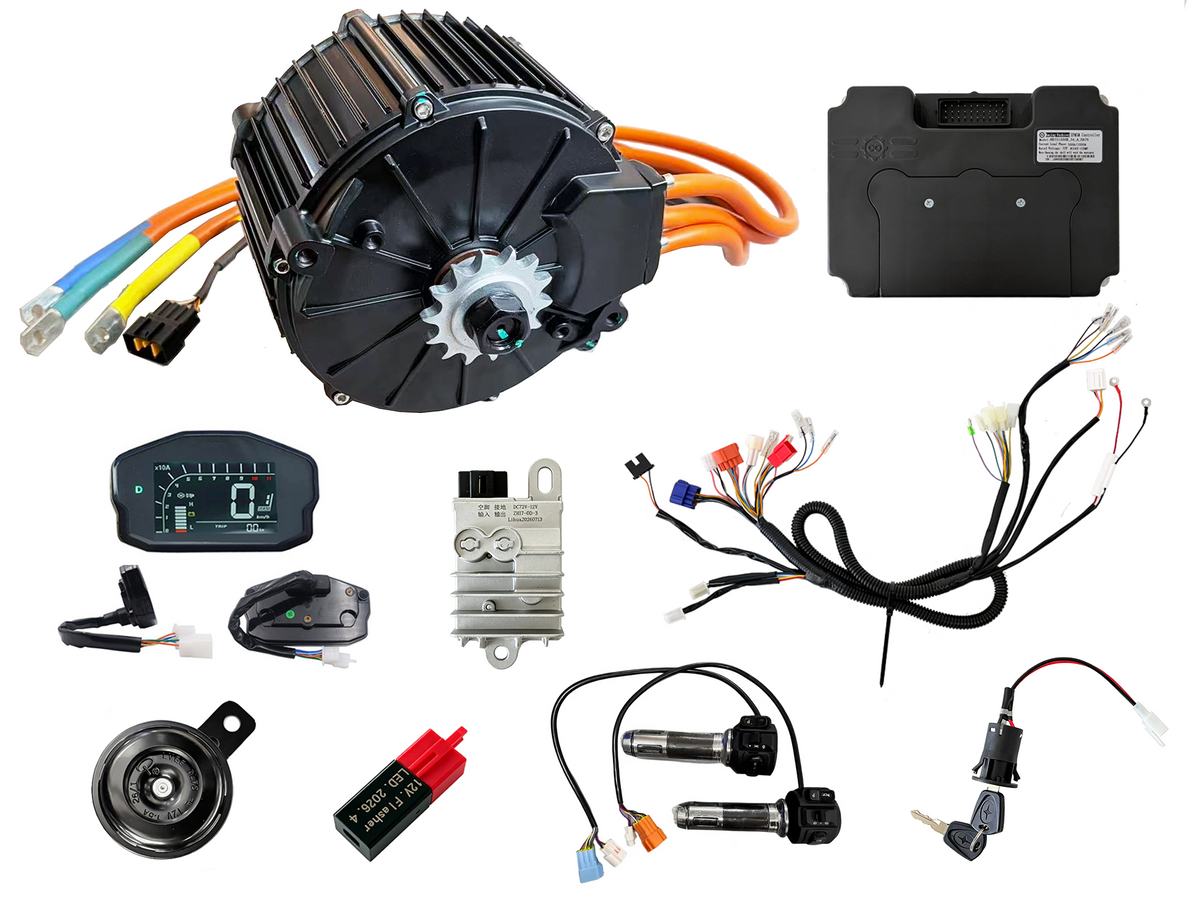

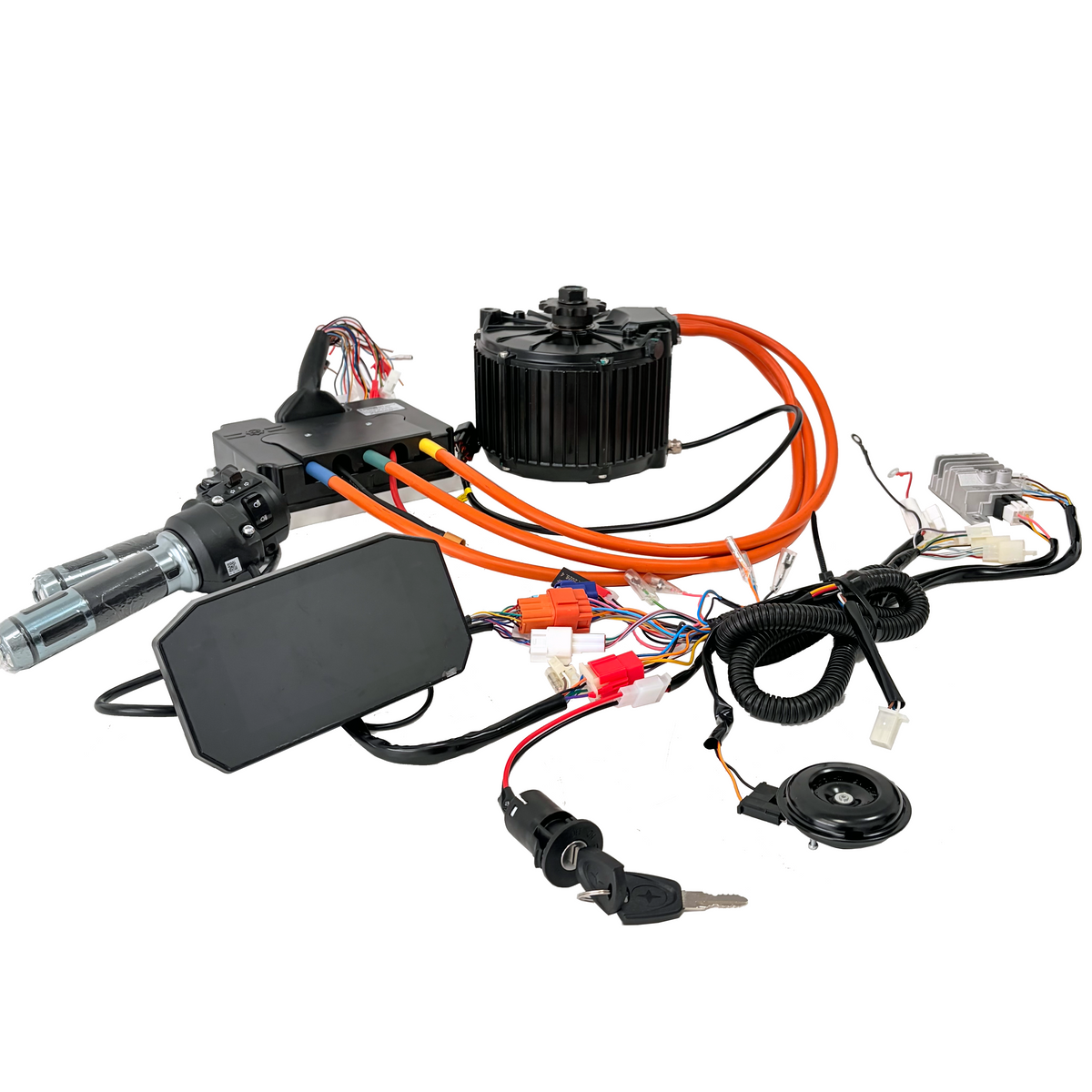

What you will receive
1. QS165 72V 50H 10000W Mid Drive Motor（Encoder vision）
2. Fardriver ND721000B Controller

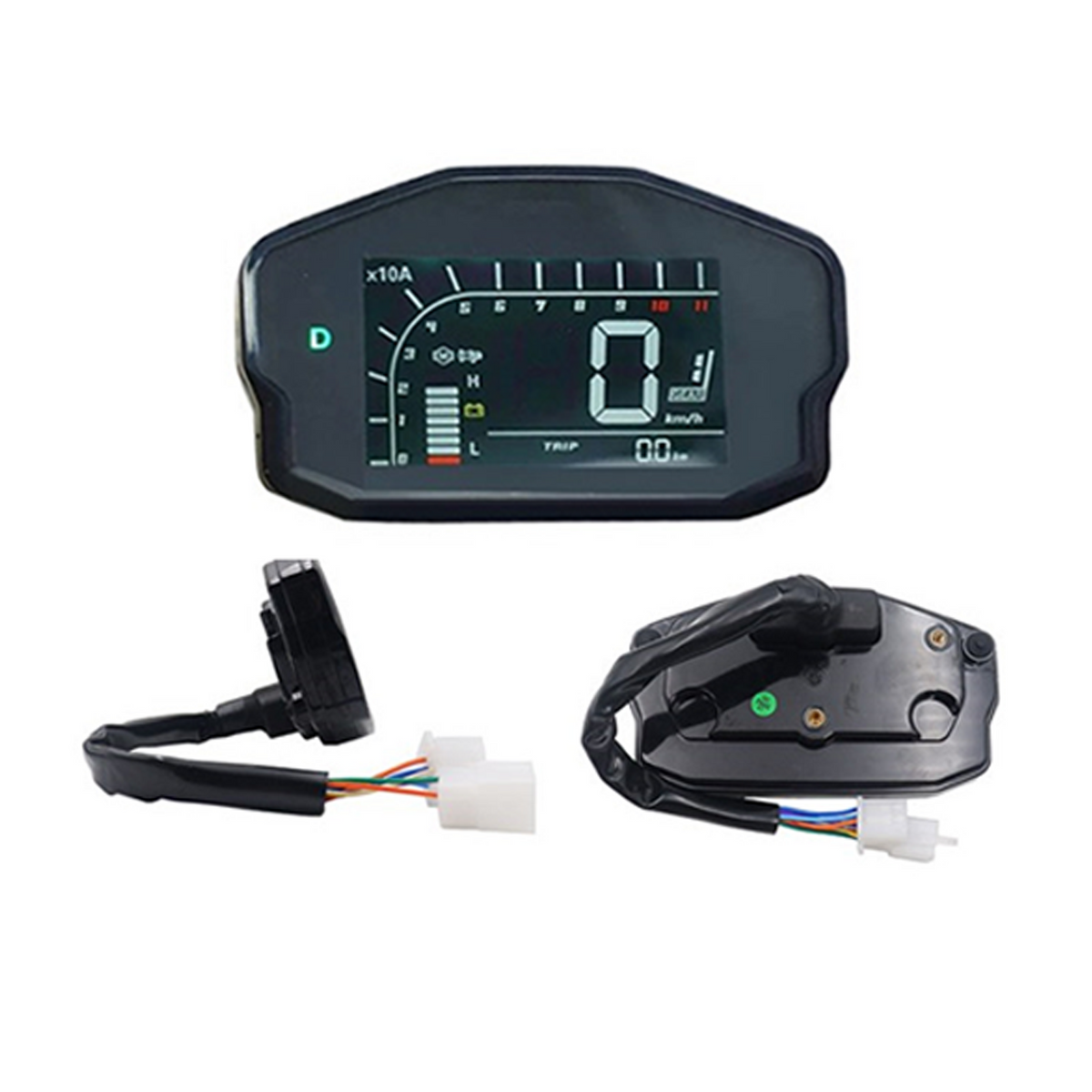

3. DKD Display

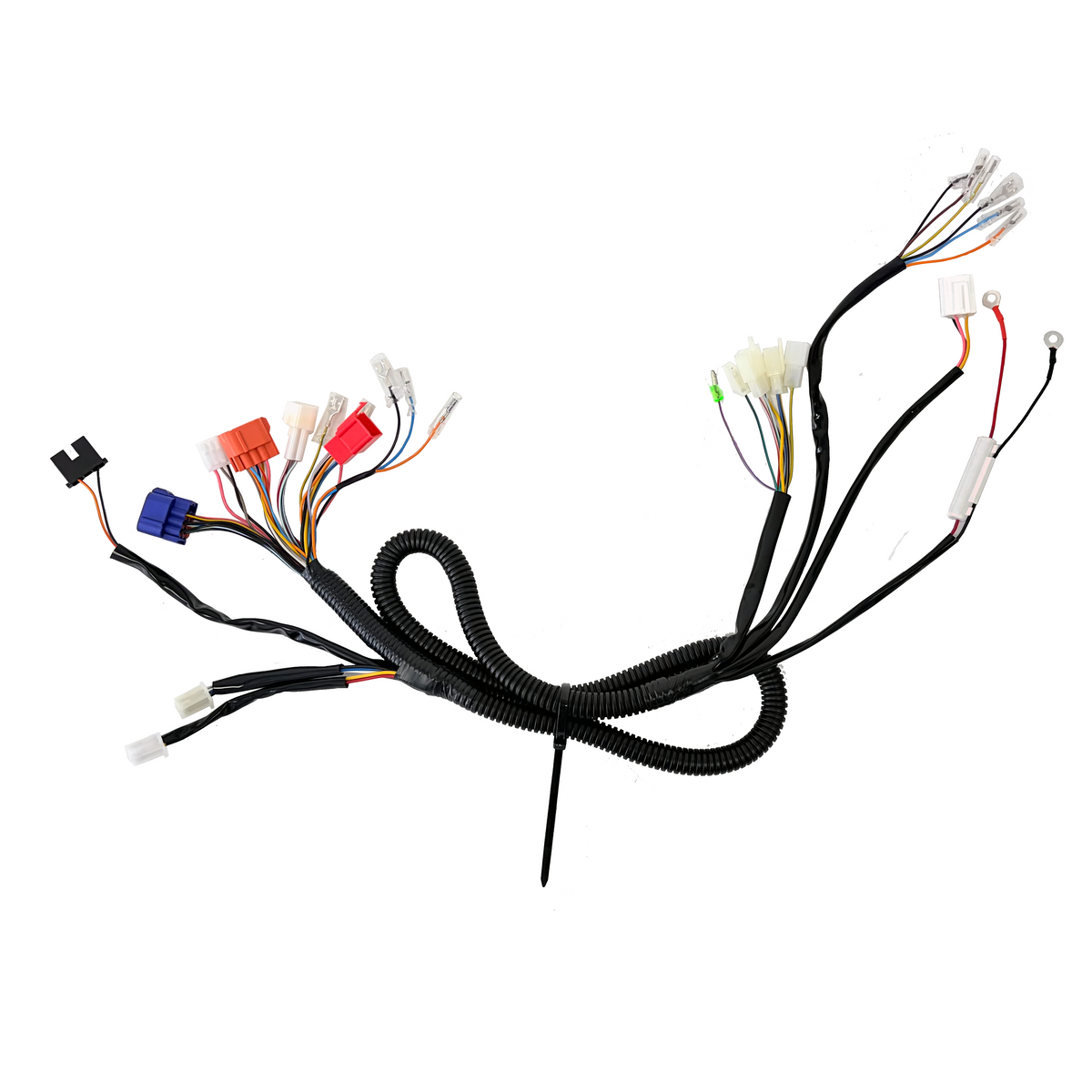

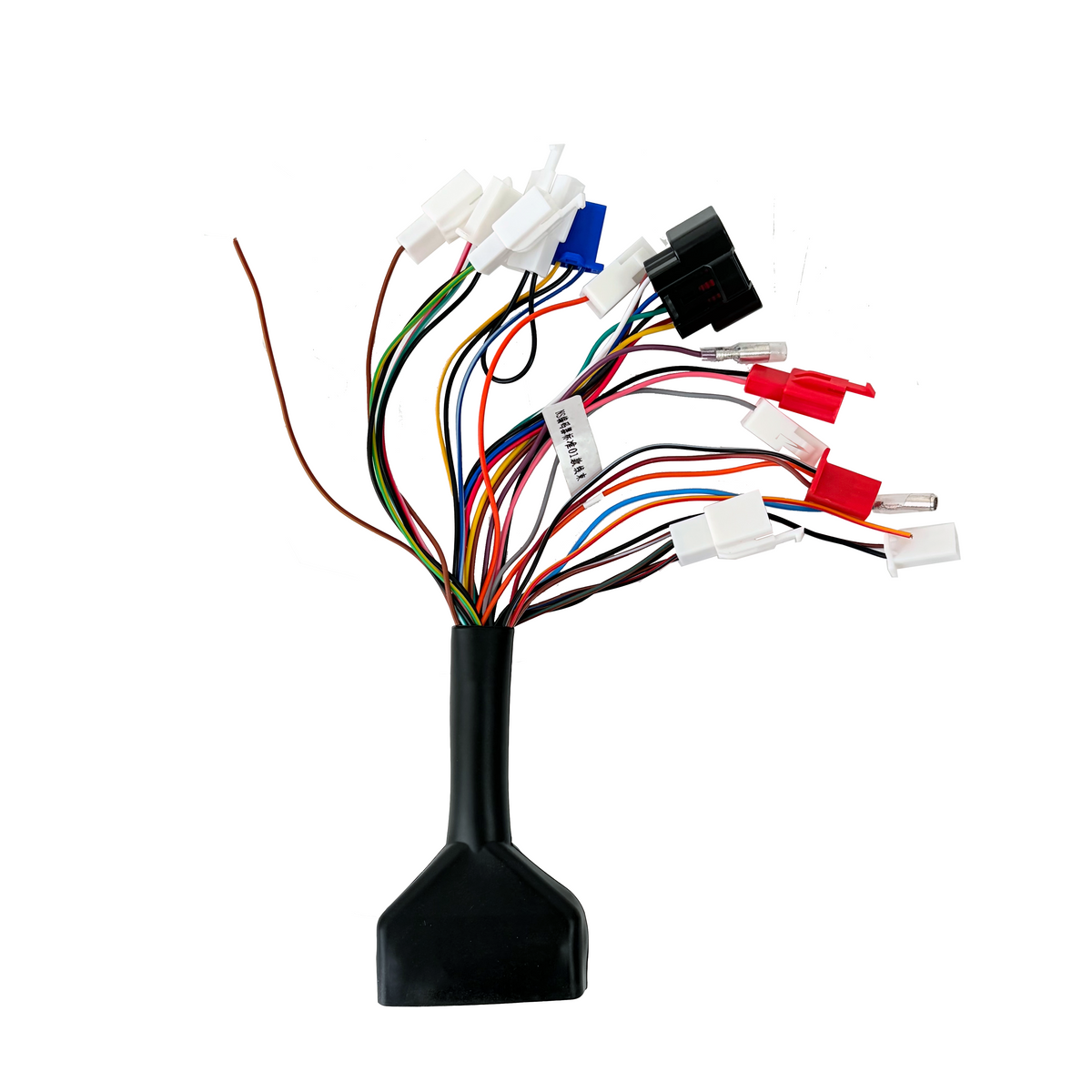

4. Main Connection Harness

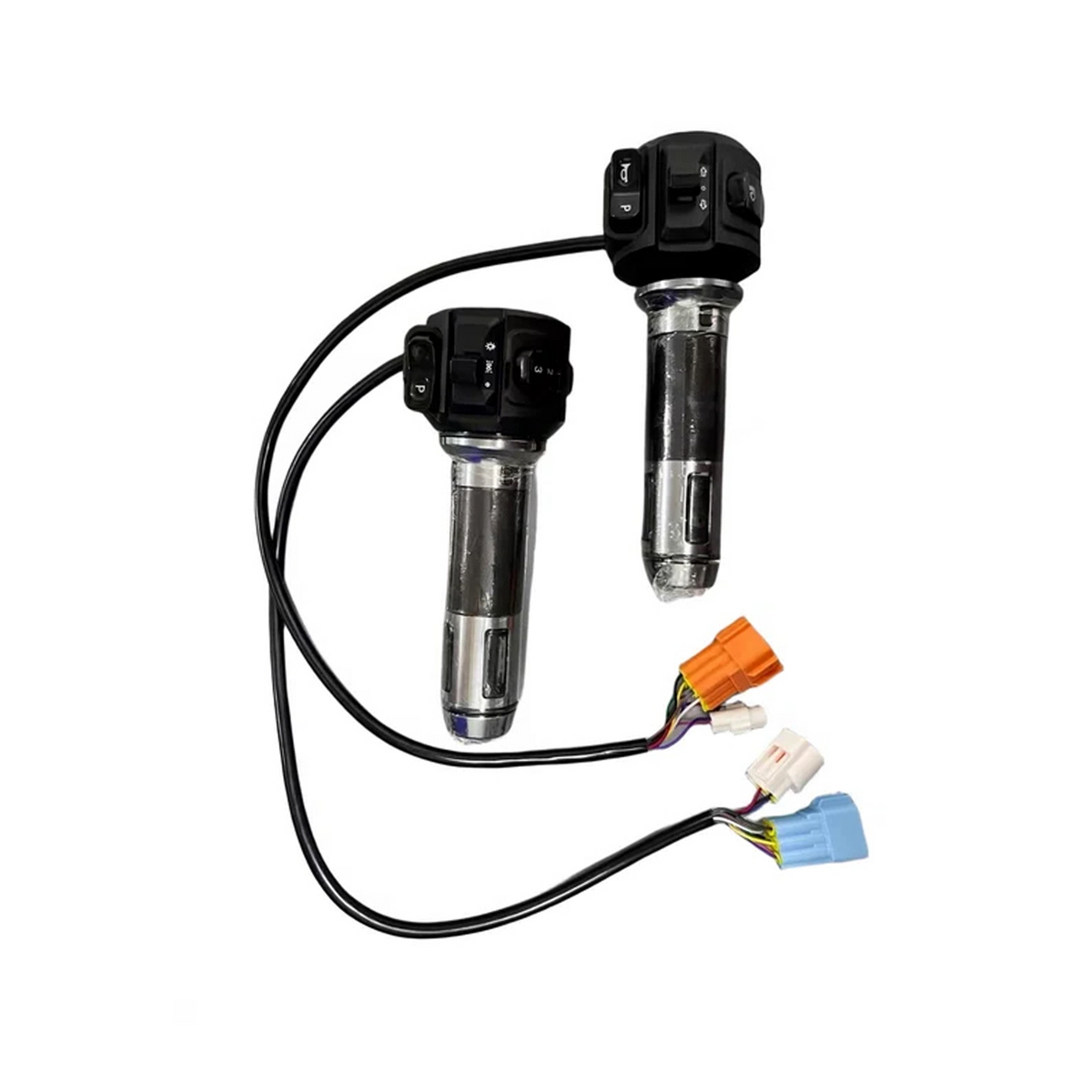

5. Multifunctional Motorcycle‑Style Throttle
6. Electric Key Lock
7. Flasher
8. Horn
DETAILED SPECIFICATIONS

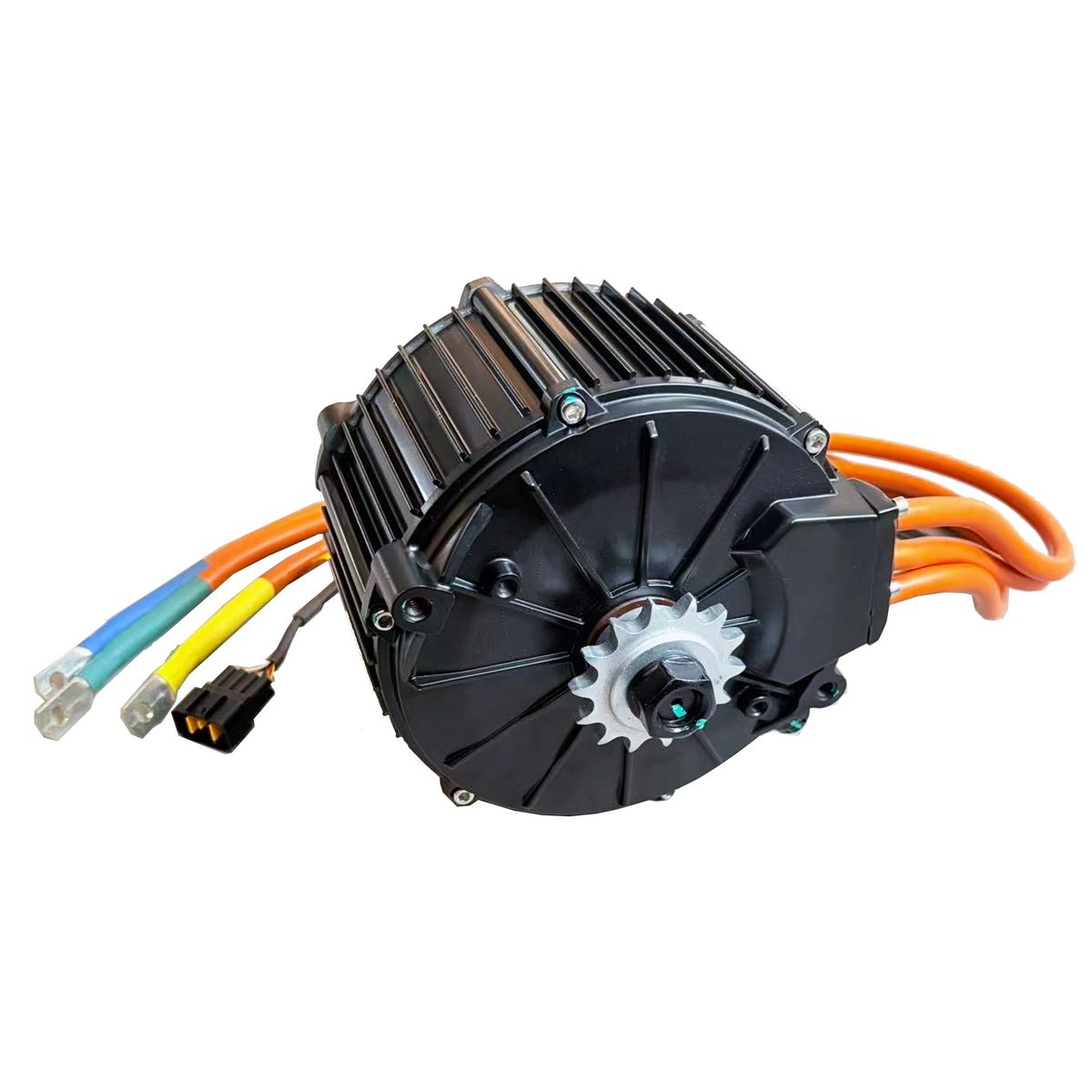

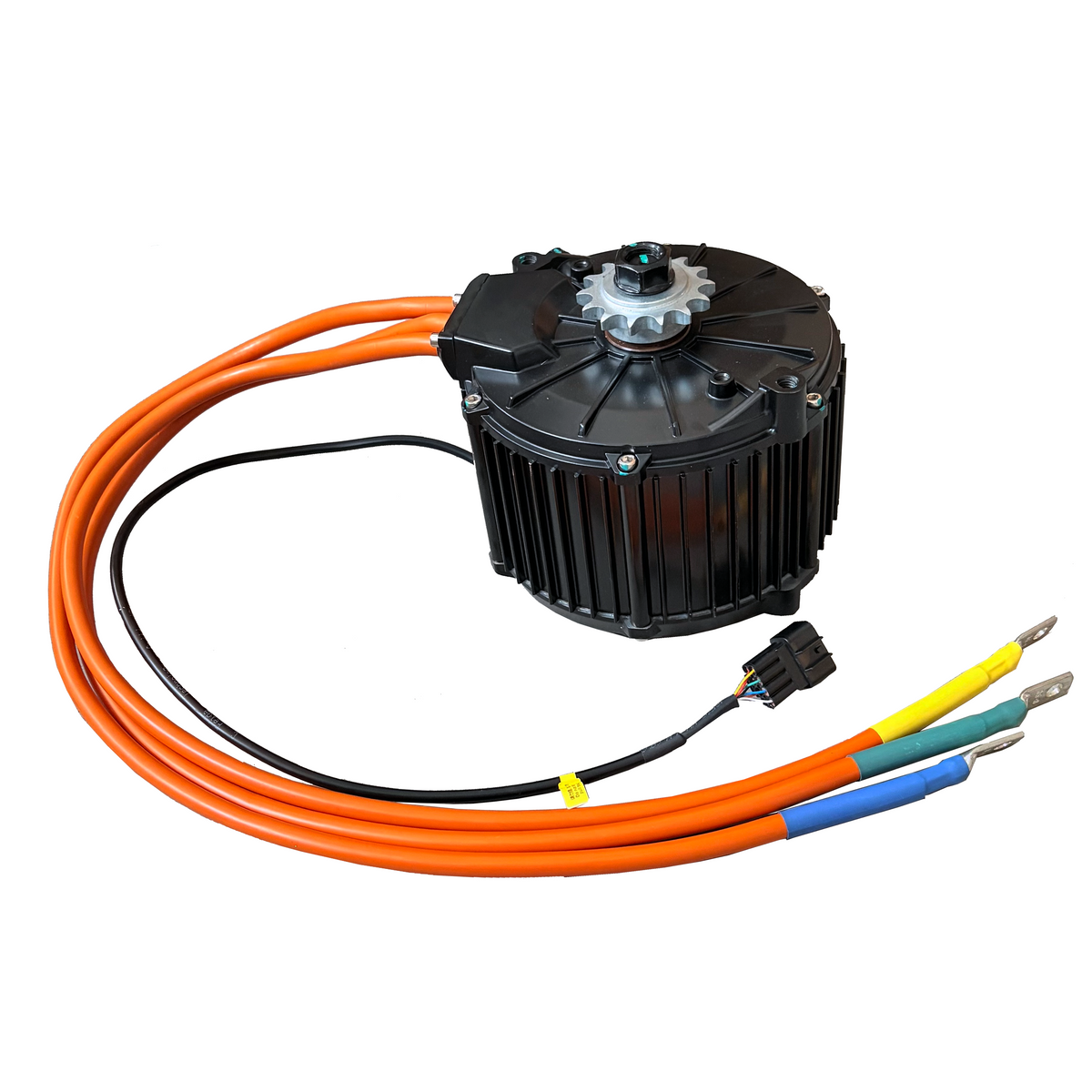

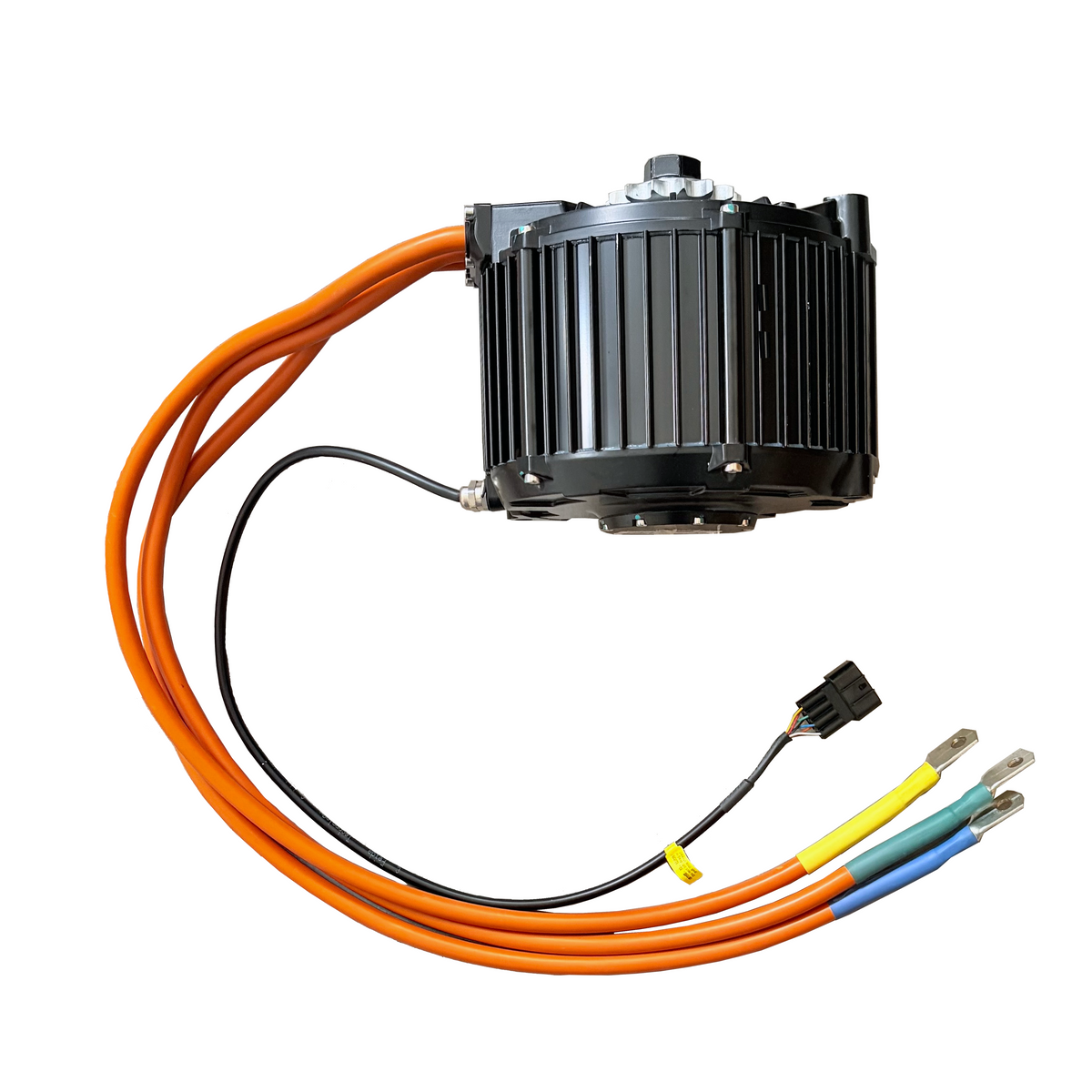

QS165 72V 50H 10000W Mid Drive Motor
| Parameter | Specification |
|---|---|
| Model | QS165 50H |
| Power Output | 10000W |
| Voltage | 72V |
| Motor Type | PMSM (Permanent Magnet Synchronous Motor) |
| Weight | 11.7kg |
| Mounting Type | Mid-Drive System |
| Feedback Systems | Encoder (50H Technology) |

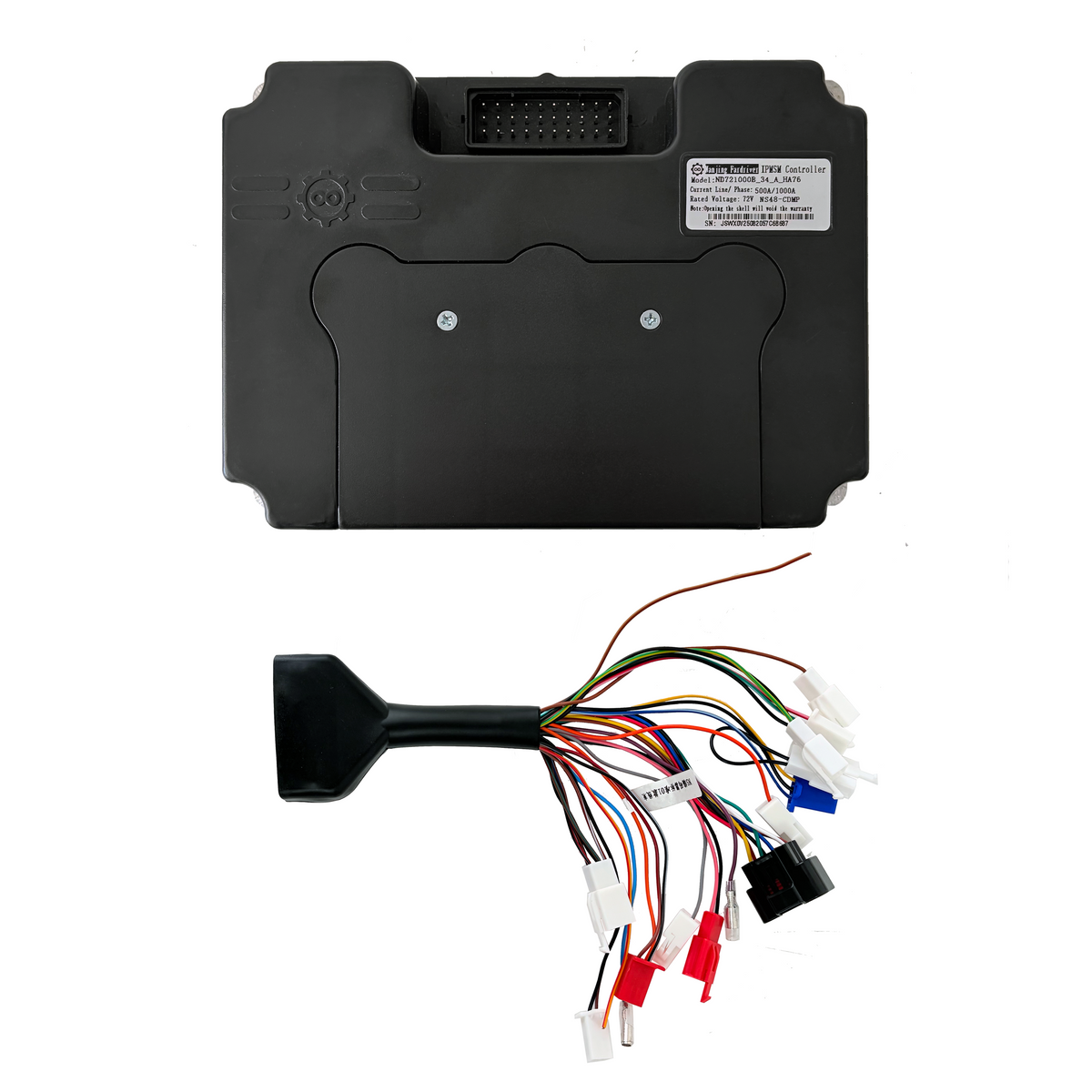

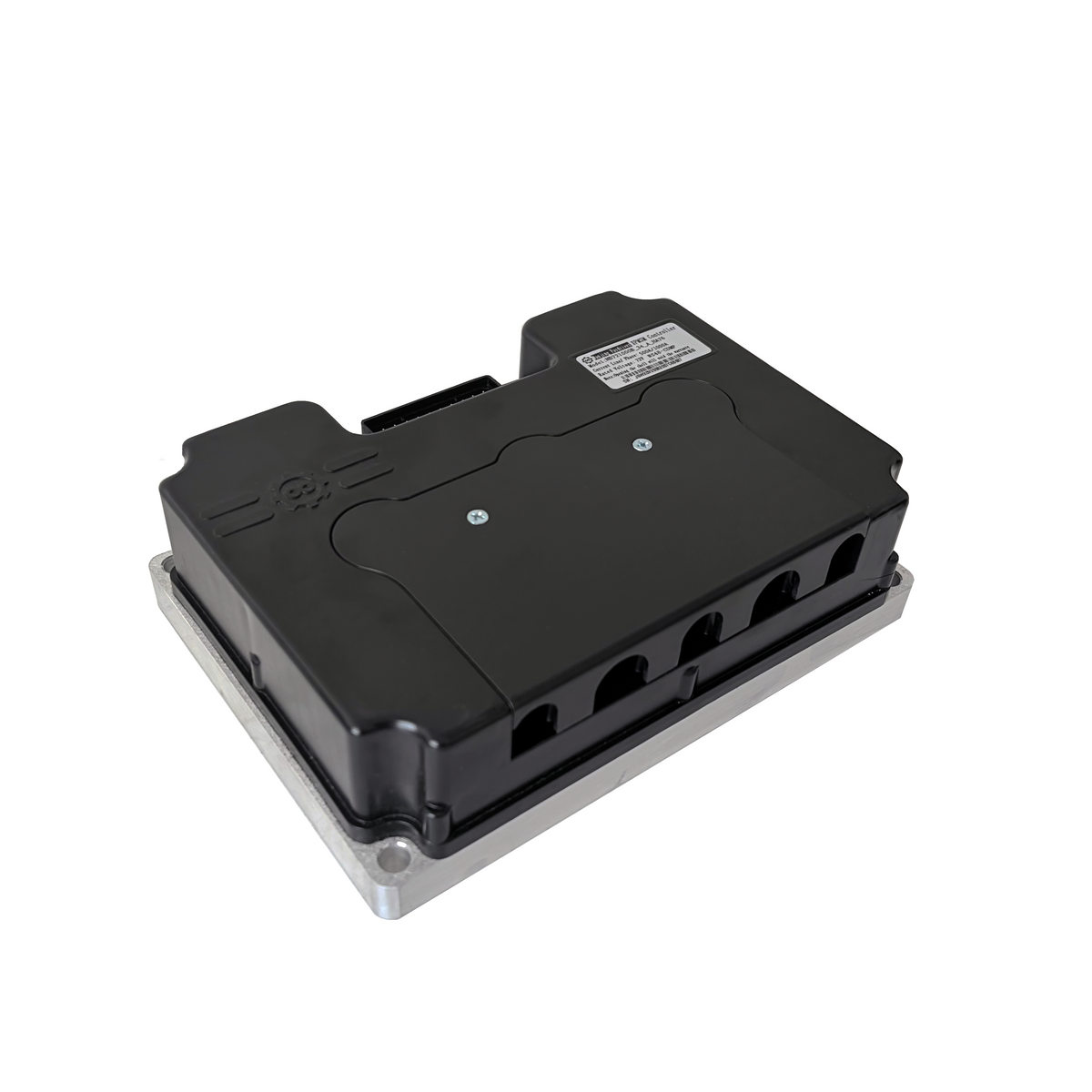

ND721000B
1.Model: Fardriver Controller ND721000B
2.Working Communication: Encoder Vision
3.Available Rated Battery Voltage: 48V/52V/60V/72V
4.Peak Battery Voltage: 88V
5.Available Motor Power: 8000W
6.Defaut Throttle Working Voltage: 0V - 5V
7.Peak DC Current: 500A
8.Peak Phase Current: 1000A
9.Mosfets Detail: 48 FET
10.Weight: 3kgs
11.Instaliing Size: 189mm * 136mm * 55mm
12.Controller Design: Sine Wave BLDC
13.Case Material: Aluminum
14.SupportProgrammable: PC & Phone
