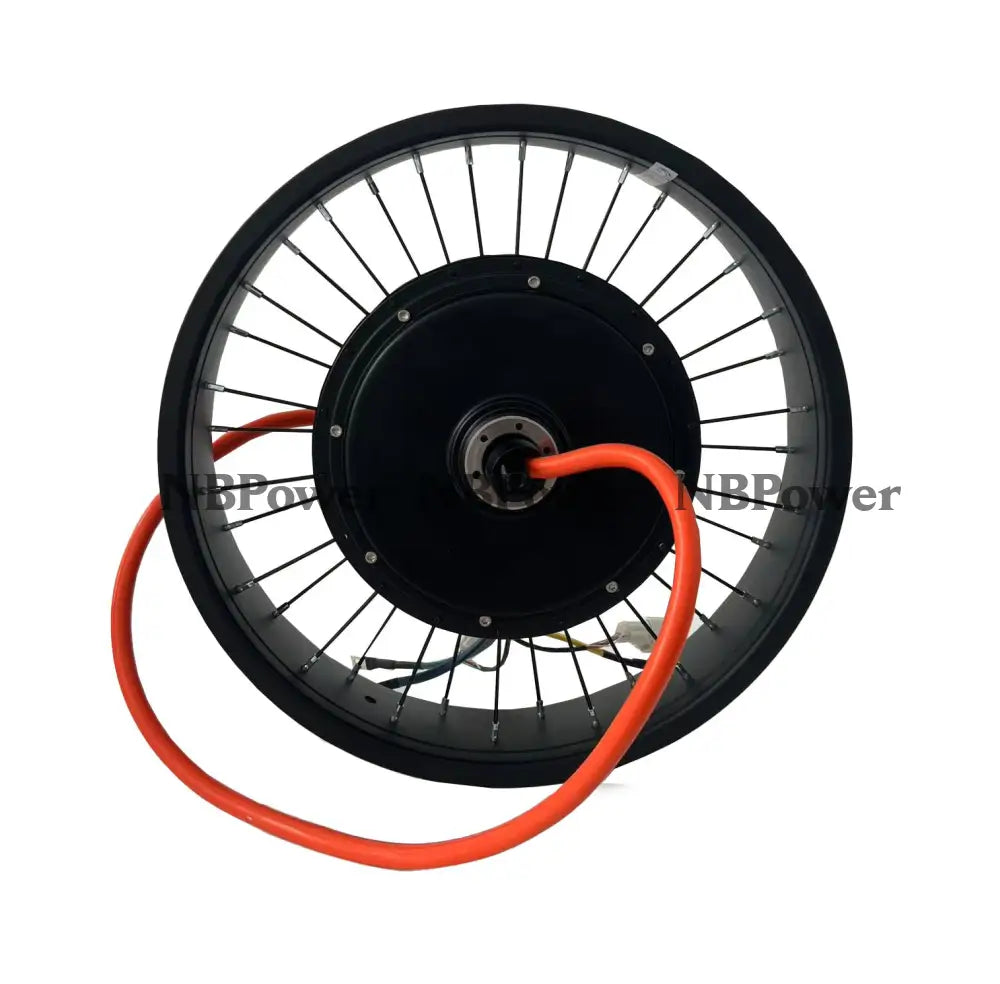

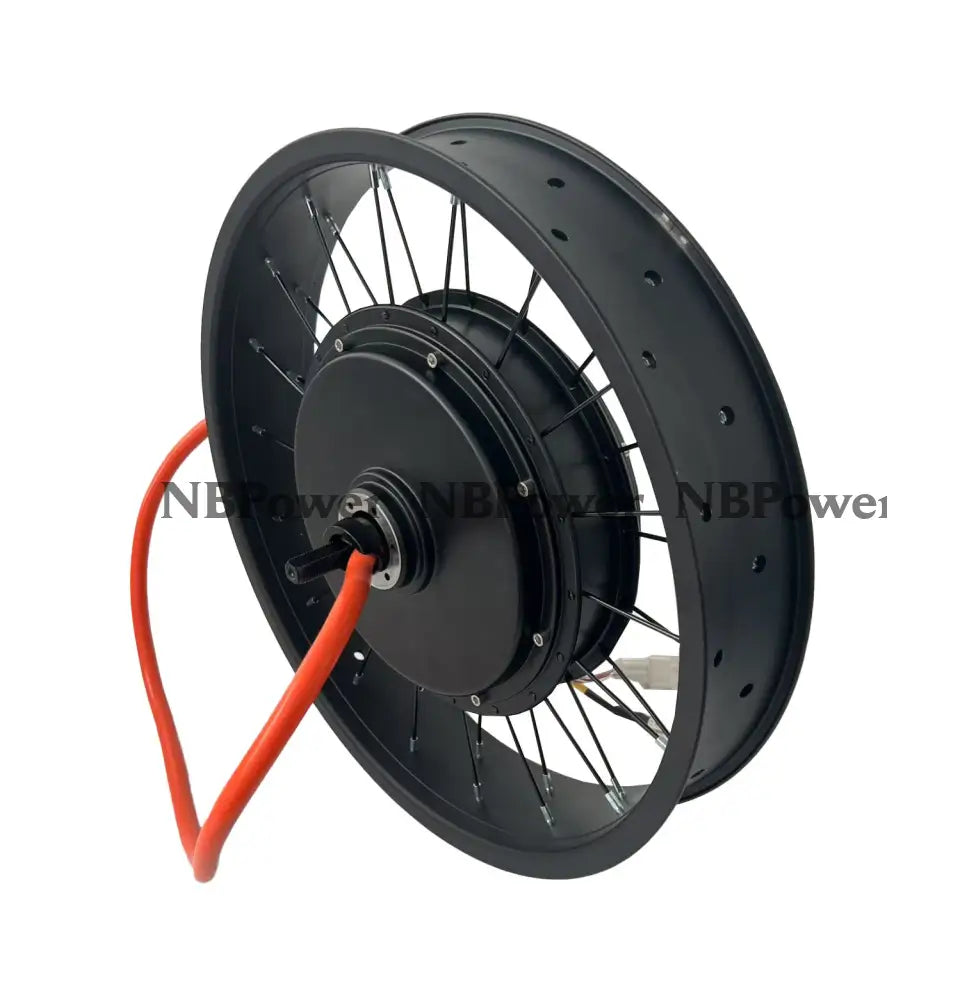

USA Warehouse: 20*4.0 Fat Rim QS 205 Rear 150mm Dropout 100mm Rim Width 3.5T High Speed 5000W Motorwheel With Single Freewheel

USA Warehouse: 20*4.0 Fat Rim QS 205 Rear 150mm Dropout 100mm Rim Width 3.5T High Speed 5000W Motorwheel With Single Freewheel

$498.00 USD
$498.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Winding

QS205 150mm Dropout 5000W Motor

1. Motor Type: BLDC In-Wheel Hub Motor
2. Motor Design: Double Axle with Rim
3. Matched Tire: 20*4.0
4. PCD: 6*44mm
5. Stator: Aluminum Core
6. Rated Power: 5000W
7. Peak Power: 10000W in few seconds
8. Rated Voltage: 72V
9. Speed:3.5T: 840RPM
10. Drop-outs: 150mm
11. Max Torque:3.5T: 180N.M
12. Max Efficiency: approx 91%
13. Suggest Peak Phase Current: N/A
14. Thermic Probe: KTY83/122(as default)
15. Working Temperature: 70-120℃, peak 150℃
16. Brake Type: Disc Brake
17. Hall Sensor: Dual hall set with waterproof connector
18. Phase Wire:2*5mm²Cross
19. Hall Sensor Phasing Angle: 120 degree
20. Waterproof Grade: IP65
