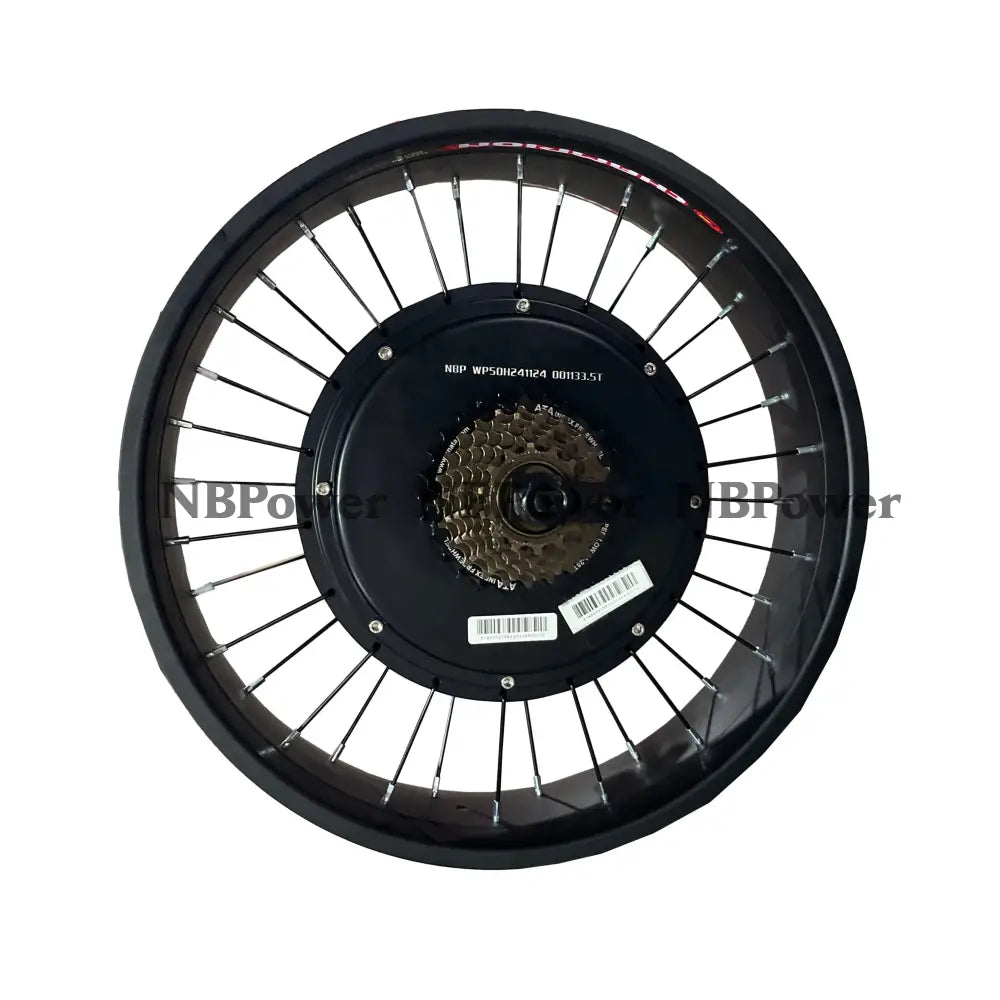

USA Warehouse: QS205 20x4.0 50H 190mm Dropout 100mm Rim Width 3.5T 72V 5000W Fat Bike Brushless Hub Motor Wheel With 7-Speed Freewheel for Electric Bicycle Fat Ebike

Free Shipping

20x4.0 QS205 50H 190mm dropout 3.5T 72V 5000w Fat Bike Brushless Hub Motor Wheel for Electric Bicycle Fat Ebike

1. Motor Type: BLDC In-Wheel Hub Motor
2. Motor Design: Double Axle with Rim
3. Matched Tire: 20*4.0
4. PCD: 6*44mm
5. Stator: Aluminum Core
6. Rated Power: 5000W
7. Peak Power: 10000W in few seconds
8. Rated Voltage: 72V
9. Speed:  3.5T: 840RPM
10. Dropouts: 190mm
11. Max Torque:3.5T: 180N.M
12. Max Efficiency: approx 91%
13. Suggest Peak Phase Current: N/A
14. Thermic Probe: KTY83/122(as default)
15. Working Temperature: 70-120℃, peak 150℃
16. Brake Type: Disc Brake
17. Hall Sensor: Dual hall set with waterproof connector
18. Phase Wire:2*5mm²Cross
19. Hall Sensor Phasing Angle: 120 degree
20. Waterproof Grade: IP65
