135mm dropout 3000W Motorwheel with single freewheel ; MTX rim with Rear 3000W Ebike kit with 80A dual mode controller ,UKC1 color display ,alarm lock ebike parts
Complete 3000W E-bike Conversion Kit - Professional Grade
Transform your mountain bike into a high-performance electric bike with this complete professional conversion kit!

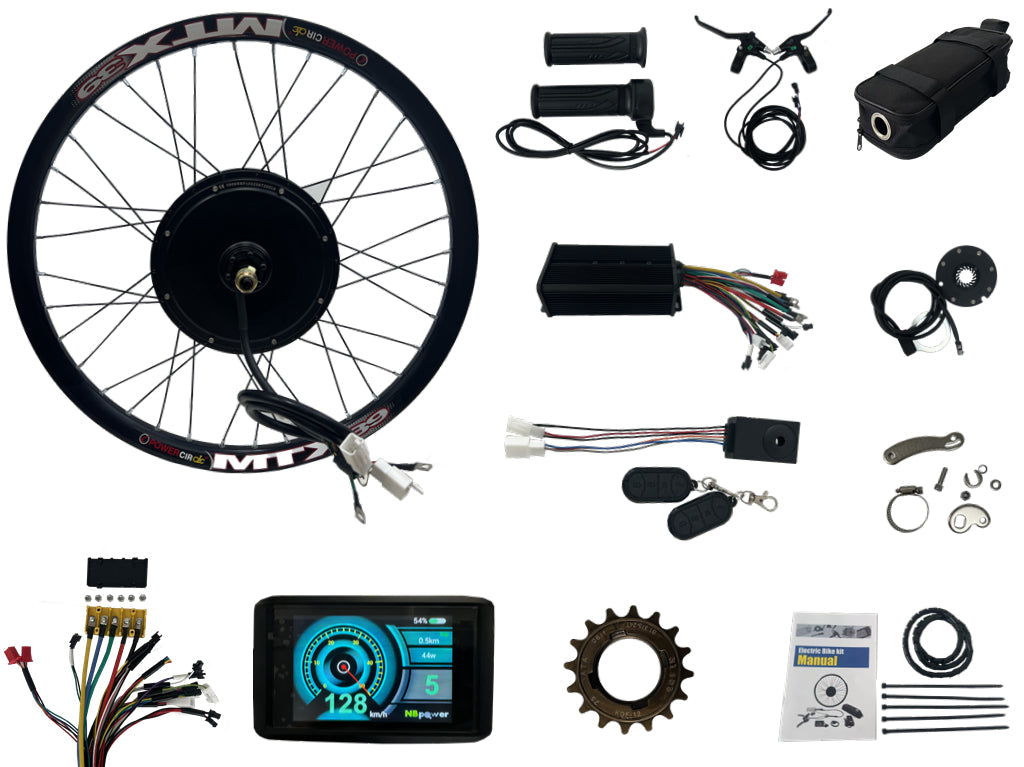

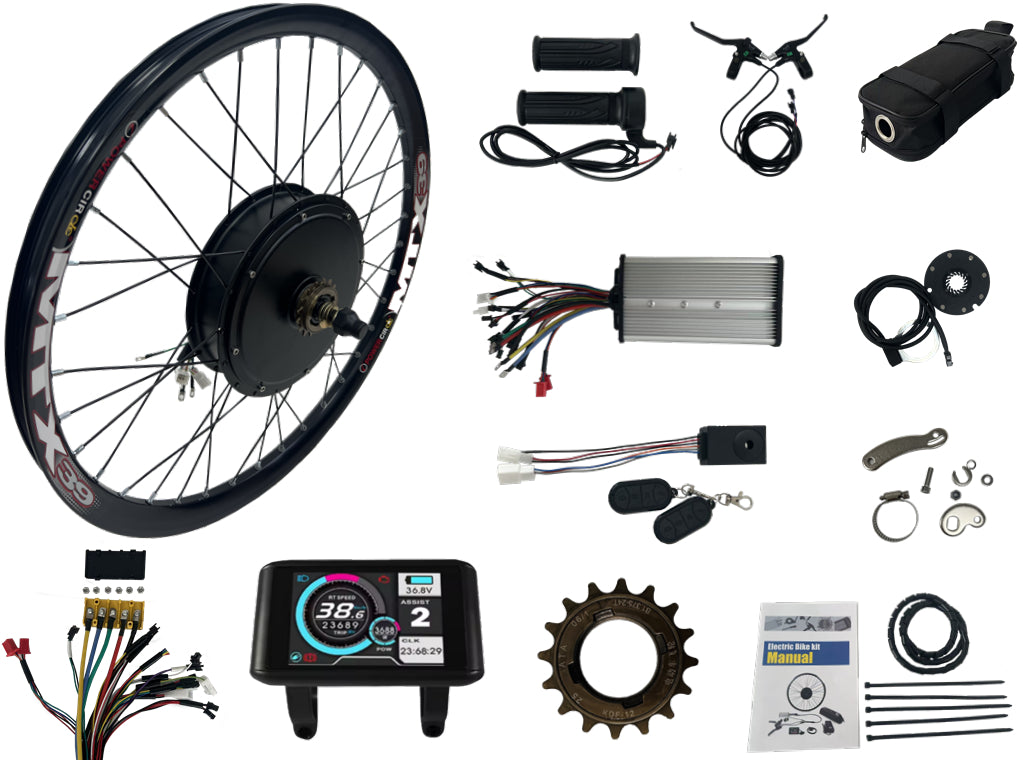

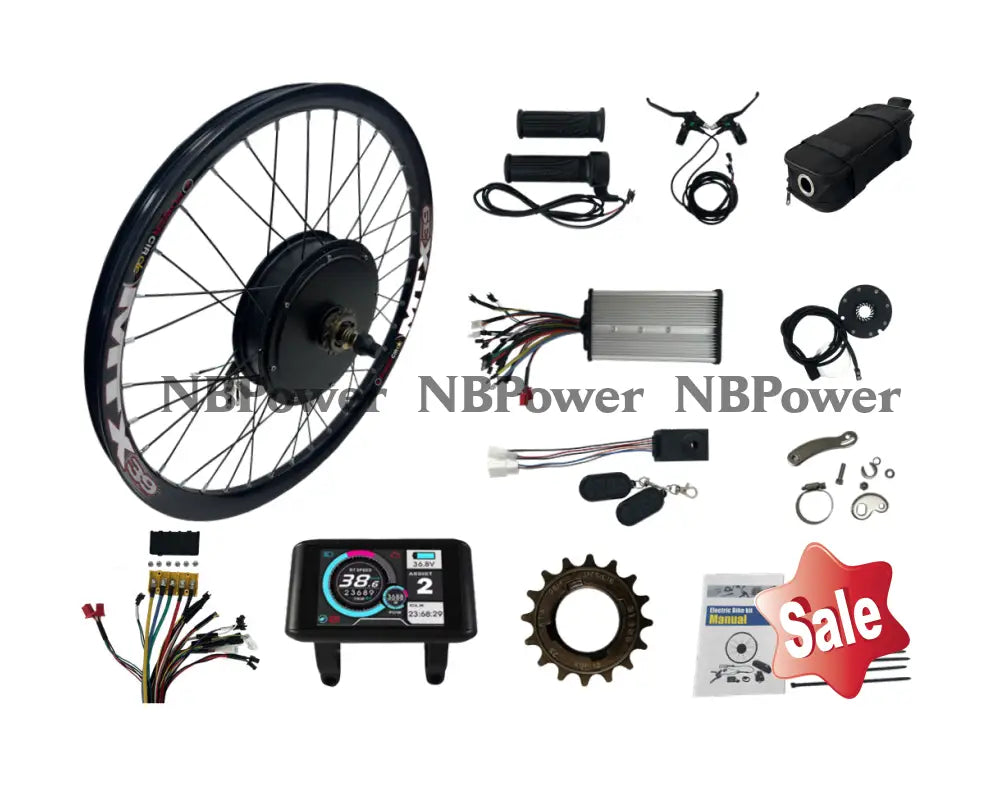

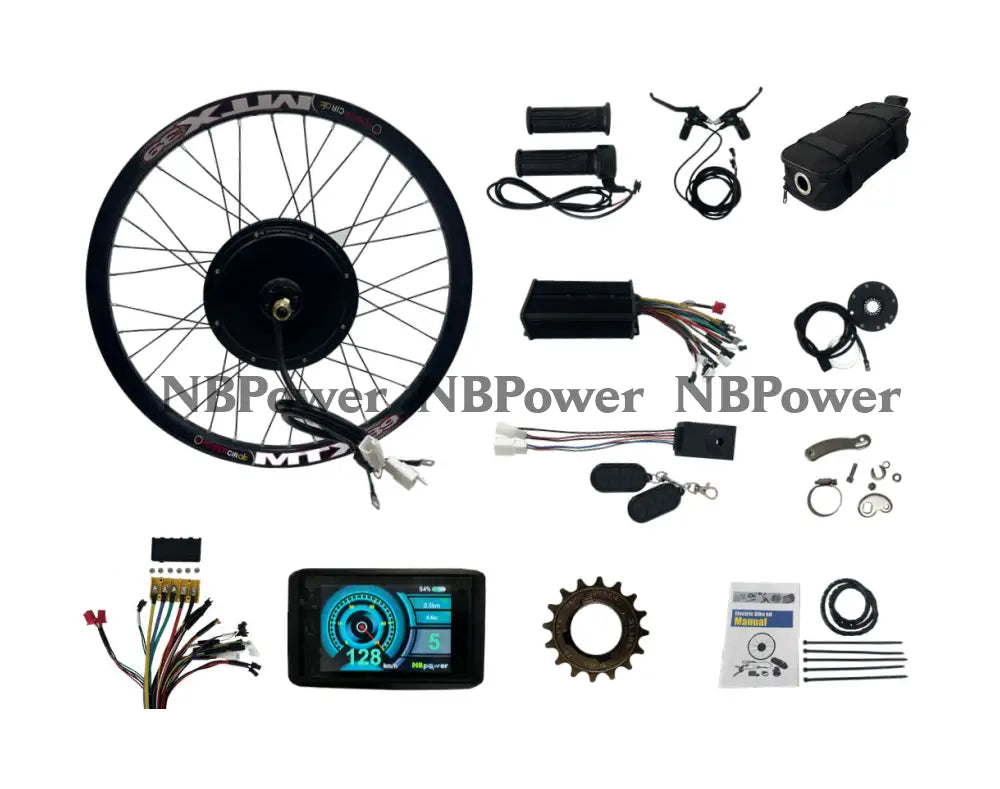

Complete Kit Includes:

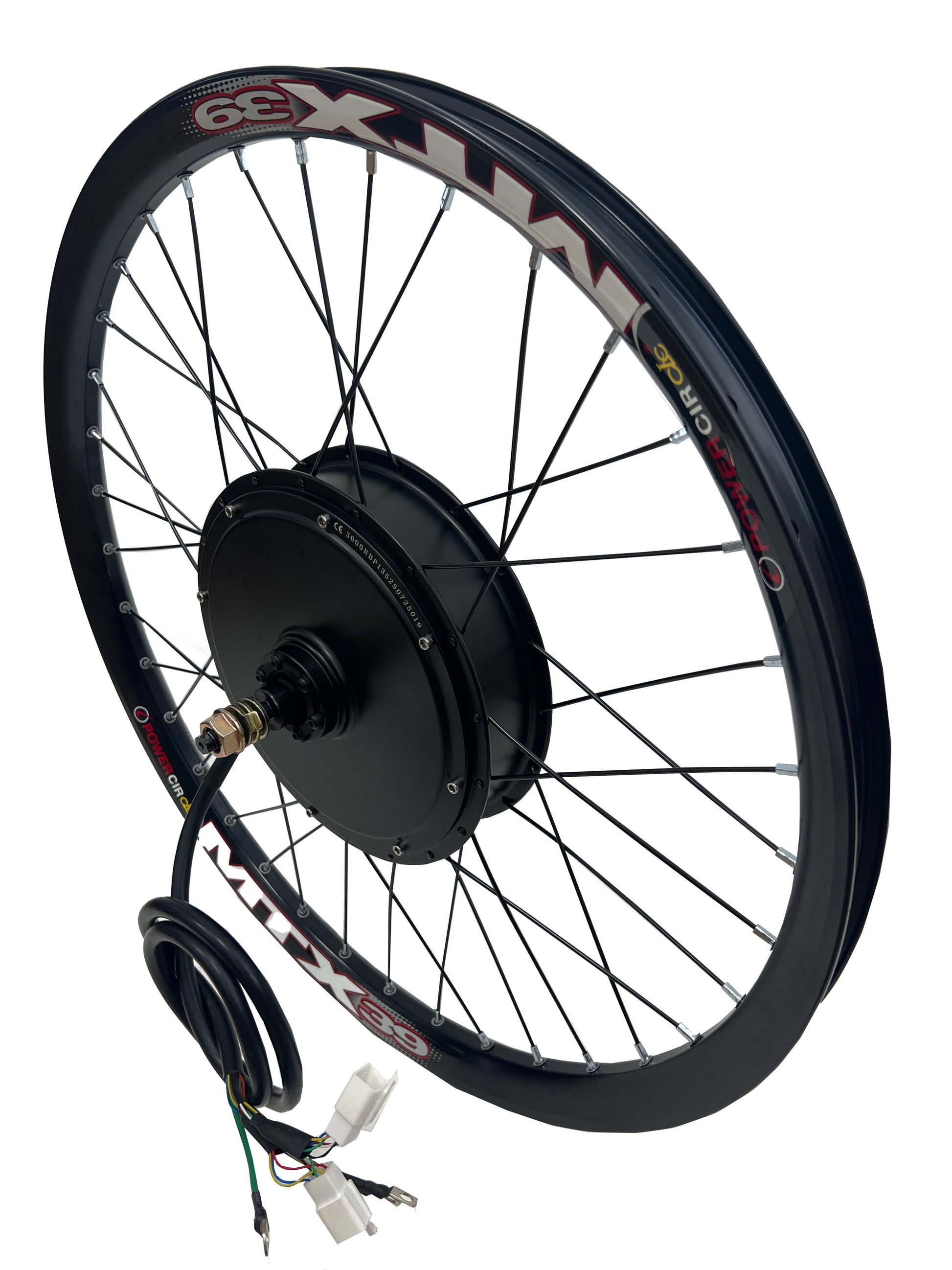

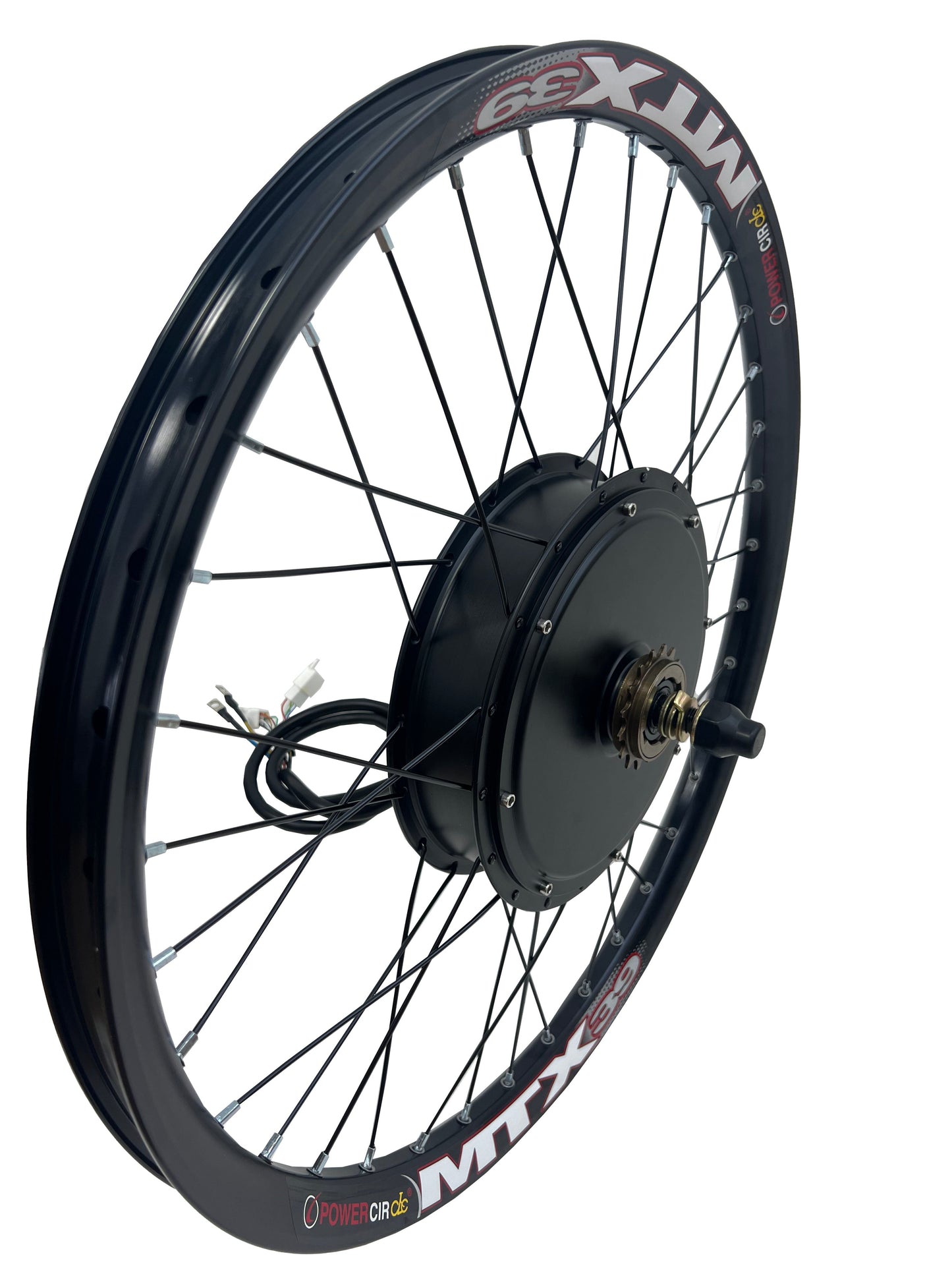

3000W Hub Motor: High-performance BLDC motor with 135mm dropout spacing

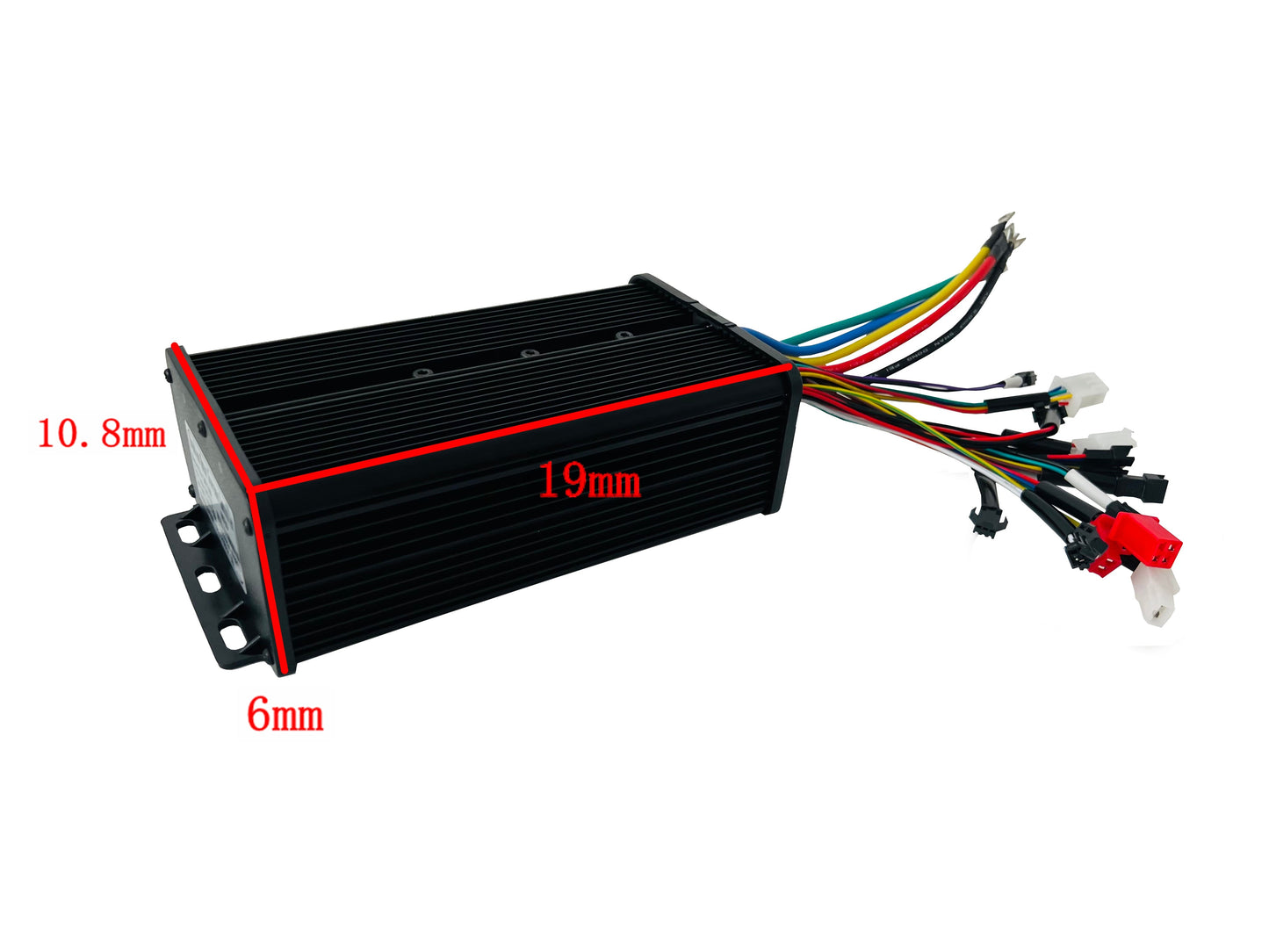

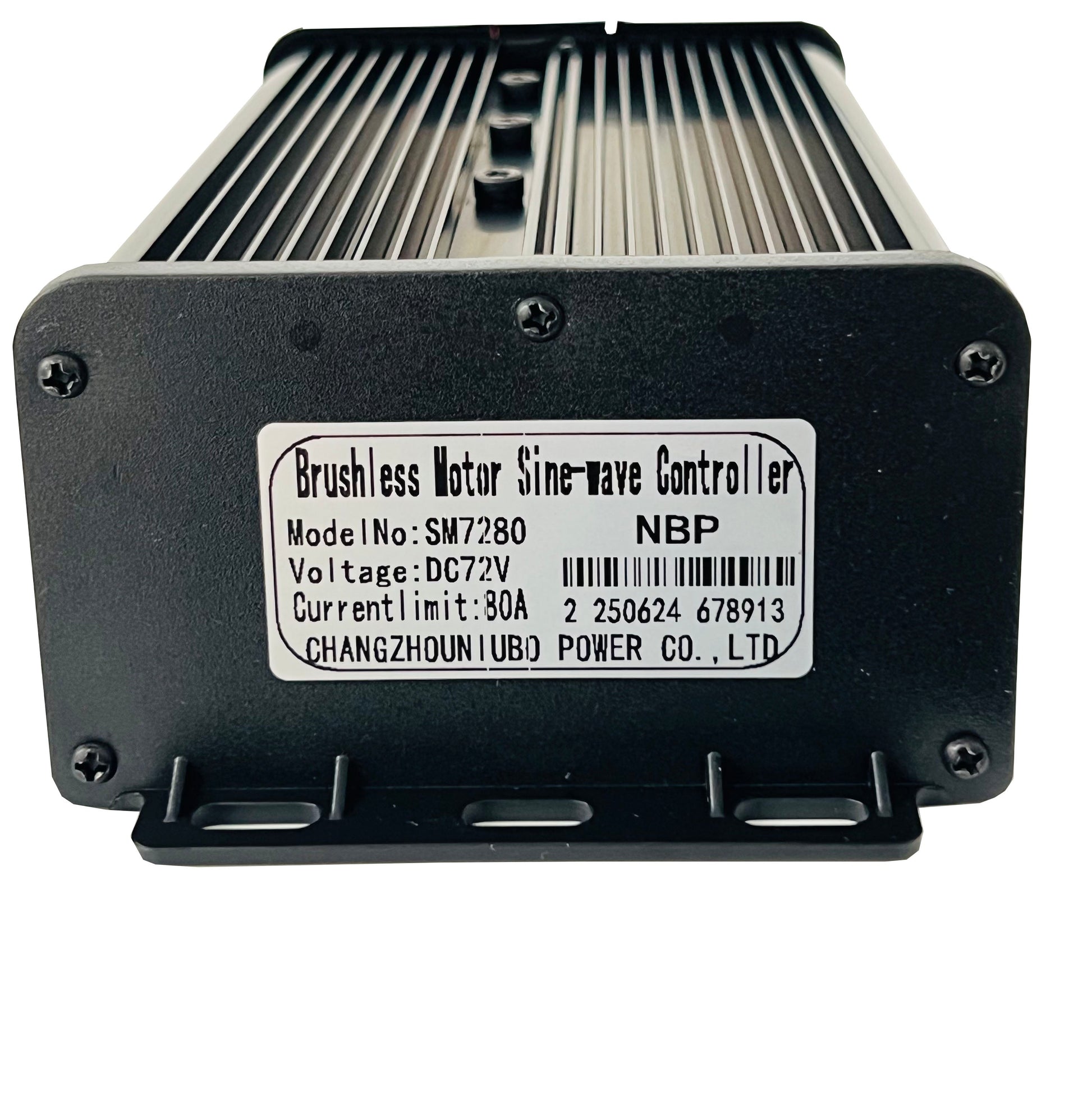

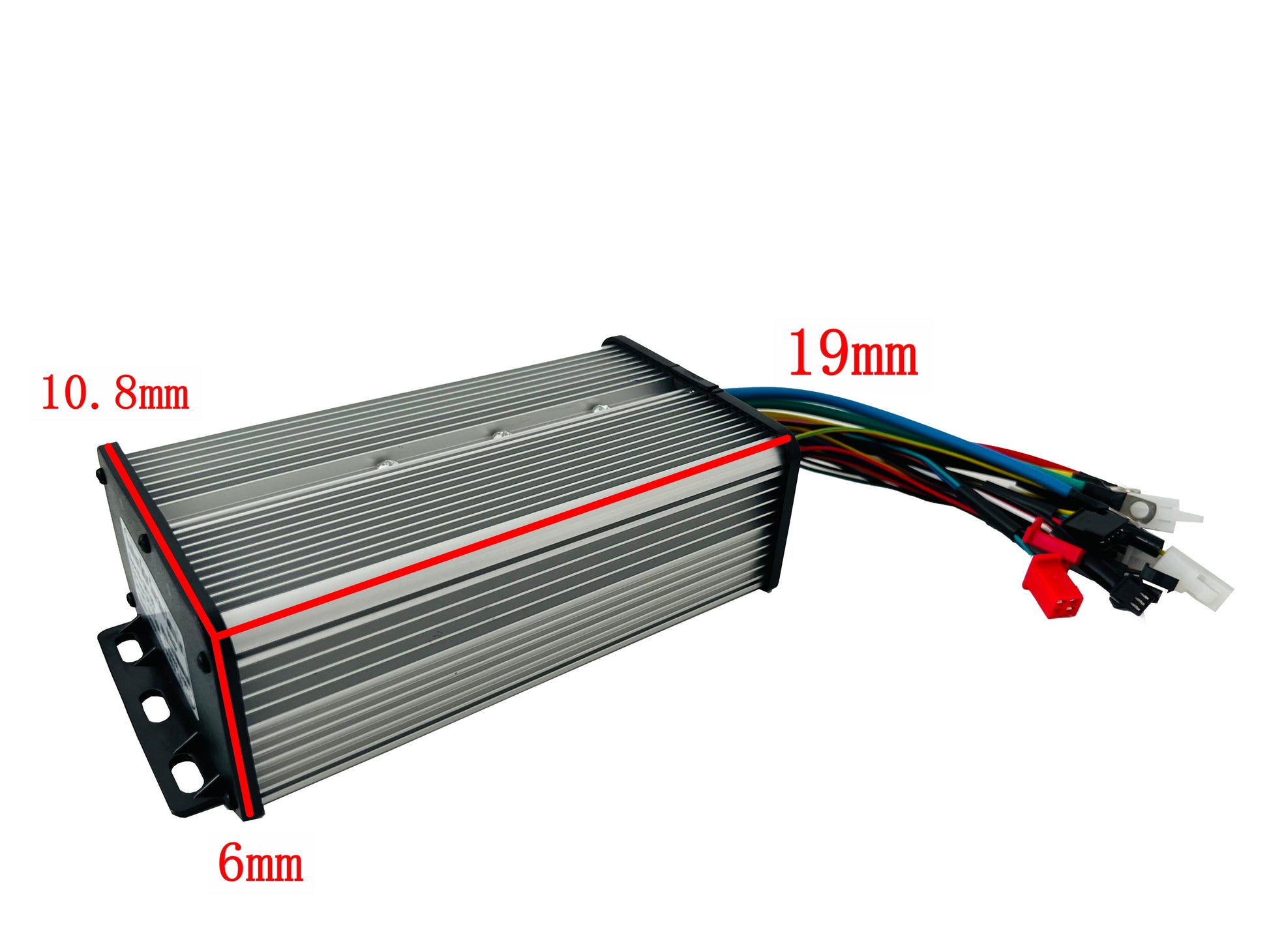

80A Dual Mode Controller: Advanced sine wave controller for smooth power delivery

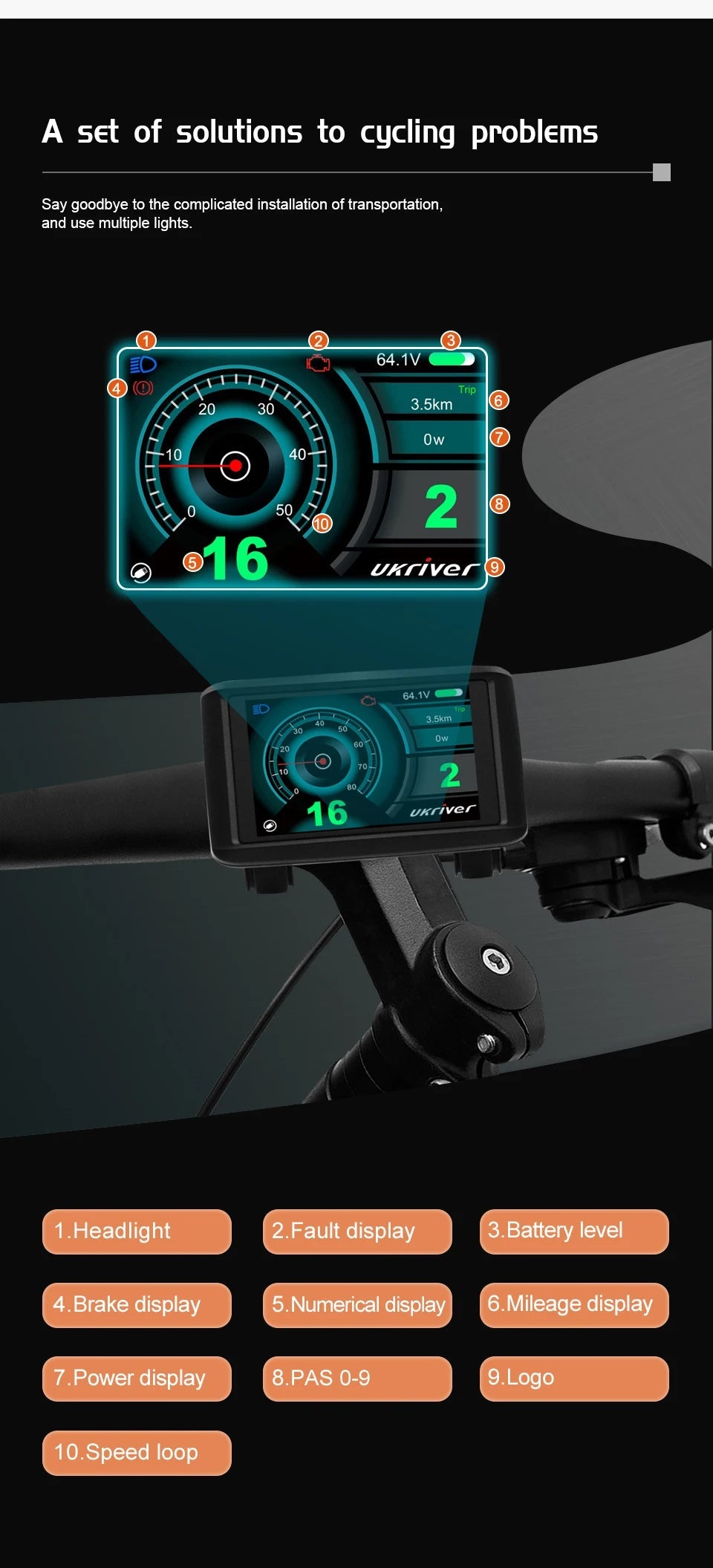

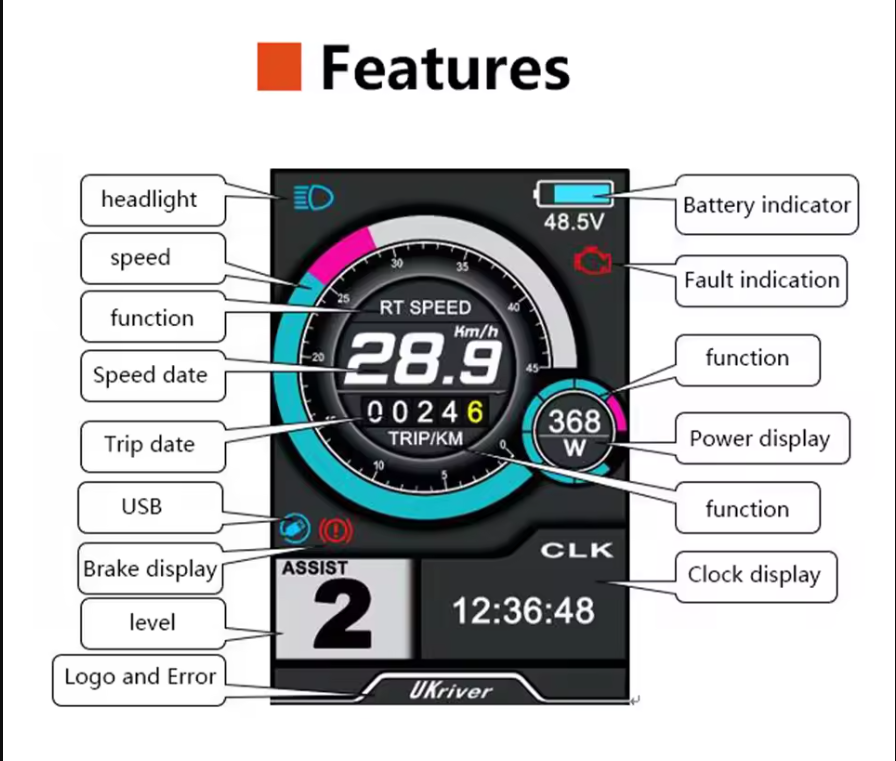

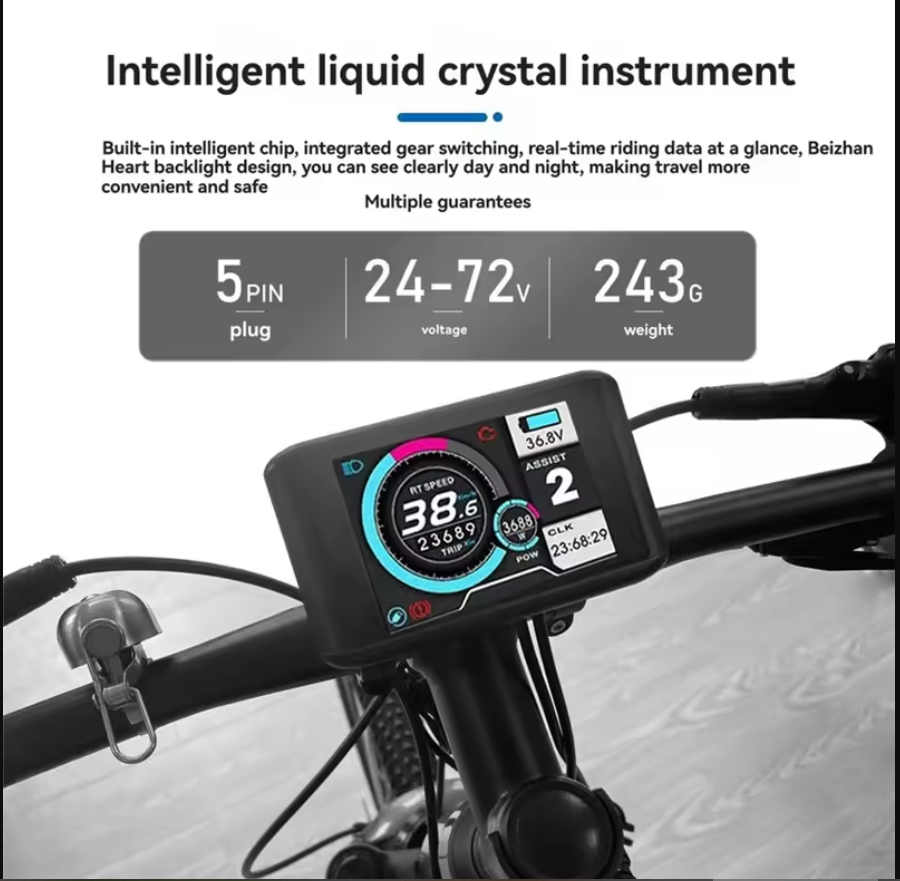

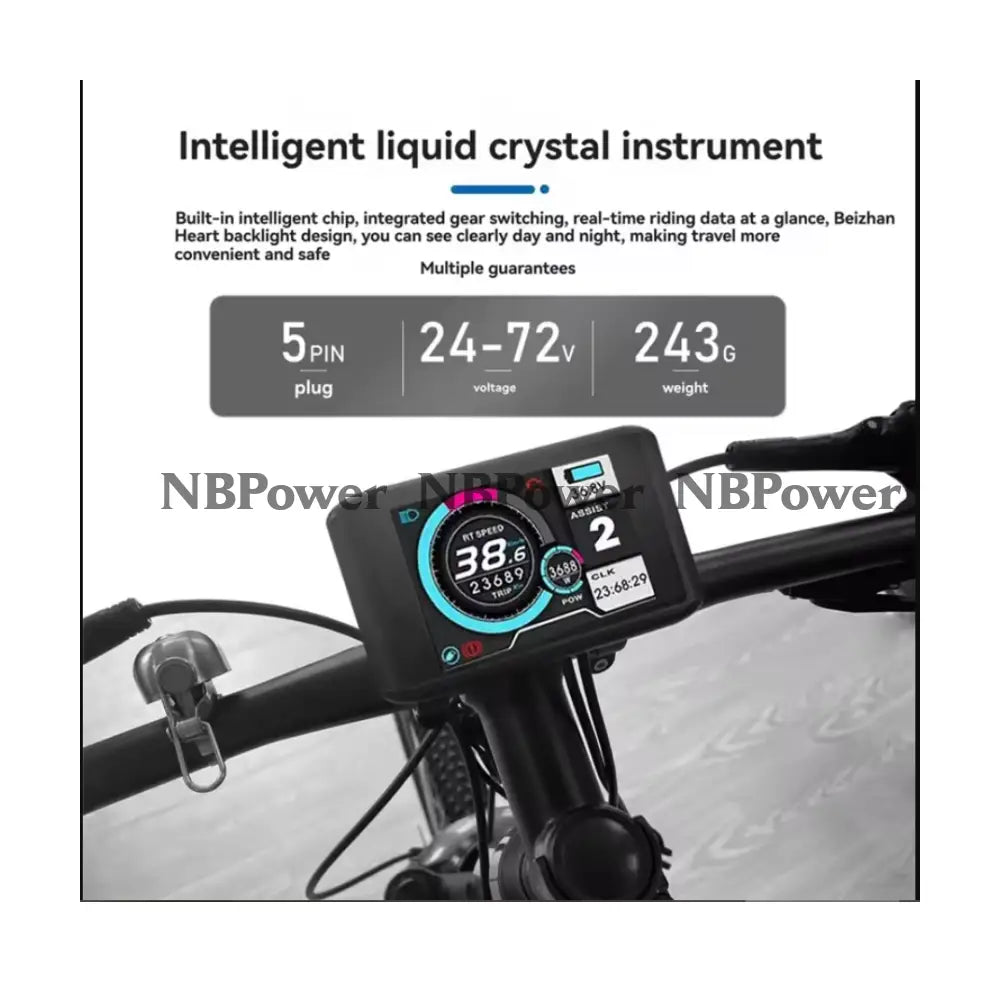

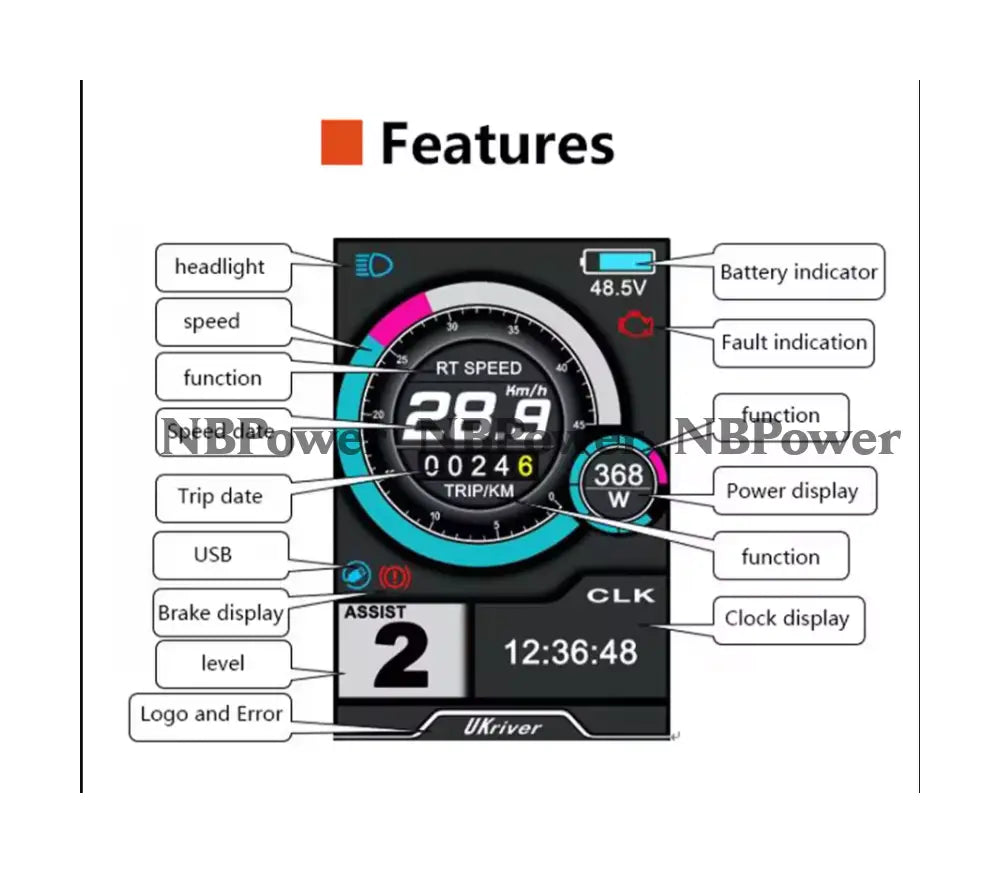

UKC1 Color Display: Professional LCD display with speed, battery, and trip data
Alarm Lock System: Built-in anti-theft security with remote control
MTX Rim & Spokes: Durable rim compatible with multiple wheel sizes
Single Freewheel: Smooth pedal-assist and regenerative braking
Complete Wiring Harness: All cables and connectors included
Motor Specifications:
Rated Power: 3000W (Peak: 6000W)
Voltage: 72V rated (48V compatible)
Speed: Up to 90km/h (72V) / 70km/h (48V)
Torque: 100N.M maximum
Efficiency: 88% maximum
Dropout: 135mm rear fork width
Waterproof: IP54 rating
Total Weight: 23kg complete kit

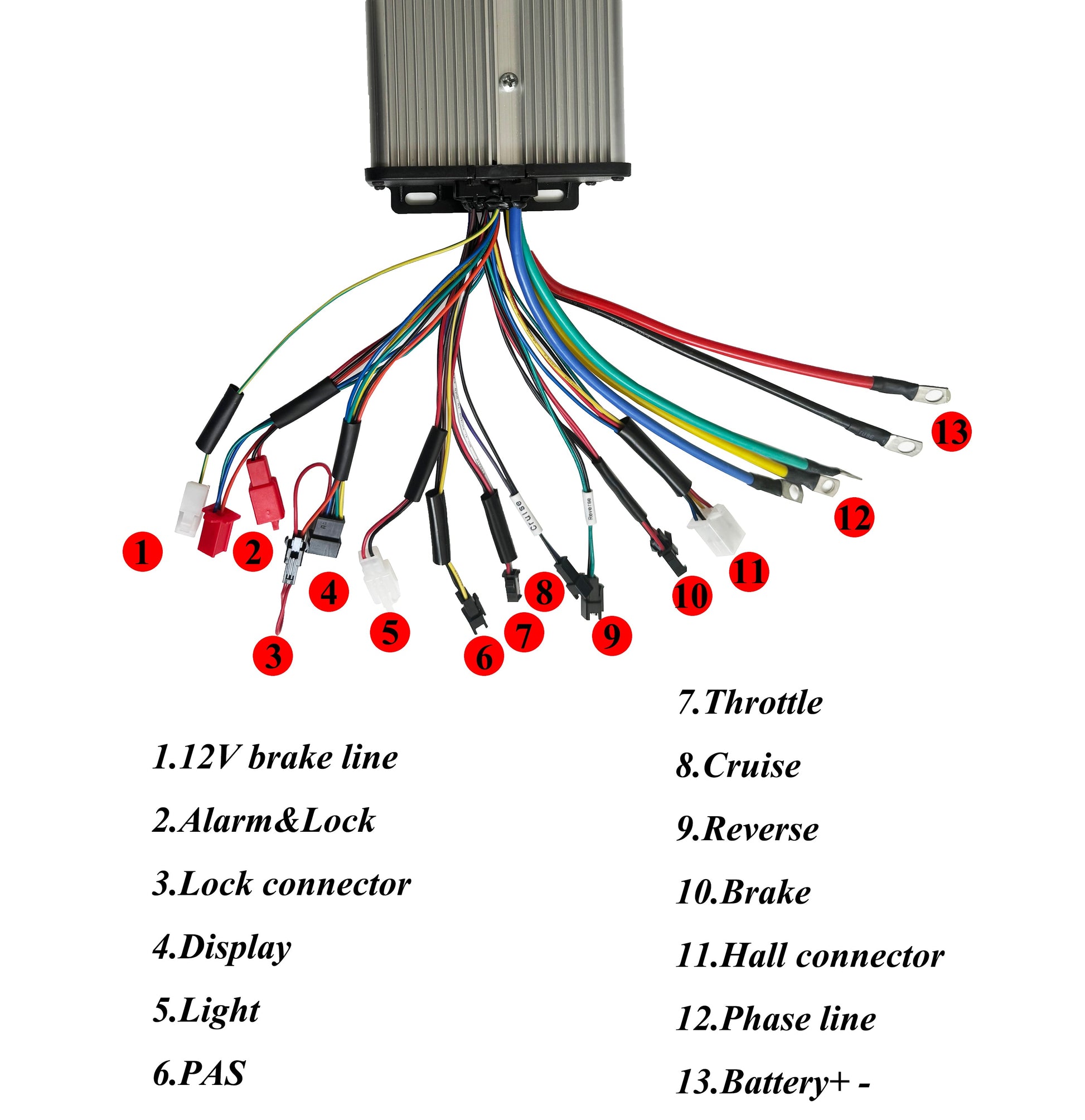

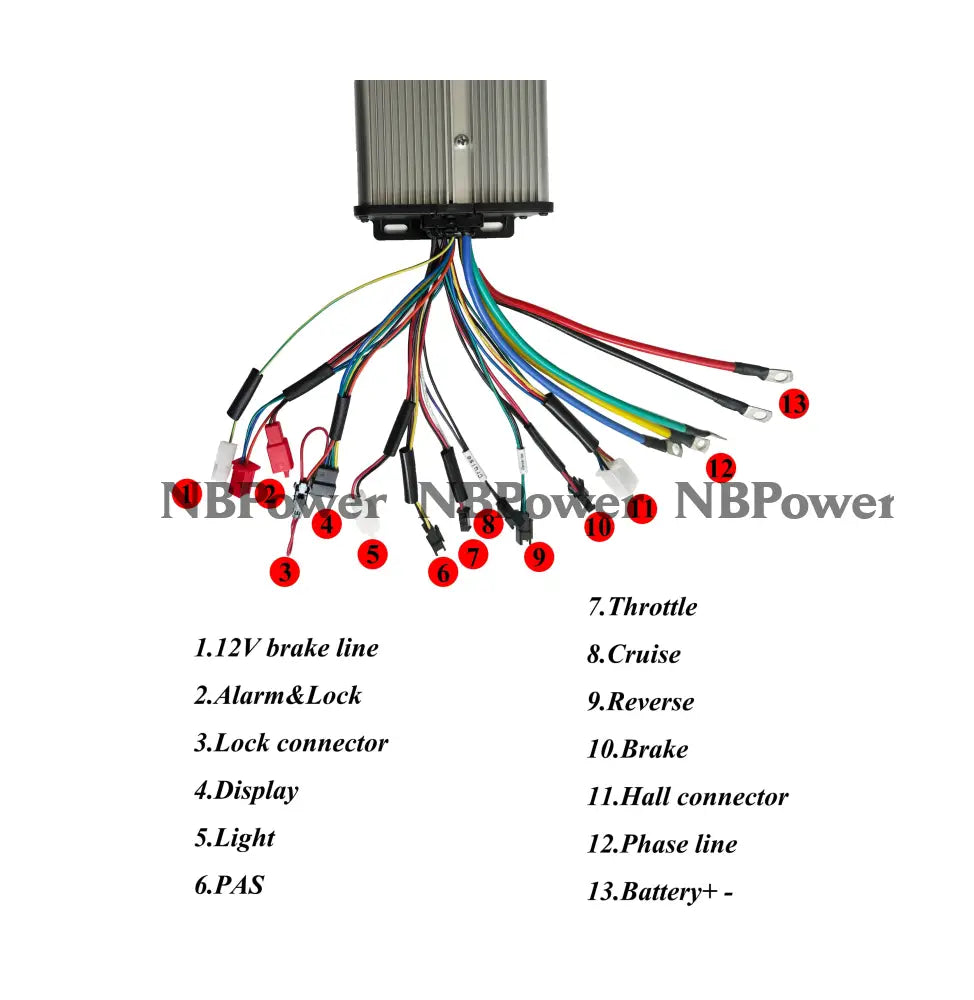

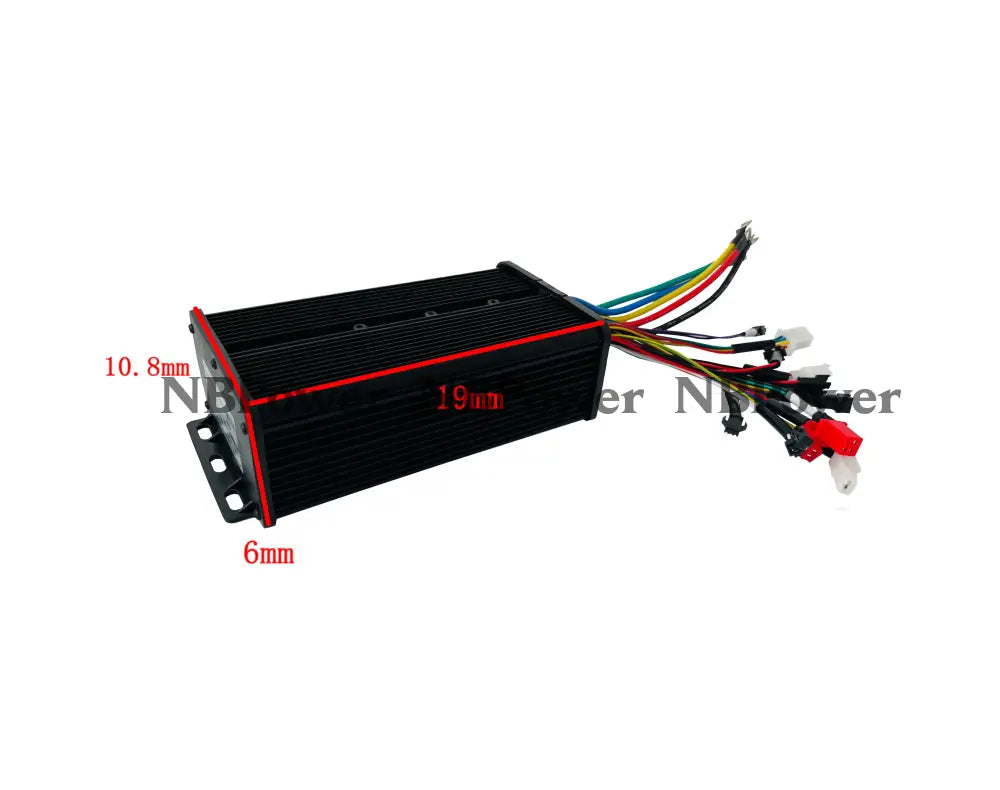

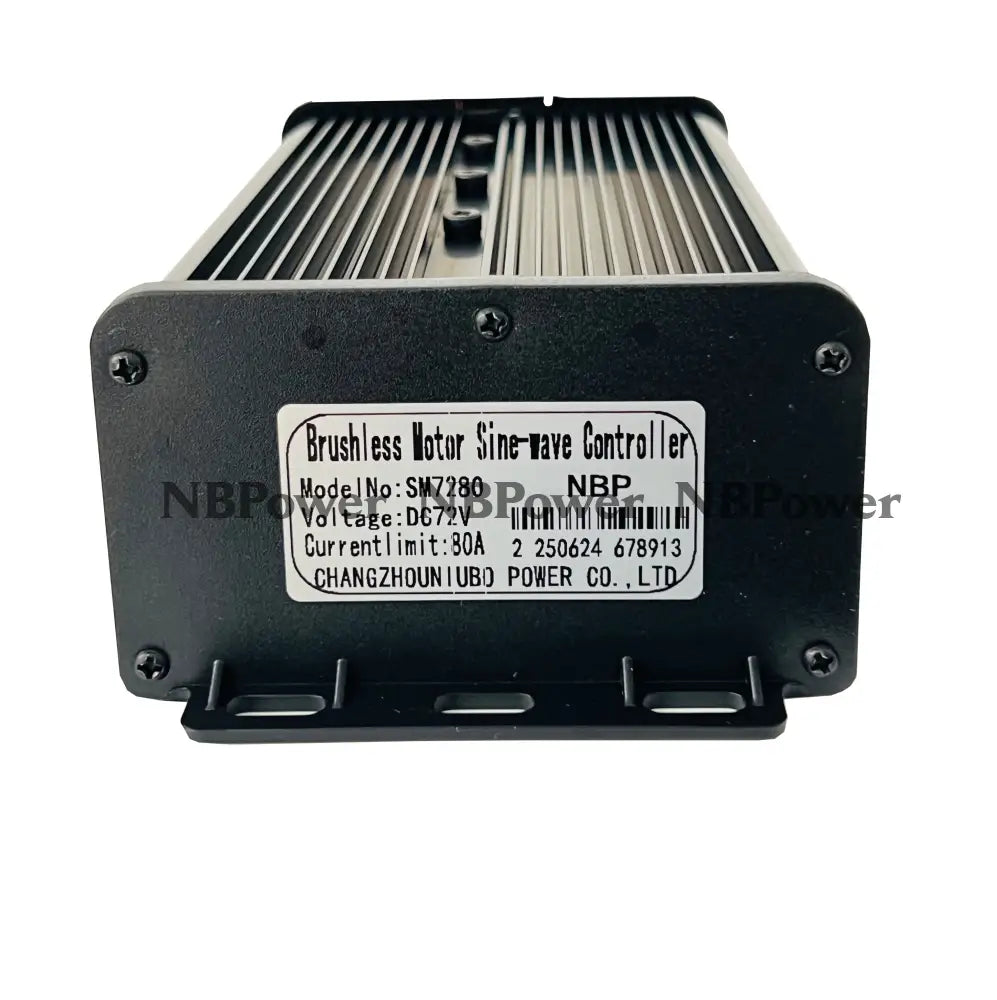

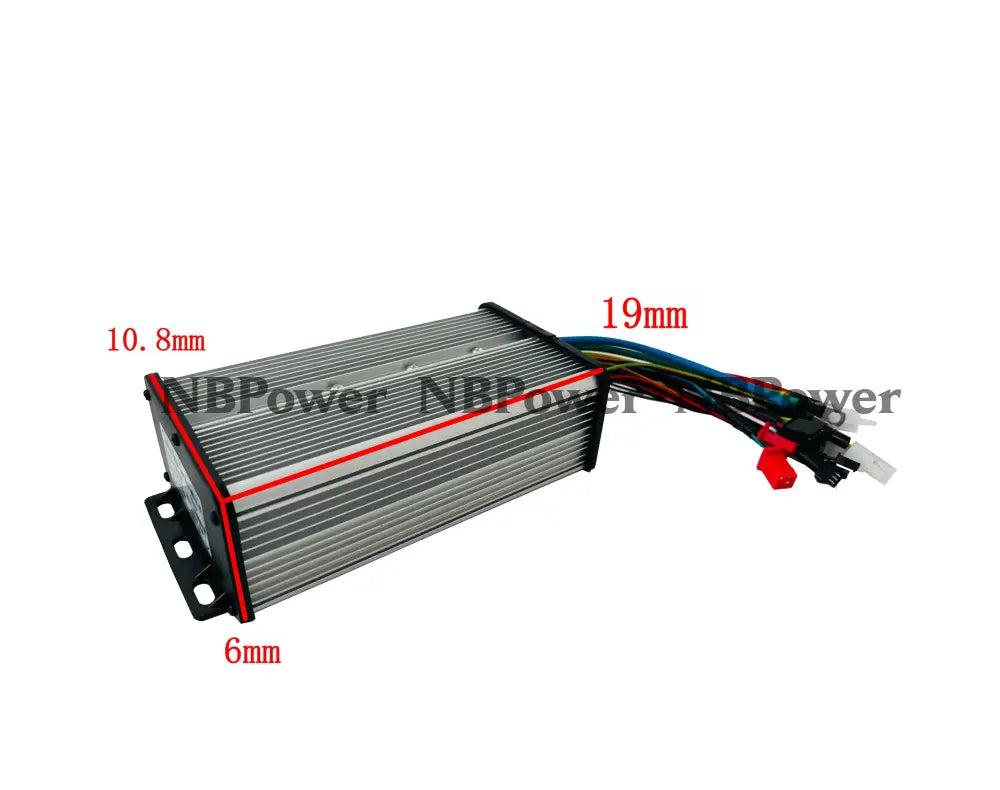

Controller Features:
80A maximum current output
Dual mode operation (speed/torque)
Regenerative braking capability
Over-voltage and over-current protection
Temperature monitoring
Perfect For:
Mountain bike conversions
High-speed e-bike builds
Off-road electric biking
Professional e-bike projects
Custom electric bike builds
Everything you need for a professional e-bike conversion - motor, controller, display, security, and all accessories in one complete package!

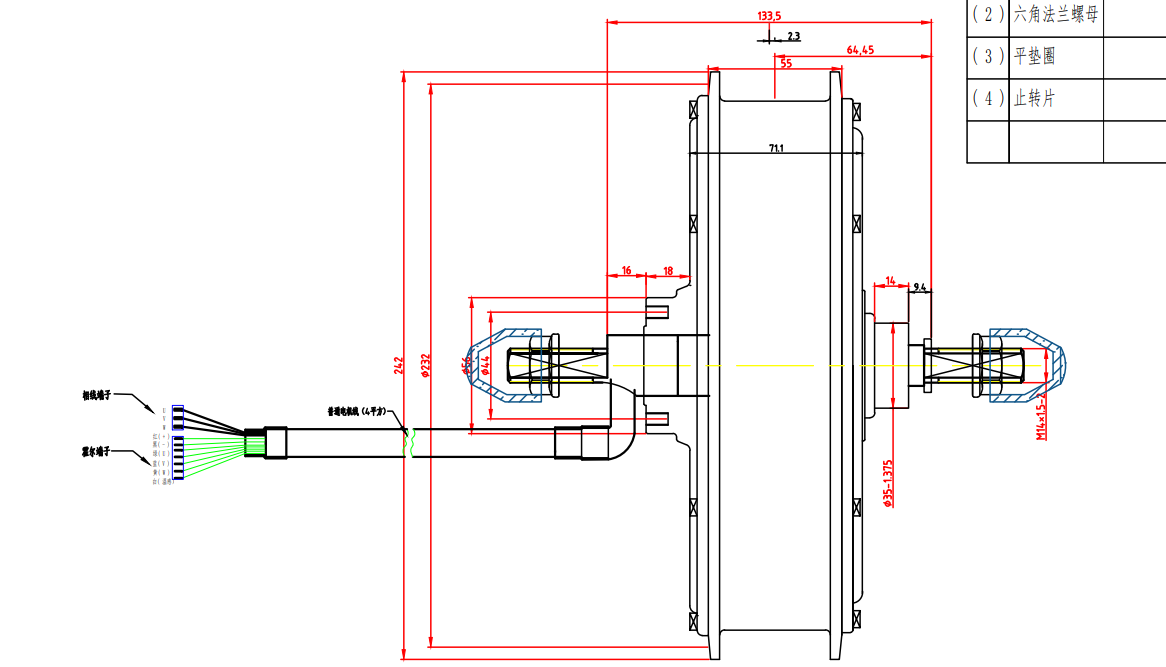

3000w Motor Specification: 1. Motor Type: BLDC Hub Motor with Permanent Magnet 2. Motor design: Double axle out 3. Spoke hole: 3.4mm x 36pcs 4. Matching Rim:20inch-29inch 5. Rated Power:3000W 6. Peak Power:6000W 7. Rated Voltage: 72V 8. Speed: 70km/h(48v voltage),90km/h(72v voltage) 9. Max No-load RPM:960RPM 10. Max Torque:100N.M 11. Max Efficiency: 88% 12. Brake type: Disc brake 13. Rear Fork width for installation: 135mm 14. Winding Core material: Steel 15. Cross Section of Phase wire: 6 mm2 16. Hall sensor phasing angle: 120 degree 17. Max. Working Temperature: 70 degree, Peak 120 degree 18. Waterproof Grade: IP54

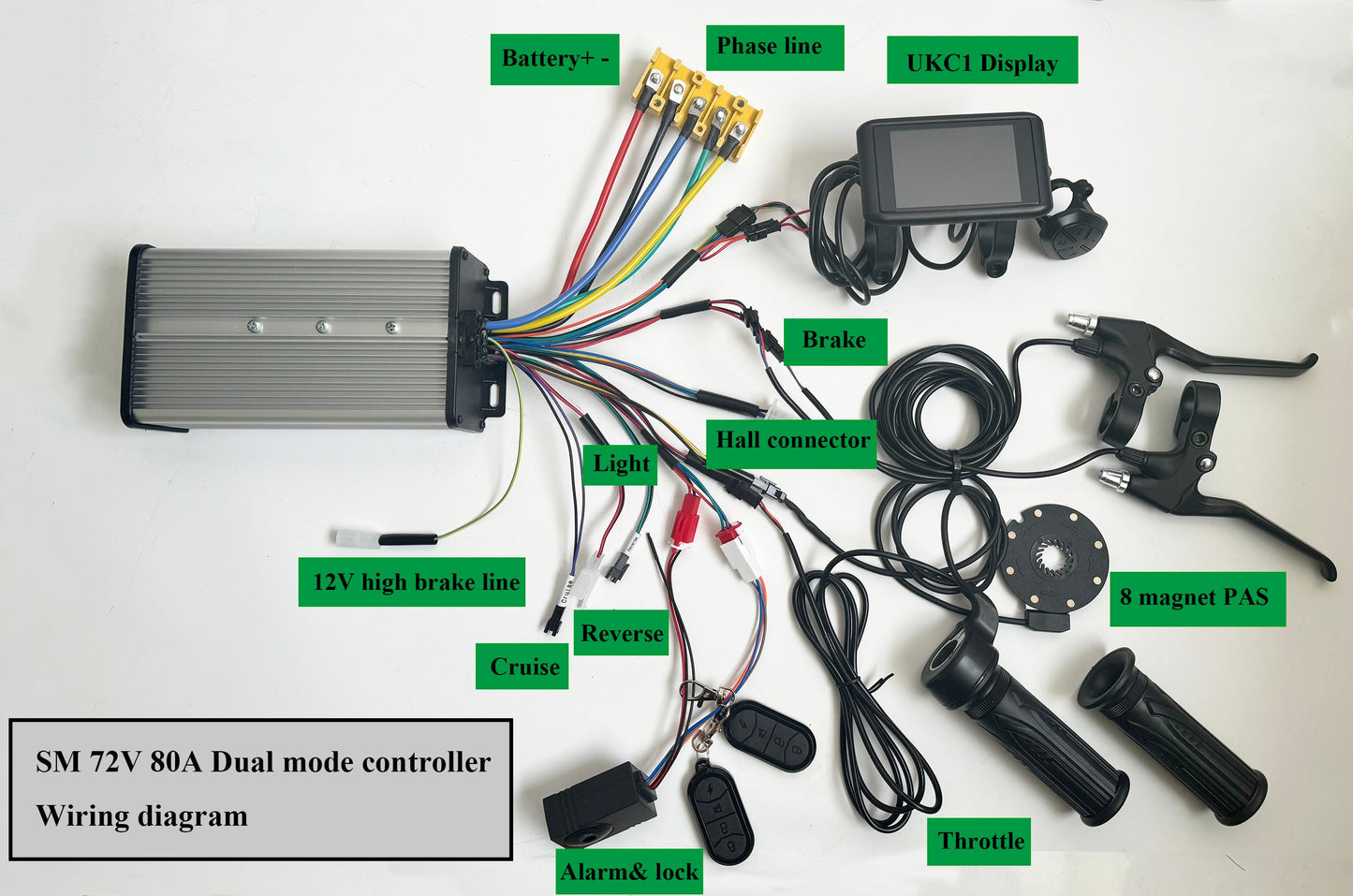

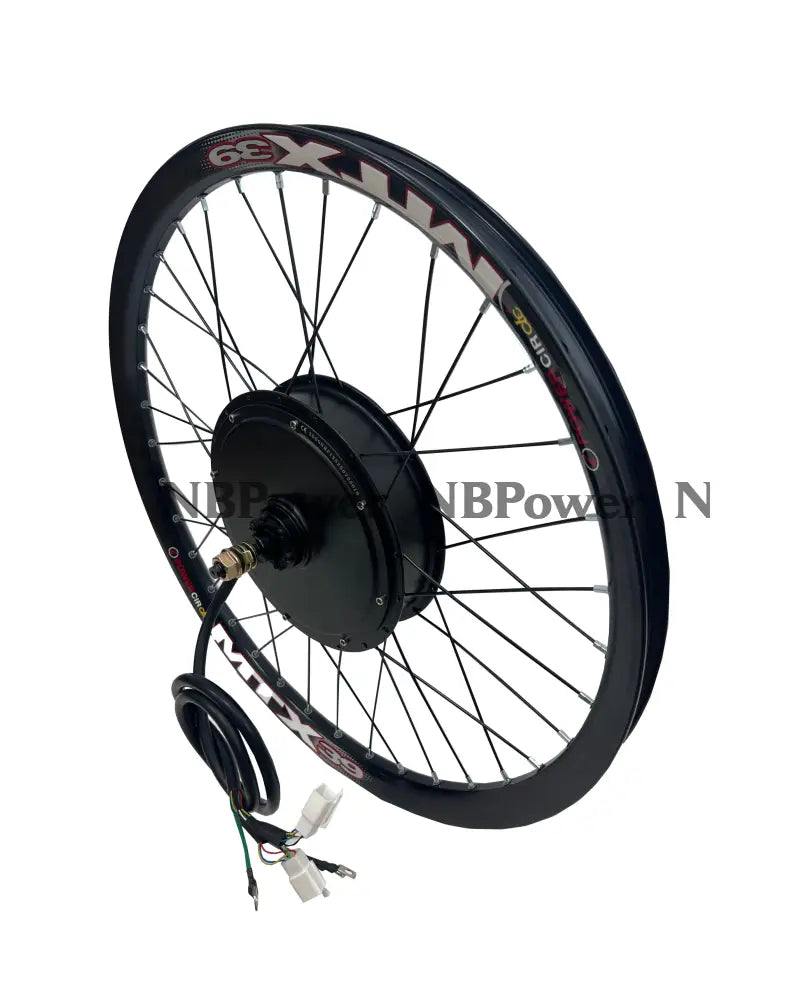

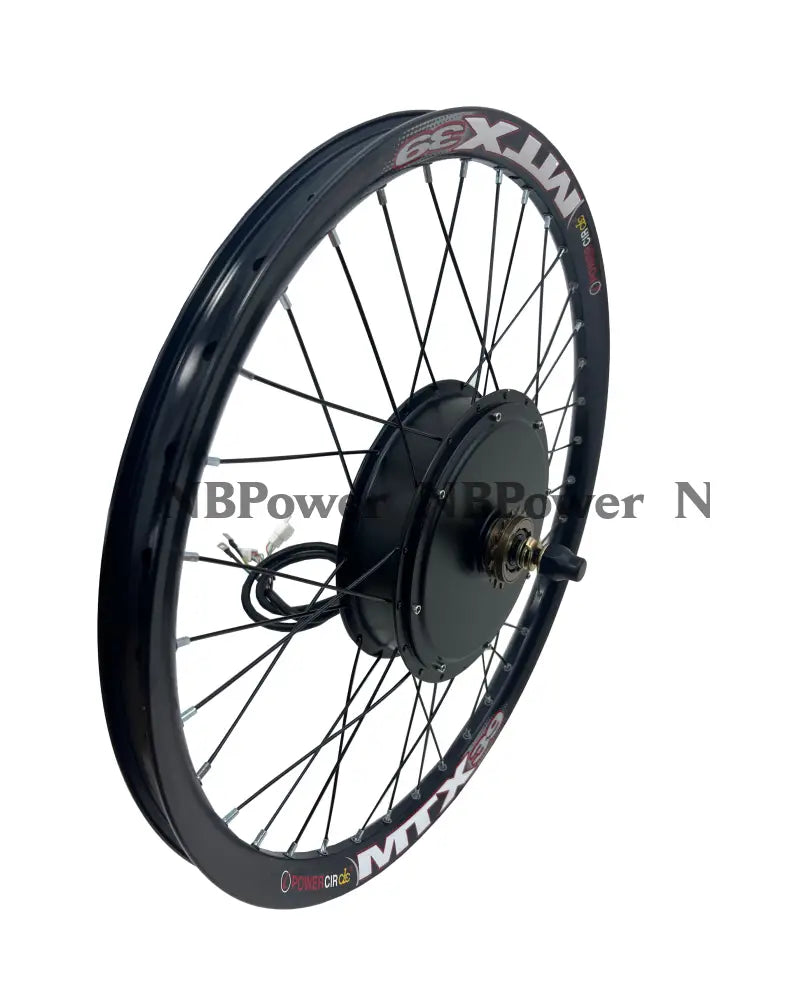

135mm dropout Rear 48-72V 3000W Ebike kit 1)135mm dropout Rear 48-72V 3000W motorwheel with spokes 2) 20/24/26/27.5/28/29/700C MTX rim for choose 3)48-72V 80A Dual mode sine wave contoller 4)UKC1 color display 5) full twist throttle (if need thumb throttle or half twist throttle ,please contact us ) 6)brake lever 7)8 magnet PAS 8) controller bag
