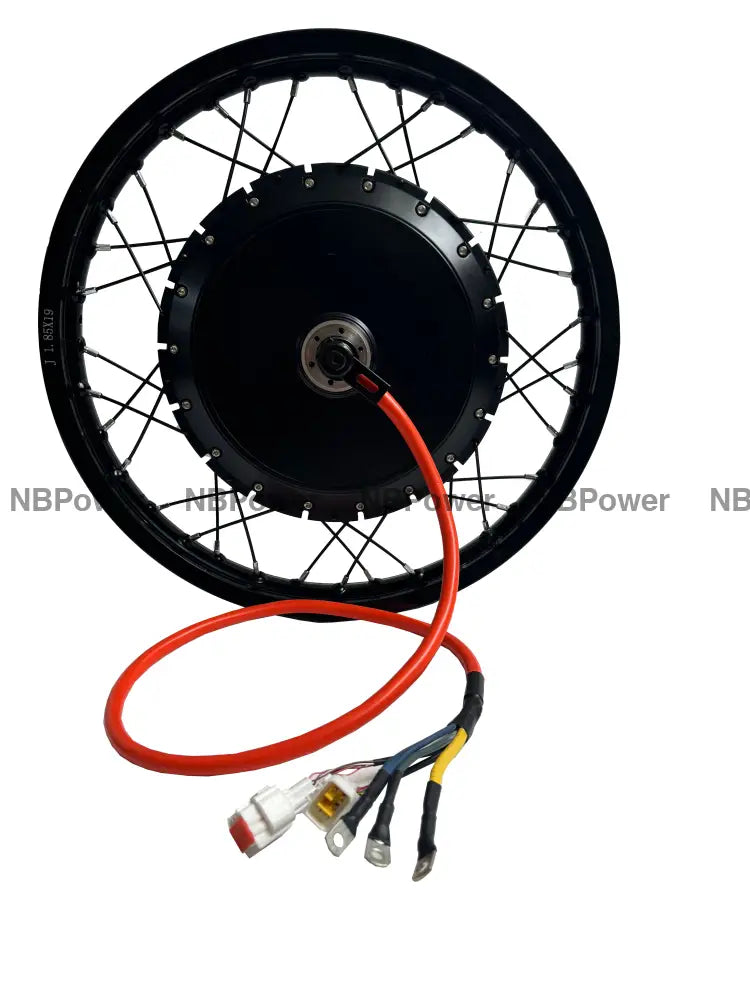

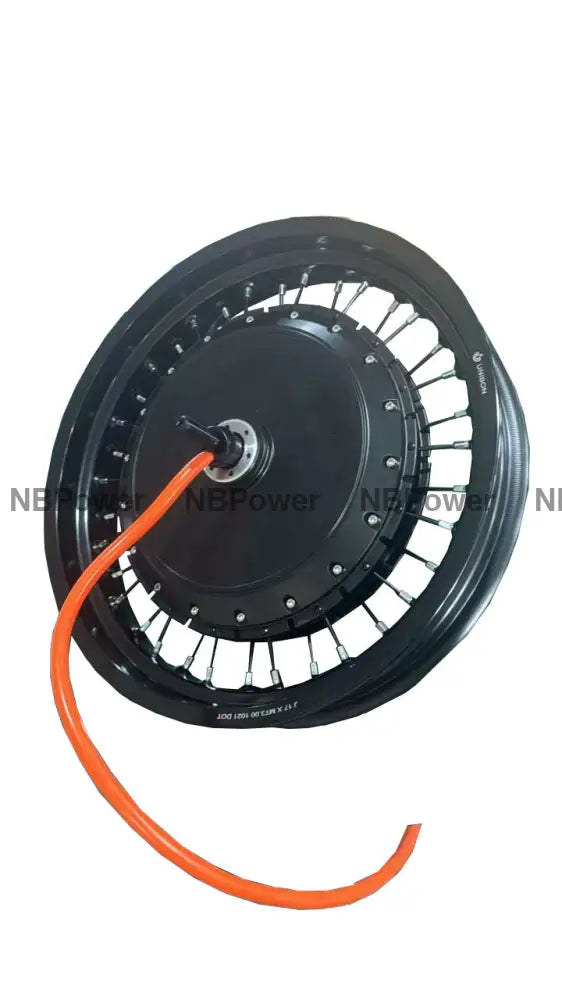

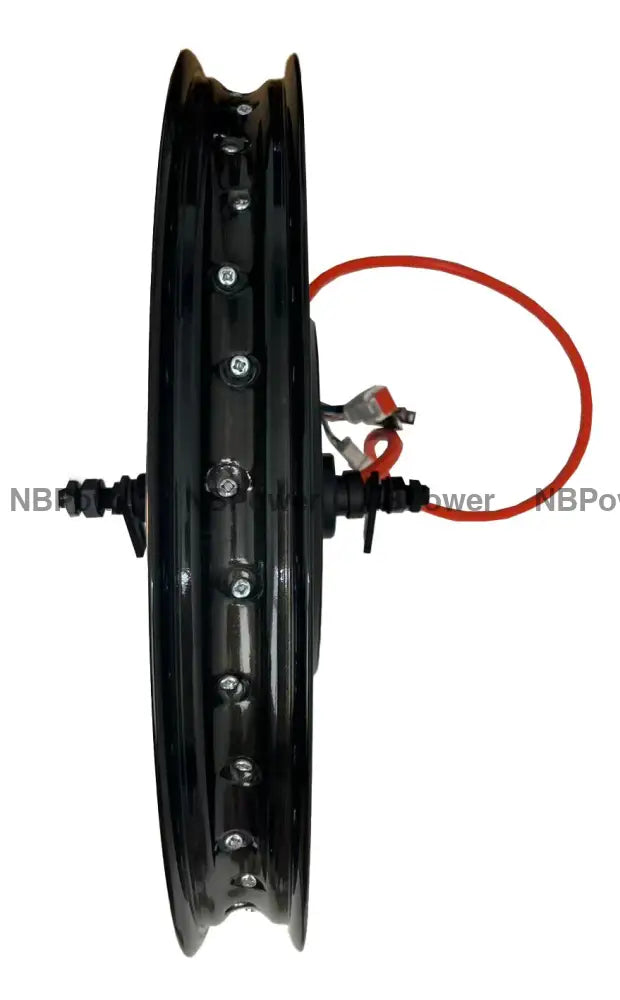

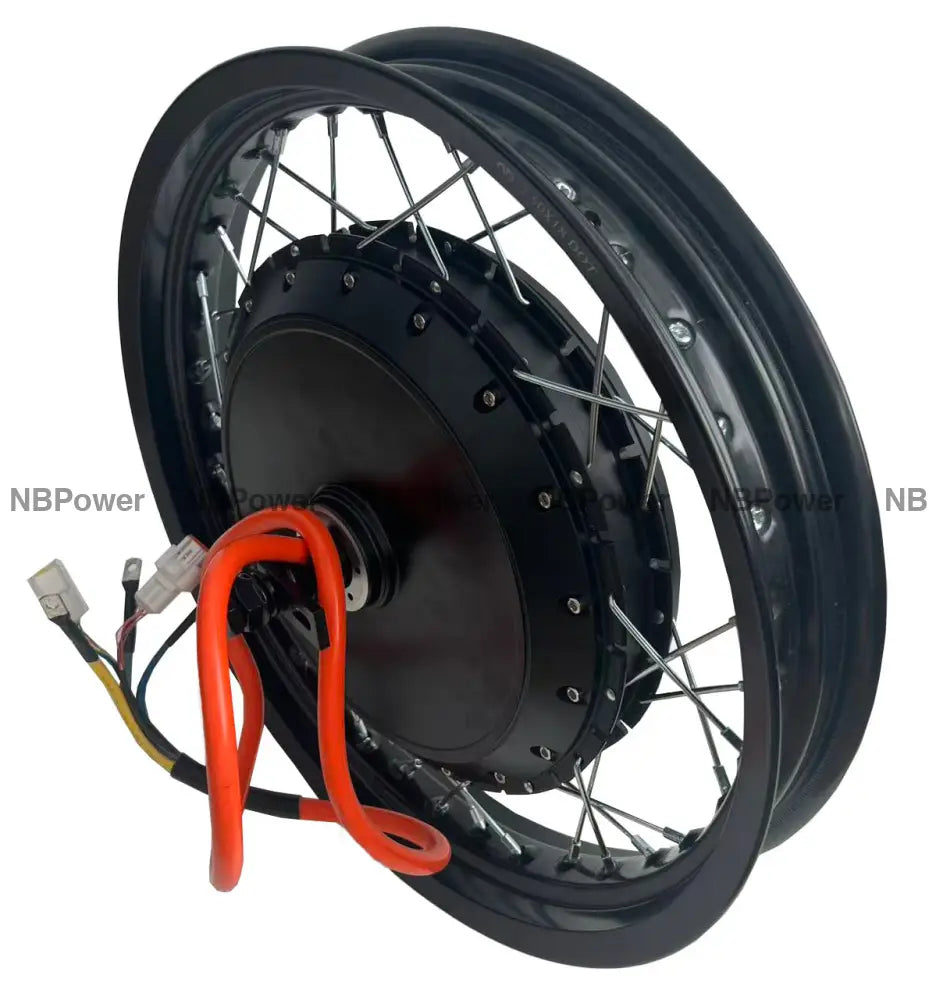

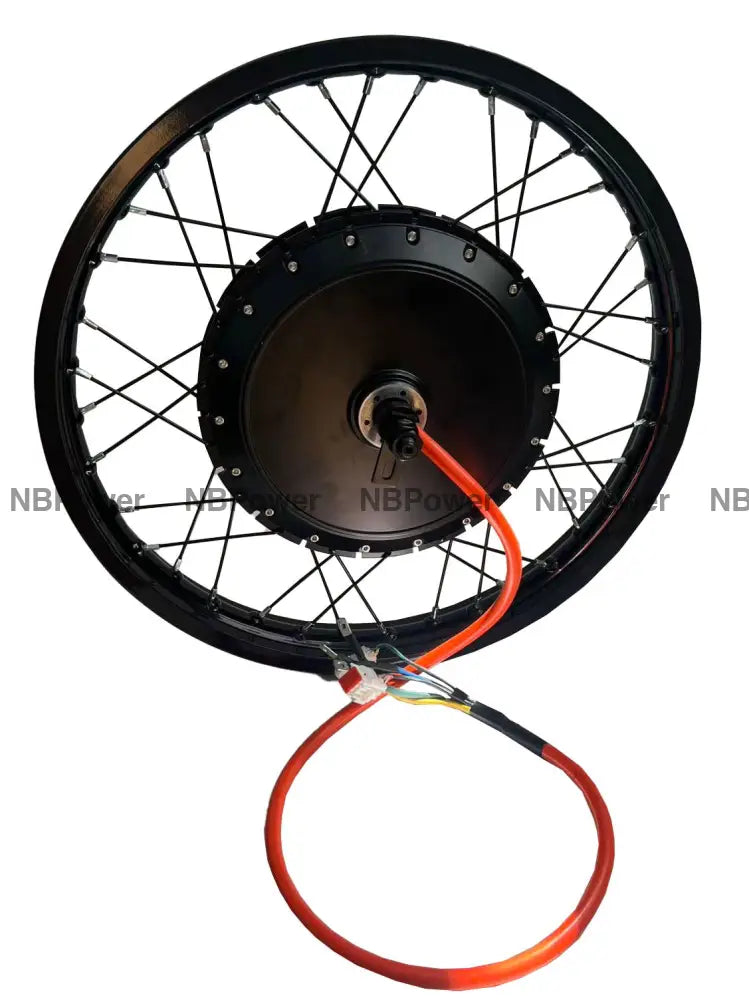

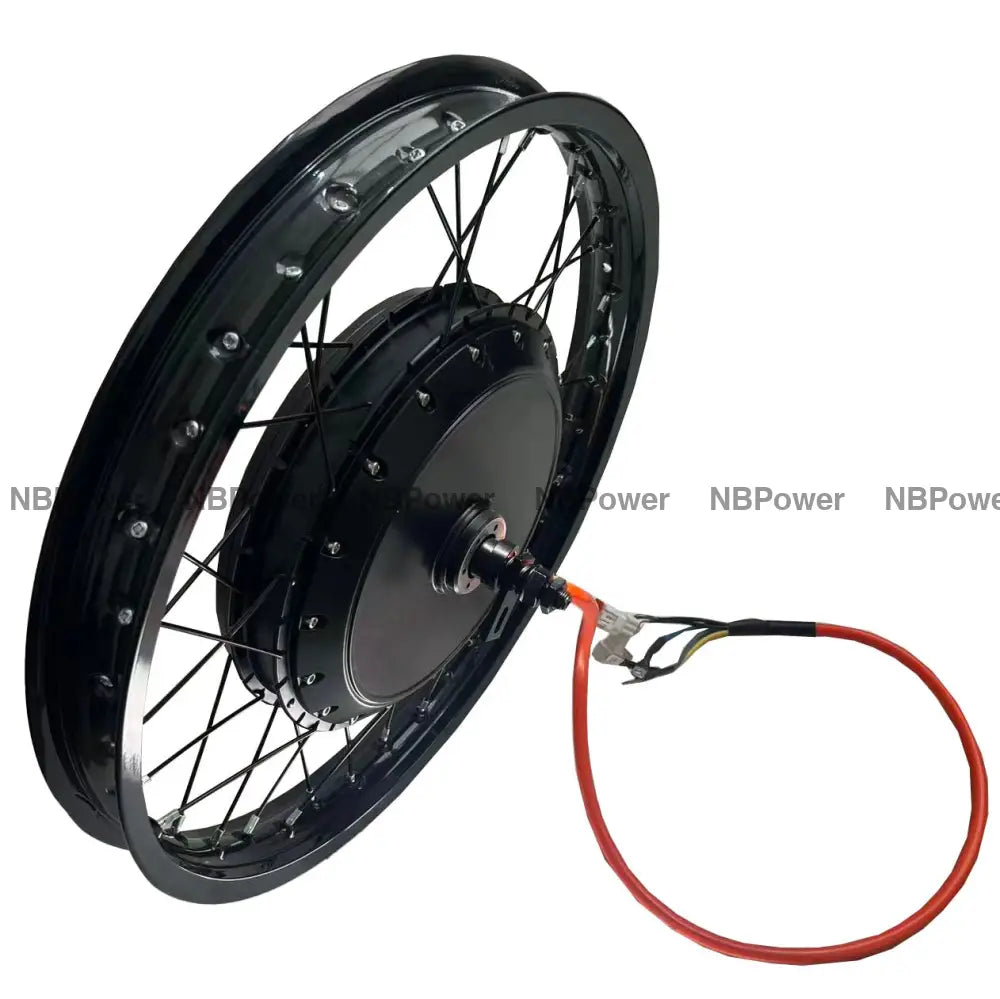

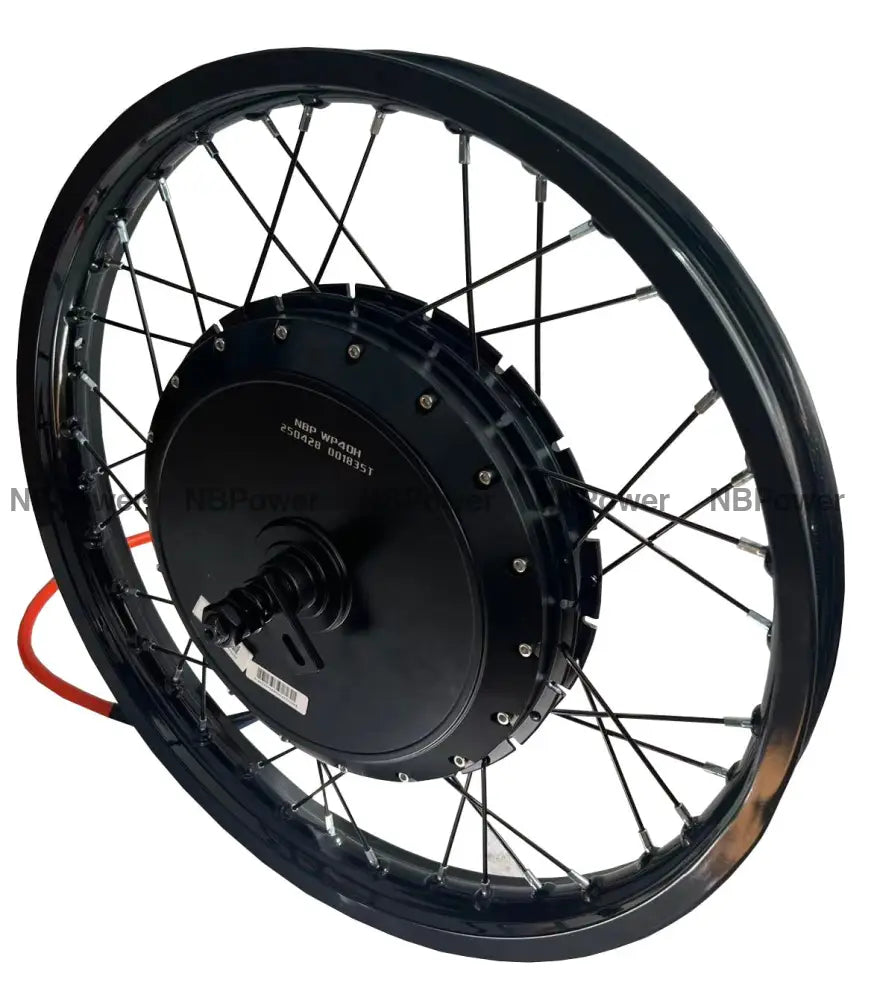

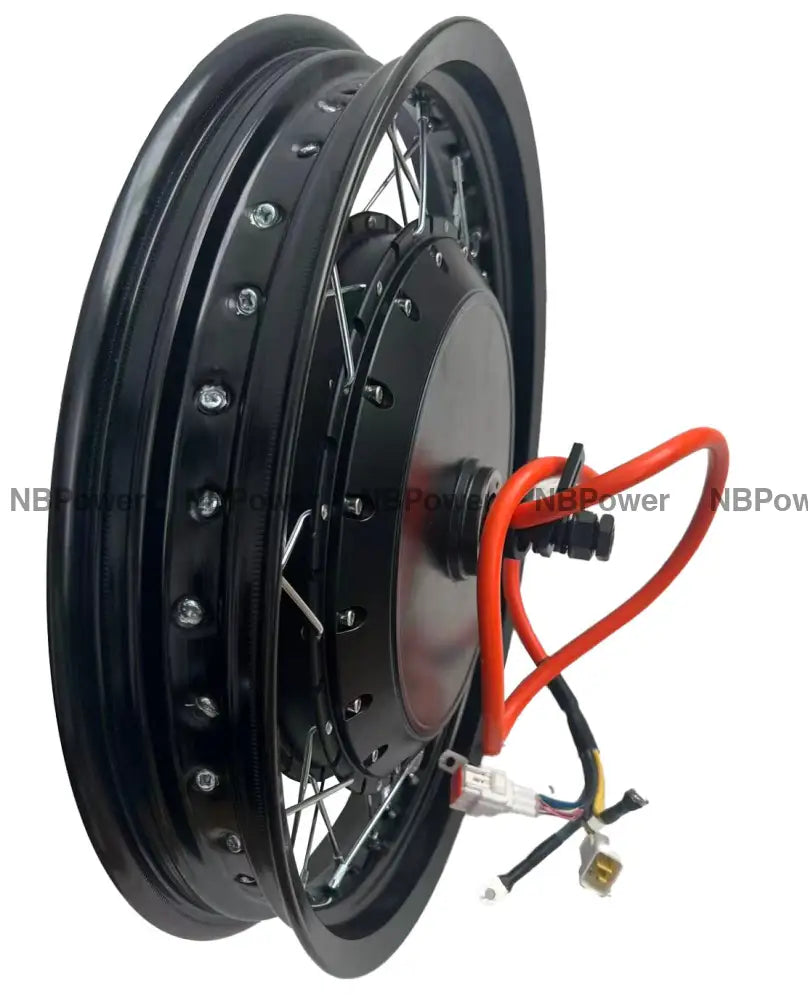

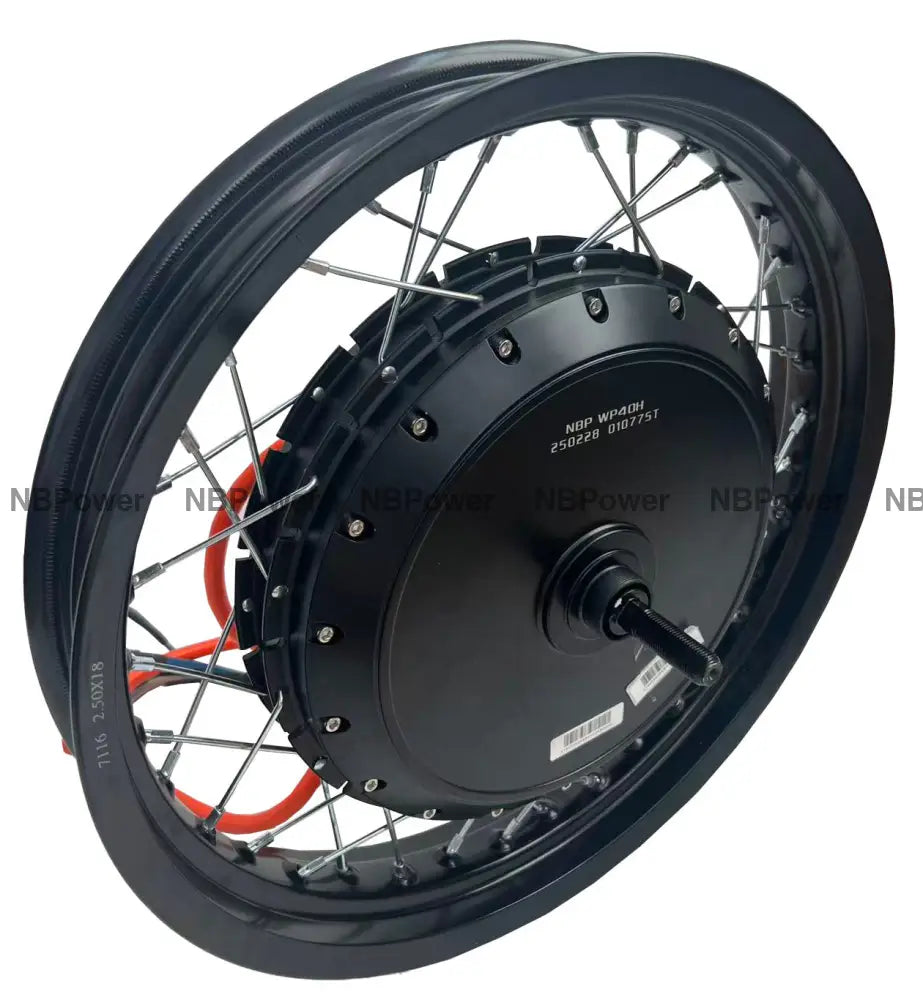

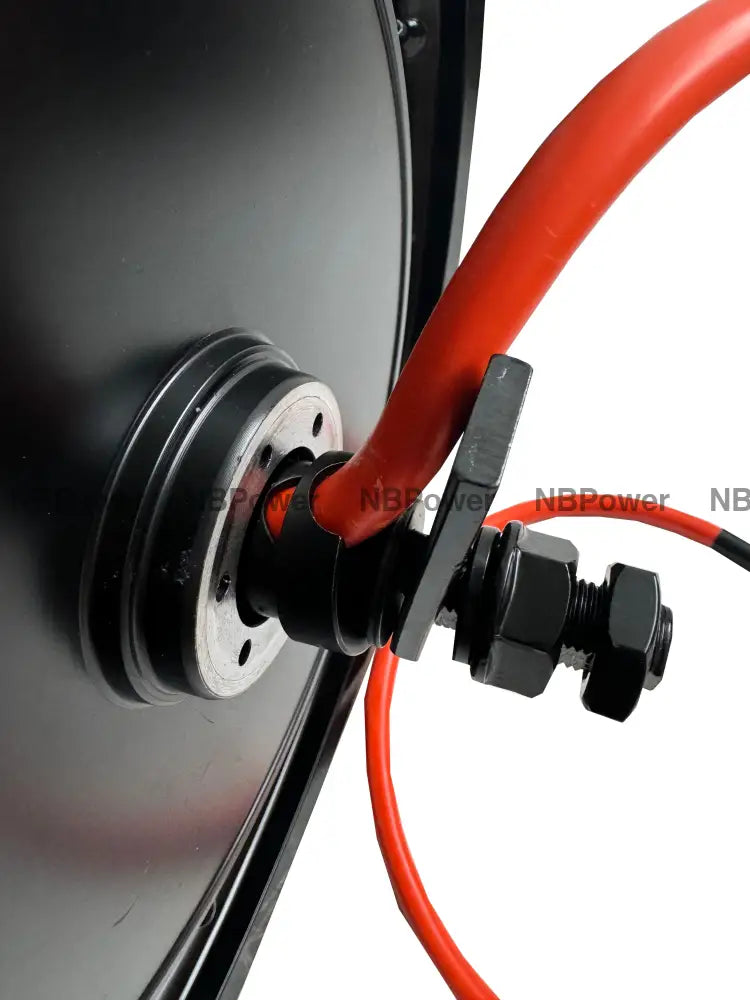

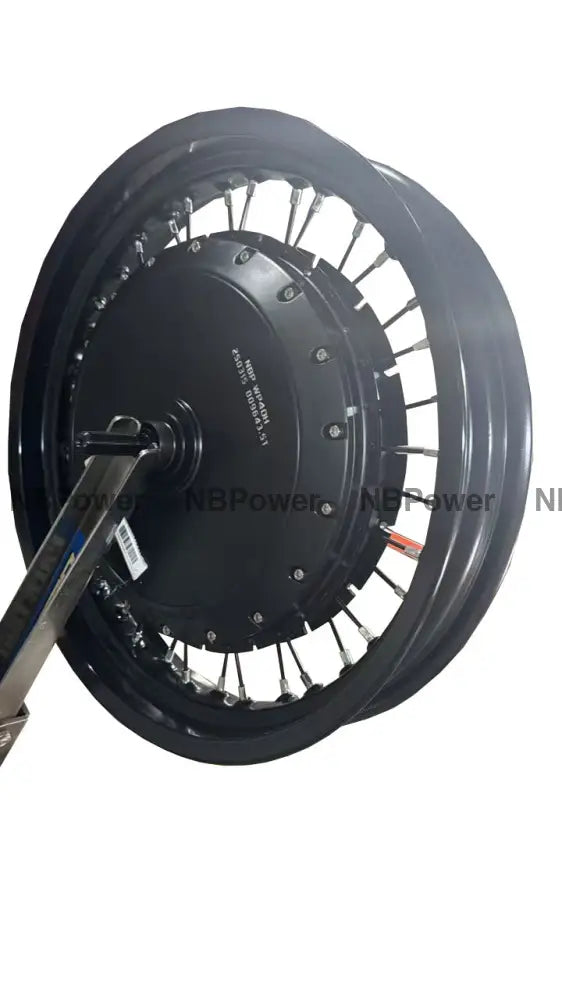

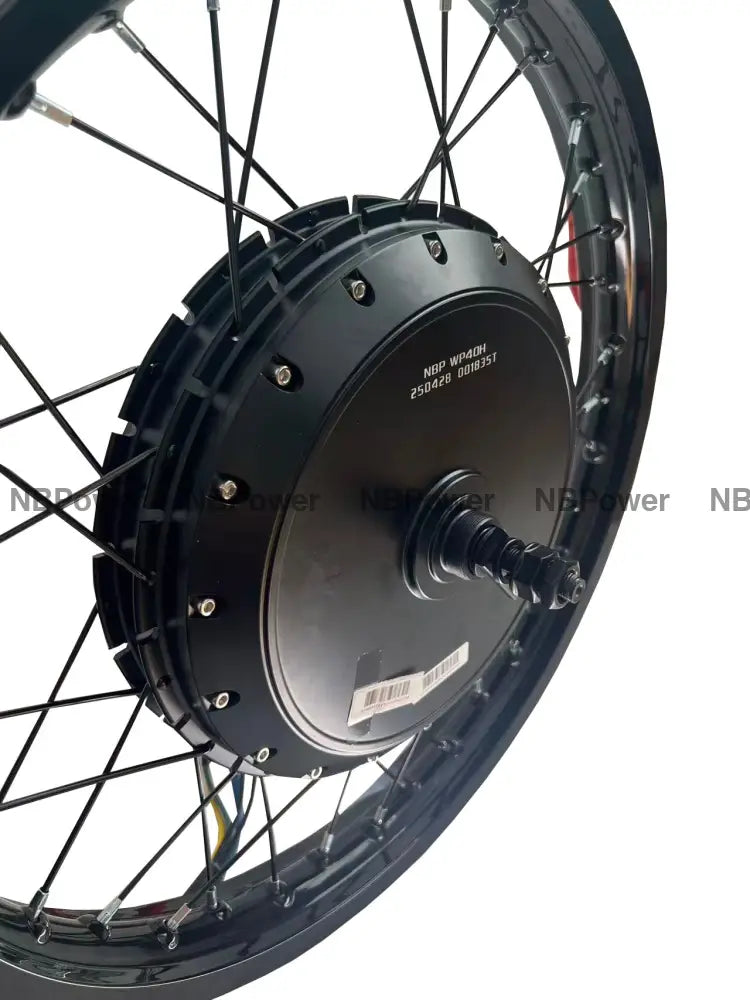

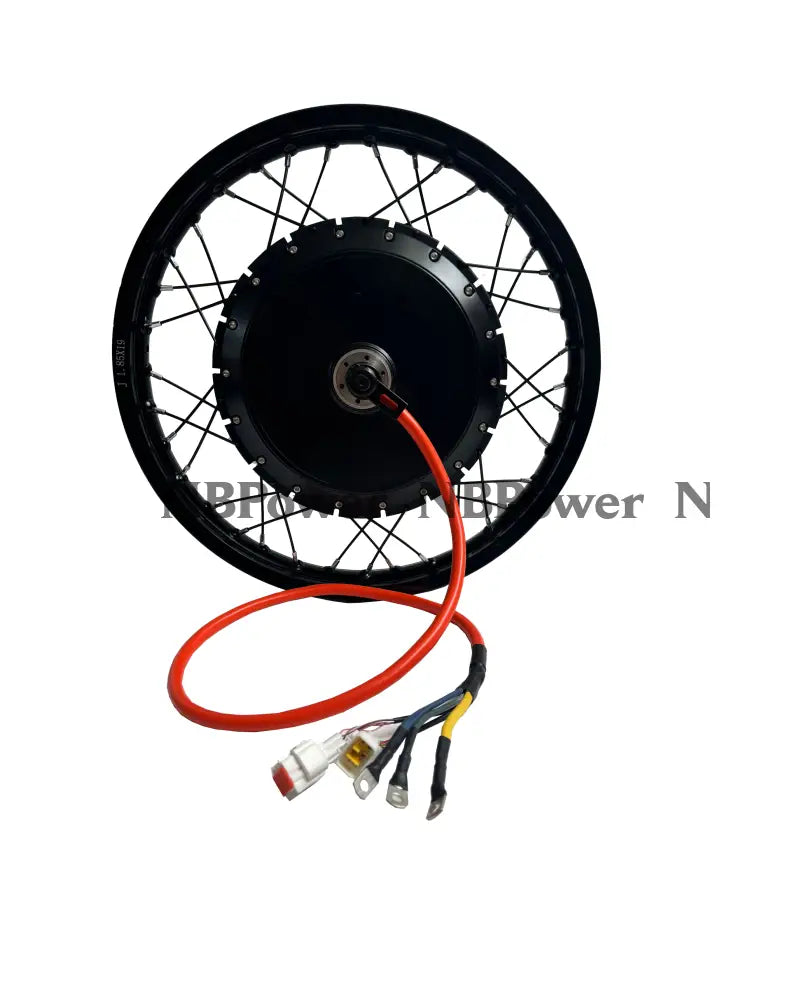

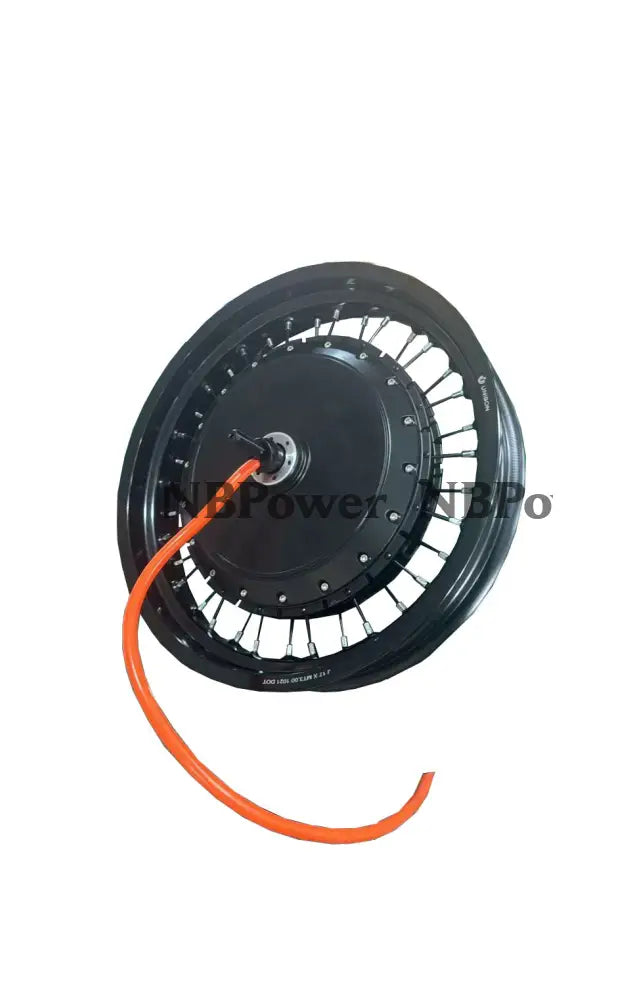

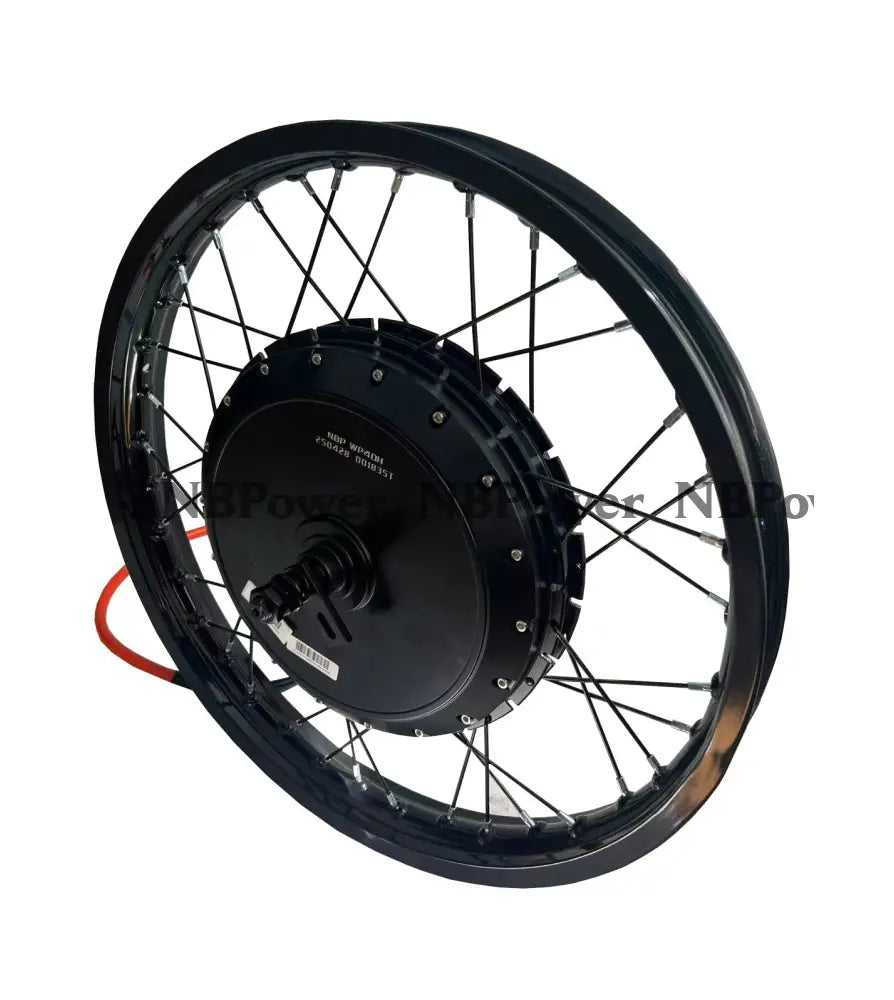

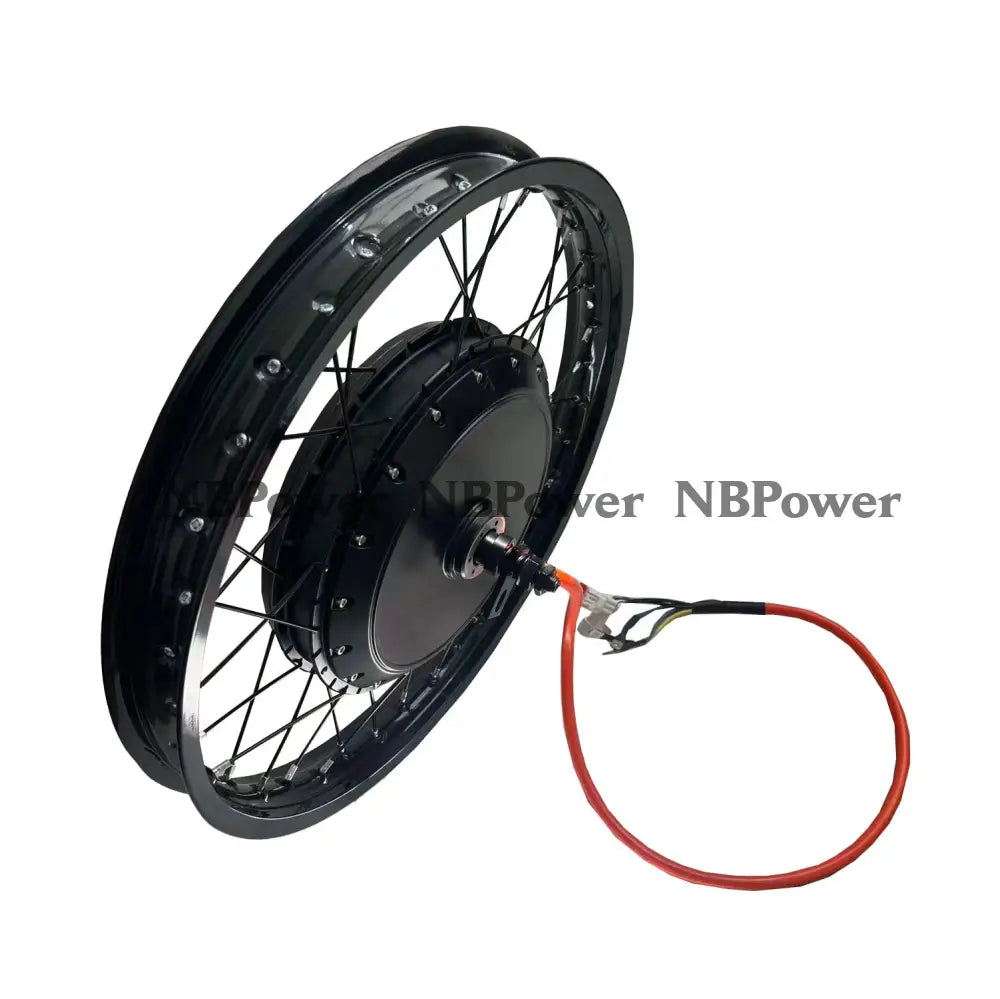

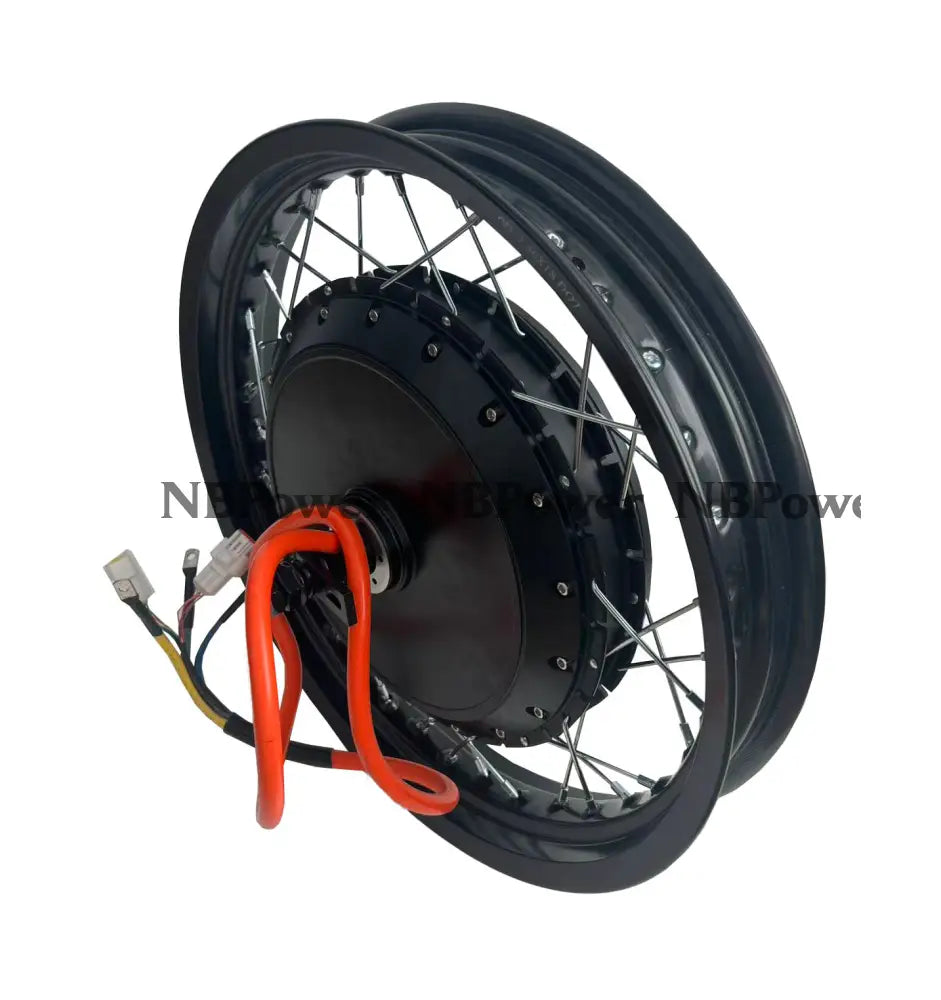

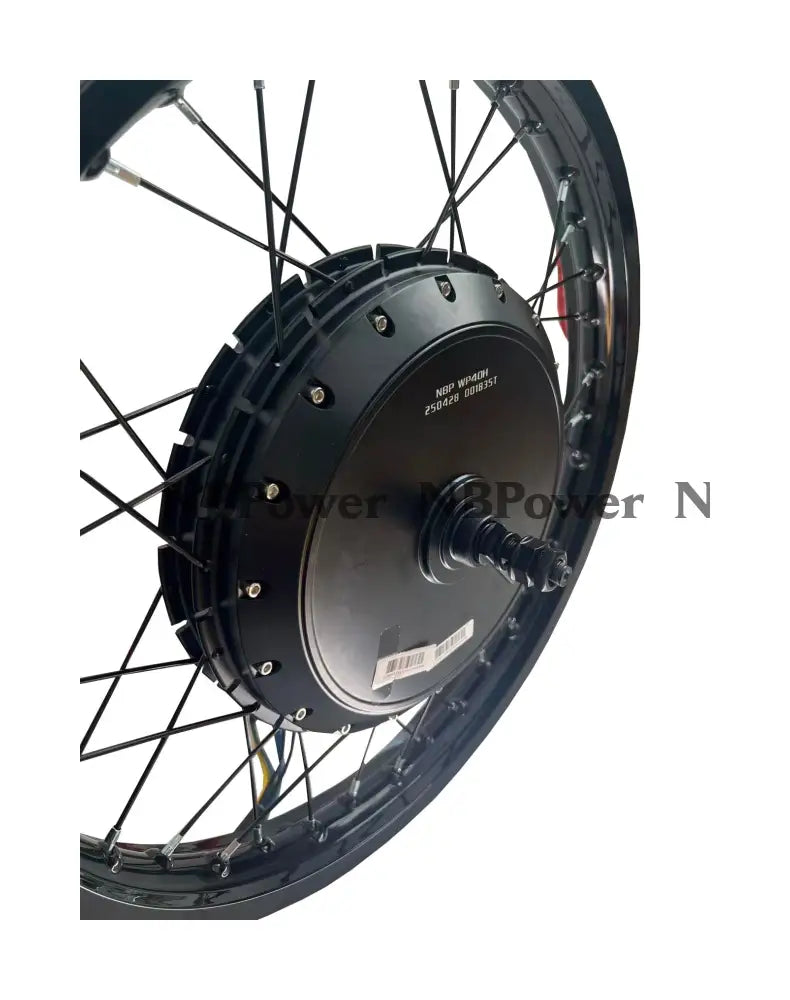

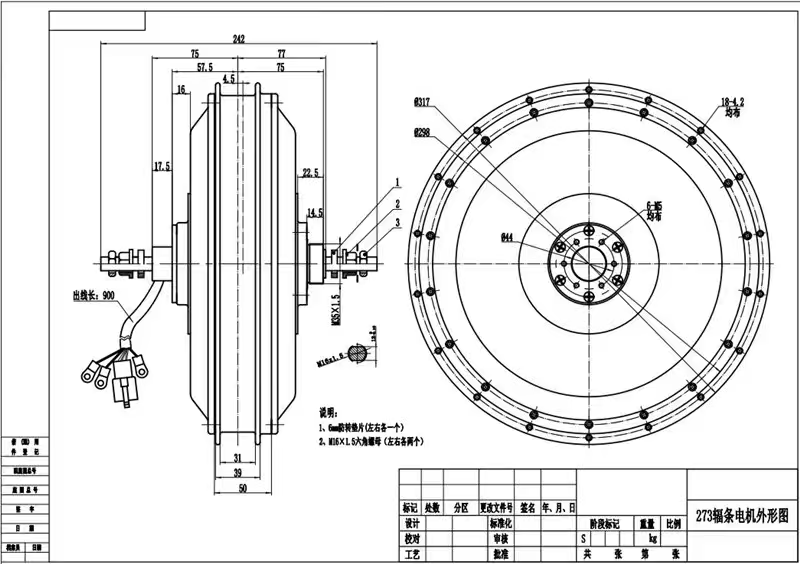

8000W 273 40H V3 E-spoke hub motor
Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
Brand: QS Motor,QSMOTOR

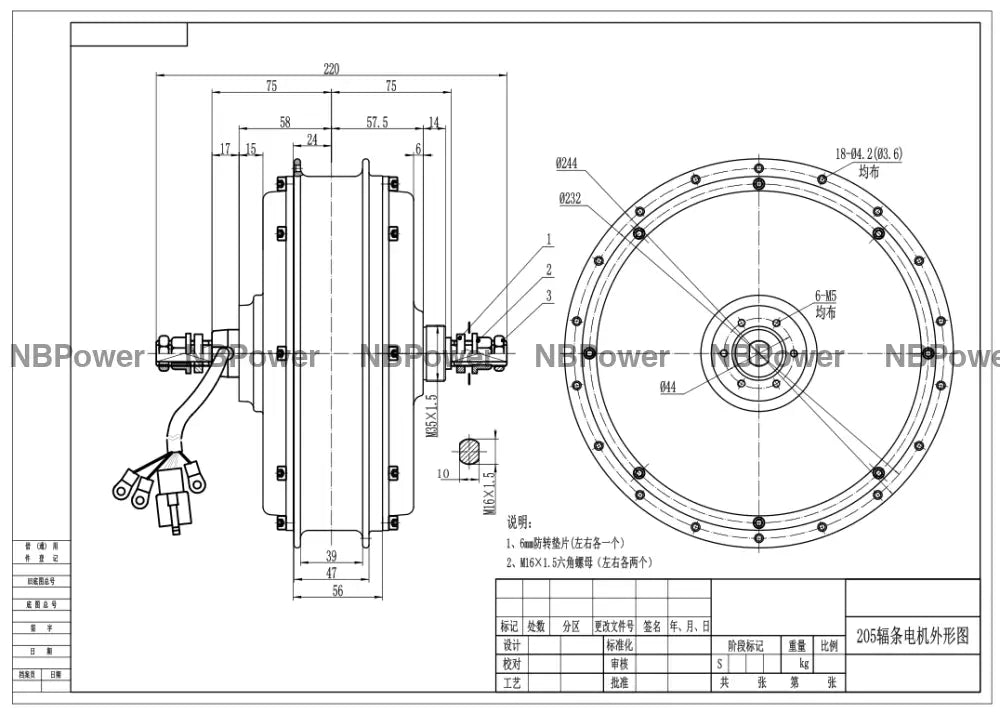

Motor Design: Double axle without rim (not integrated), 36 spoke holes, OD 4.2mm
Matching Rim size: 17inch, 18inch, 19inch, 21inch moped wheel.
Magnet Height: 40mm, 16 pole pairs
Stator: Aluminmum Core
Rated Power: 4000W
Rated Voltage: 72V as default
Max Speed: 120KPH
kV: 11.46/12.46/13.54/15.69/17.71etc.
Max Torque: approx 250N.m
Max Efficiency: 86-91%
Continuous Battery Current:69A (72V)
Peak Battery Current: 138A (72V)
Suggest Peak Phase Current: 448-561A (depend on the kV)
Thermic Probe: KTY83/122 (as default, optional)
Working Temperature: 70-120℃ , peak 150 ℃
Brake type: Bike Disc brake, PCD6*44mm(as default)
Drop-outs/Rear Fork Width for installation: 150mm
Dual Hall Set with waterproof connectors
16mm ² ; Cross Section of Phase Wire (not include insulation layer)
Hall Sensor Phasing angle: 120 degree
Waterproof Grade: IP54
Color: Black
N.W./G.W.: 18.2kg/20.0kg

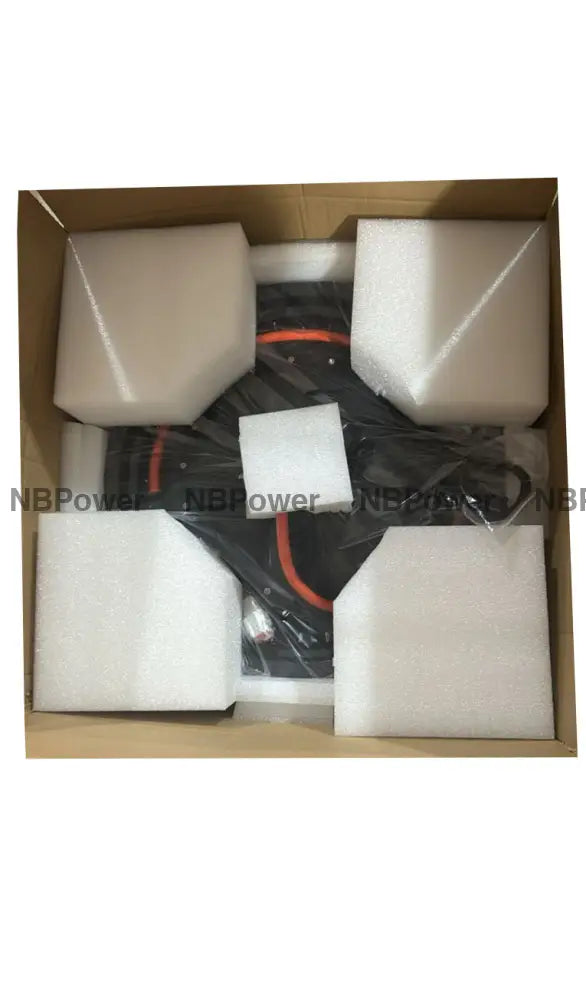

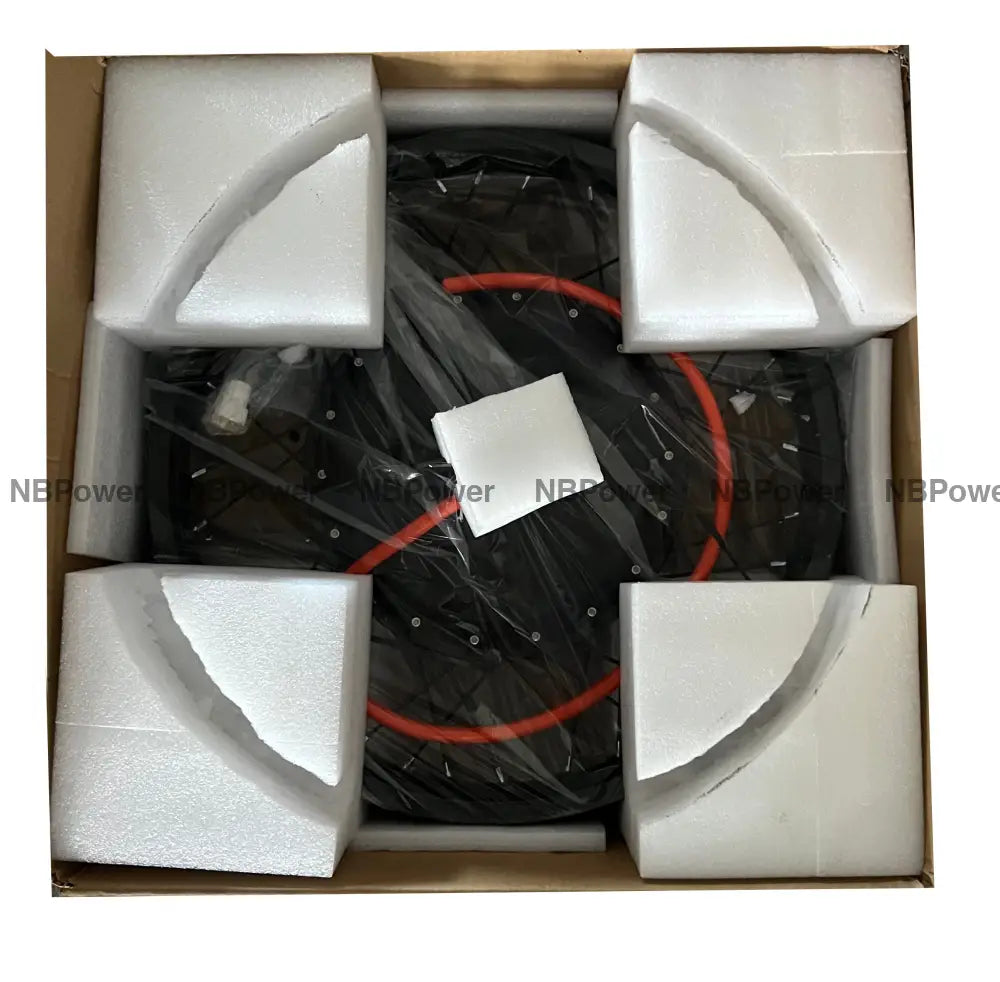

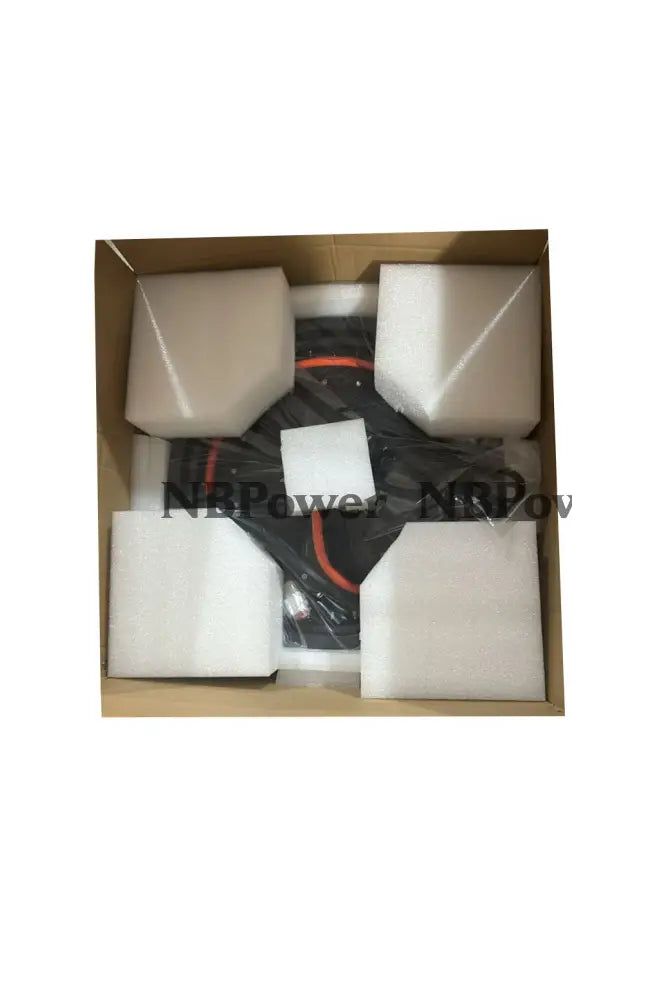

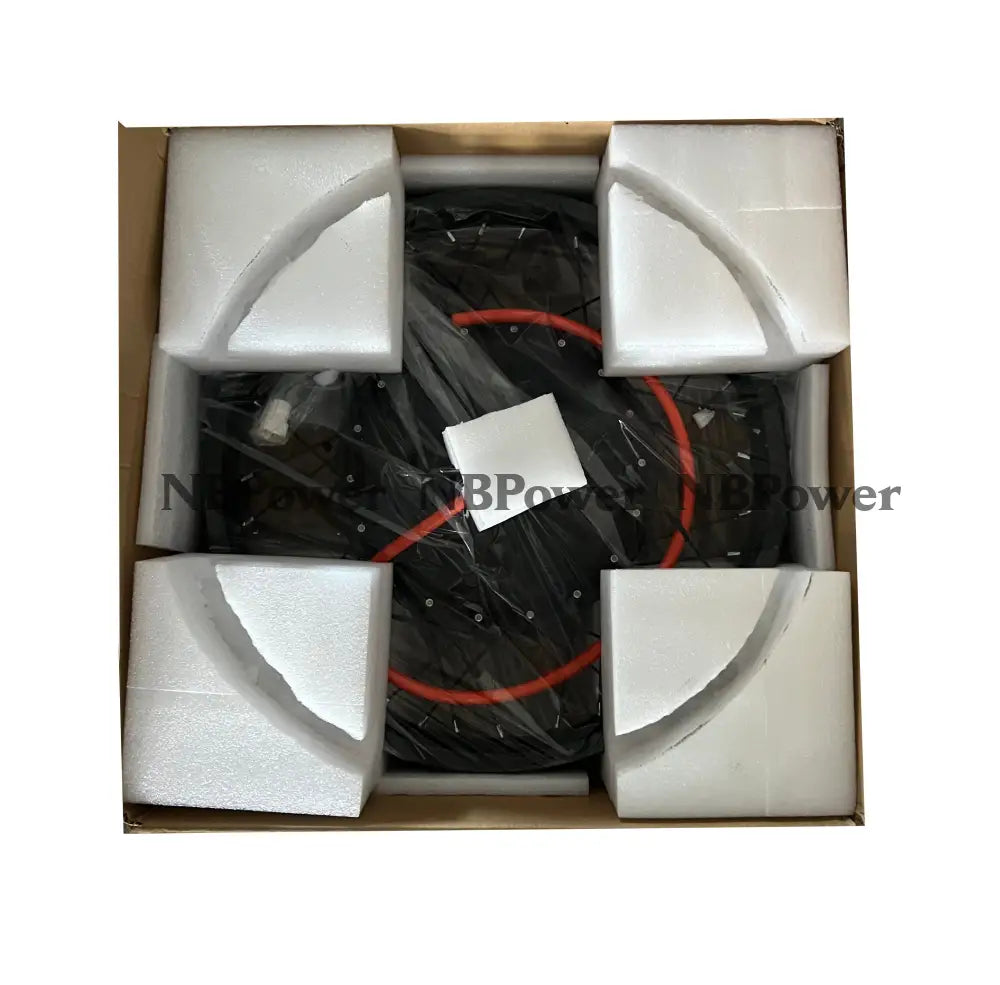

Package Dimension: 43cm*43cm*41cm/piece
If you have any requirements for the rim width, please contact us and we can customize it according to customer requirements.
