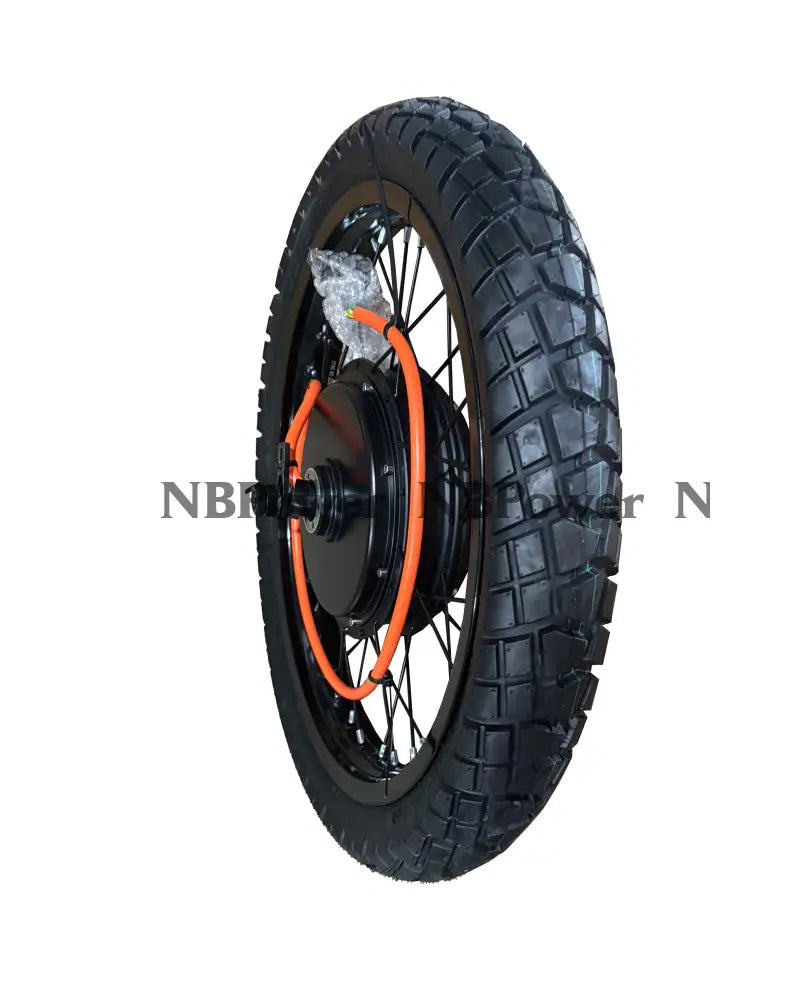

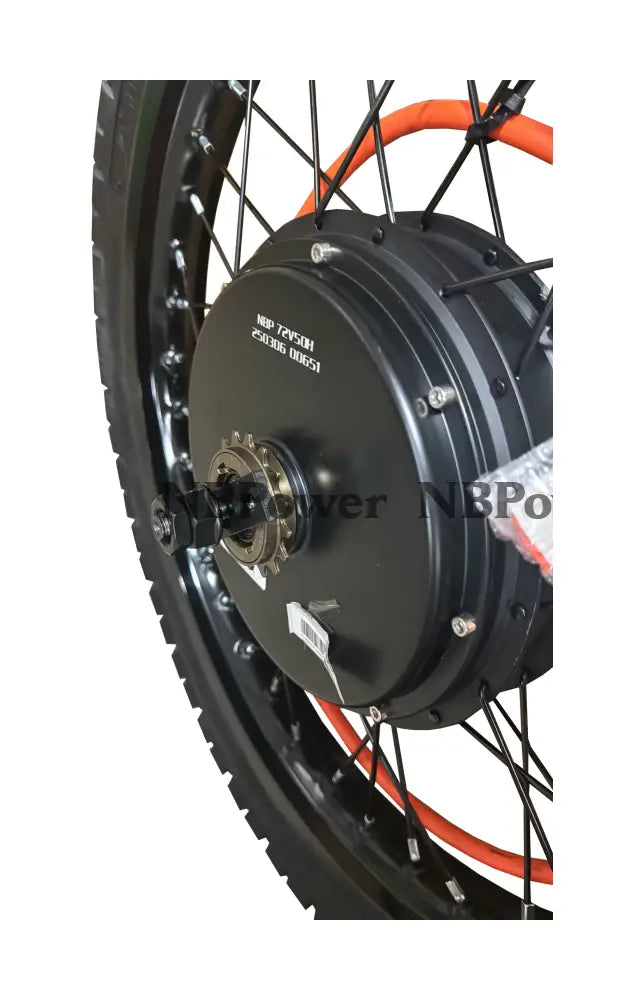

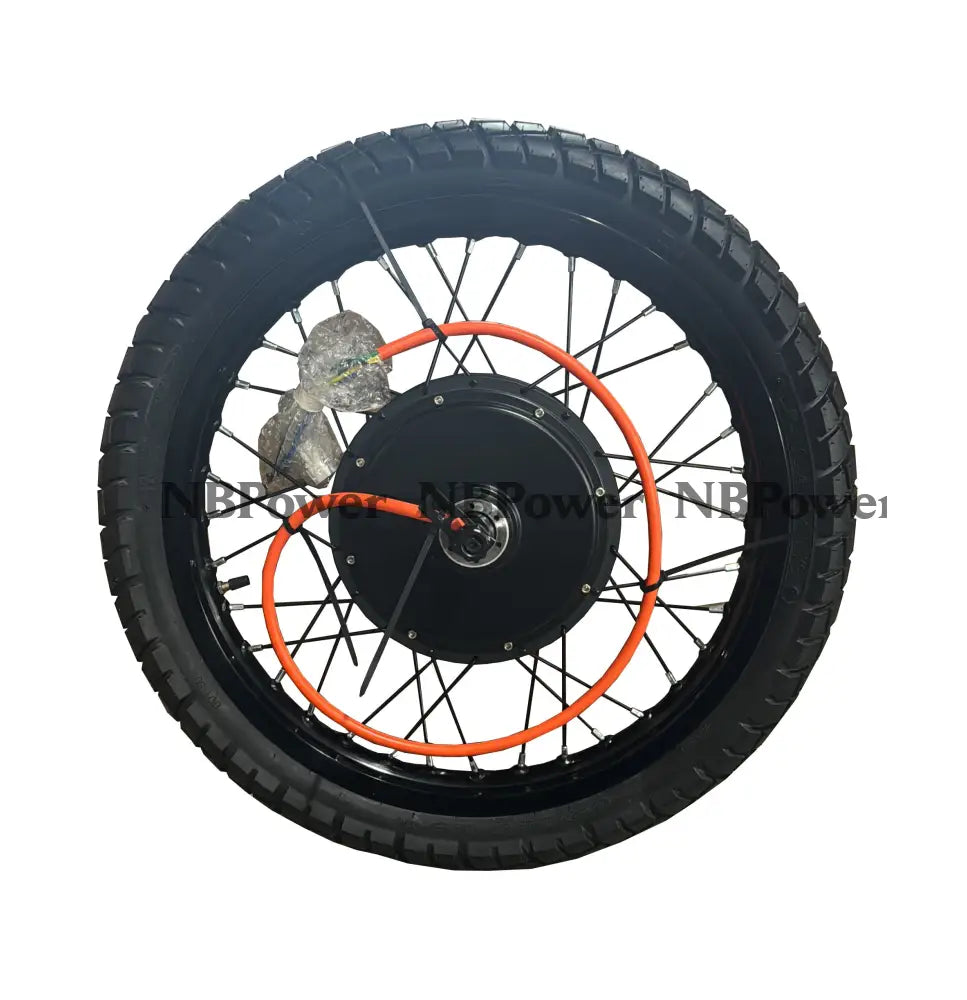

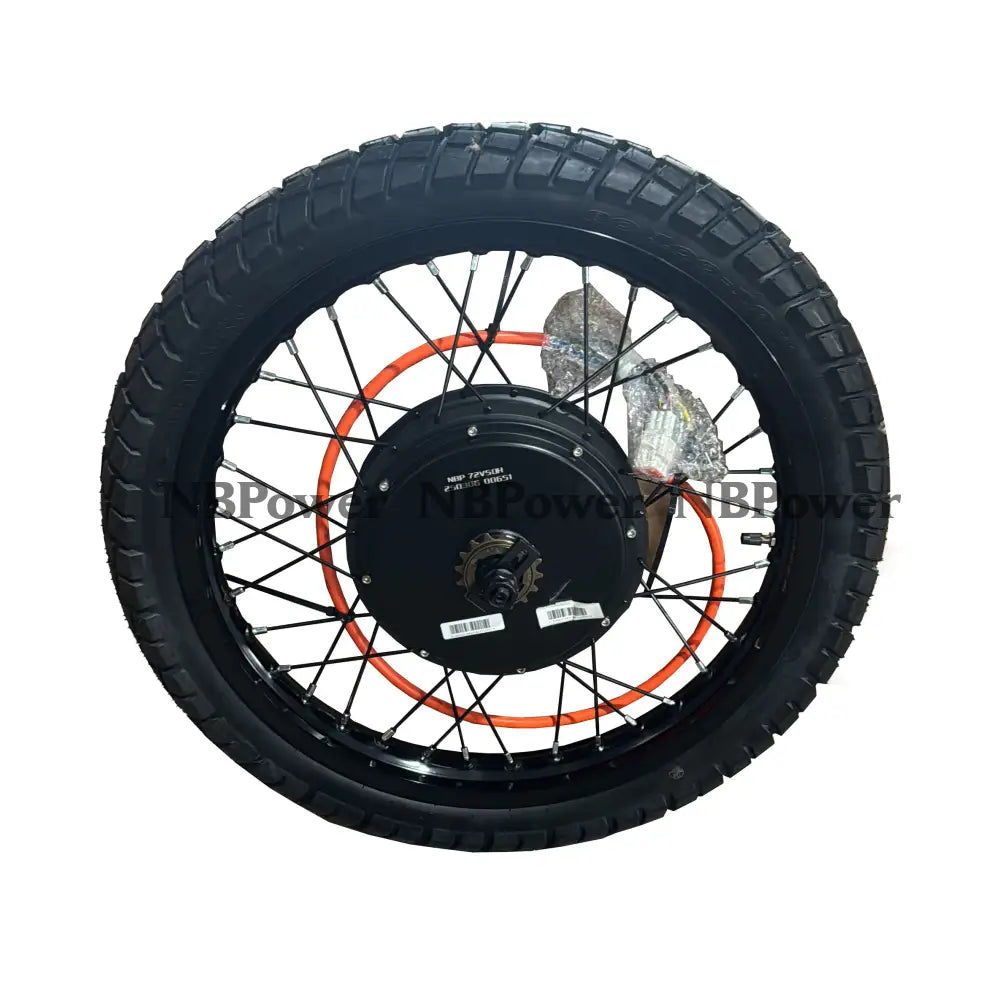

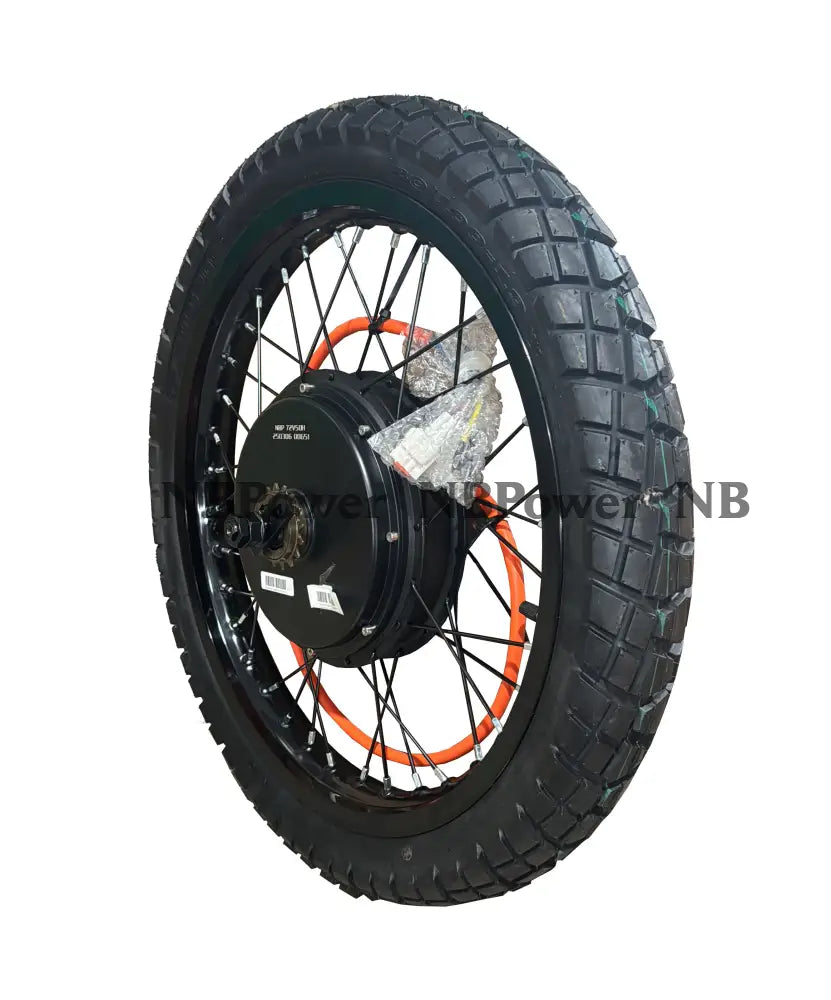

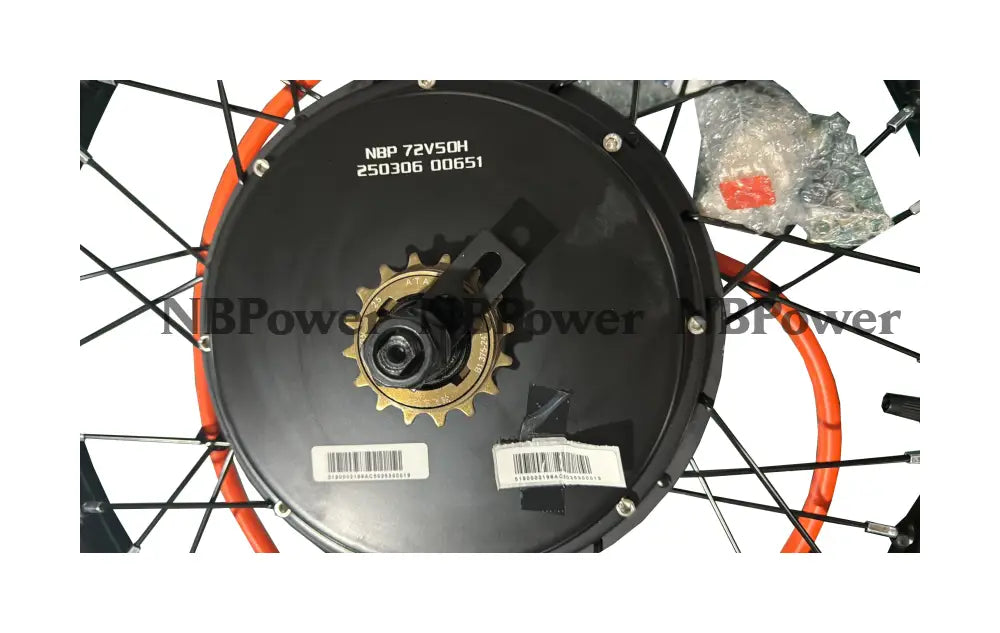

16inch/17inch /18inch /19inch /21inch QS 205 V3 150mm dropout 3000W Motorwhweel With Single Speed Freewheel And Tire ;QS 3000W Motorwheel

QS 205 V3 150mm dropout 3000W Motorwhweel

1. Motor Type: BLDC In-Wheel Hub Motor
2. Motor Design: Double Axle with Rim
3. Matched Tire: 16inch 17inch 18inch 19inch 21inch
4. PCD: 6*44mm
5. Stator: Aluminum Core
6. Rated Power: 3000W
7. Peak Power: 10000W in few seconds
8. Rated Voltage: 72V
9. Speed: 3T:960RPM  3.5T: 840RPM  4T: 770RPM  5T: 650RPM
10. Drop-outs: 150mm
11. Max Torque:3T:160N.M  3.5T: 180N.M  4T: 200N.M  5T: 220N.M
12. Max Efficiency: approx 91%
13. Suggest Peak Phase Current: N/A
14. Thermic Probe: KTY83/122(as default)
15. Working Temperature: 70-120℃, peak 150℃
16. Brake Type: Disc Brake
17. Hall Sensor: Dual hall set with waterproof connector
18. Phase Wire:2*5mm²Cross
19. Hall Sensor Phasing Angle: 120 degree
20. Waterproof Grade: IP65
