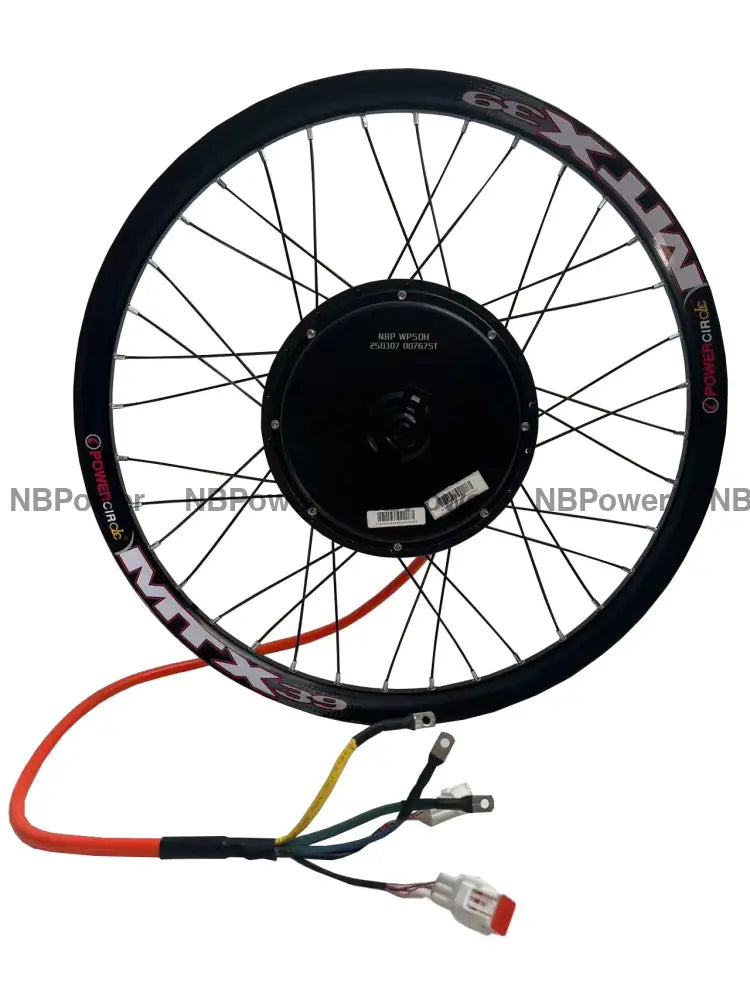

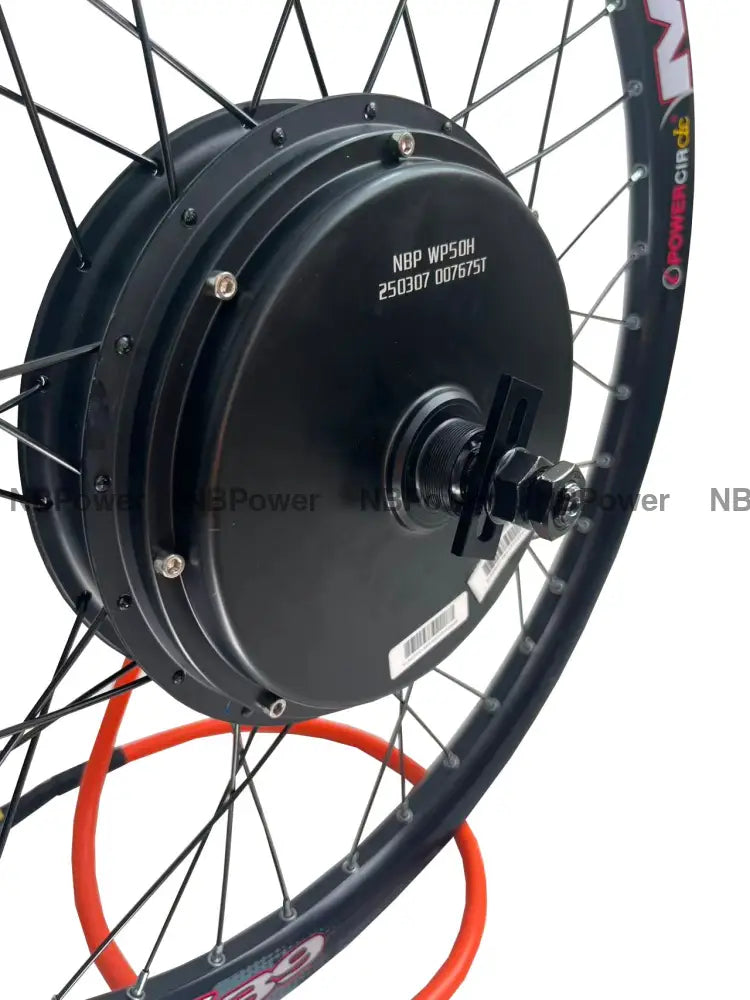

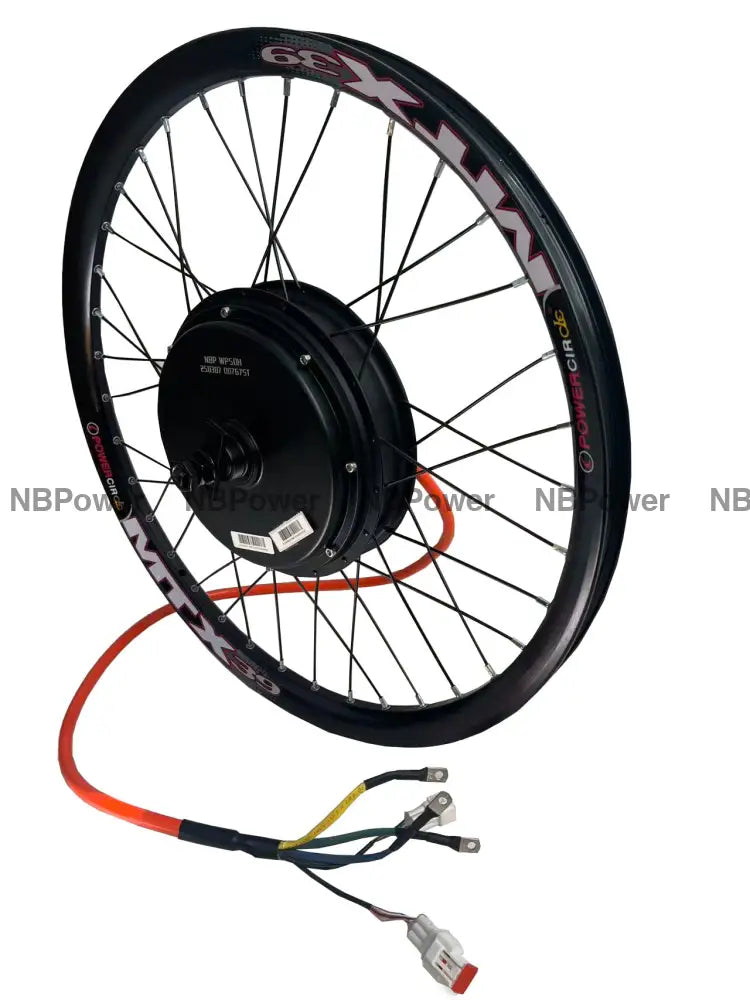

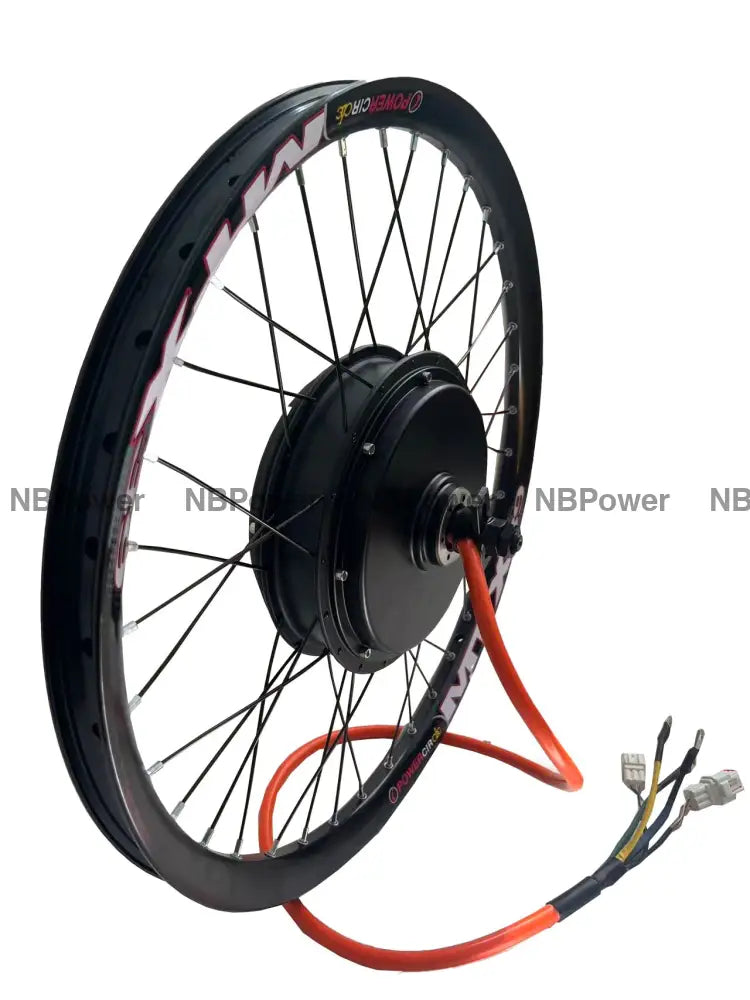

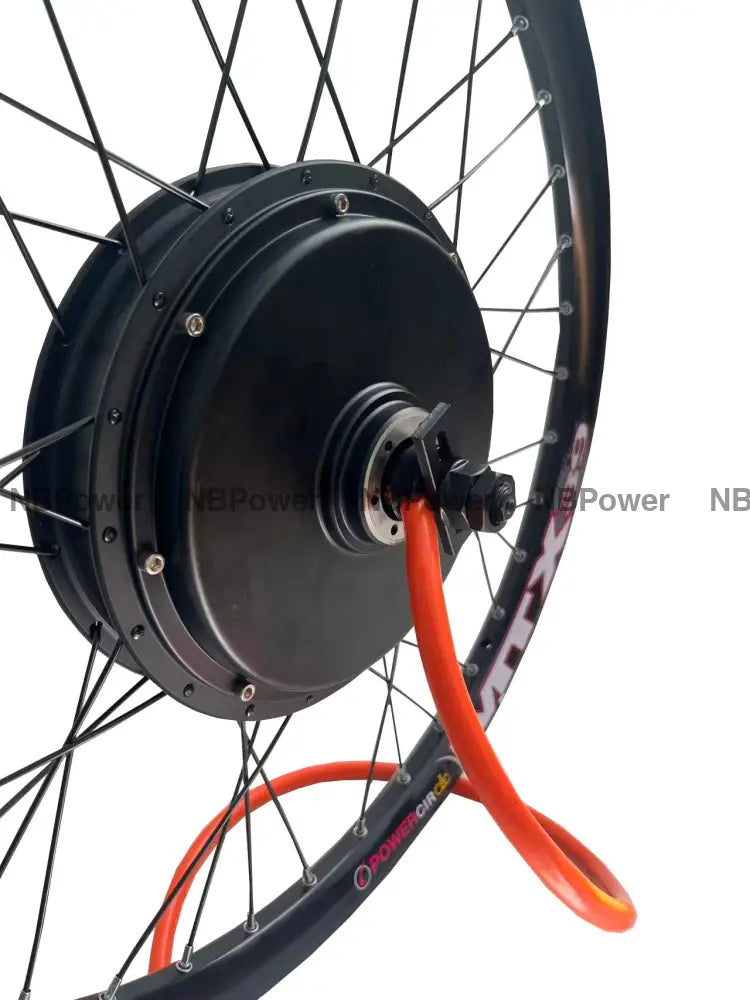

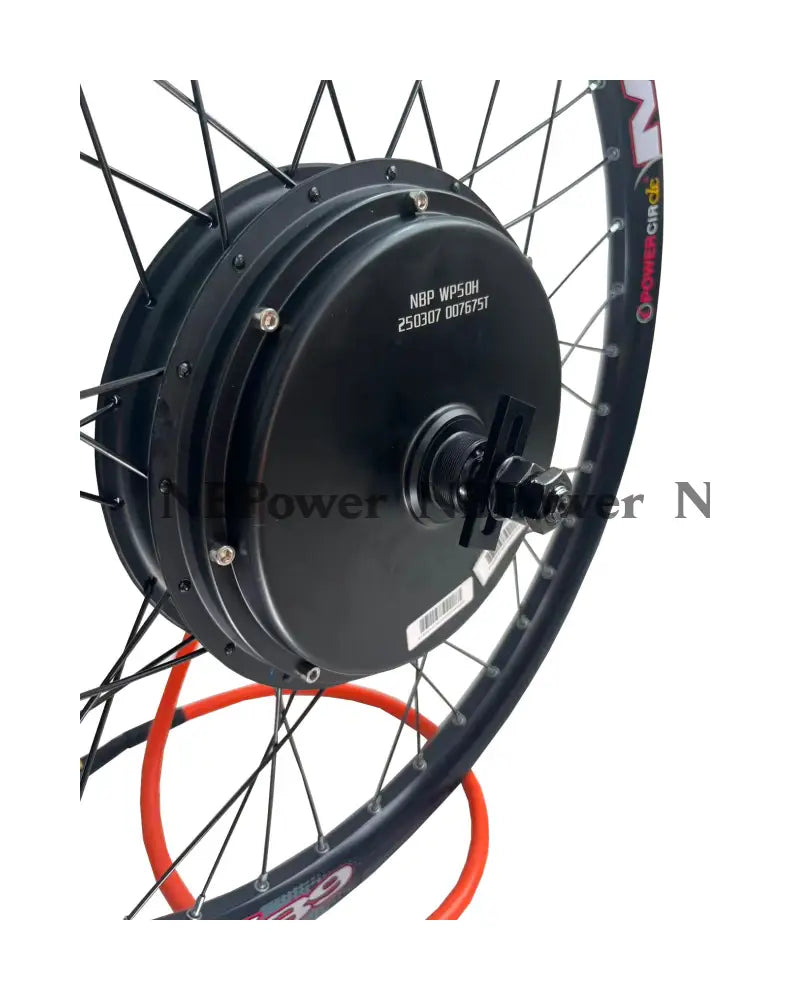

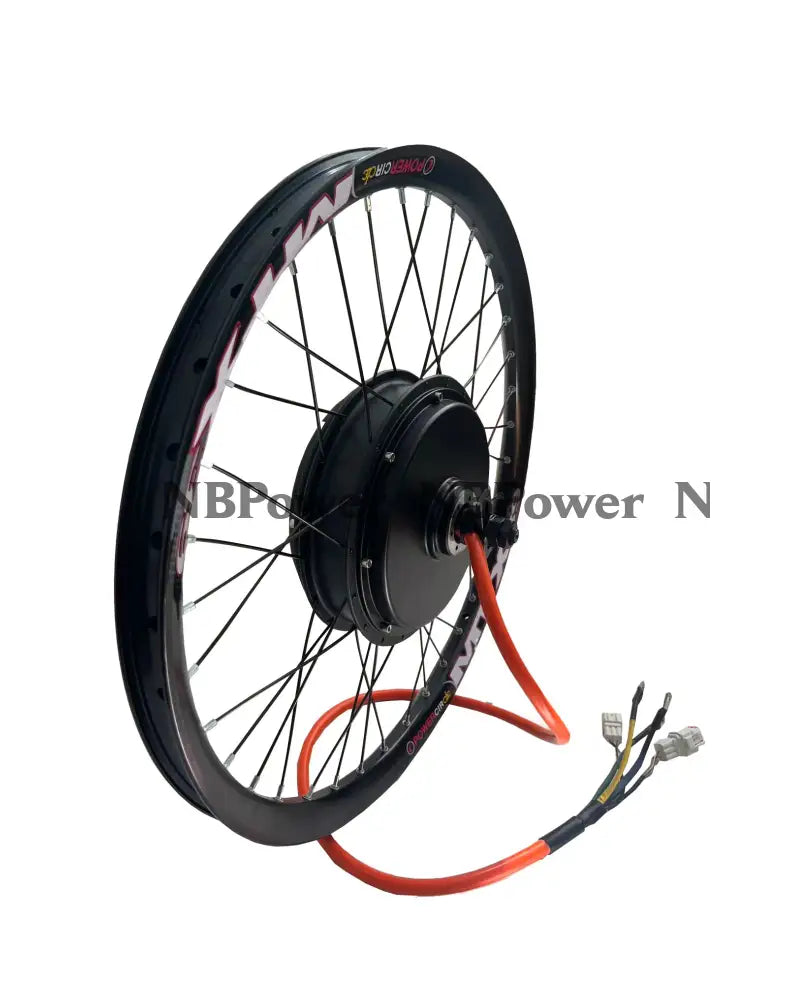

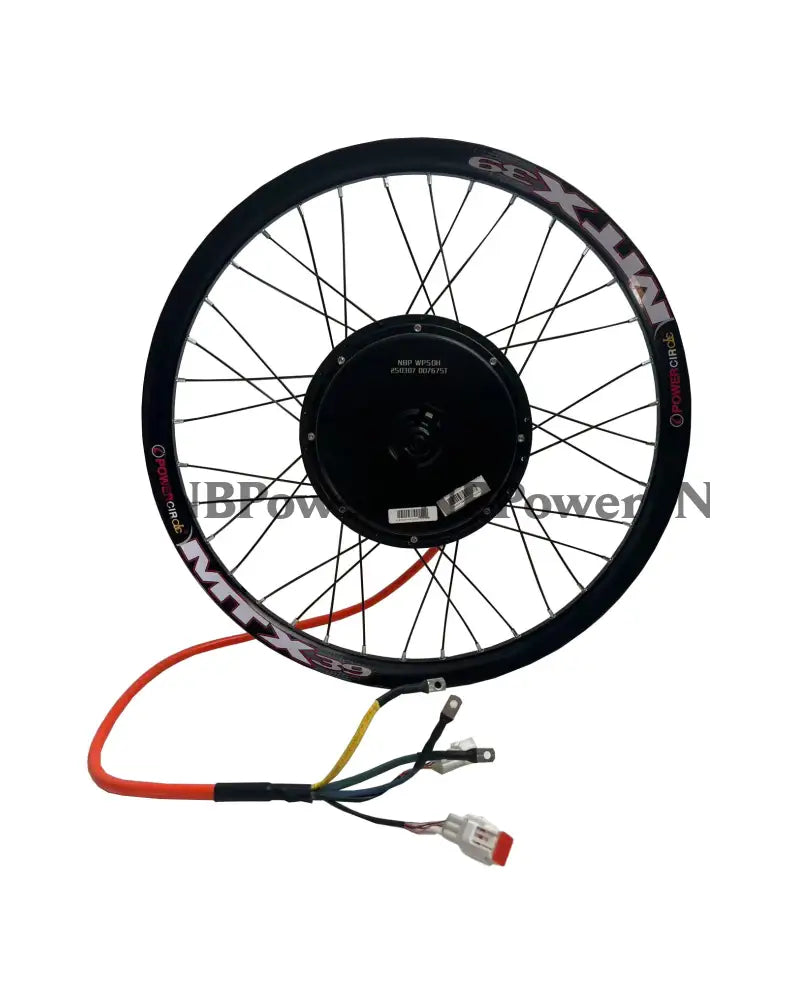

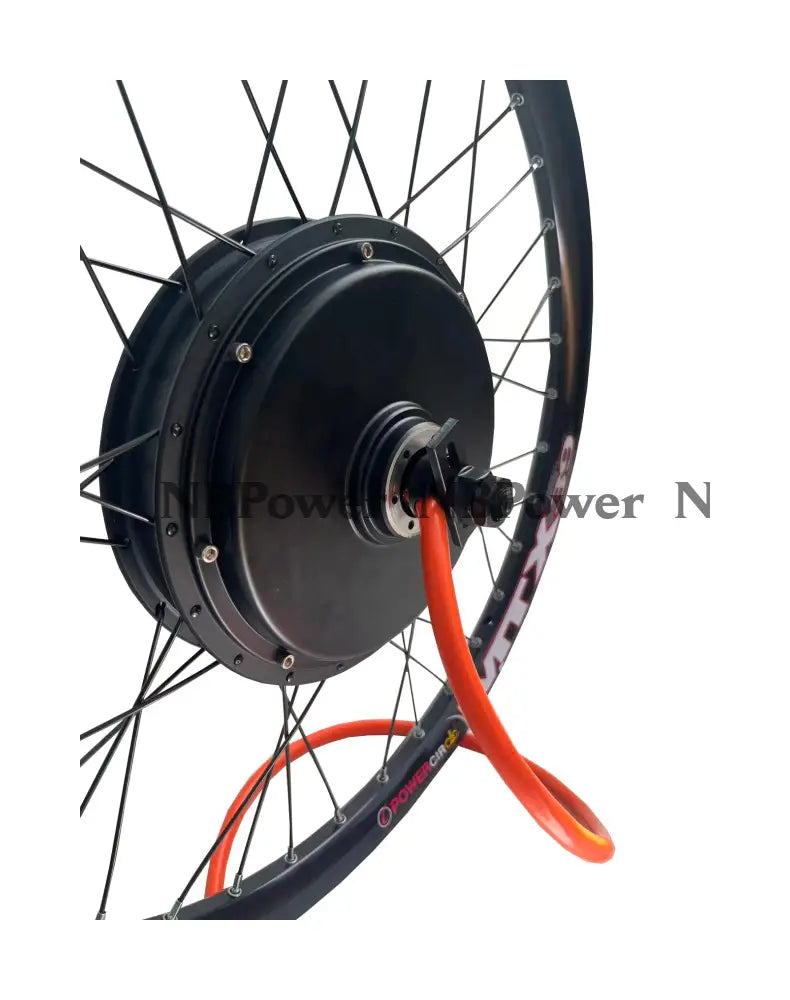

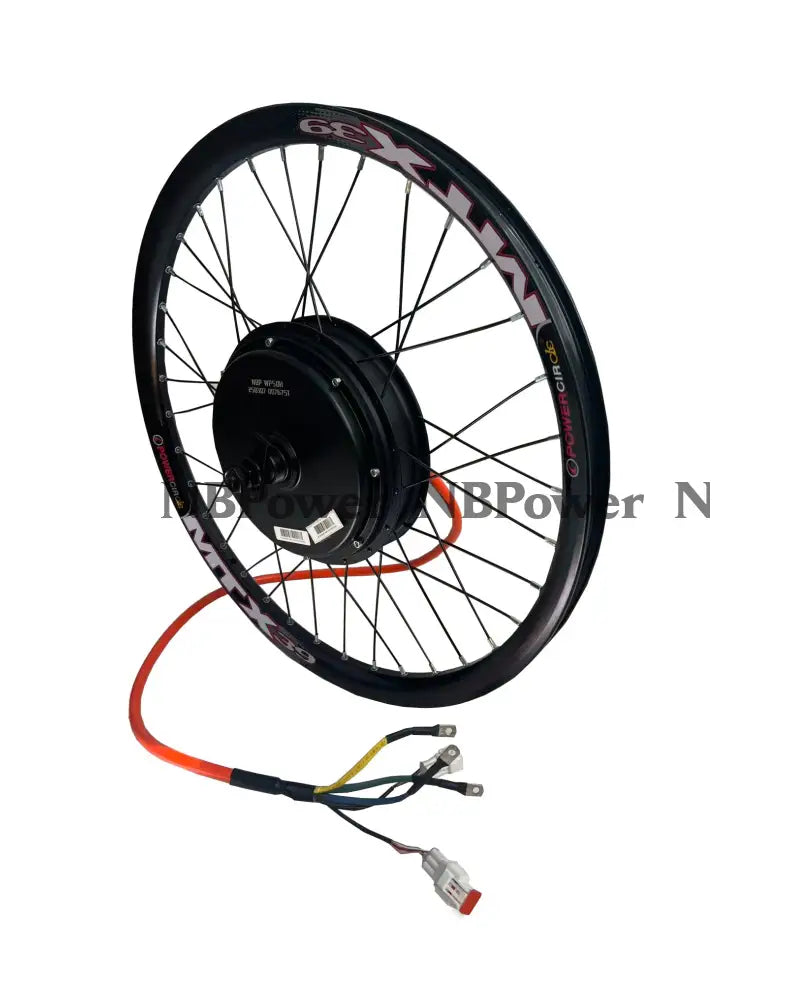

20/24/26/27.5/28/29/700C MTX rim Rear 150mm dropout 3.5T/5T high speed 5000W motorwheel with spokes ; 5000W motorwheel

5000W
1. Motor Type: BLDC In-Wheel Hub Motor
2. Motor Design: Double Axle with Rim(integrated)
3. Matched Tire: 20inch 24inch 26inch

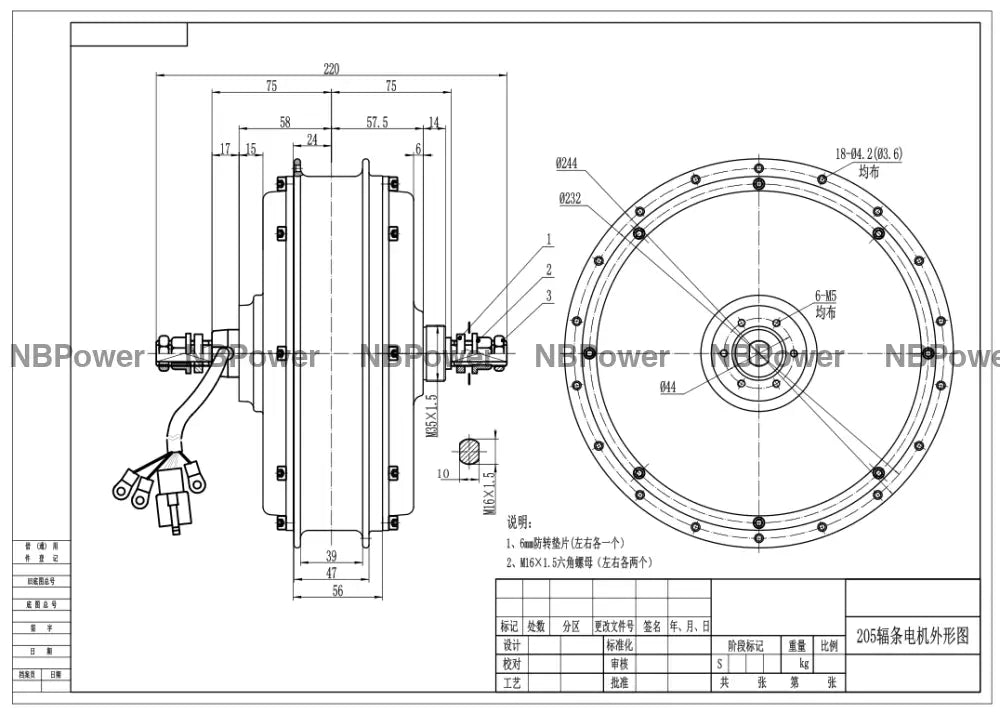

4. PCD: 6*44mm
5. Stator: Aluminum Core
6. Rated Power: 5000W
7. Peak Power: 10000W in few seconds
8. Rated Voltage: 72V
9. Speed:
3.5T: 840RPM
4T: 770RPM
5T: 650RPM
10. Drop-outs: 150mm
11. Max Torque:
3.5T: 180N.M
4T: 200N.M
5T: 220N.M
12. Max Efficiency: approx 91%
13. Suggest Peak Phase Current: N/A
14. Thermic Probe: KTY83/122(as default)
15. Working Temperature: 70-120℃, peak 150℃
16. Brake Type: Disc Brake
17. Hall Sensor: Dual hall set with waterproof connector
18. Phase Wire:2*5mm²Cross
19. Hall Sensor Phasing Angle: 120 degree
20. Waterproof Grade: IP65

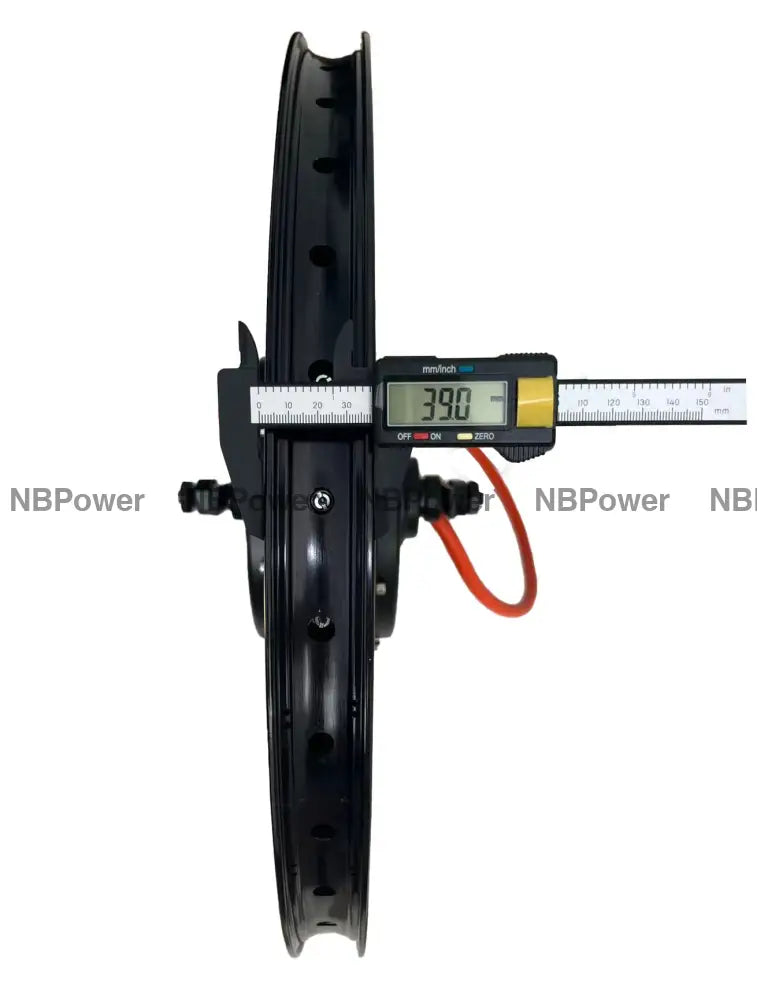

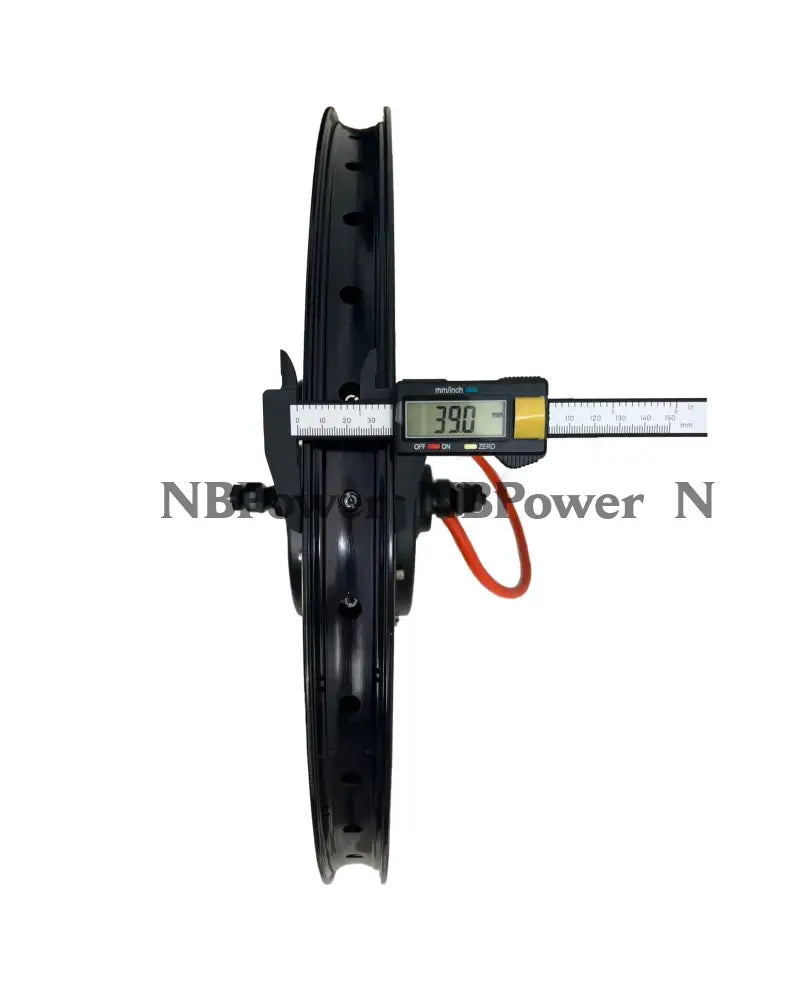

21.Rim ：80MM or 100MM width rim for choose

High-Performance 5000W Electric Bike Motor Wheel

Transform your bicycle into a powerful electric bike with our premium QS 5000W motor wheel. Engineered for maximum performance and reliability.

Key Features:

• Powerful Performance: 5000W rated power, 10000W peak power for exceptional acceleration
• Universal Compatibility: Fits 20/24/26/27.5/28/29/700C wheel sizes
• Durable Construction: Aluminum core stator with IP65 waterproof rating
• High Efficiency: Up to 91% efficiency for maximum range
• Professional Grade: 150mm dropout spacing, disc brake compatible

Technical Specifications:

• Motor Type: BLDC In-Wheel Hub Motor with double axle design
• Rated Voltage: 72V system
• Speed Options: 3.5T (840RPM), 4T (770RPM), 5T (650RPM)
• Maximum Torque: Up to 220N.M (5T version)
• Working Temperature: 70-120℃, peak 150℃
• Weight: 15kg

Perfect for e-bike enthusiasts, commuters, and anyone looking to upgrade their bicycle with professional-grade electric power. Easy installation with included spokes and waterproof connectors.
