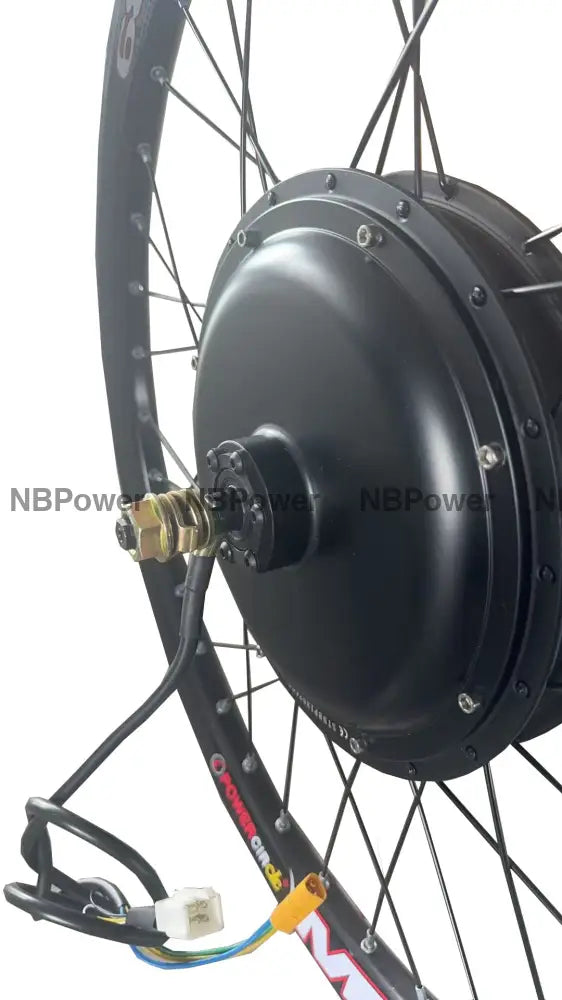

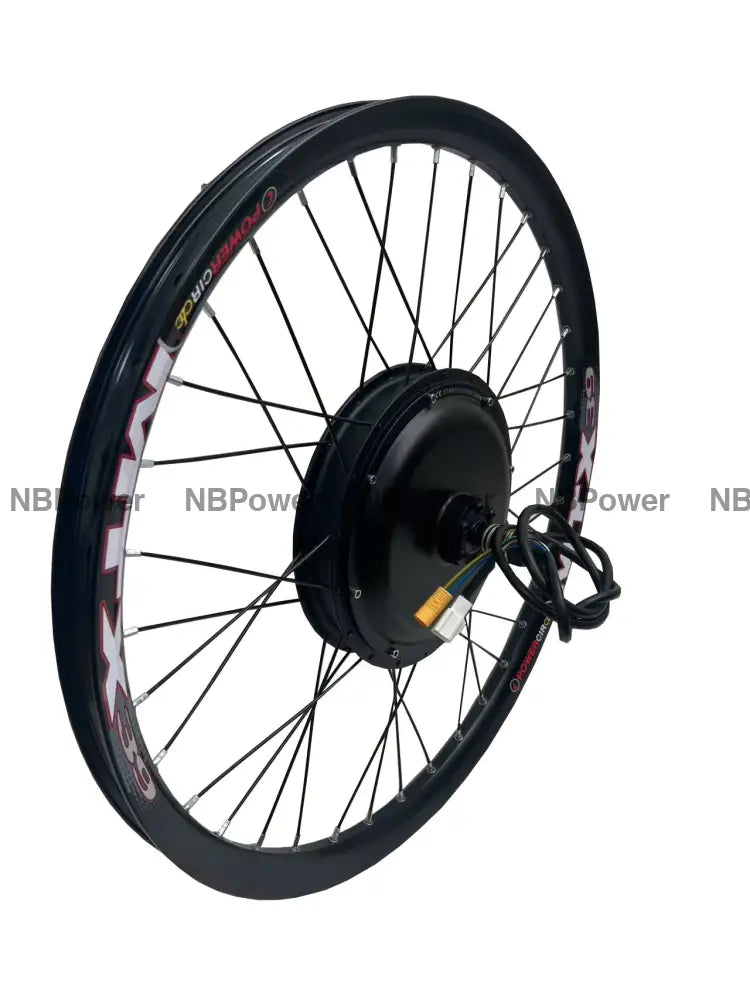

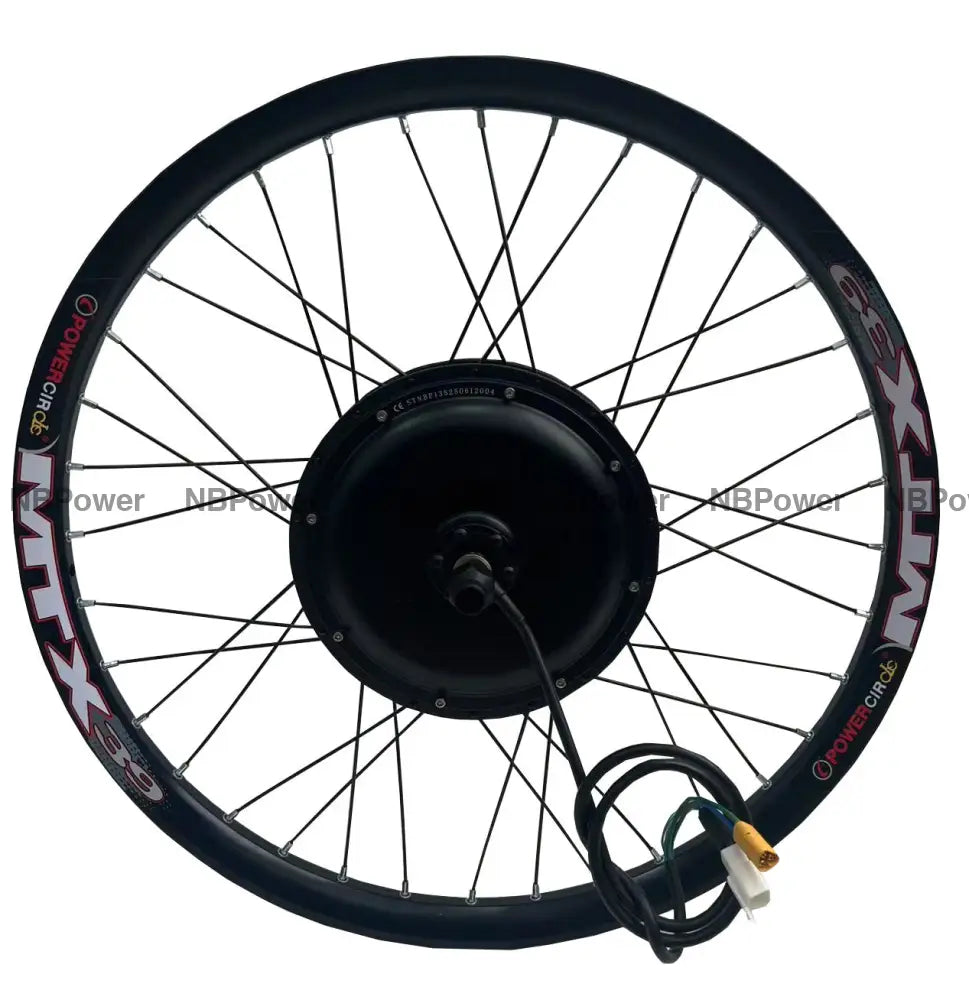

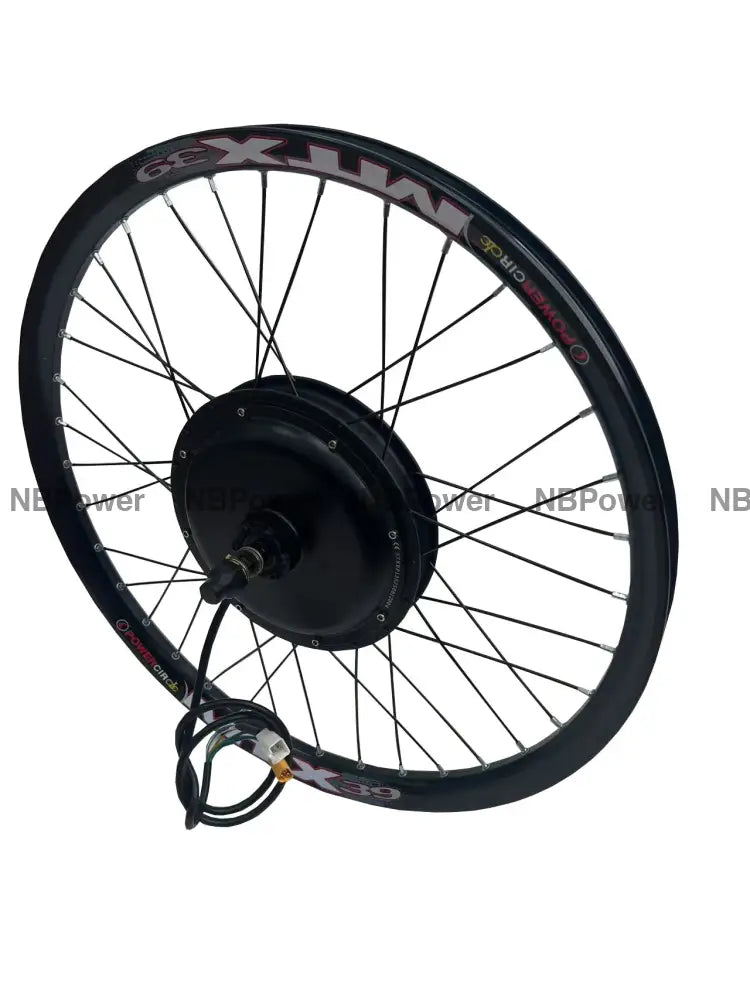

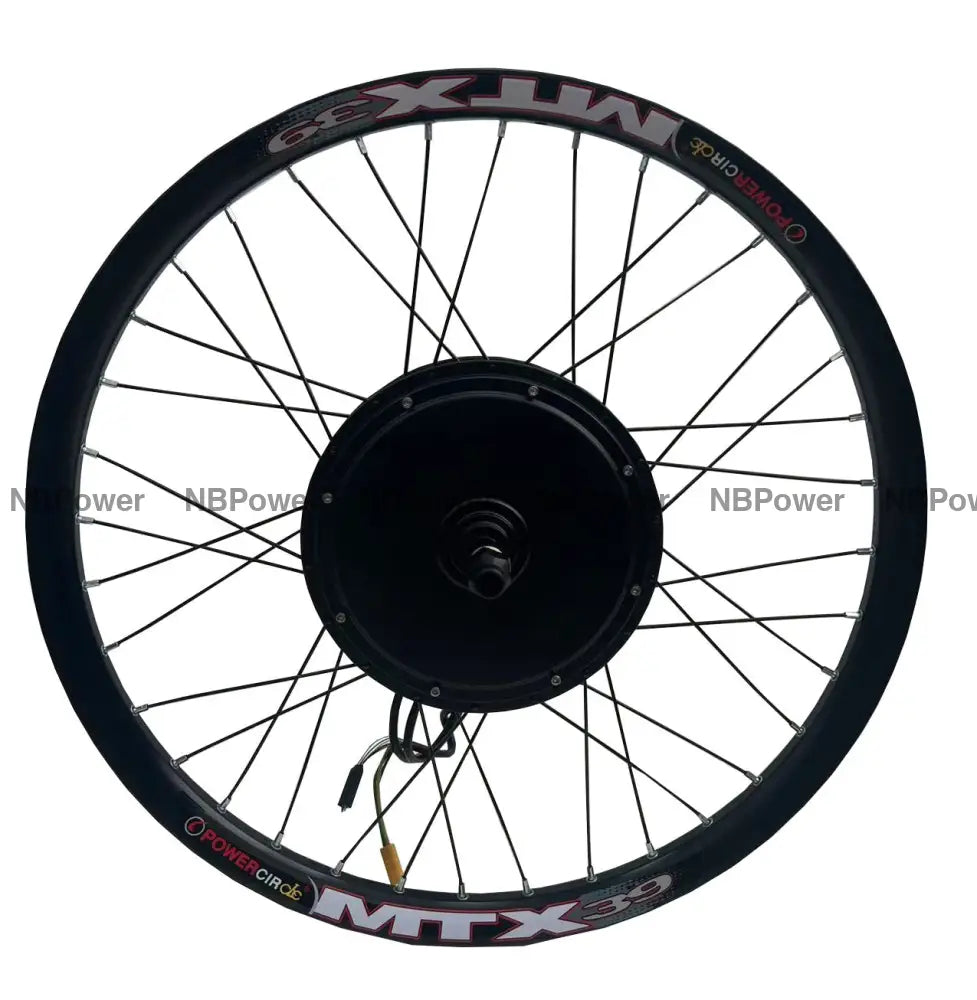

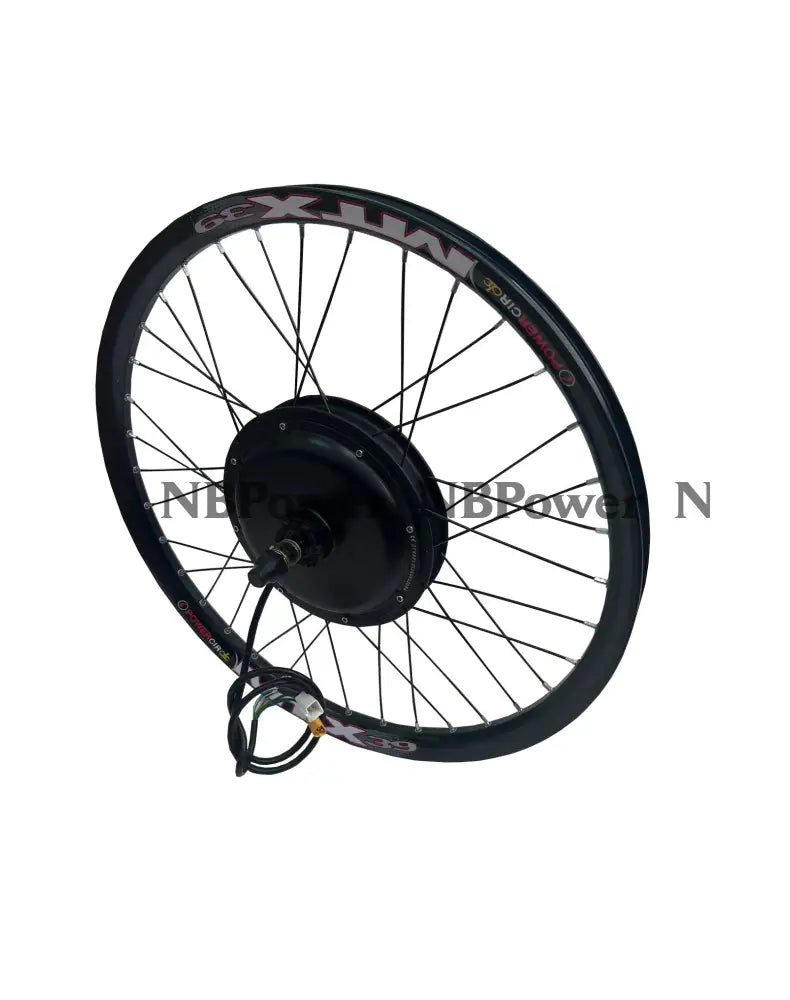

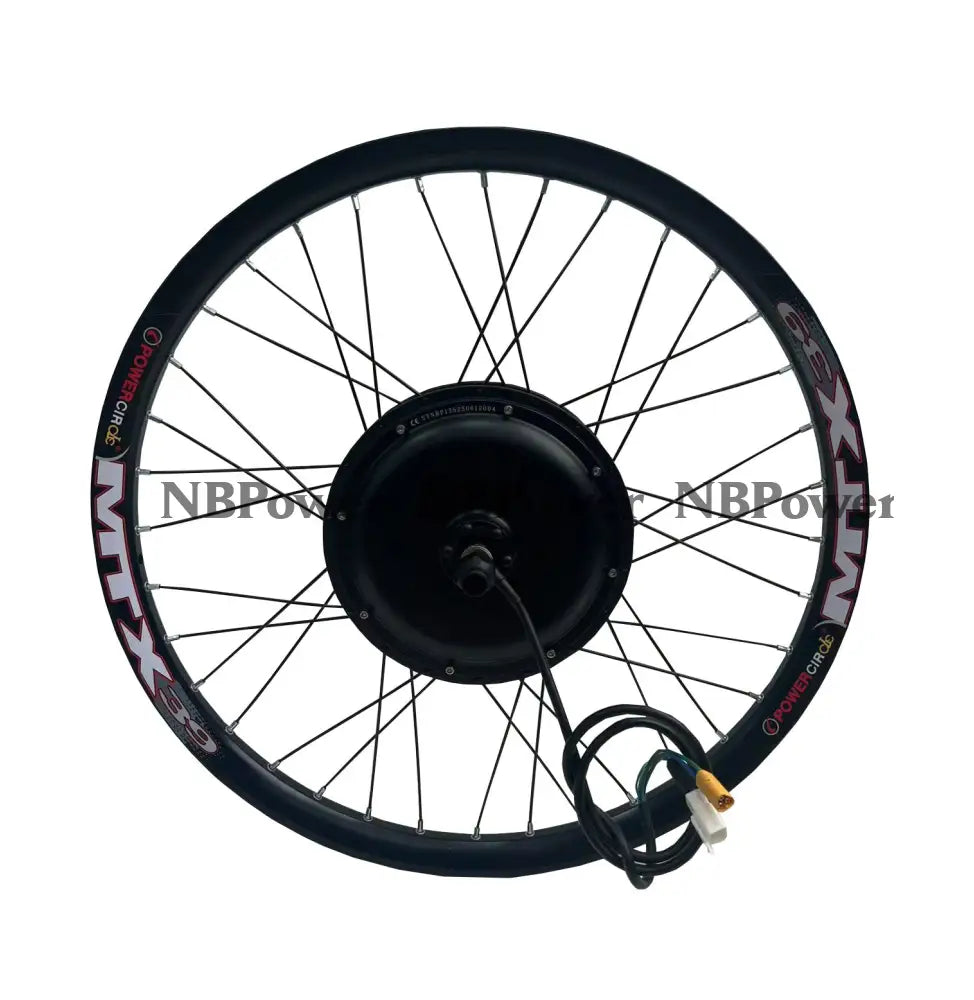

20/24/26/27.5/28/29/700C Rear wheel 135mm dropout 72V 2000W motorwheel with spokes

20/24/26/27.5/28/29/700C Rear wheel 135mm dropout 72V 2000W motorwheel with spokes

$428.00 USD
$428.00 USD
Sale Sold out
Shipping calculated at checkout.

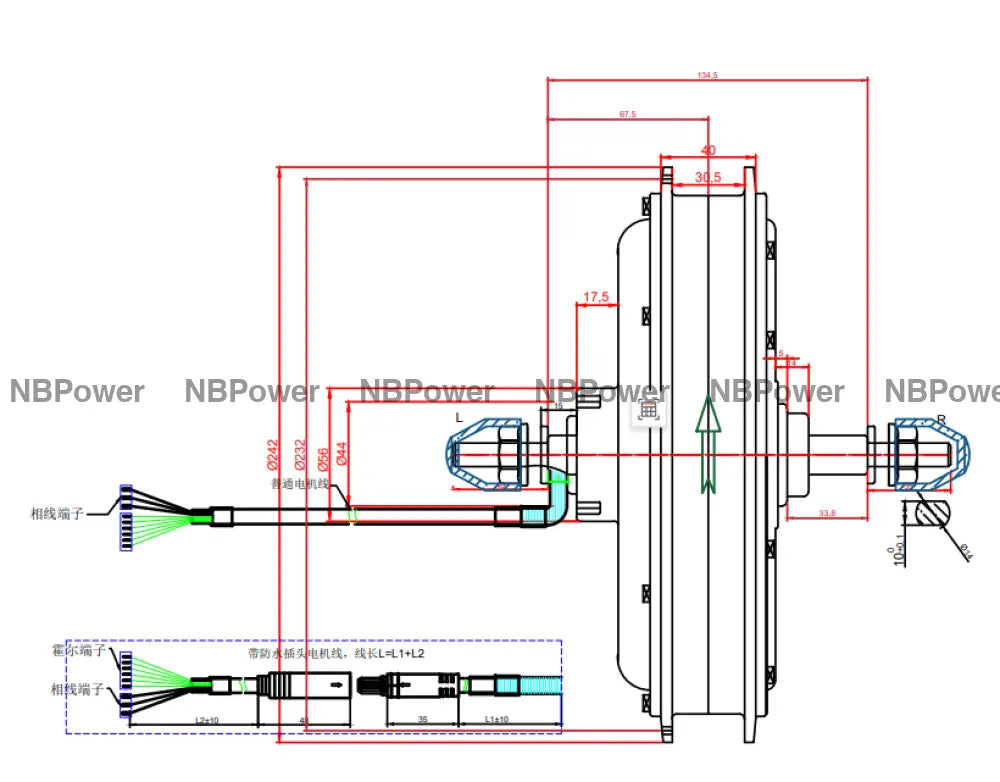

尺寸

2000w Motor Specification:
1. Motor Type: BLDC Hub Motor with Permanent Magnet

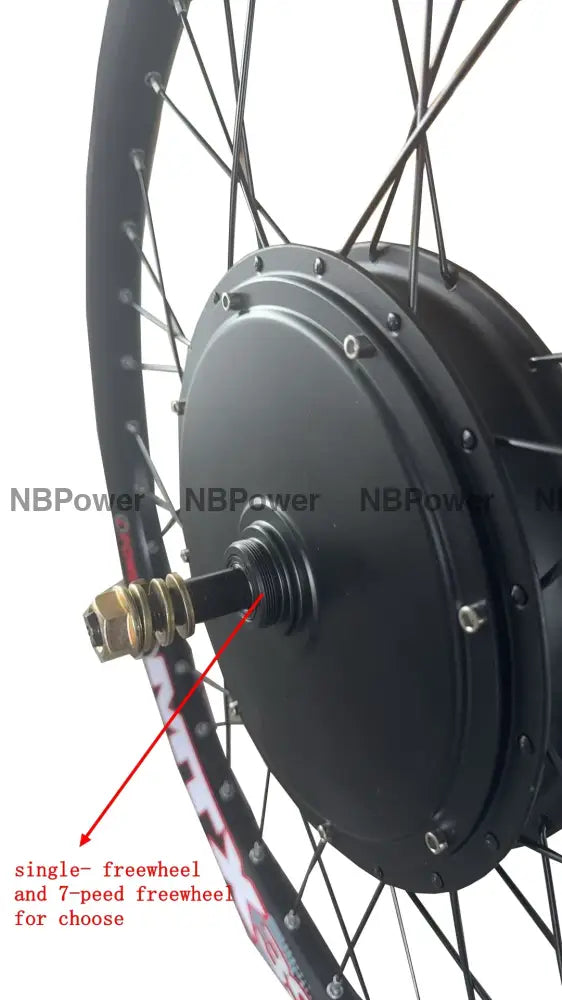

2. Motor design: Double axle out
3. Spoke hole: 3.4mm x 36pcs

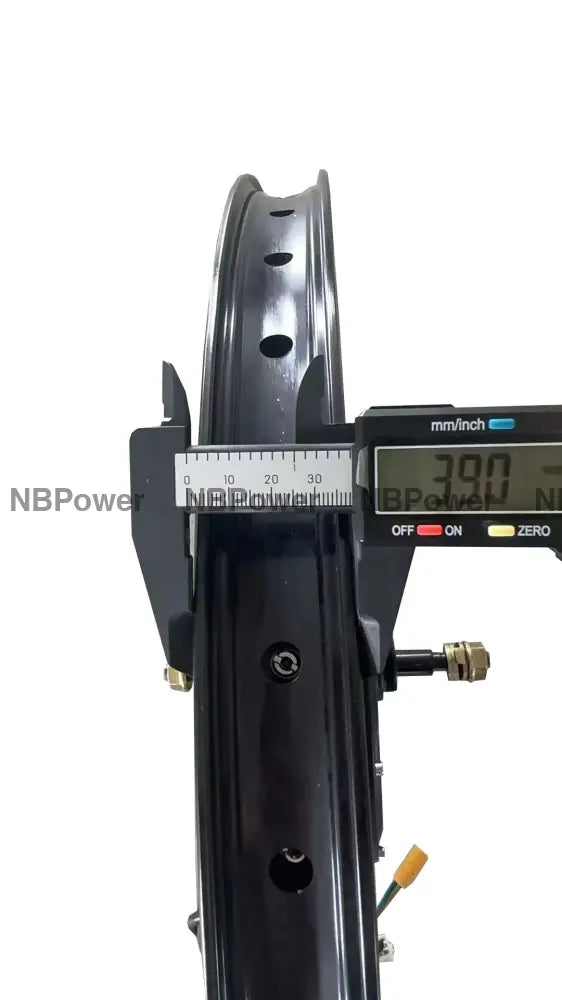

4. Matching Rim:20inch-29inch
5. Rated Power:2000W
6. Peak Power:4000W
7. Rated Voltage: 52V/72V(Can be optional)
8. Speed: 70-75km/h
9. Max No-load RPM:700RPM
10. Max Torque:70N.M
11. Max Efficiency: 88%
12. Brake type: Disc brake
14. Winding Core material: Steel
15. Cross Section of Phase wire: 6 mm2
16. Hall sensor phasing angle: 120 degree
17. Max. Working Temperature: 70 degree, Peak 120 degree
18. Waterproof Grade: IP54
