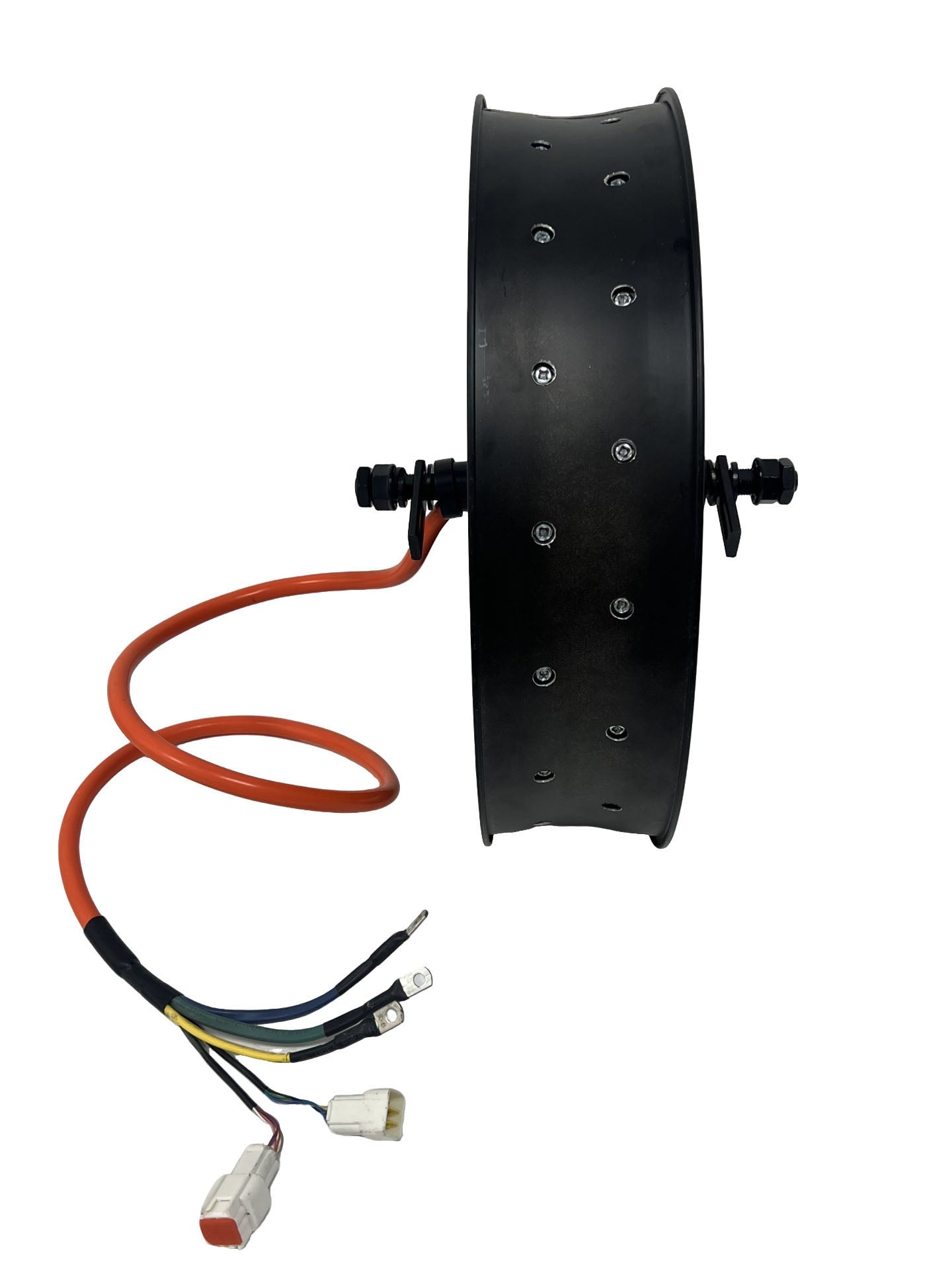

20*4.0 100mm Width Fat rim with QS 273 150mm dropout 3T/ 3.5T/ 4T /5T 8000W motorwheel with single freewheel
20*4.0 100mm Width Fat rim with QS 273 150mm dropout 3T/ 3.5T/ 4T /5T 8000W motorwheel with single freewheel
Couldn't load pickup availability
QS 273 8000W Fat Motorwheel Specifications
Price for a single wheel. No free shipping included. Please place the order, then let me know your address and I will handle the shipping cost.
| Specification | Details |
|---|---|
| Motor Type | BLDC In-Wheel Hub Motor |
| Motor Design | Double Axle with Rim (integrated) |
| Rim Width | 20*4.0 (100mm width) |
| Dropout Width | 150mm |
| Rated Power | 8000W |
| Peak Power | 16000W (few seconds) |
| Rated Voltage | 72V |
| Winding Options | 3T / 3.5T / 4T / 5T |
| Speed (RPM) | 3T: 1050RPM | 3.5T: 900RPM | 4T: 800RPM | 5T: 650RPM |
| Max Torque | 3T: 220N.M | 3.5T: 250N.M | 4T: 280N.M | 5T: 320N.M |
| Max Efficiency | Approx 91% |
| Brake Type | Disc Brake |
| Hall Sensor | Dual hall set with waterproof connector (120Β°) |
| Phase Wire | 2*5mmΒ² Cross Section |
| Working Temperature | 70-120β, Peak 150β |
| Waterproof Grade | IP65 |
| Freewheel | Single Freewheel Included |
| Weight | 23 kg |
π Key Features
- Ultra High Power: 8000W rated, 16000W peak for extreme performance
- Fat Rim Design: 100mm width for superior stability and traction
- Multiple Winding Options: Choose from 3T to 5T for optimal speed/torque balance
- Professional Grade: IP65 waterproof, dual hall sensors, high-efficiency design
- Complete Package: Includes single freewheel for immediate installation
π Important Notice
1. Orders do not include customs duties, which are borne by the buyer.
2. For some special countries with strict customs for import, please confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue. Return of money and goods are not supported.
(Special countries list - contact seller)
π¬ Need Help with Shipping?
If you have any questions about the shipping cost, please feel free to contact us.
You can also place your order without paying first, then we can adjust the price for you.
π Contact Us
If you have any questions, please contact us and we will reply as soon as possible.
WhatsApp: +86 15922995145
