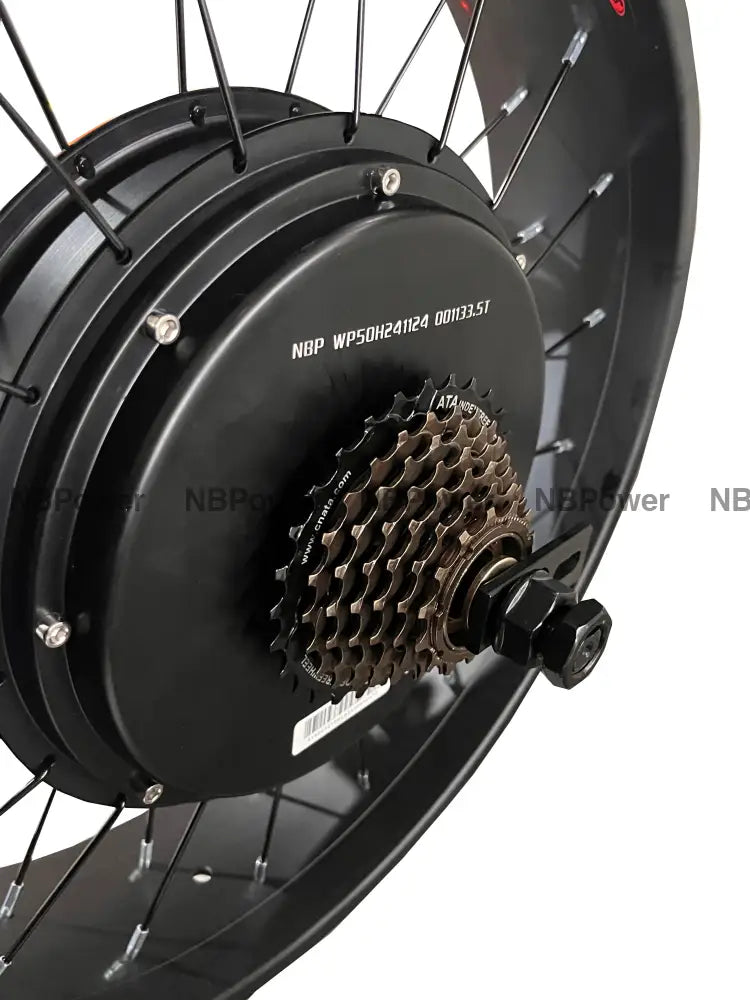

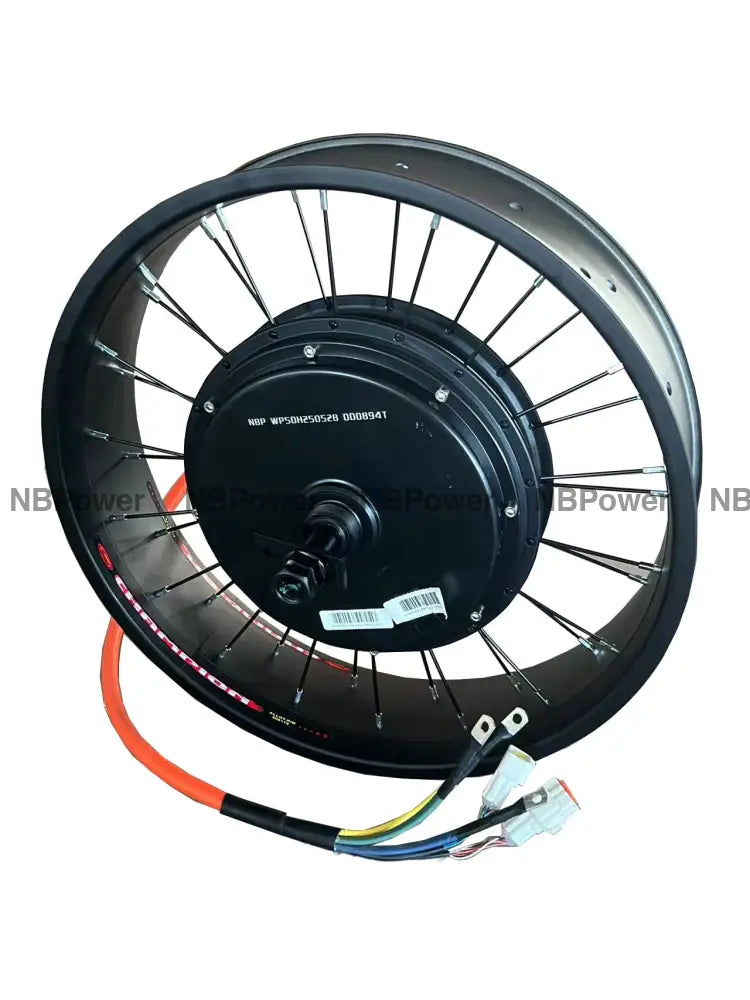

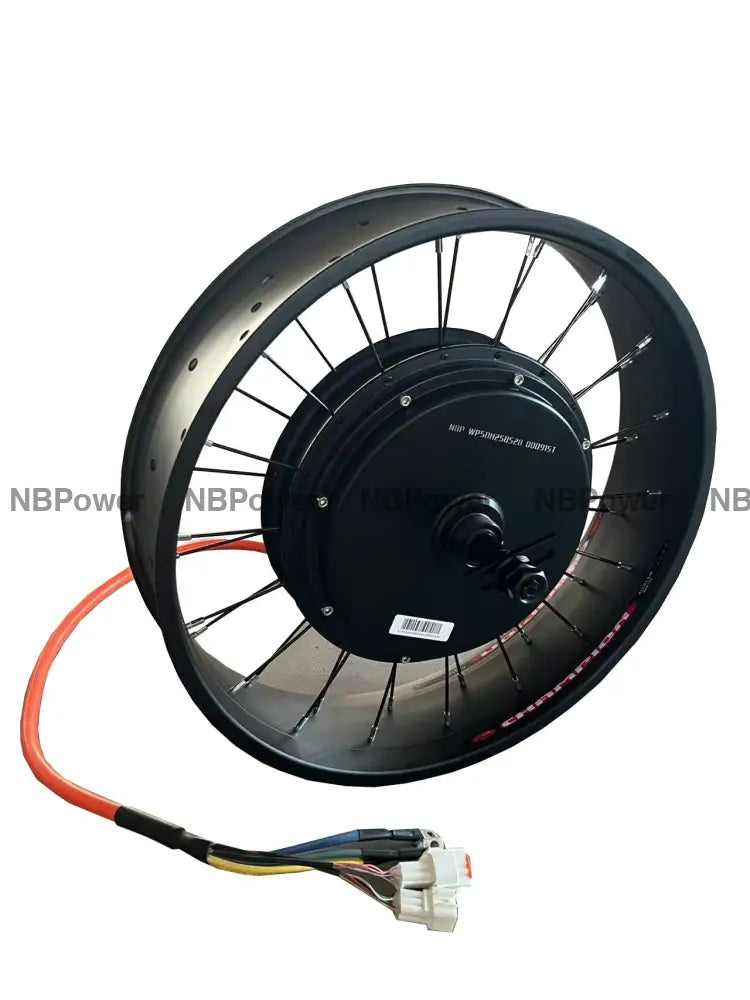

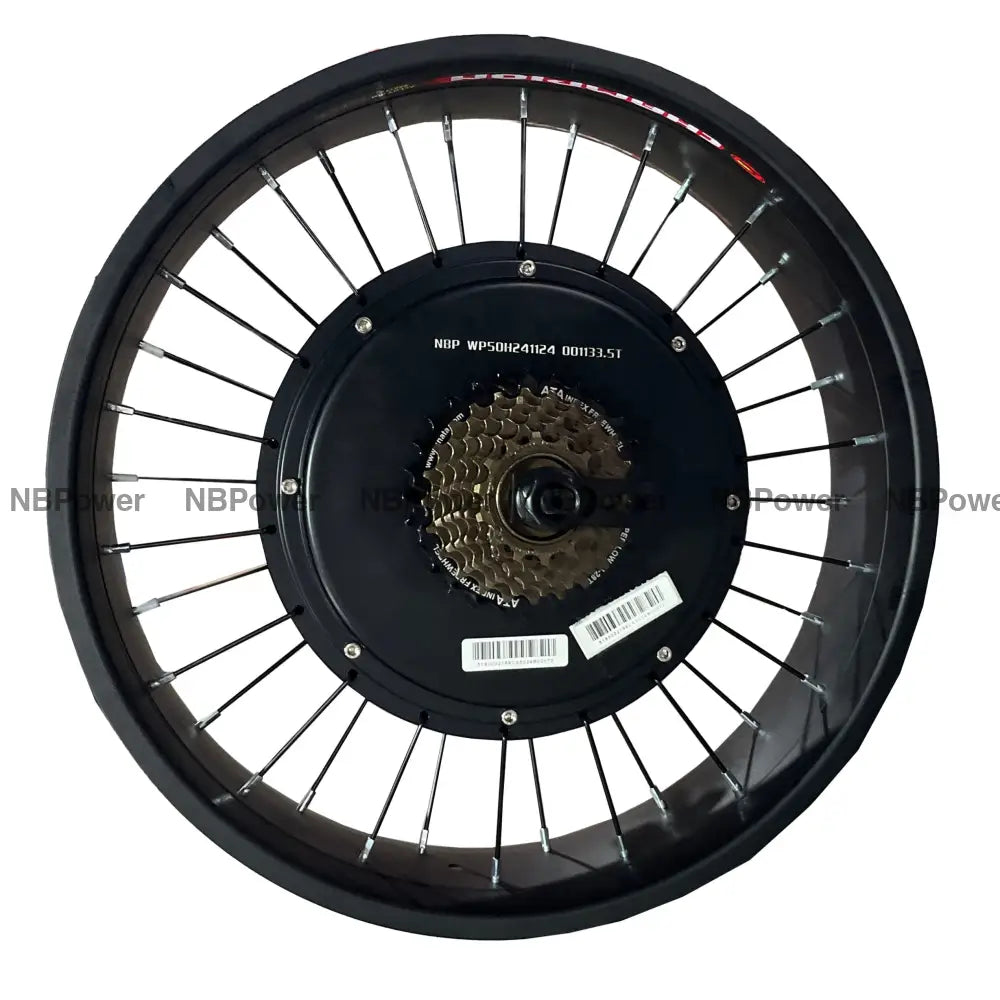

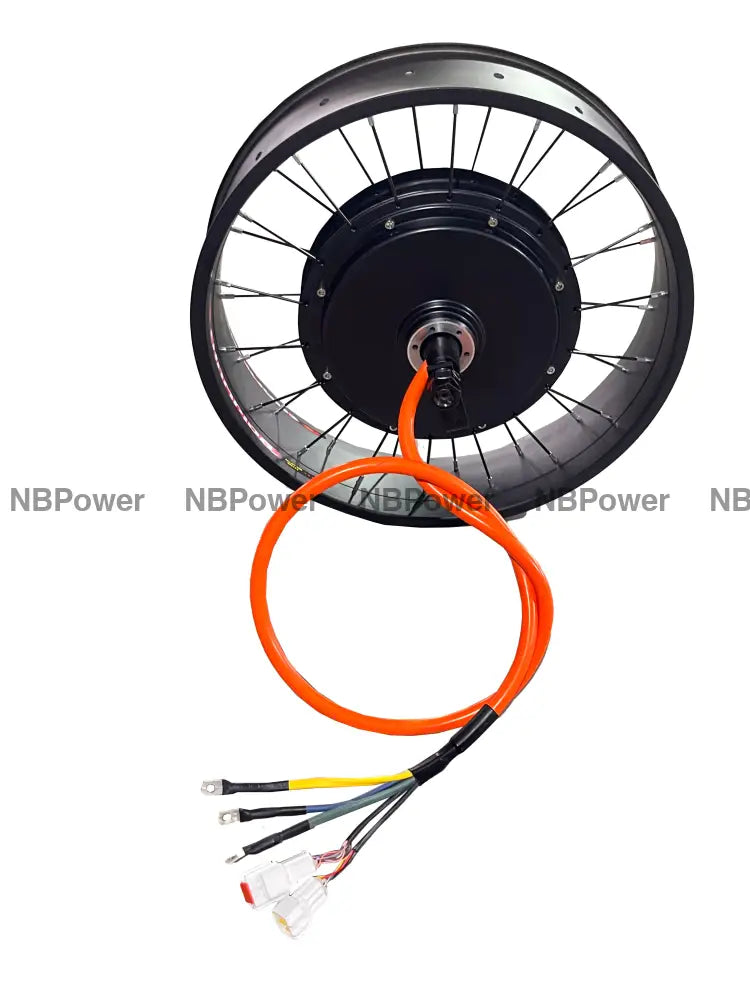

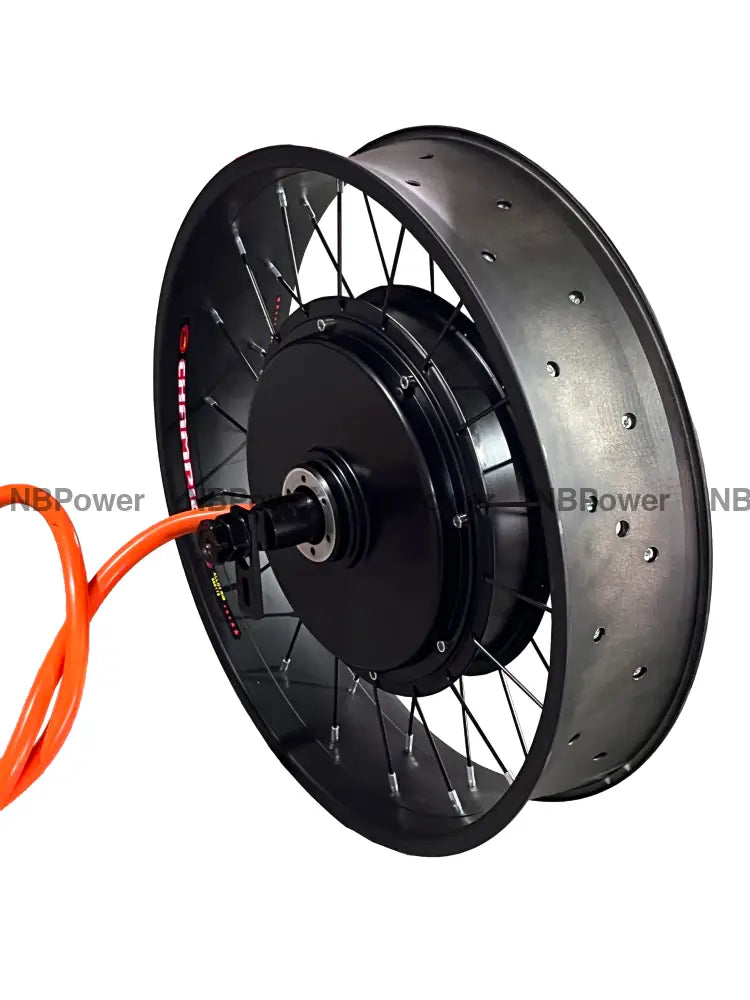

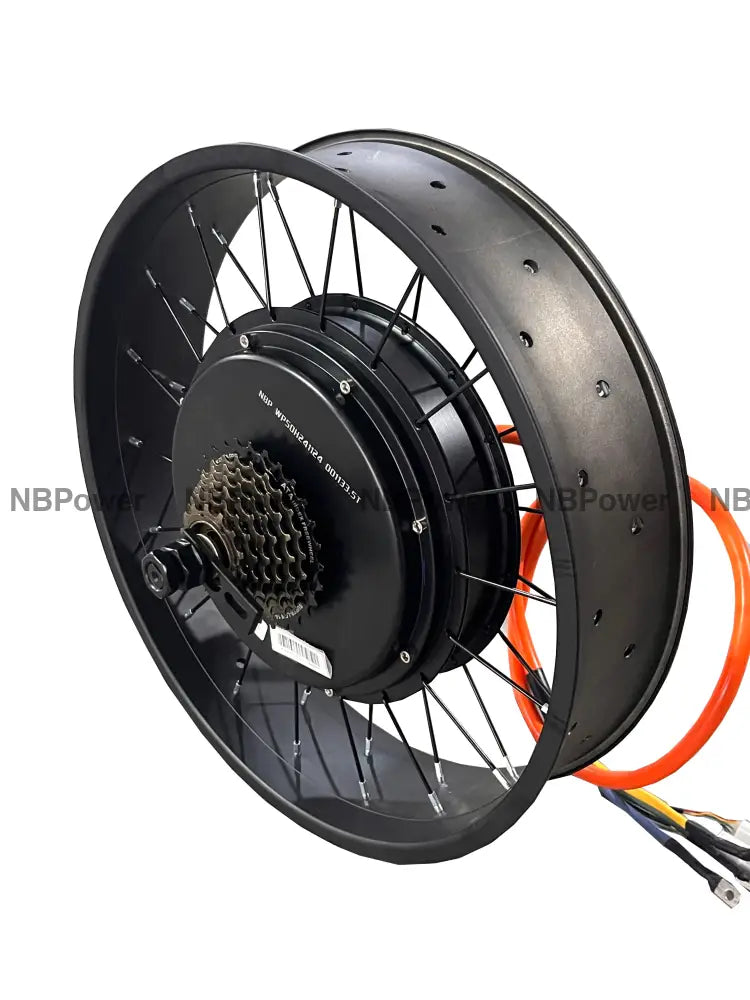

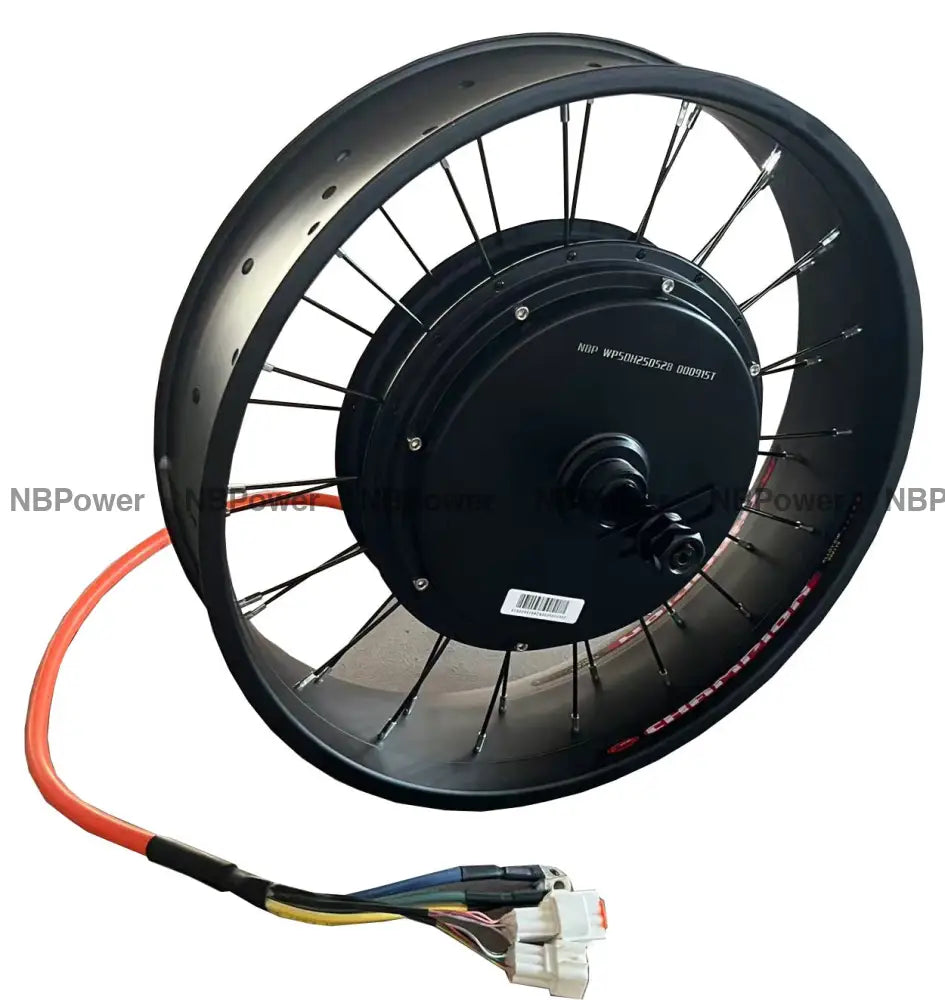

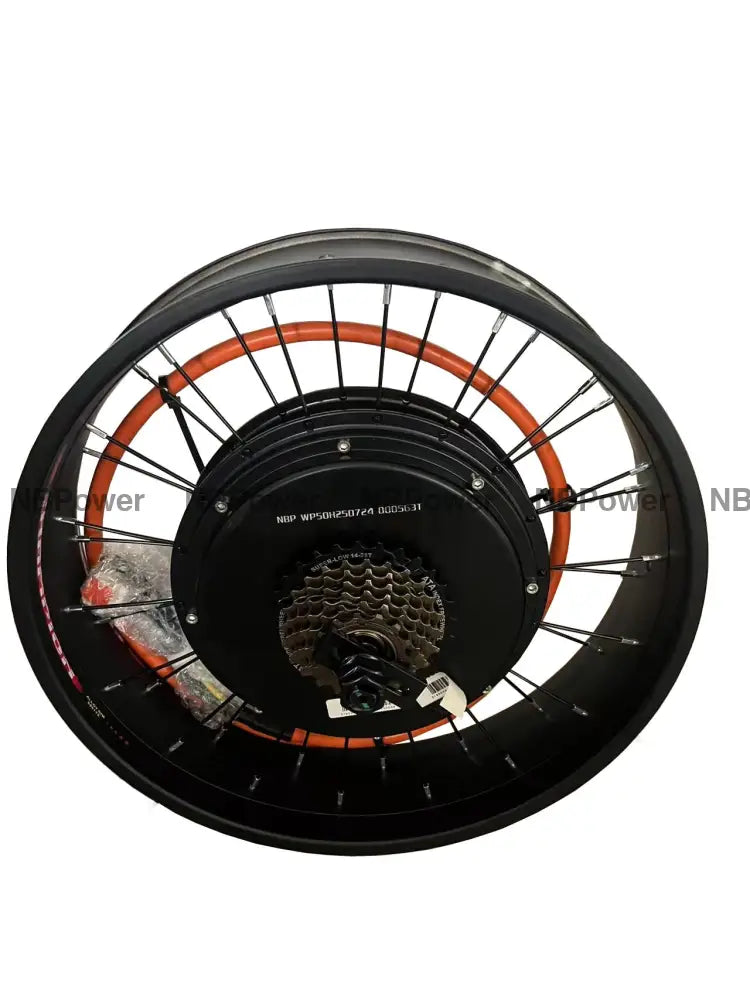

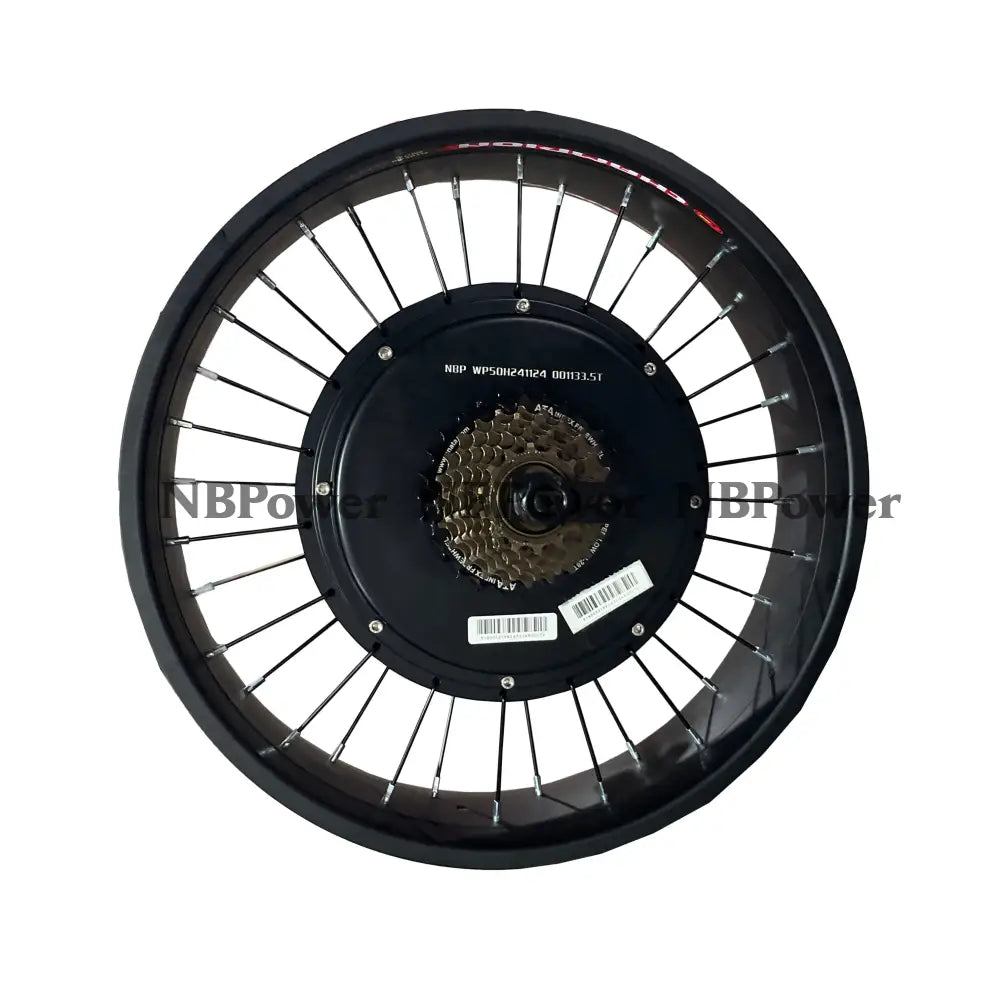

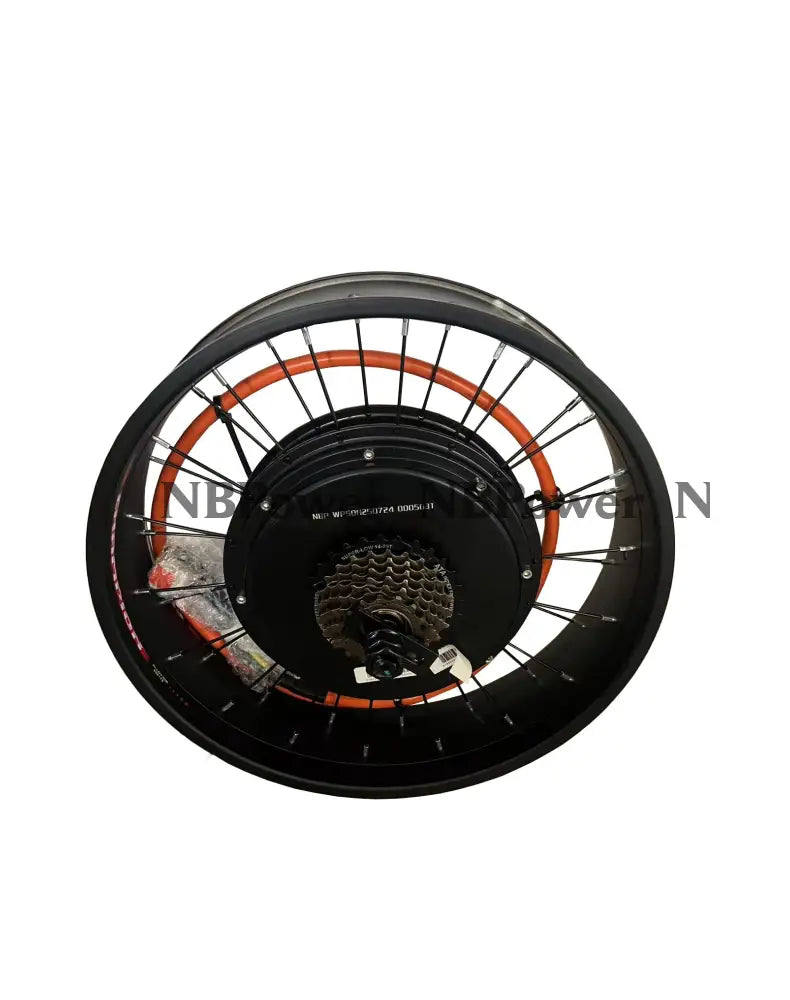

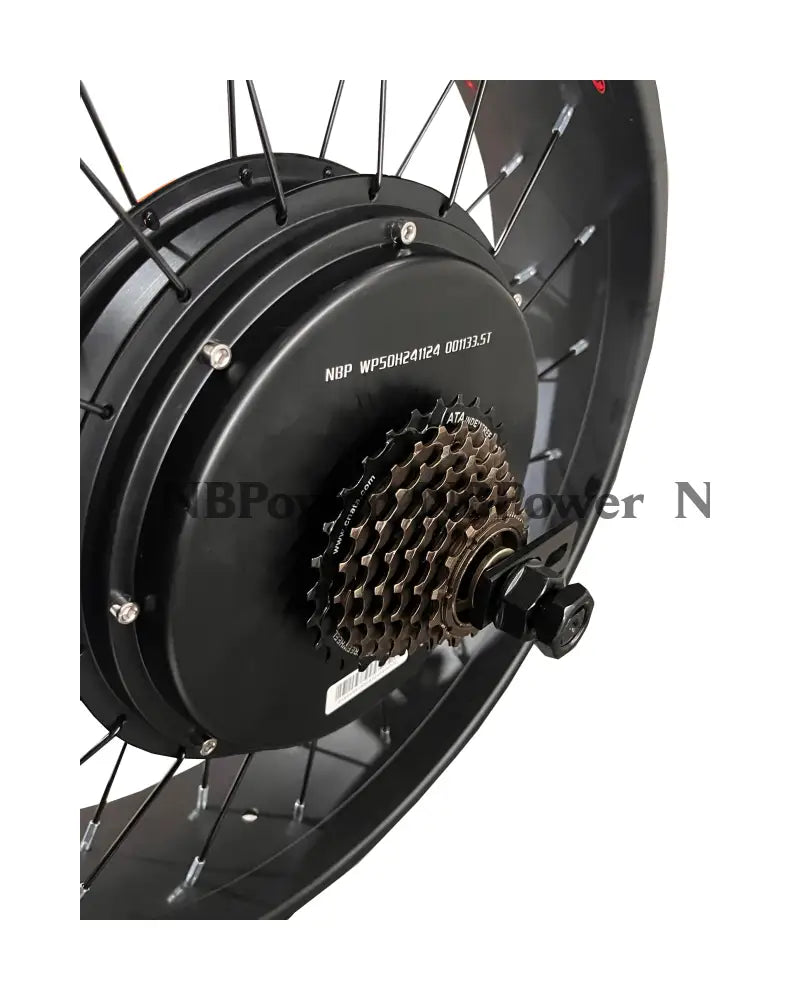

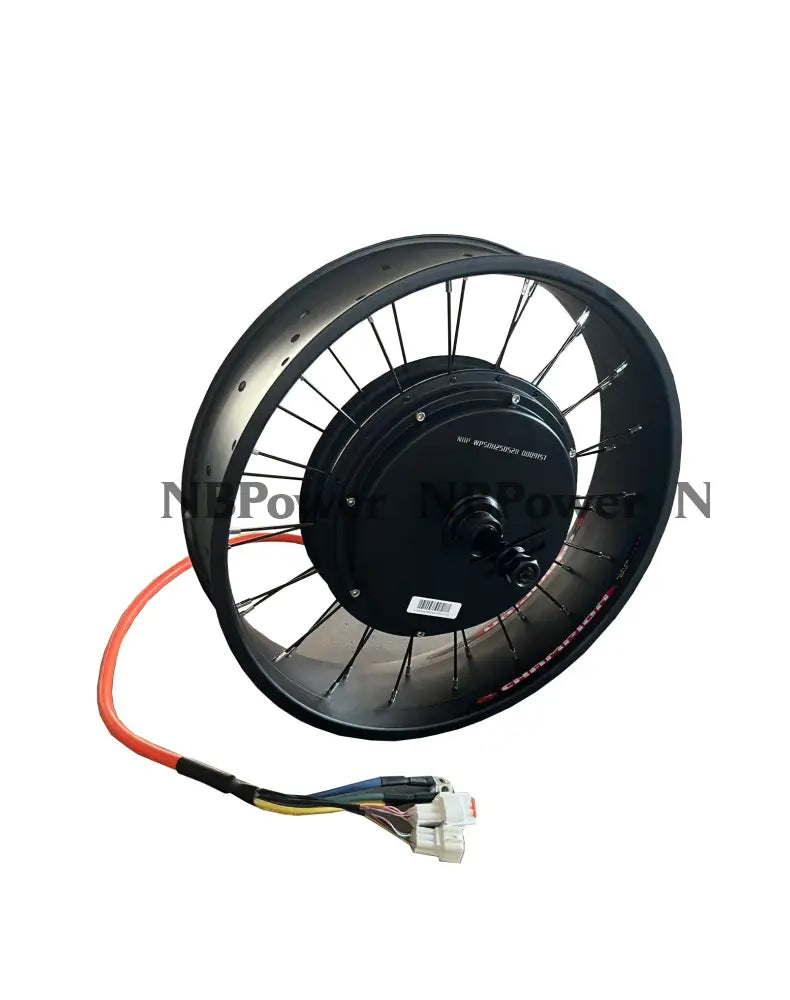

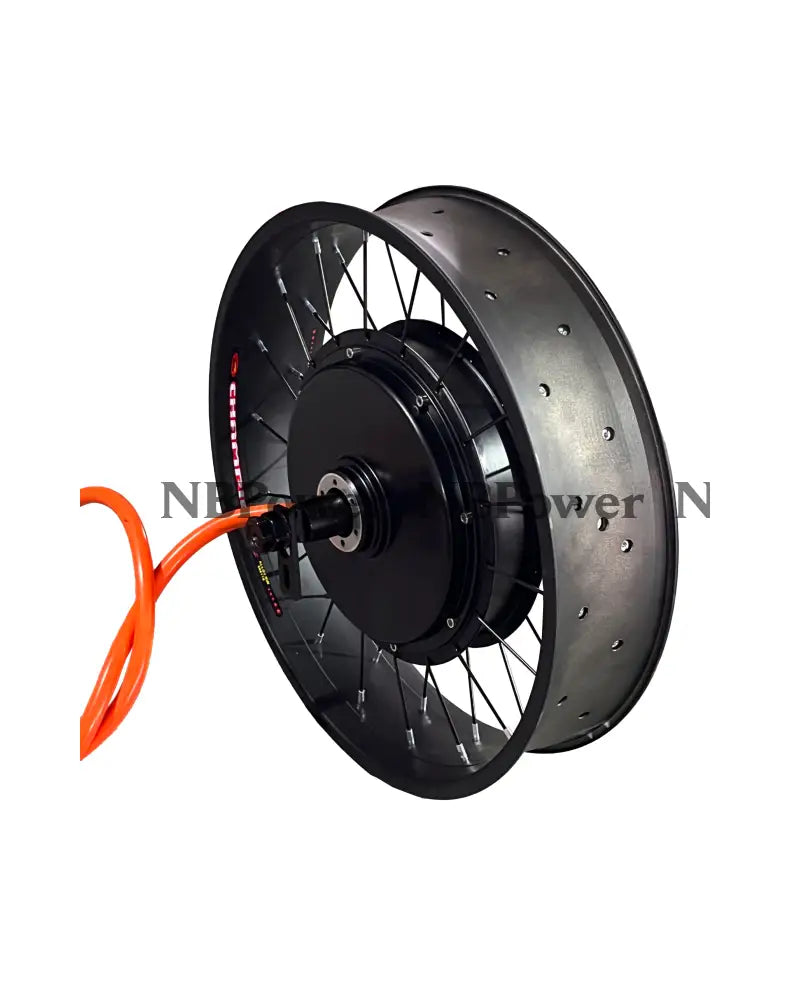

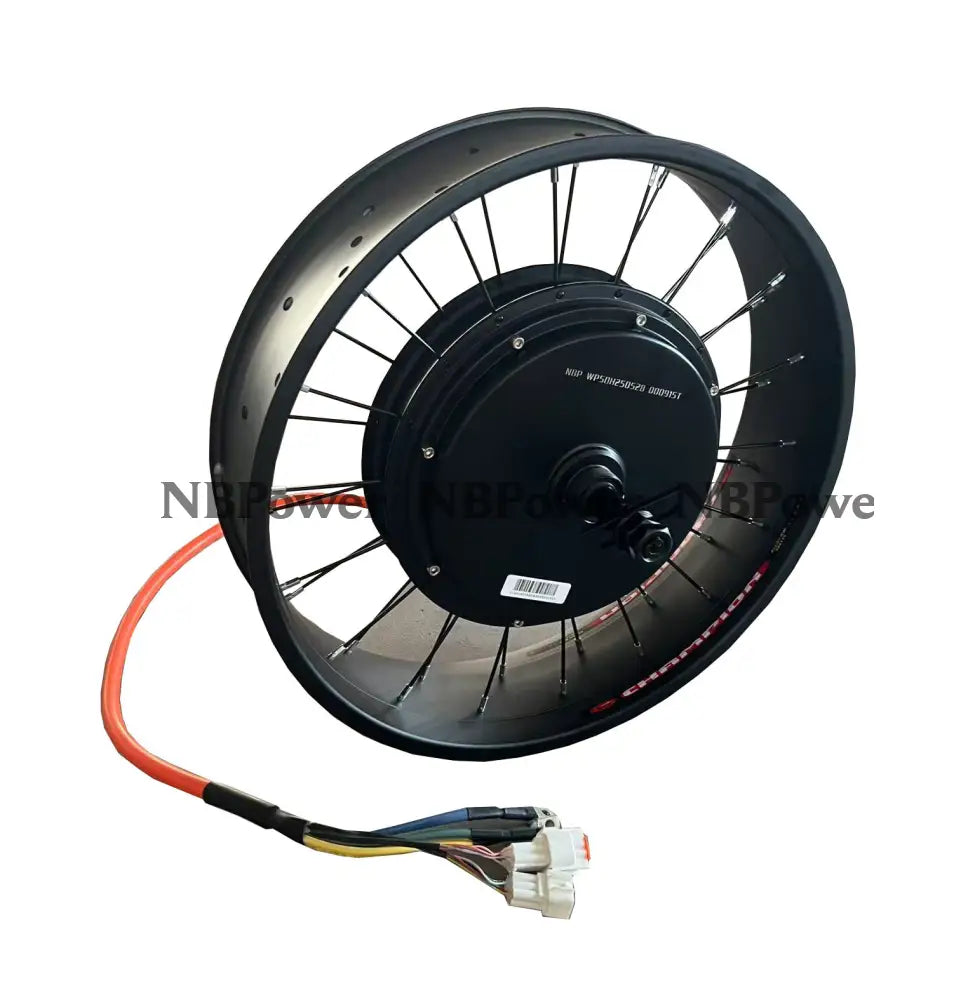

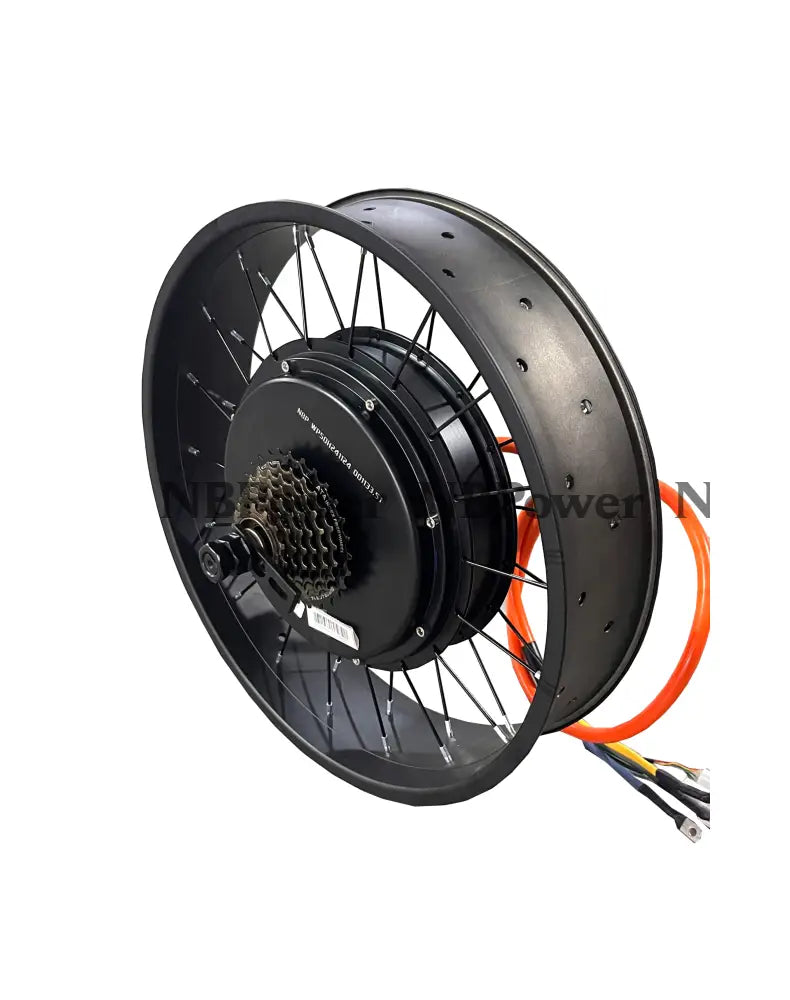

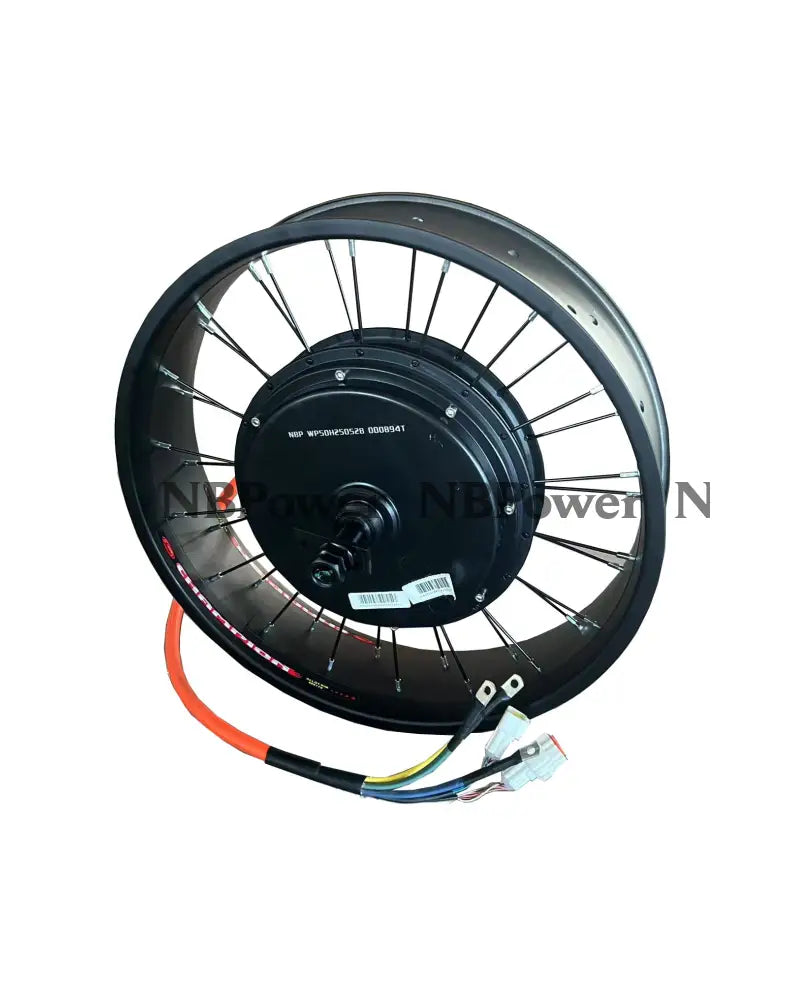

QS205 20x4.0 50H 190mm Dropout 3T/3.5T/4T/5T 72V 5000W Fat Bike Brushless Hub Motor Wheel for Electric Bicycle Fat Ebike 60-100kph

20x4.0 QS205 50H 190mm dropout 3T/3.5T/4T/5T  72V 5000w Fat Bike Brushless Hub Motor Wheel for Electric Bicycle Fat Ebike 60-100kph

1. Motor Type: BLDC In-Wheel Hub Motor
2. Motor Design: Double Axle with Rim
3. Matched Tire: 20*4.0

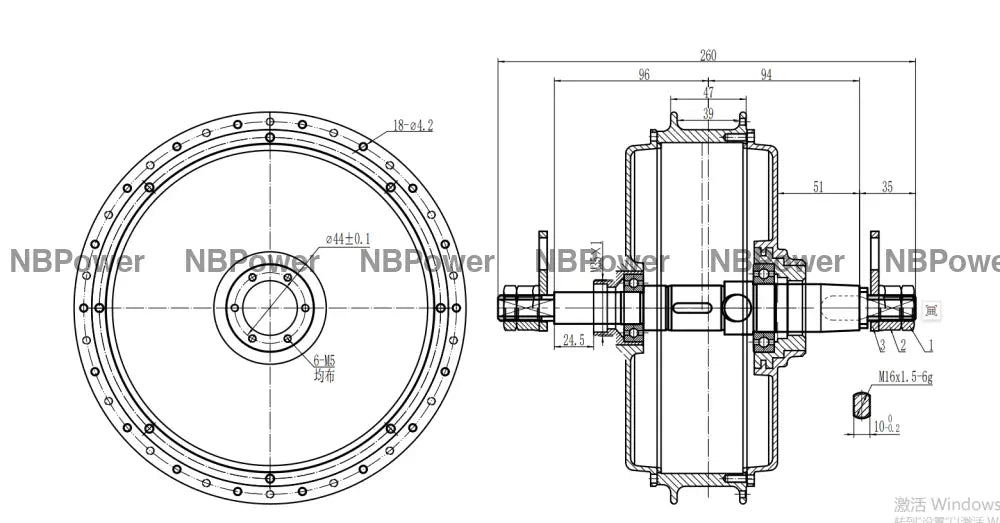

4. PCD: 6*44mm
5. Stator: Aluminum Core
6. Rated Power: 5000W
7. Peak Power: 10000W in few seconds
8. Rated Voltage: 72V
9. Speed: 3T:1020RPM 3.5T: 840RPM 4T: 770RPM 5T: 650RPM
10. Dropouts: 190mm
11. Max Torque:3T: 160N.M 3.5T: 180N.M 4T: 200N.M 5T: 220N.M
12. Max Efficiency: approx 91%
13. Suggest Peak Phase Current: N/A
14. Thermic Probe: KTY83/122(as default)
15. Working Temperature: 70-120℃, peak 150℃
16. Brake Type: Disc Brake
17. Hall Sensor: Dual hall set with waterproof connector

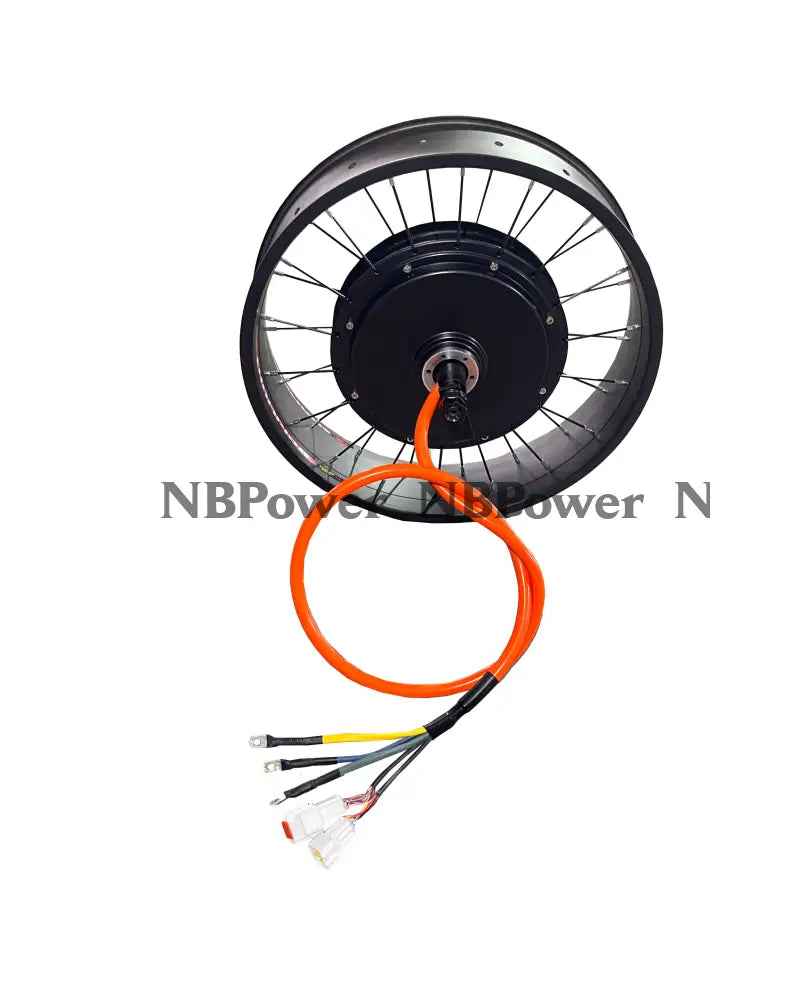

18. Phase Wire:2*5mm²Cross
19. Hall Sensor Phasing Angle: 120 degree
20. Waterproof Grade: IP65
