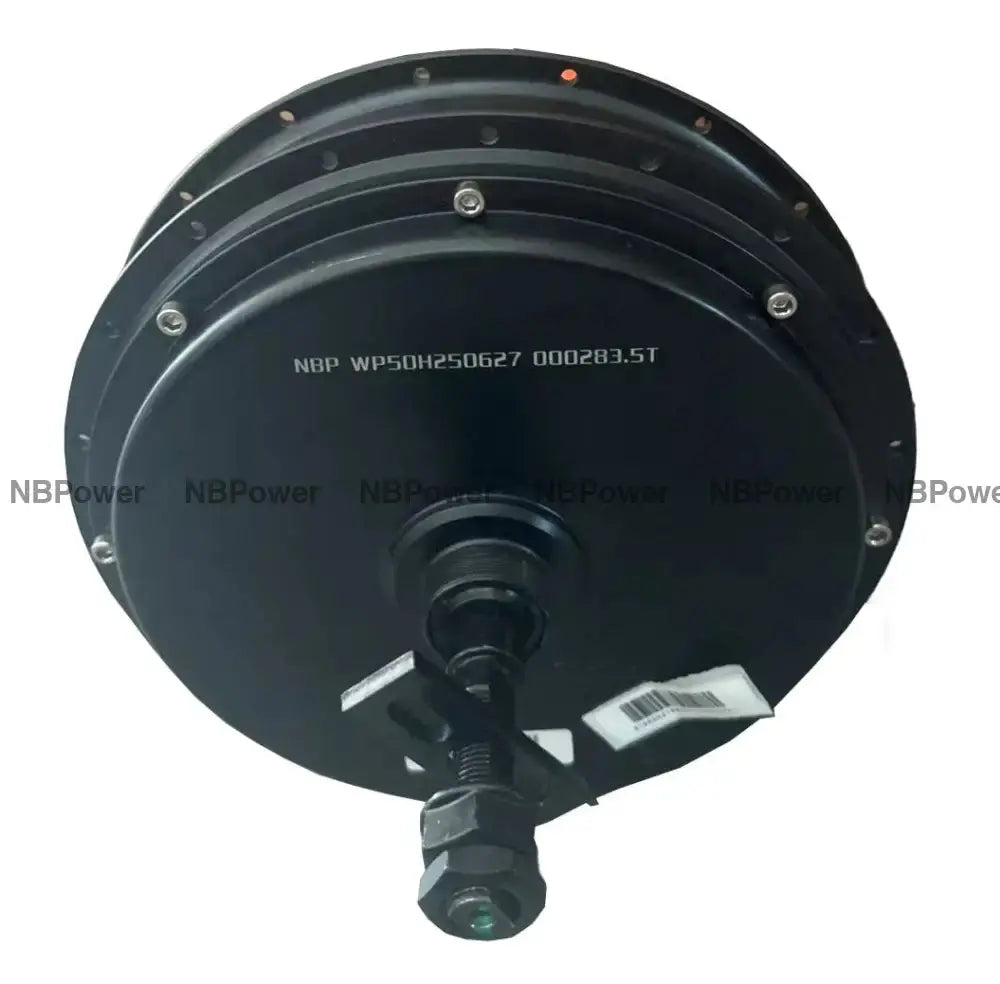

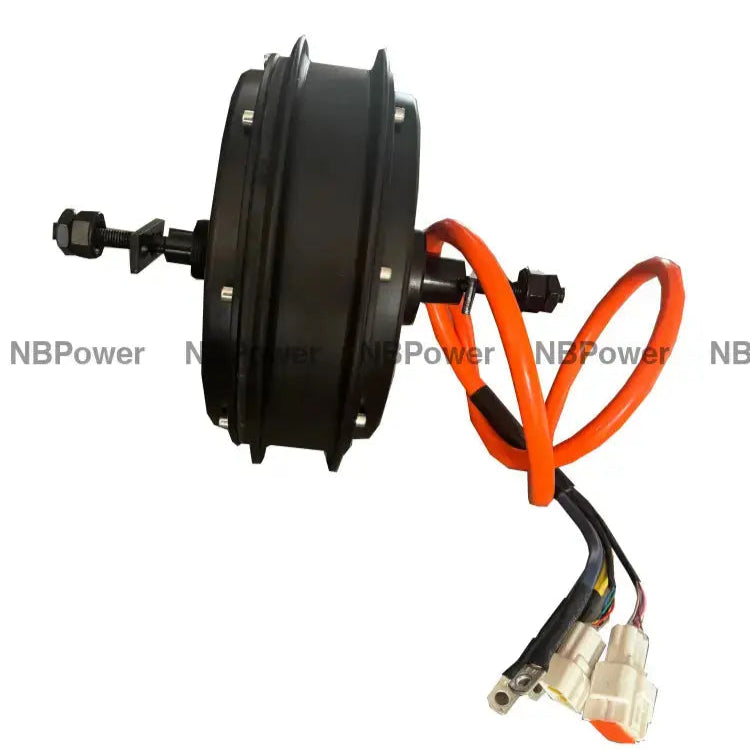

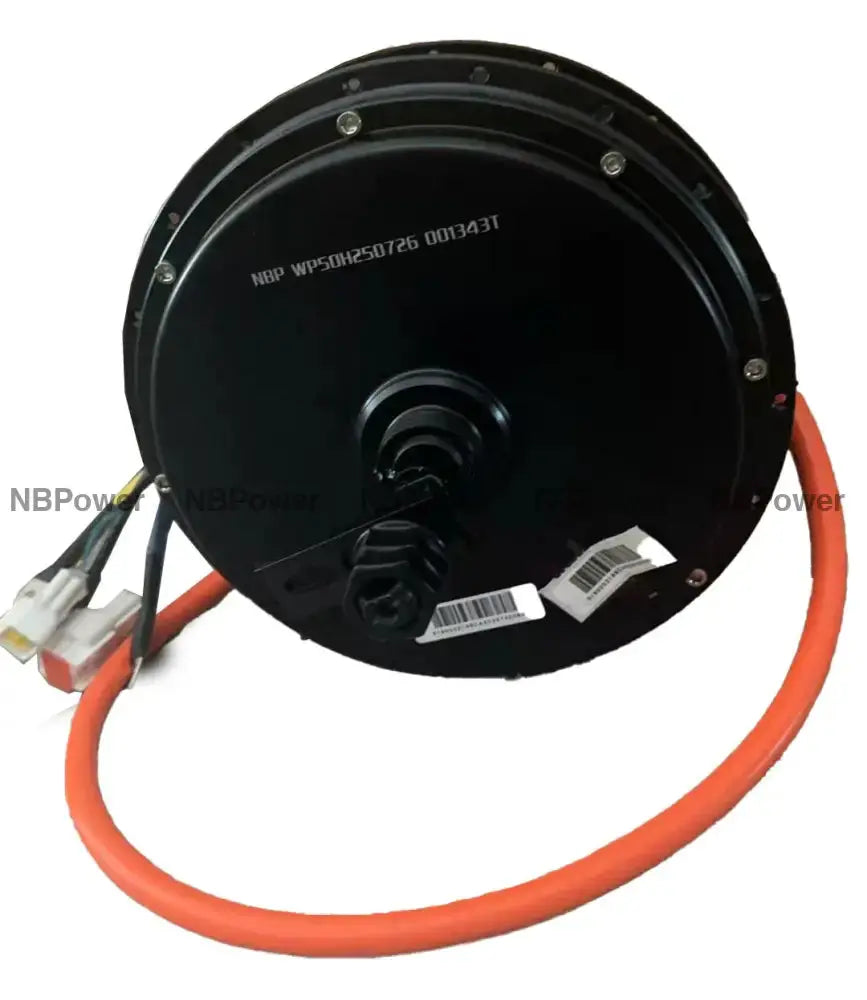

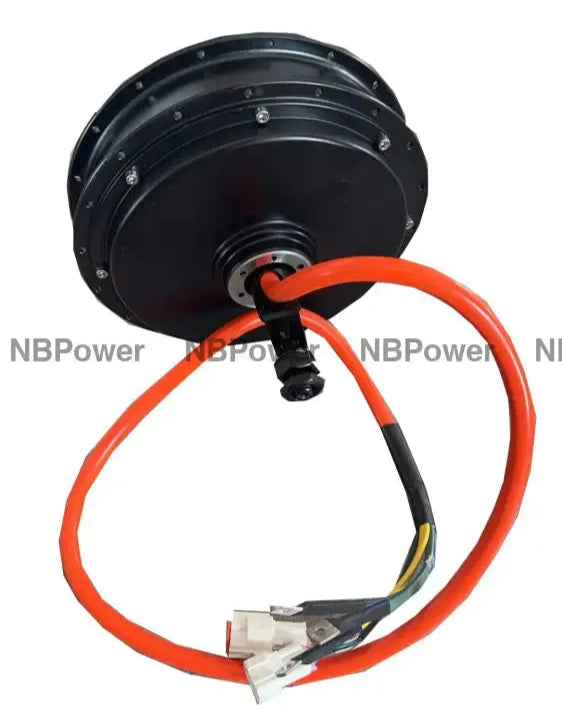

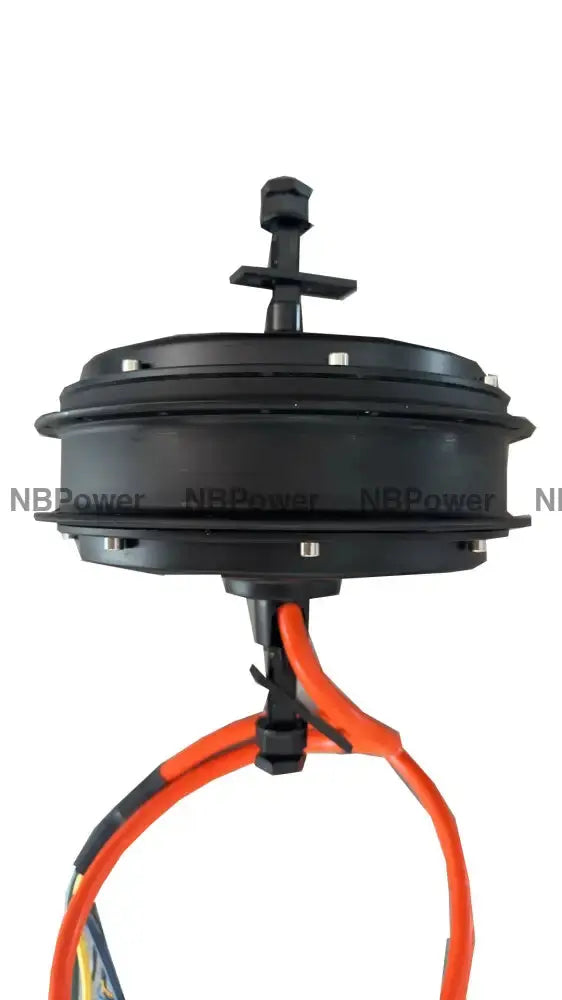

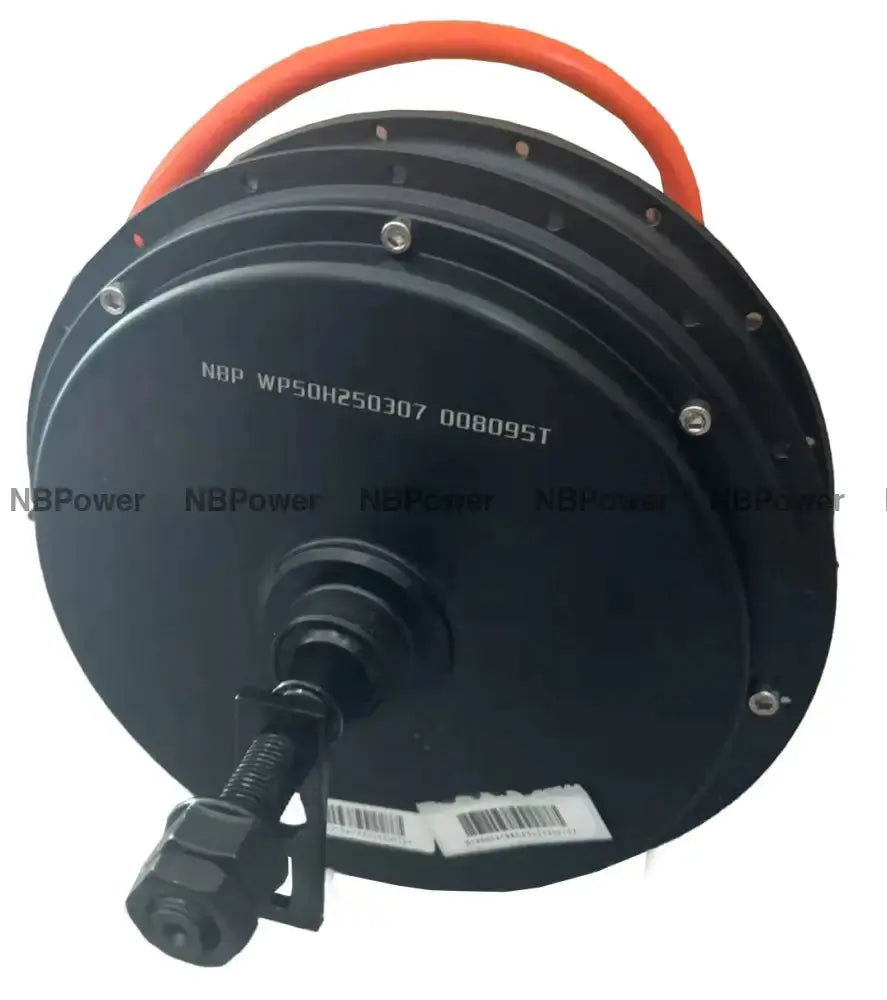

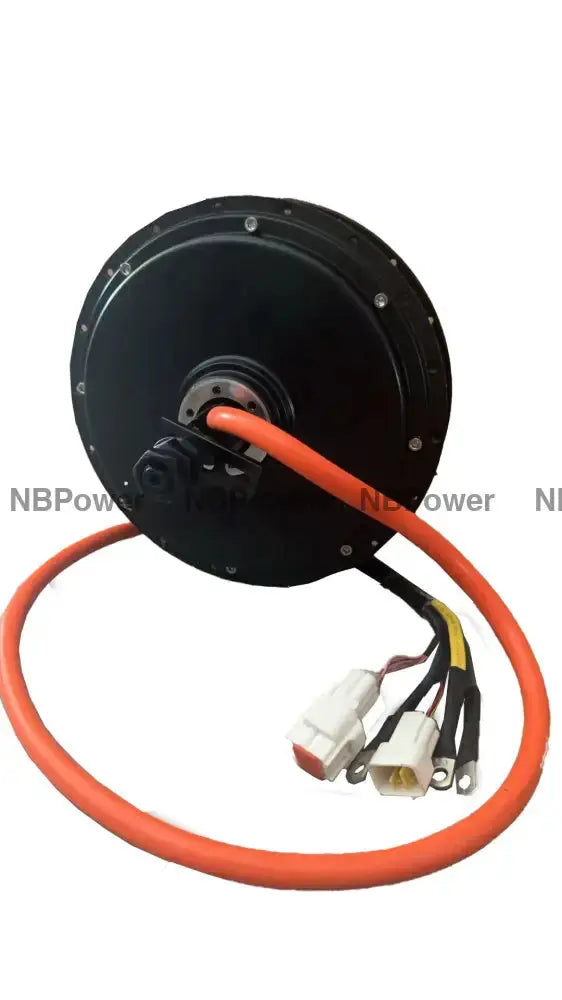

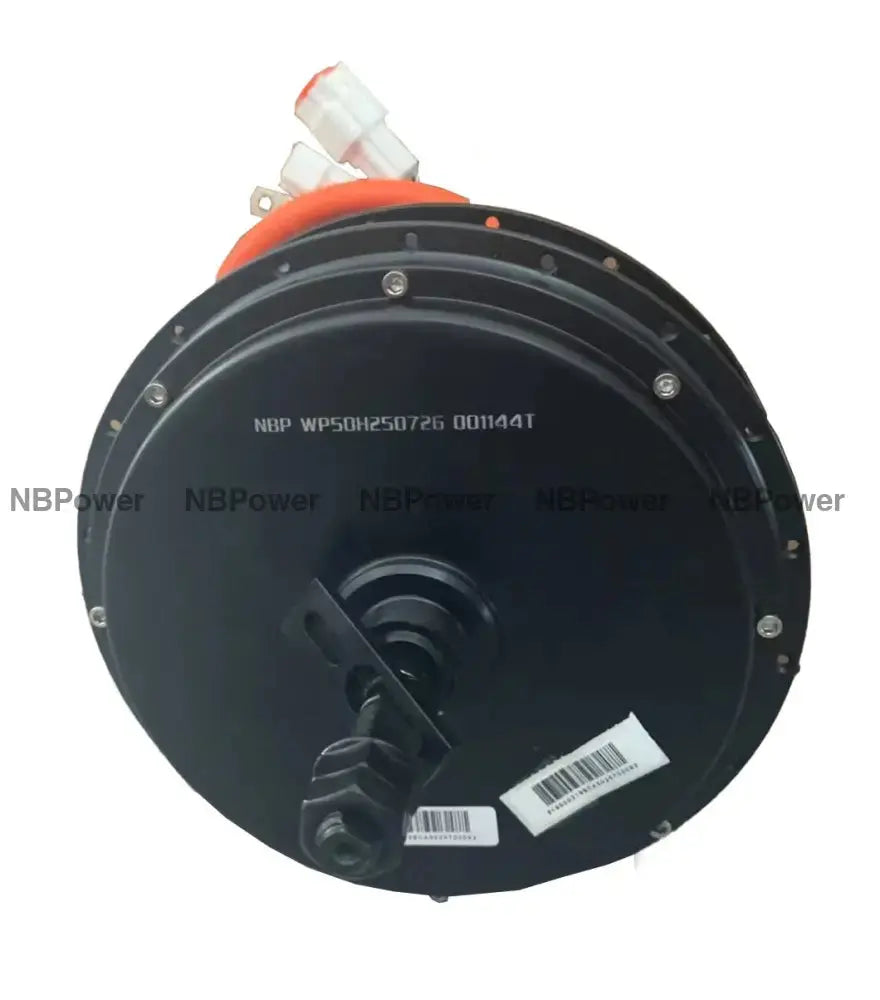

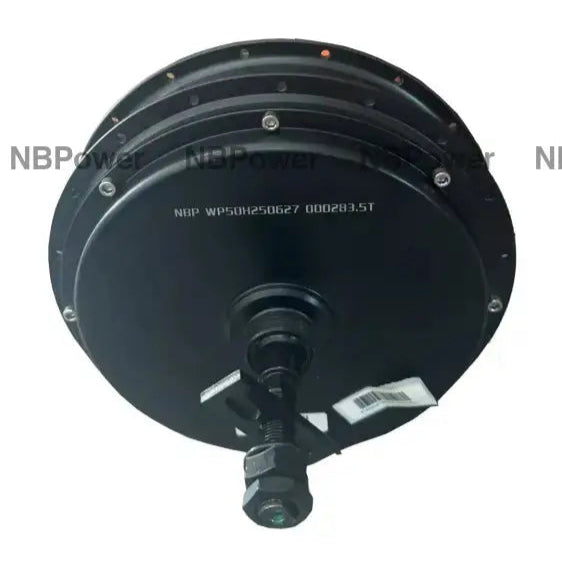

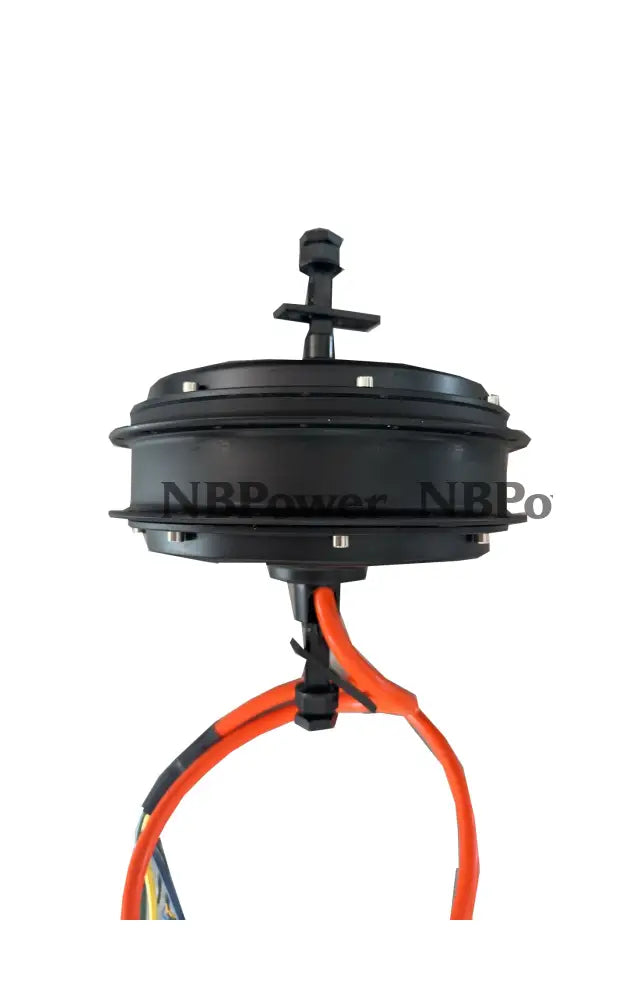

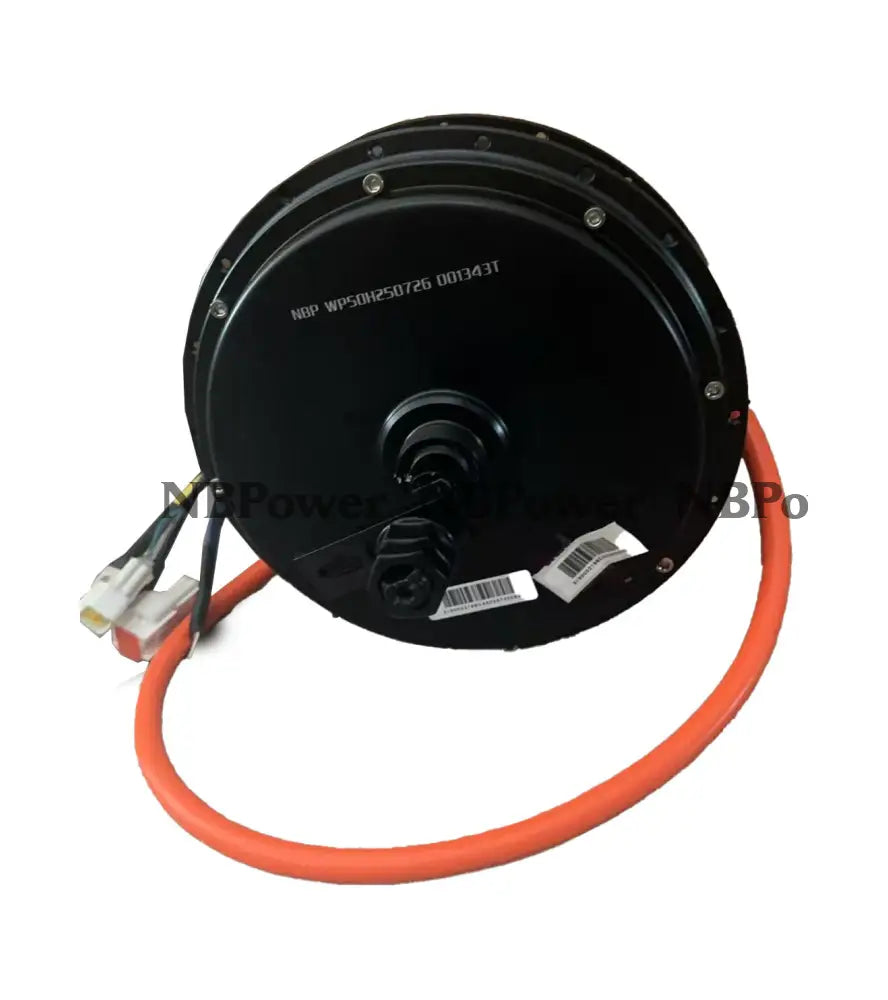

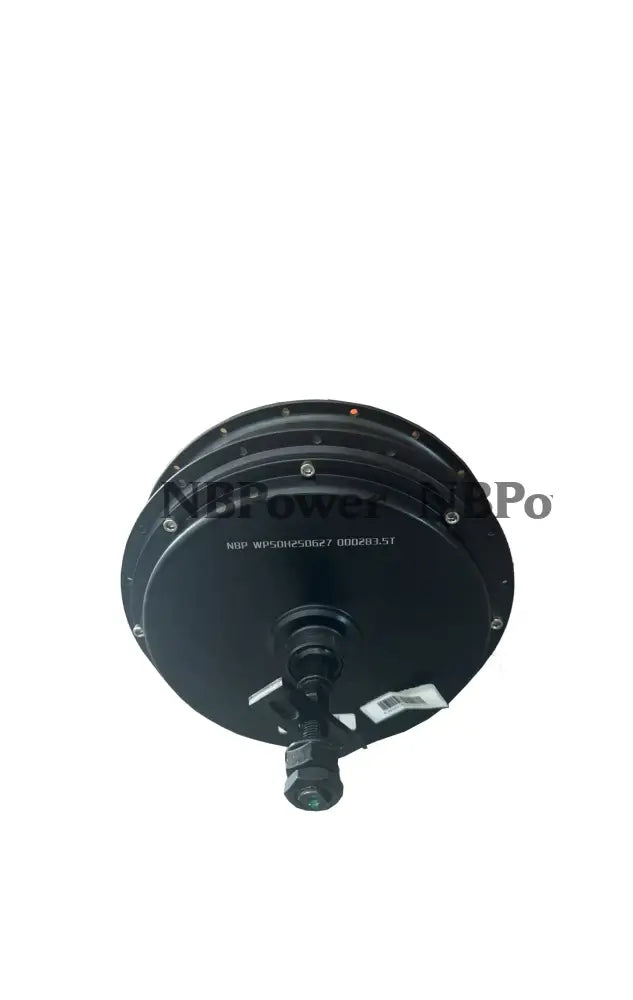

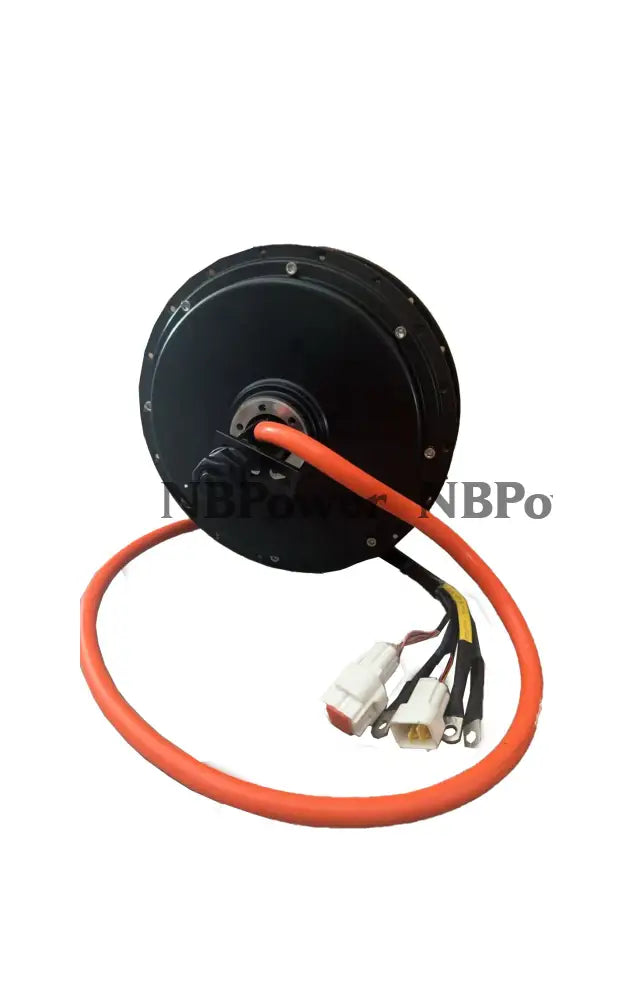

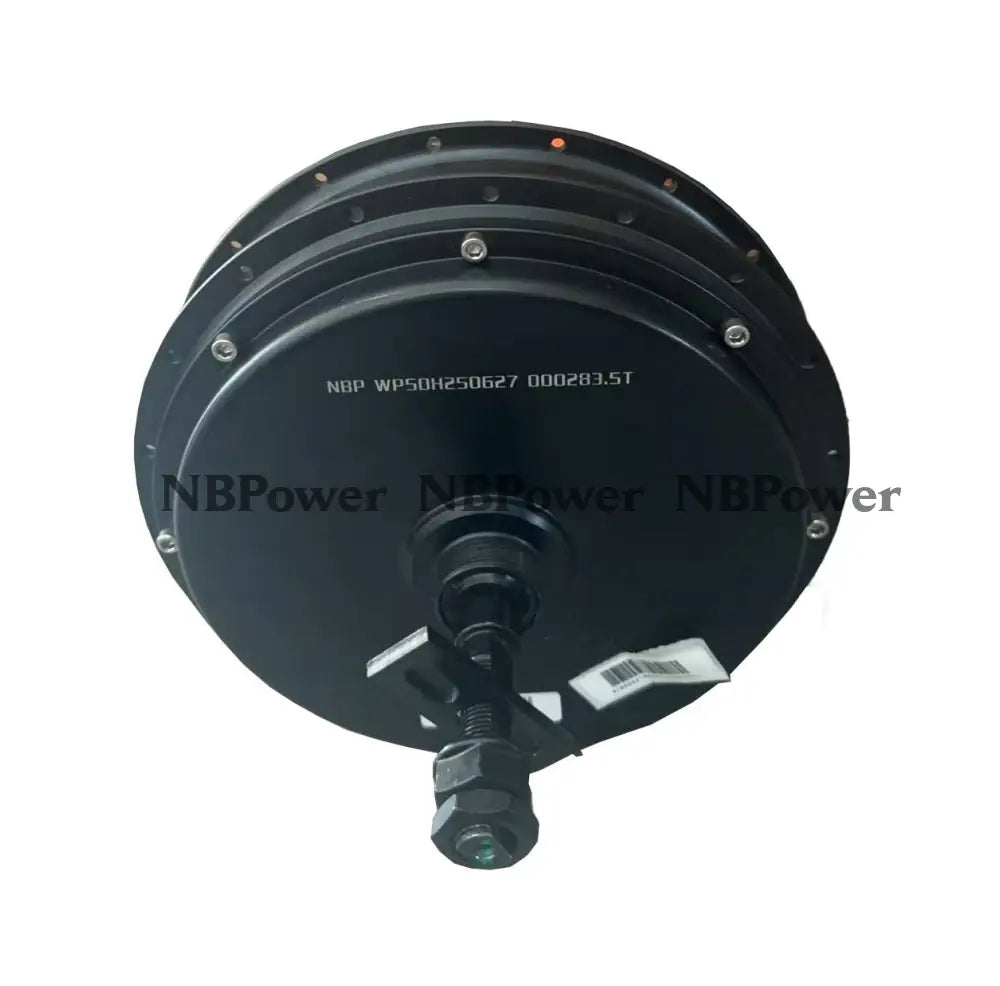

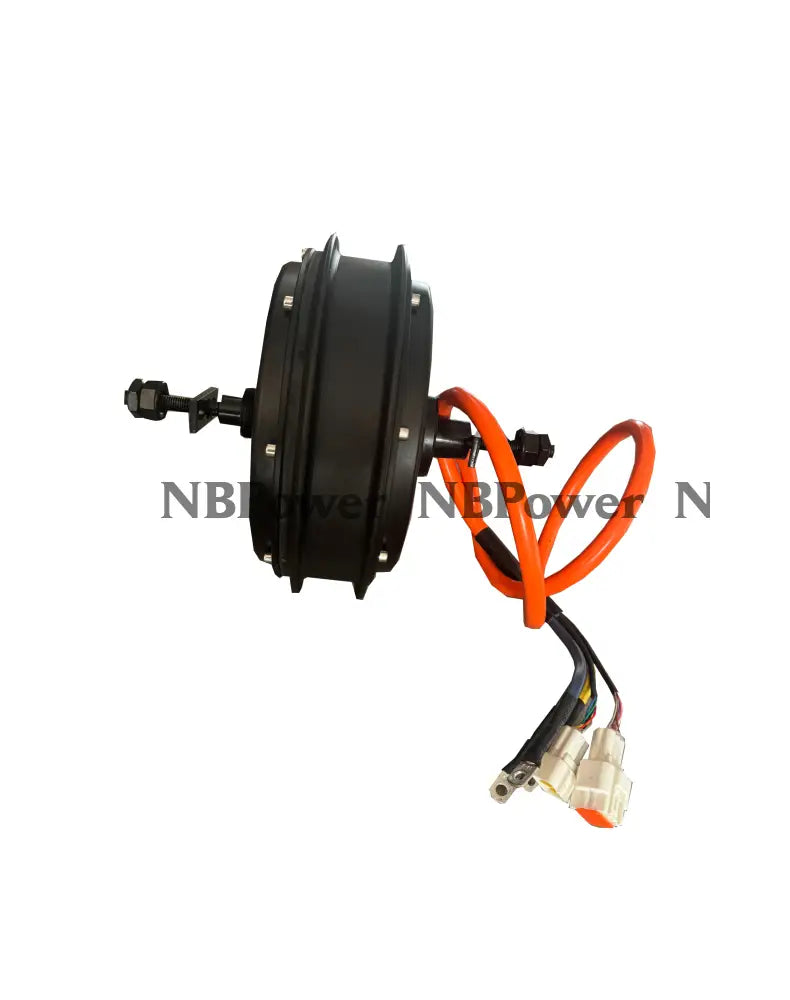

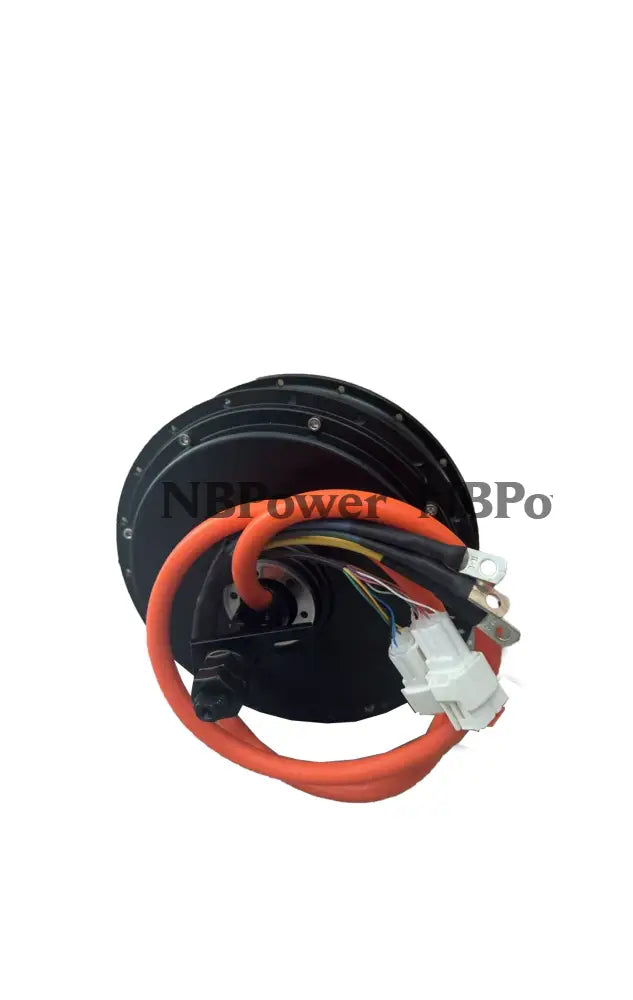

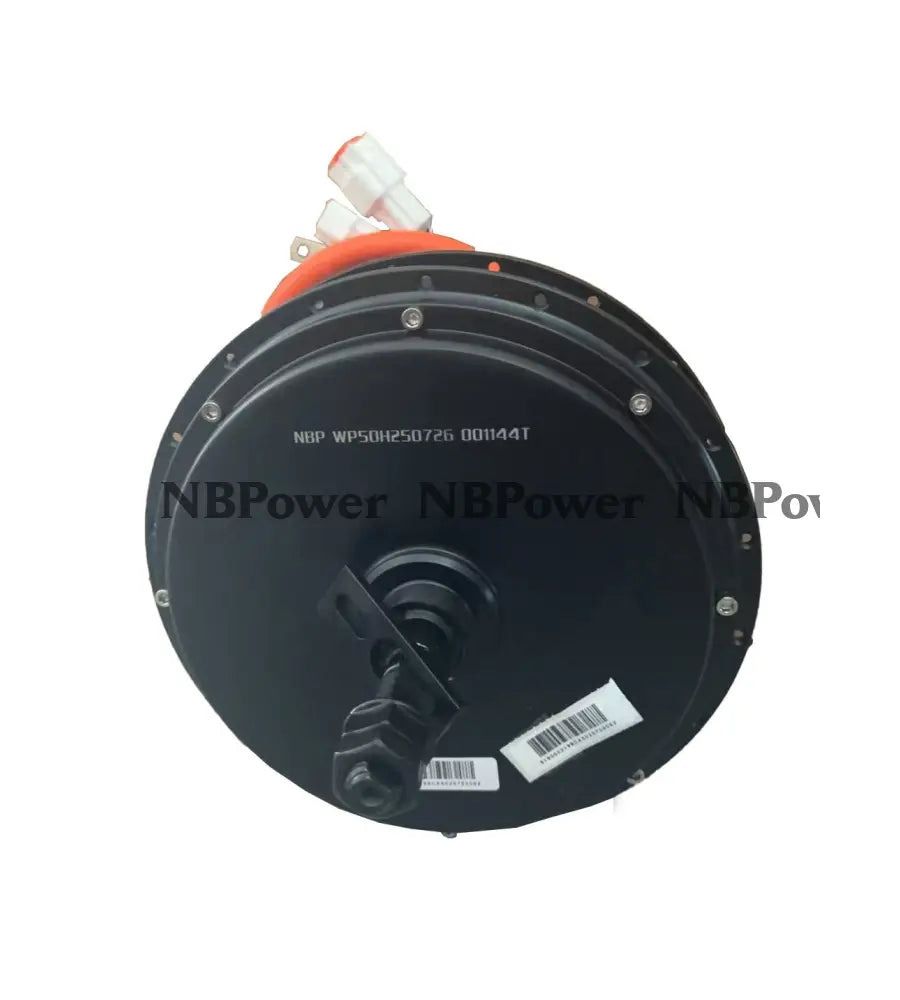

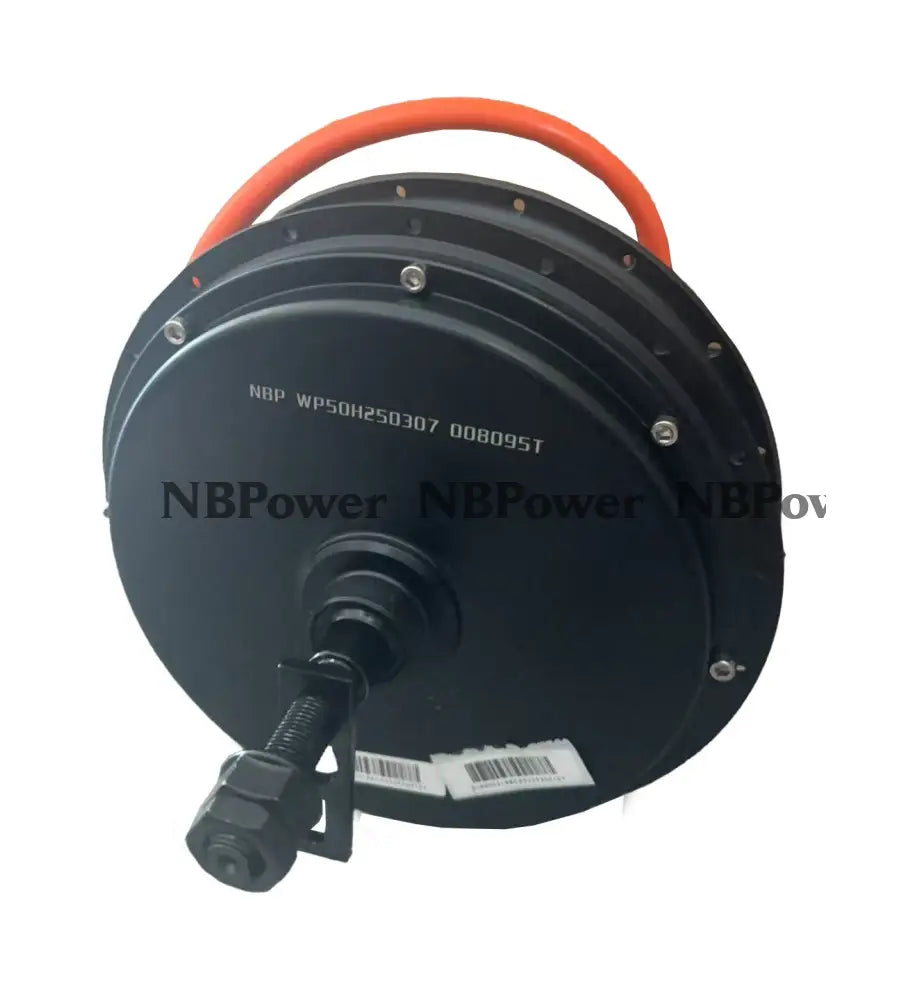

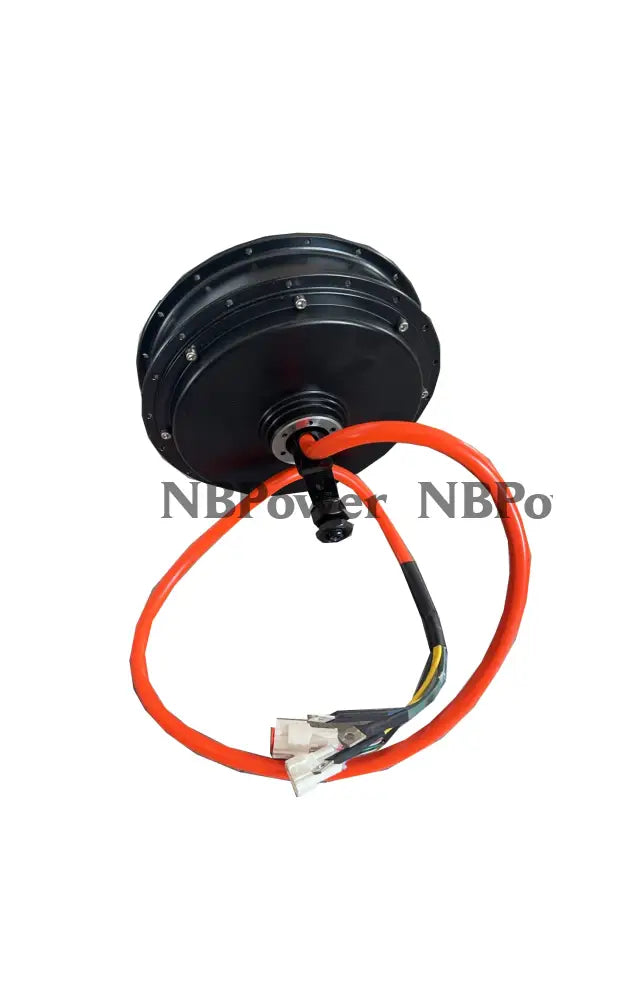

3T/3.5T/4T/5T QS205 170-175mm dropout Rear 5000W motor

5000W motor detail :

1. Motor Type: BLDC In-Wheel Hub Motor

2. Motor Design: Double Axle with Rim(integrated)

3. Matched rim:bicycle rim and motorcycle rim

4. PCD: 6*44mm

5. Stator: Aluminum Core

6. Rated Power: 5000W

7. Peak Power: 10000W in few seconds

8. Rated Voltage: 72V

9. Speed:

3.5T: 840RPM

4T: 770RPM

5T: 650RPM

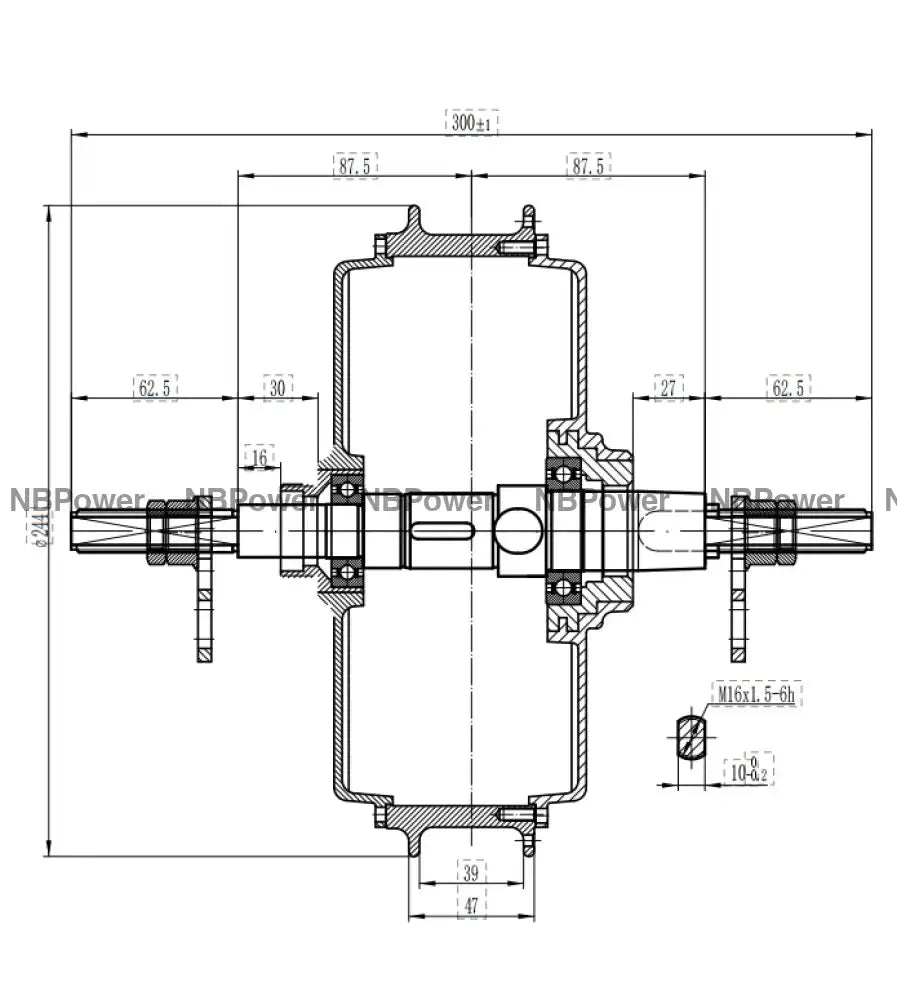

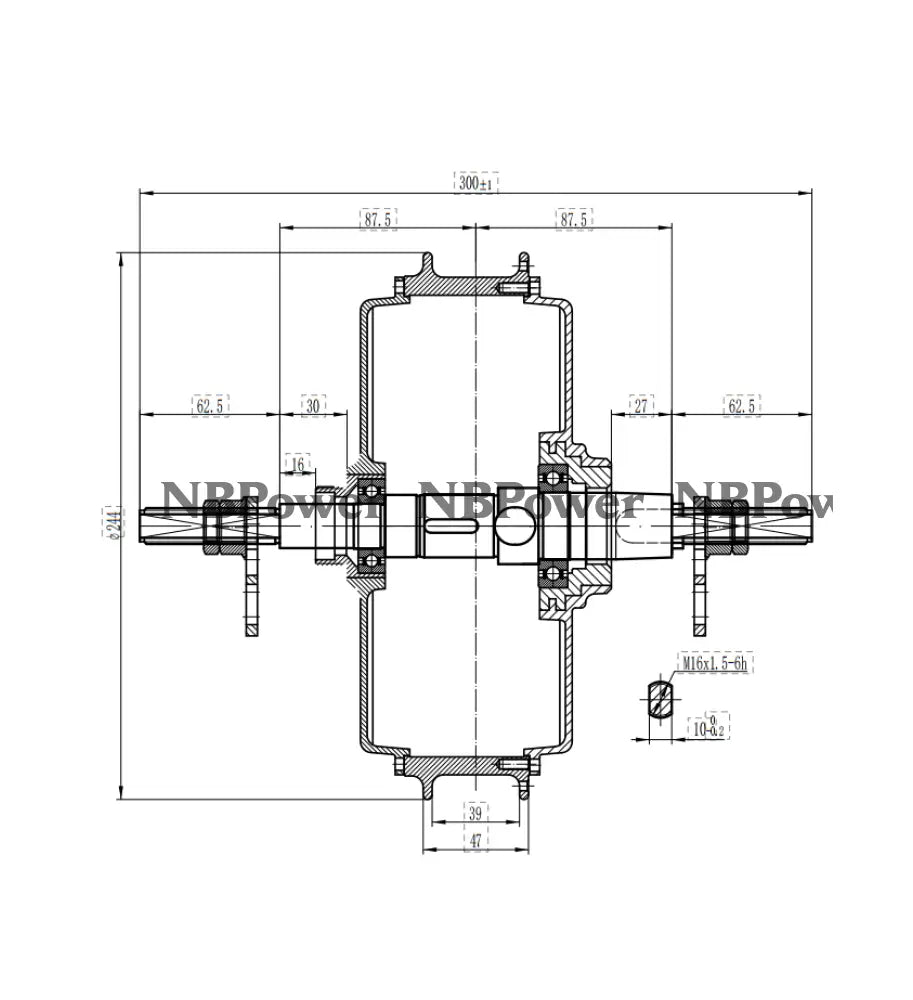

10. Drop-outs: 170-175mm

11. 11. Max Torque:

3T:160N.M

3.5T: 180N.M

4T: 200N.M

5T: 220N.M

12. Max Efficiency: approx 91%

13. Suggest Peak Phase Current: N/A

14. Thermic Probe: KTY83/122(as default)

15. Working Temperature: 70-120℃, peak 150℃

16. Brake Type: Disc Brake

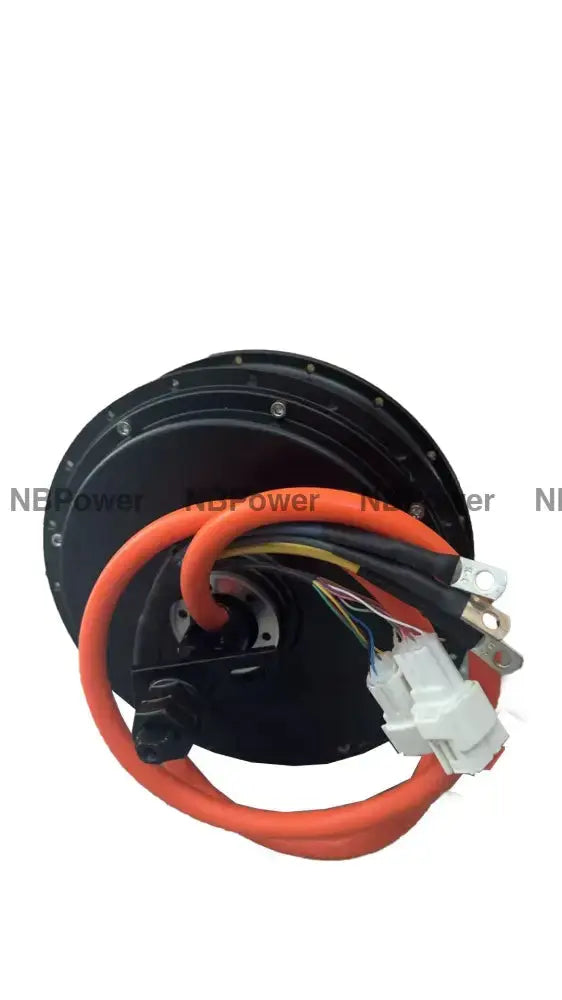

17. Hall Sensor: Dual hall set with waterproof connector

18. Phase Wire:2*5mm²Cross

19. Hall Sensor Phasing Angle: 120 degree

20. Waterproof Grade: IP65
