20*4.0/24*4.0/26*4.0 100mm Rim Width with Rear 190mm Dropout 3000W Fat Motorwheel with 7 speed freewheel , 80A Sabvoton Programmable Controller;UKC1 color Display all kit

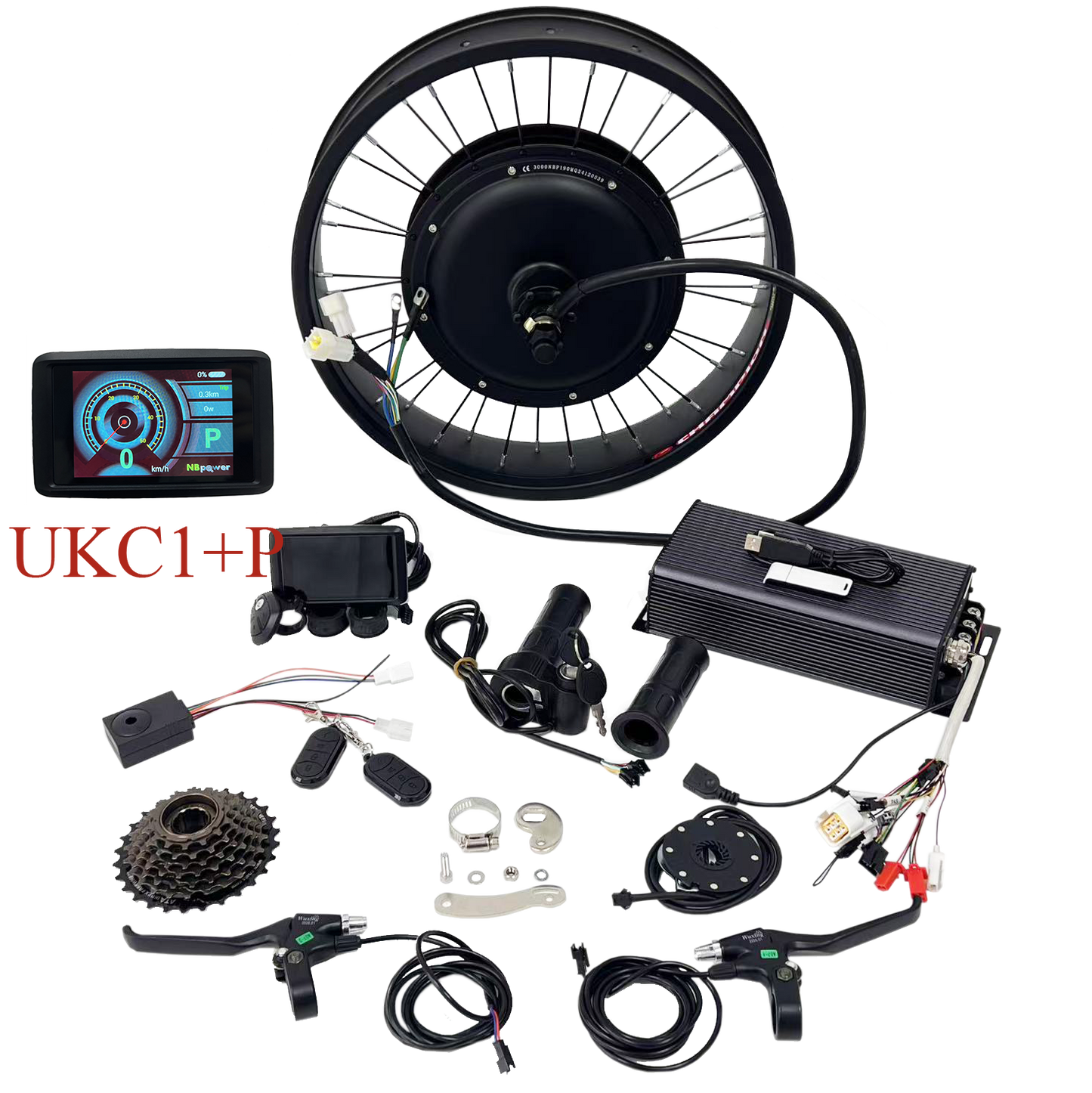

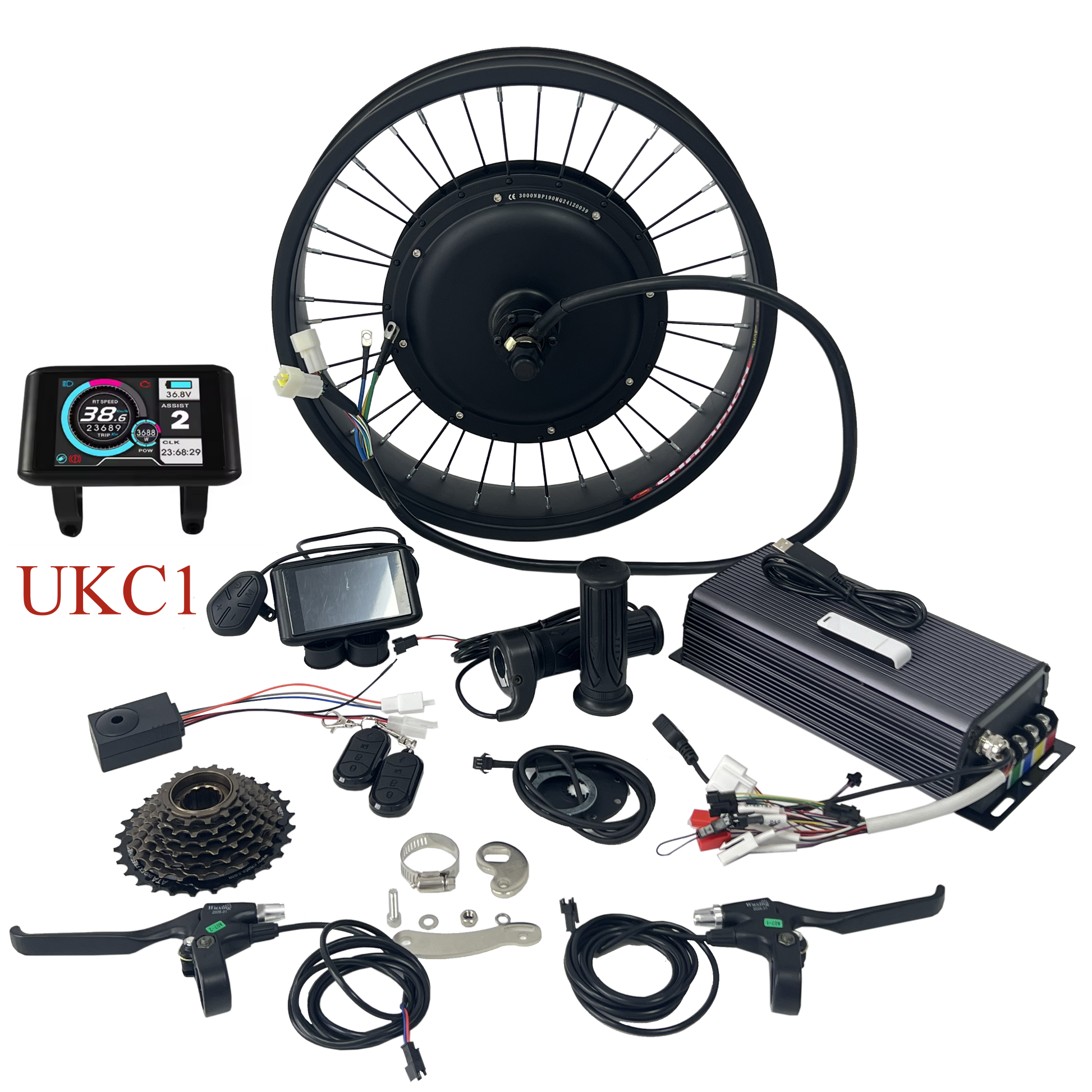

20*4.0/24*4.0/26*4.0 100mm width Rim with Rear 190mm Dropout 3000W Fat Motorwheel with 7 speed freewheel , 80A Sabvoton Programmable controller;UKC1 color Display ,Twist throttle ,PAS and other parts
Take your bicycle to the next level with this professional-grade 3000W hub motor wheel kit. Whether you're tackling steep mountain trails or building a high-speed commuter, this complete conversion kit delivers the torque, speed, and reliability serious riders demand.
What's Included

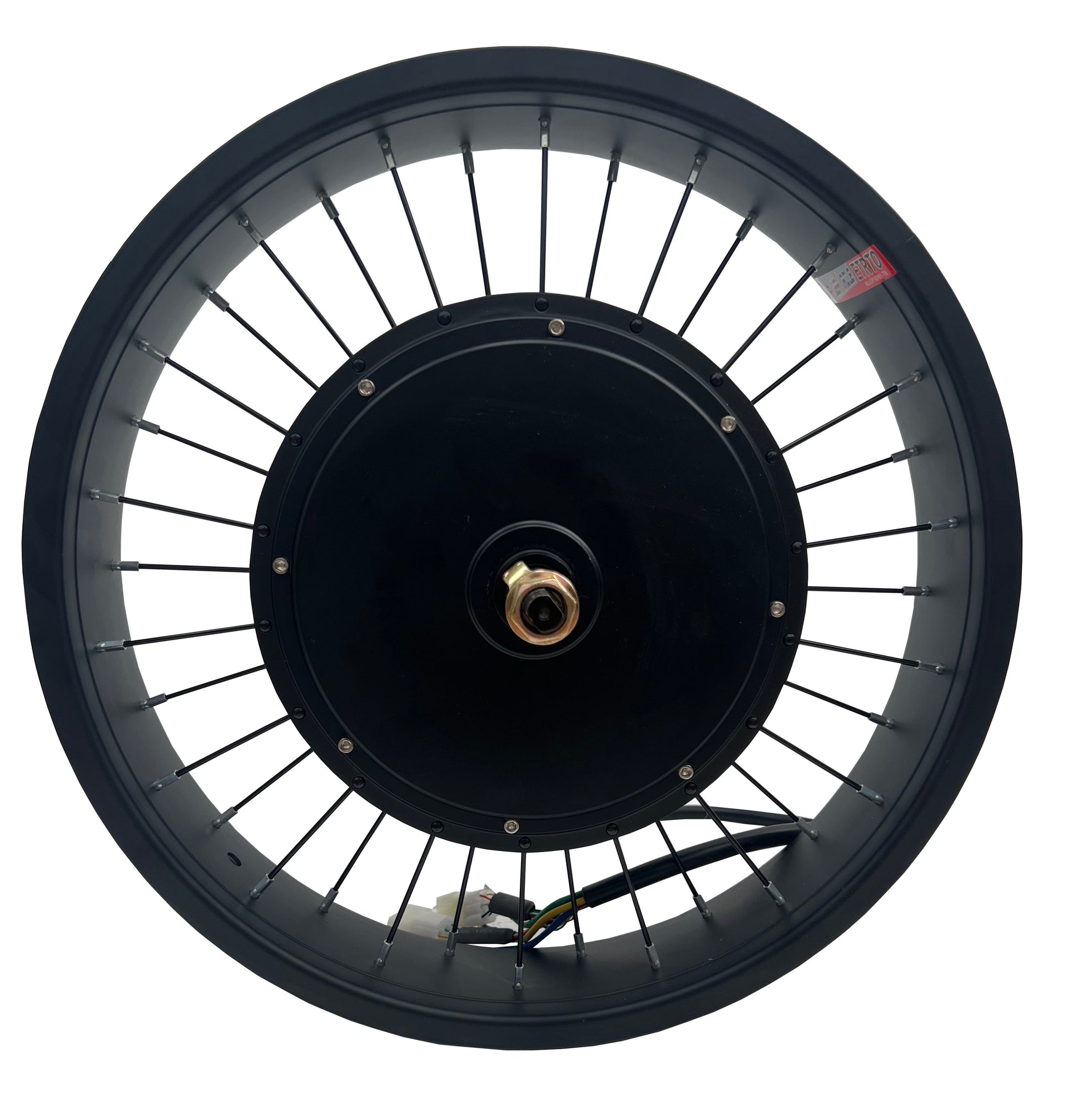

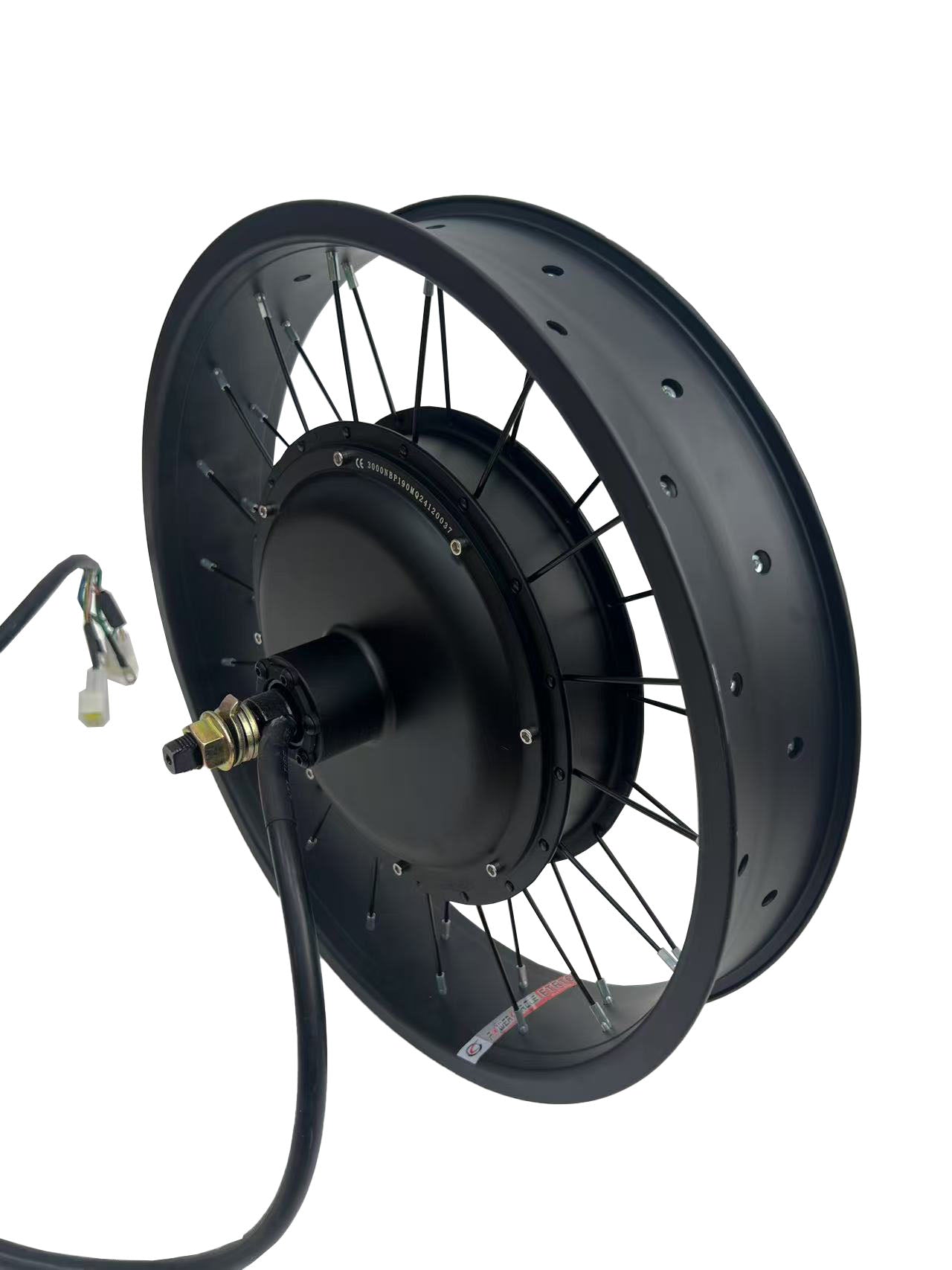

20*4.0 / 24*4.0 / 26*4.0 inch Fat Rim width 100mm with 3000W BLDC hub motor (190mm dropout)

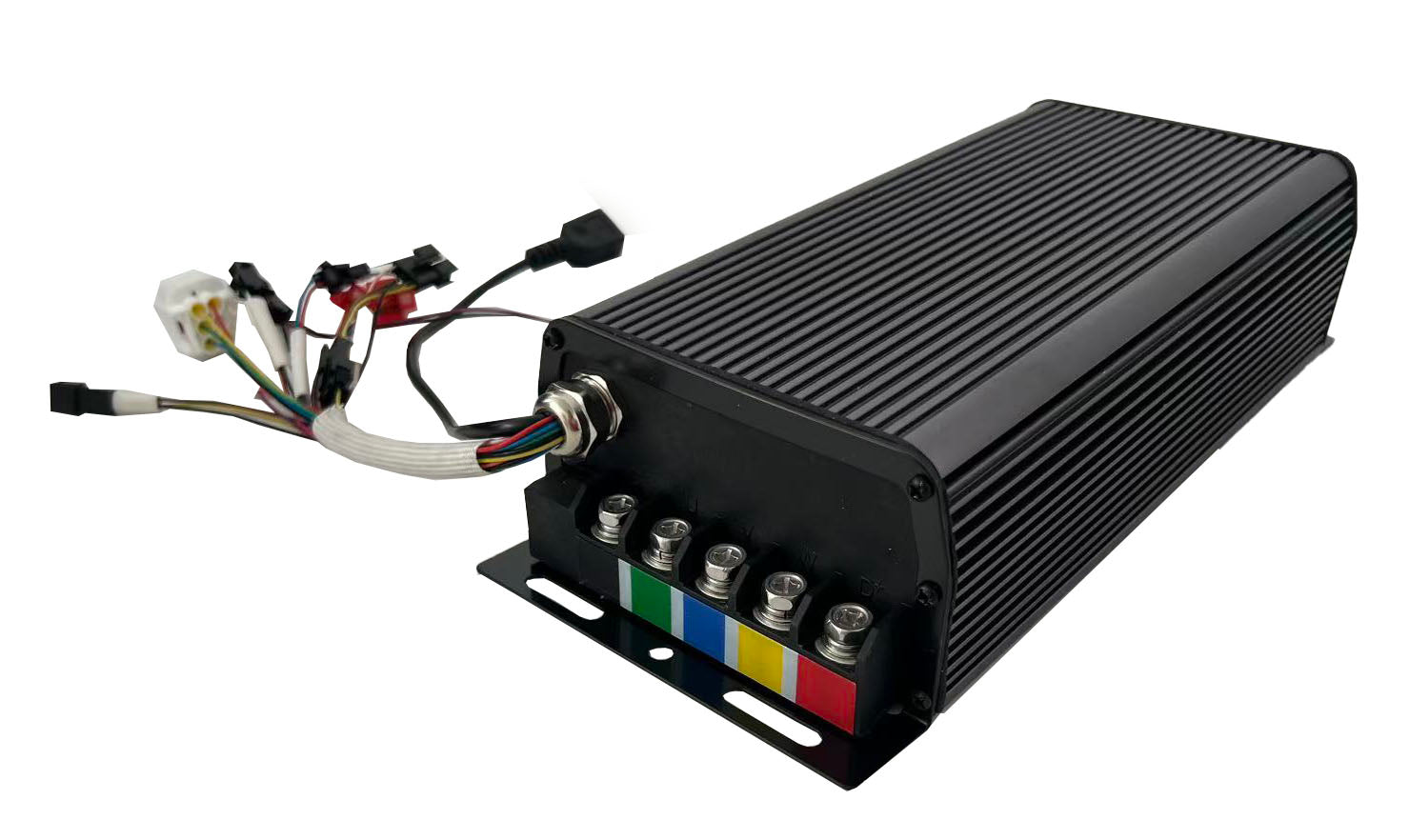

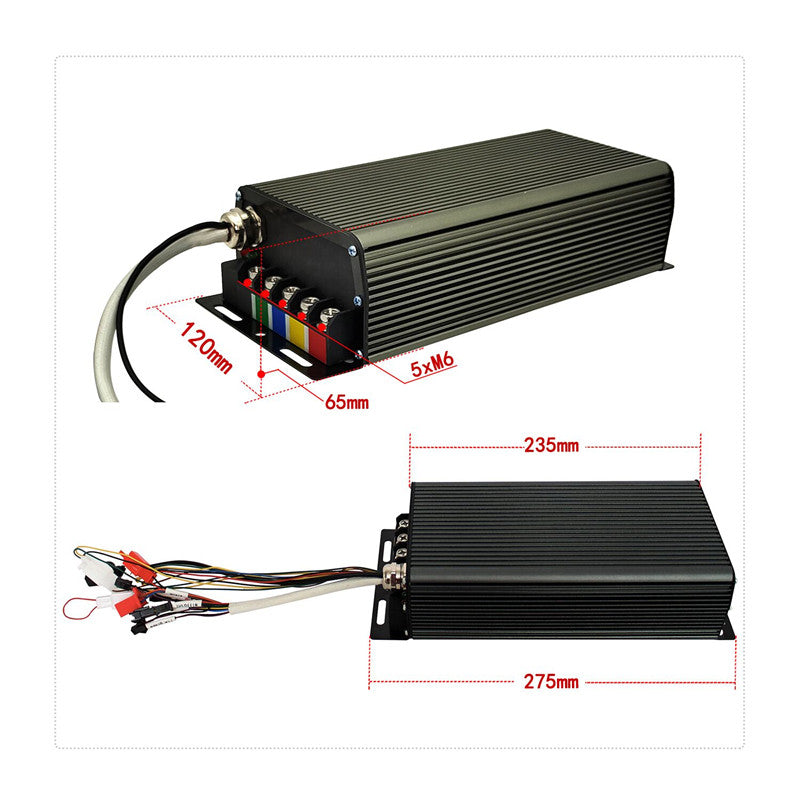

80A Sabvoton Programmable controller
UKC1 color Display
7-speed freewheel

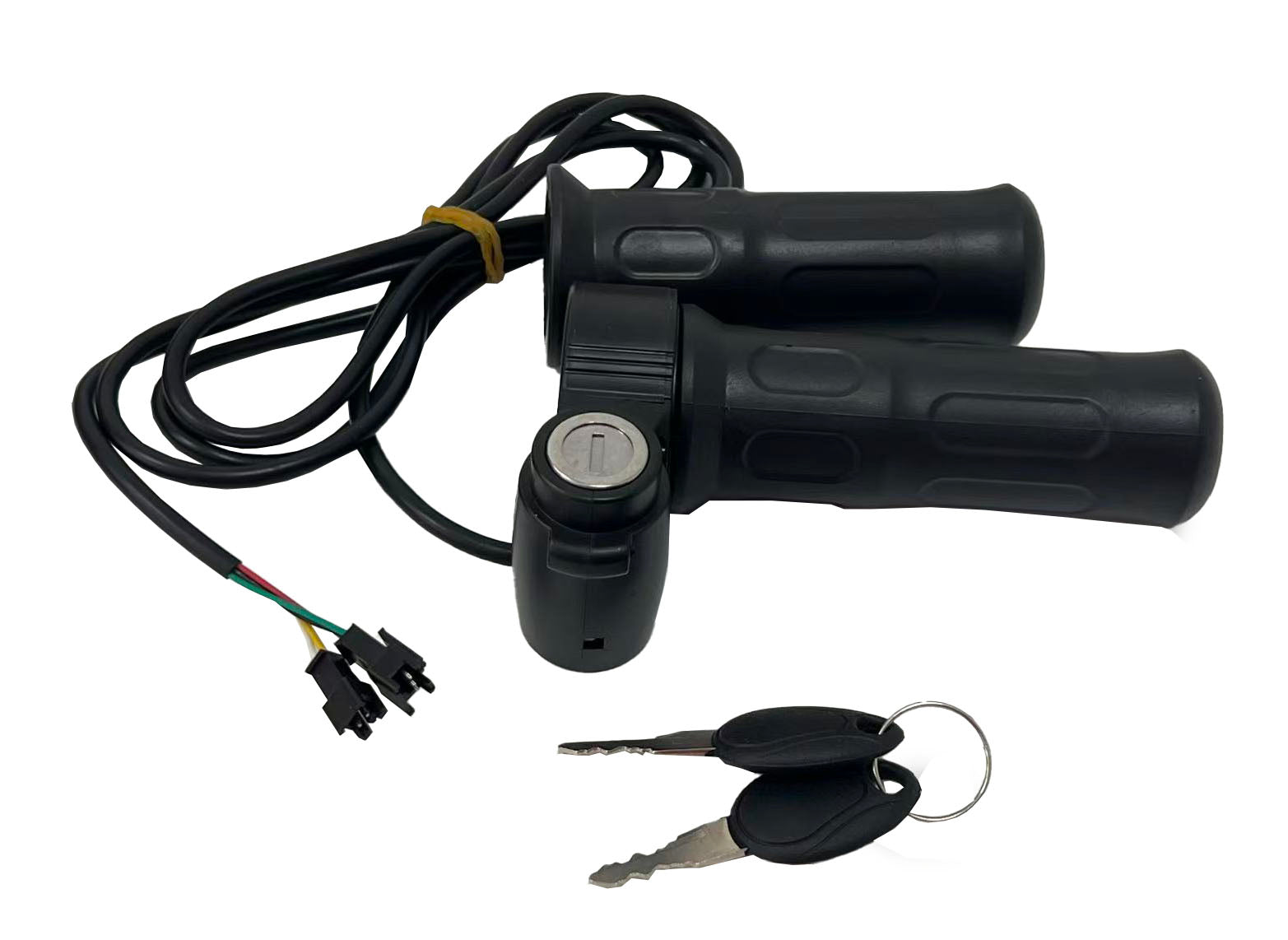

Throttle with key lock

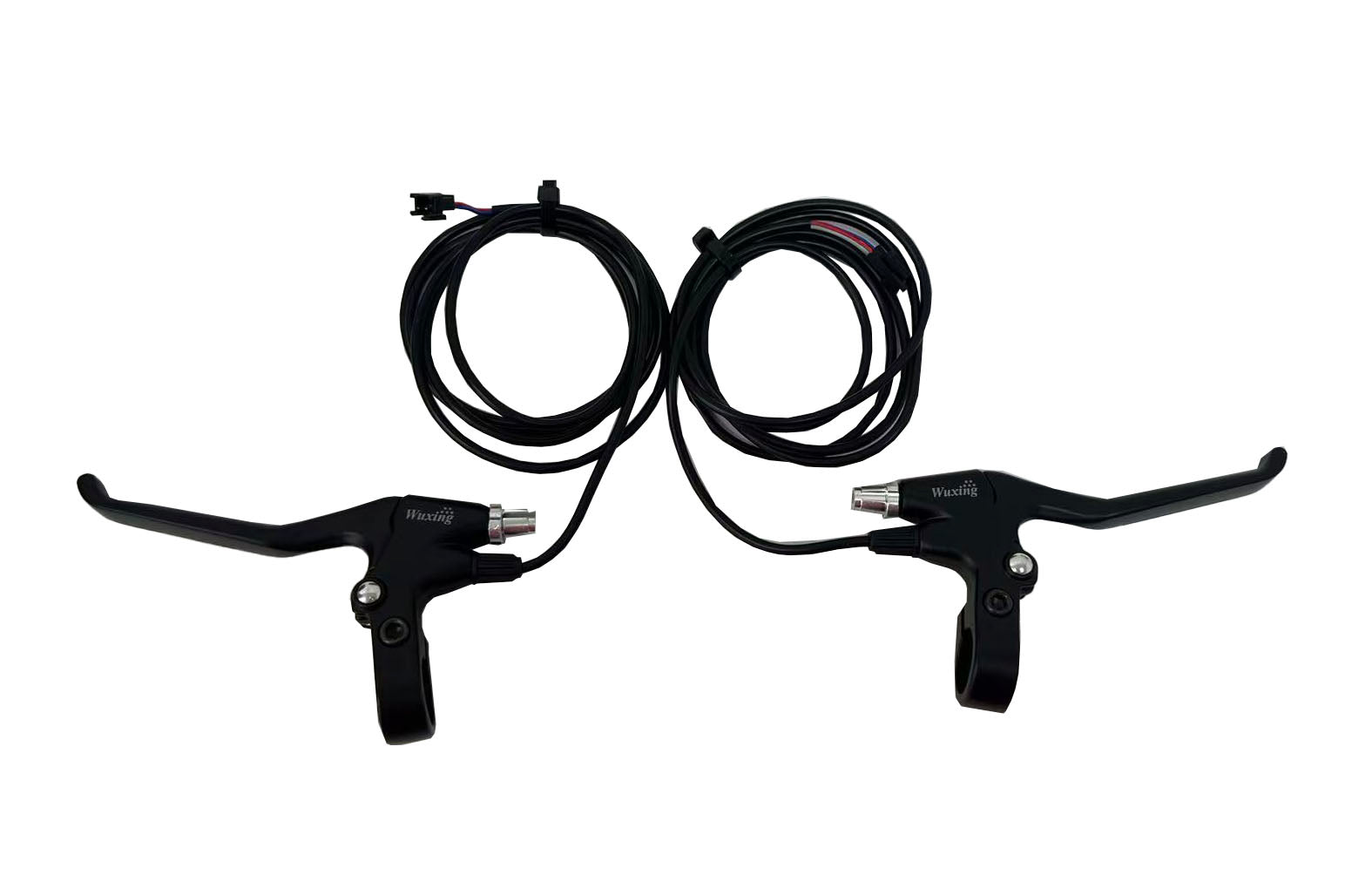

Brake levers
PAS
M16 axle nuts & washers
Alarm lock system
Complete wiring harness

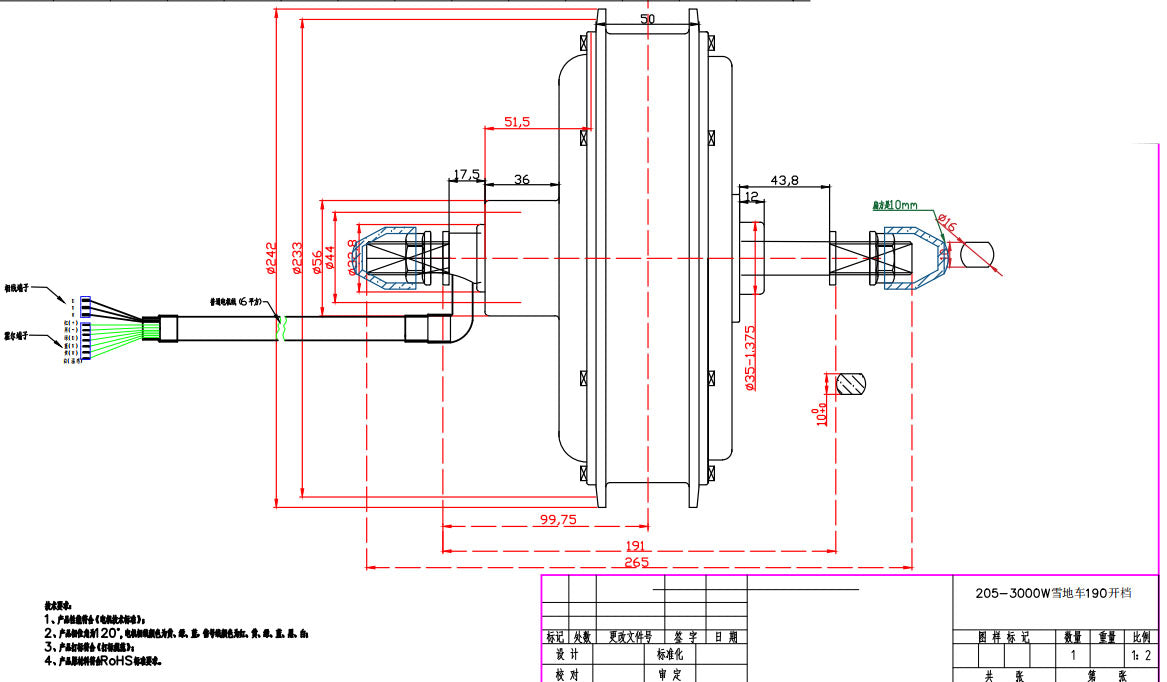

Motor Specifications
Motor Type
BLDC Hub Motor, Permanent Magnet
Rated Power
3000W (Peak: 6000W)
Rated Voltage
72V (48V compatible)
Top Speed
70 km/h @ 48V | 90 km/h @ 72V
Max Torque
100 N·m
Max RPM
960 RPM (no-load)
Efficiency
Up to 88%
Dropout Width
190mm (rear)
Spoke
3.4mm × 36H, double axle-out design
Phase Wire
6mm² cross-section
Hall Sensor
120° phasing angle
Waterproof Rating
IP54
Operating Temp
70°C continuous | 120°C peak
Compatible Rim Sizes
20*4.0 / 24*4.0 / 26*4.0
Brake Type
Disc brake compatible
Weight
18 kg
Perfect For
Mountain bike and fat bike high-power conversions
Long-distance commuter e-bike builds
Cargo and heavy-load electric bike projects
Riders upgrading from lower-wattage systems
Note: Battery sold separately.You can buy in our store. Compatible with 48V–72V lithium battery packs. Shipping cost is calculated at checkout — sea and air freight options available.
