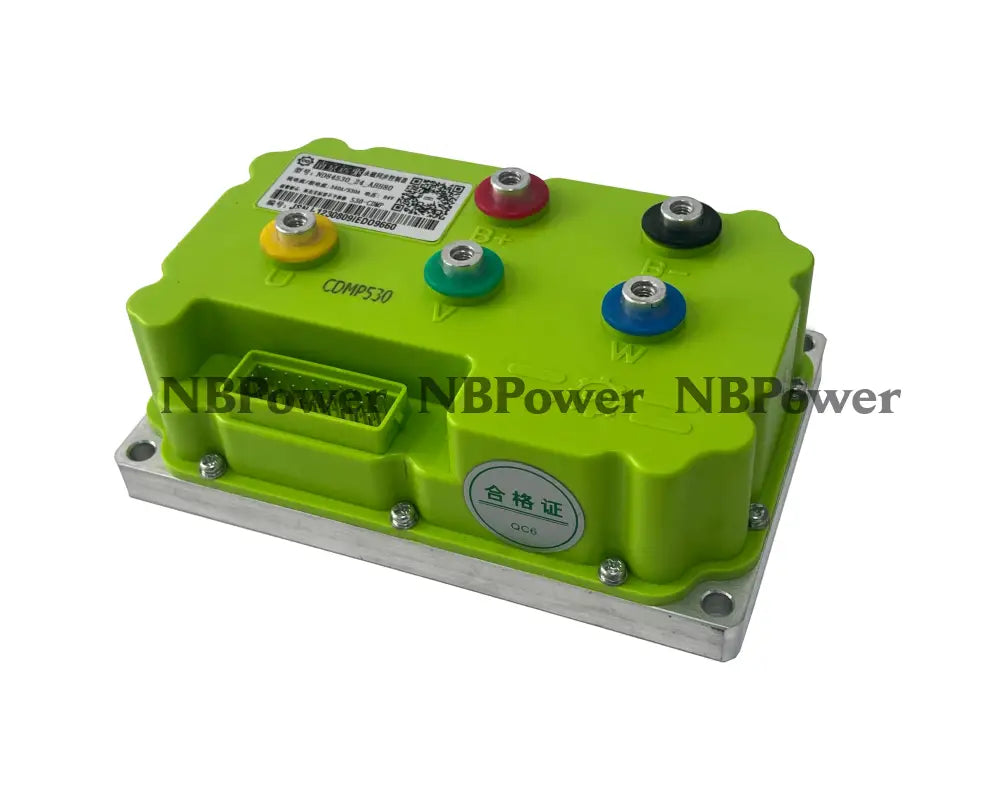

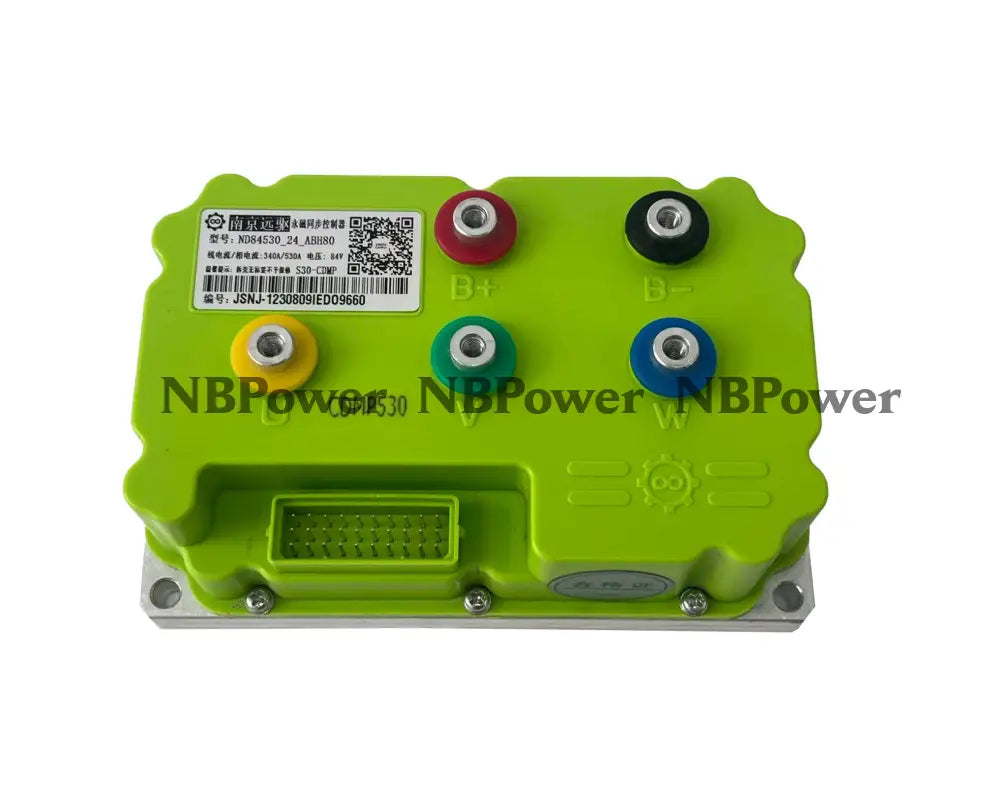

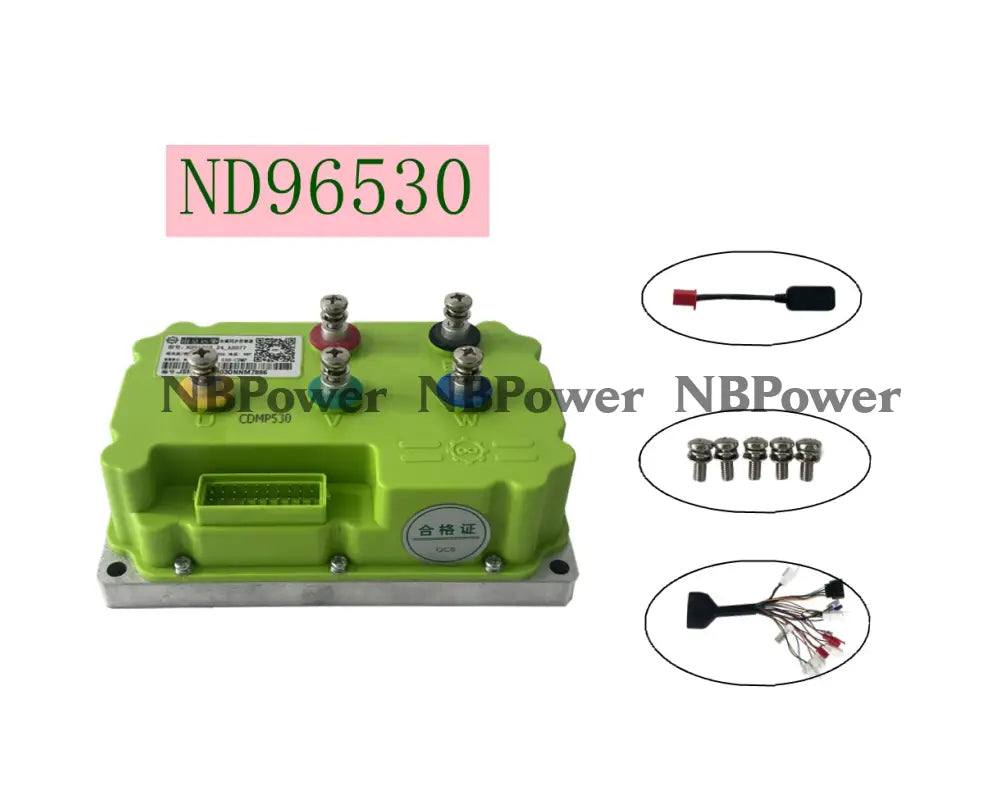

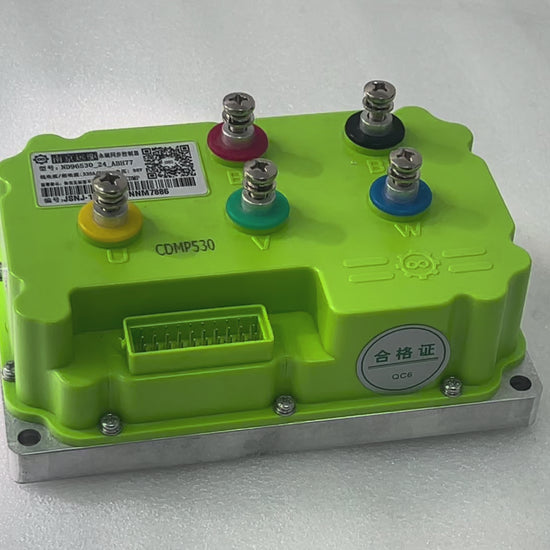

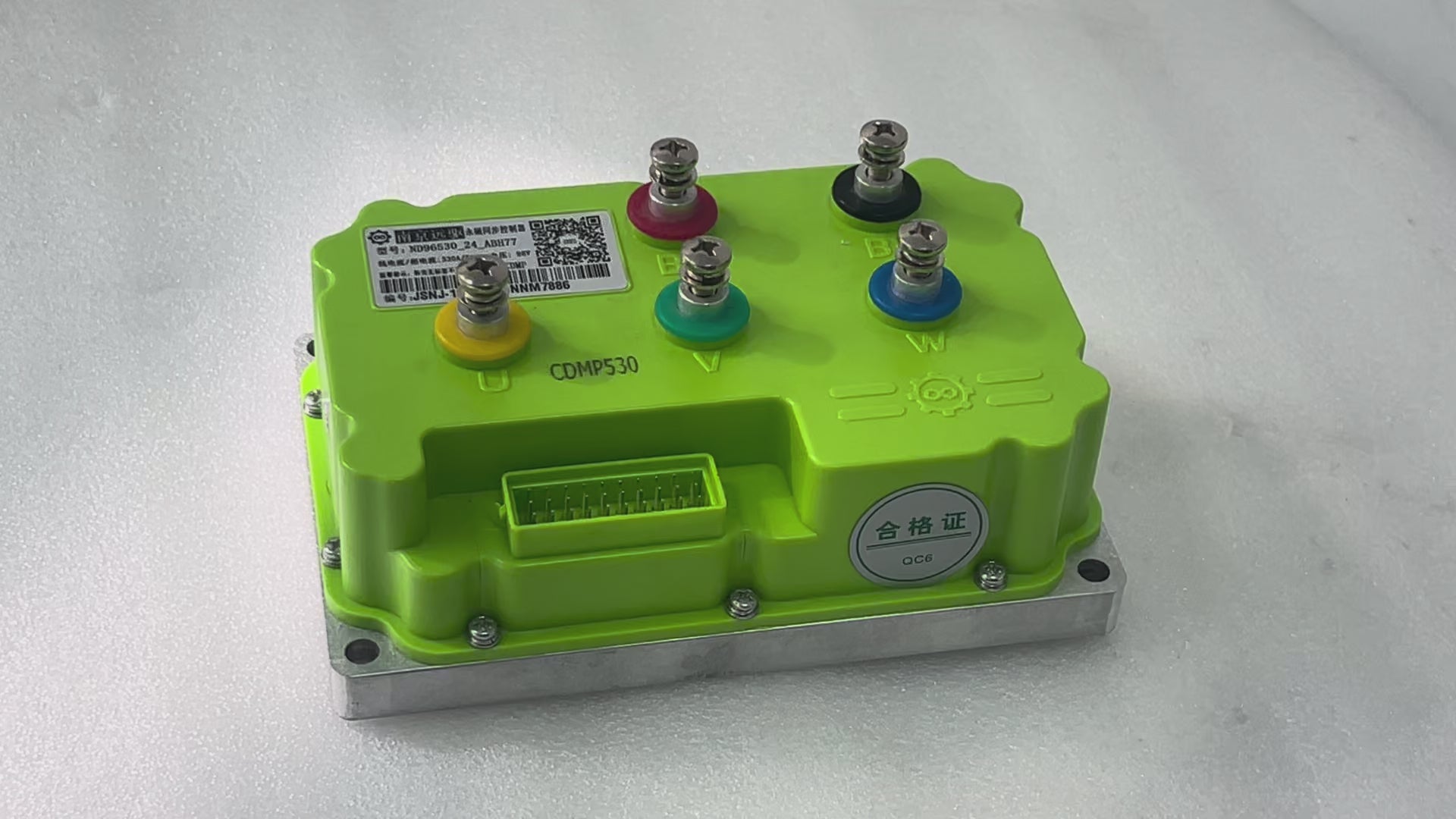

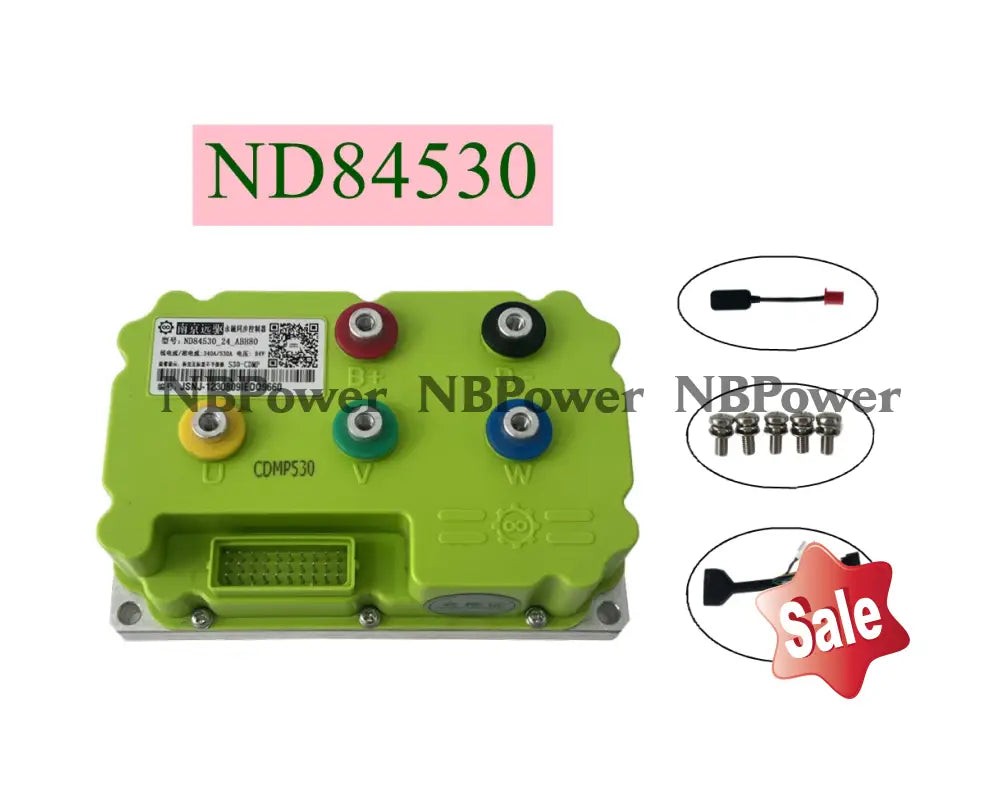

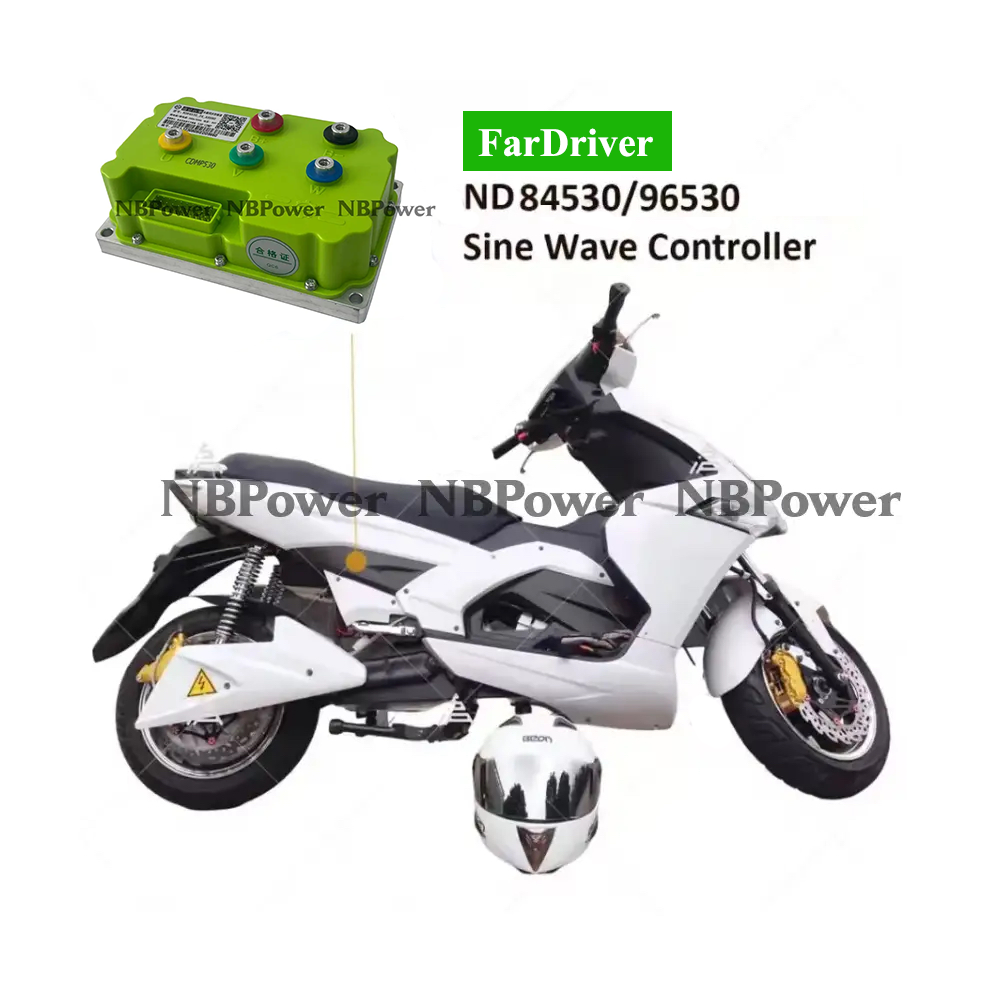

Fardriver 530A Bluetooth Controller (ND84530/ND96530) for Electric Motorcycle,Scooter App Control Regen Brake

Nanjing Fardriver Controller
1.Model: ND84530/ND96530
2.Working Communication: Hall Sensor
3.Available Rated Battery Voltage: 84V/96V
4.Peak Battery Voltage: 100V/115V
5.Available Motor Power: 4000W - 7000W
6.Defaut Throttle Working Voltage: 0V - 5V
7.Peak DC Current: 330A for 72V, 250A for 84/96V
8.Peak Phase Current: 530A
9.Mosfets Detail: 24 FET
10.Weight: 2.5kgs

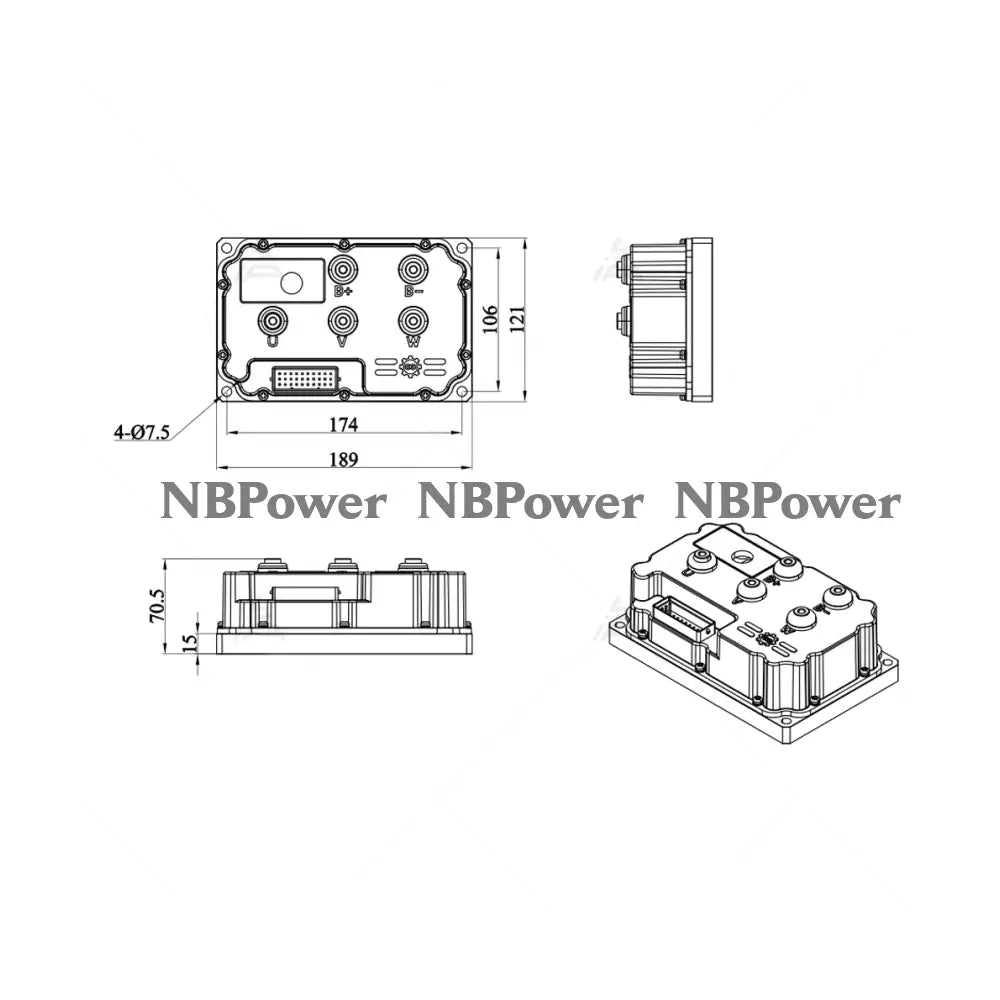

11.Instaliing Size: 189mm * 121mm * 65mm
12.Controller Design: Sine Wave BLDC
13.Case Material: Aluminum
14.Support Programmable: PC & Phone
15.Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV

P.S.

The controller colors are blue and black, randomly sent.

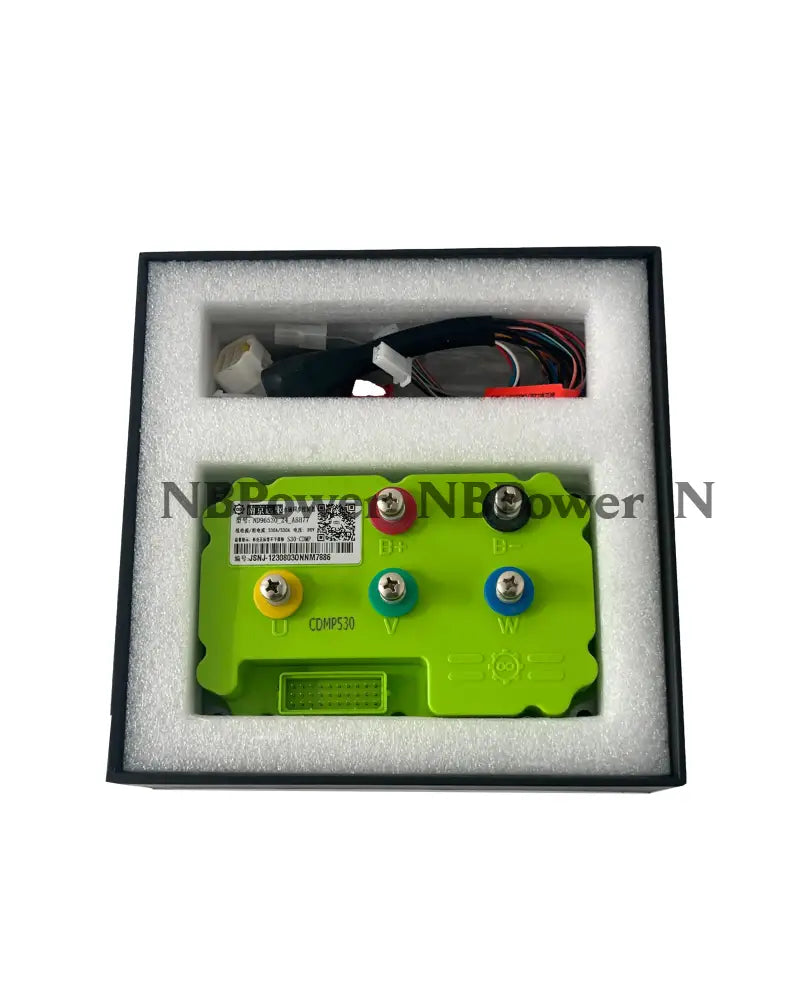

Packing List:

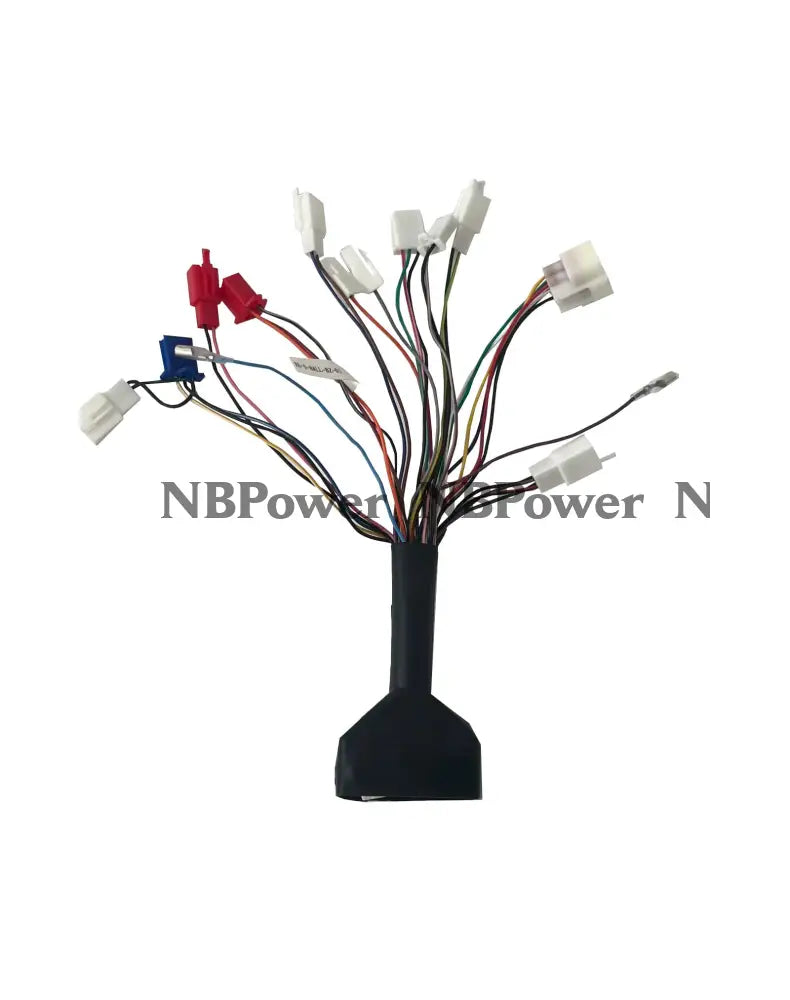

1 x Controller and wiring (controller color is random）

1 x Bluetooth （the controller with biult-in bluetooth option don't include this, no need this）

Please note
This link only includes the fardrive controller. If you need related accessories, we also sell them in our store. The purchase link is below：https://gmbji5-mp.myshopify.com/products/fardriver-vehicle-wiring-harness-plug-and-play-for-fardriver-hall-encoder-controller-electric-bike-controller-and-display-system;
Please pay attention when your purchase.

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

If you have any questions, please contact me，

WhatsApp:+86 15922995145，and I will reply as soon as possible.

Important Notice:

1. The mainline is for Hall Version Fardriver controller

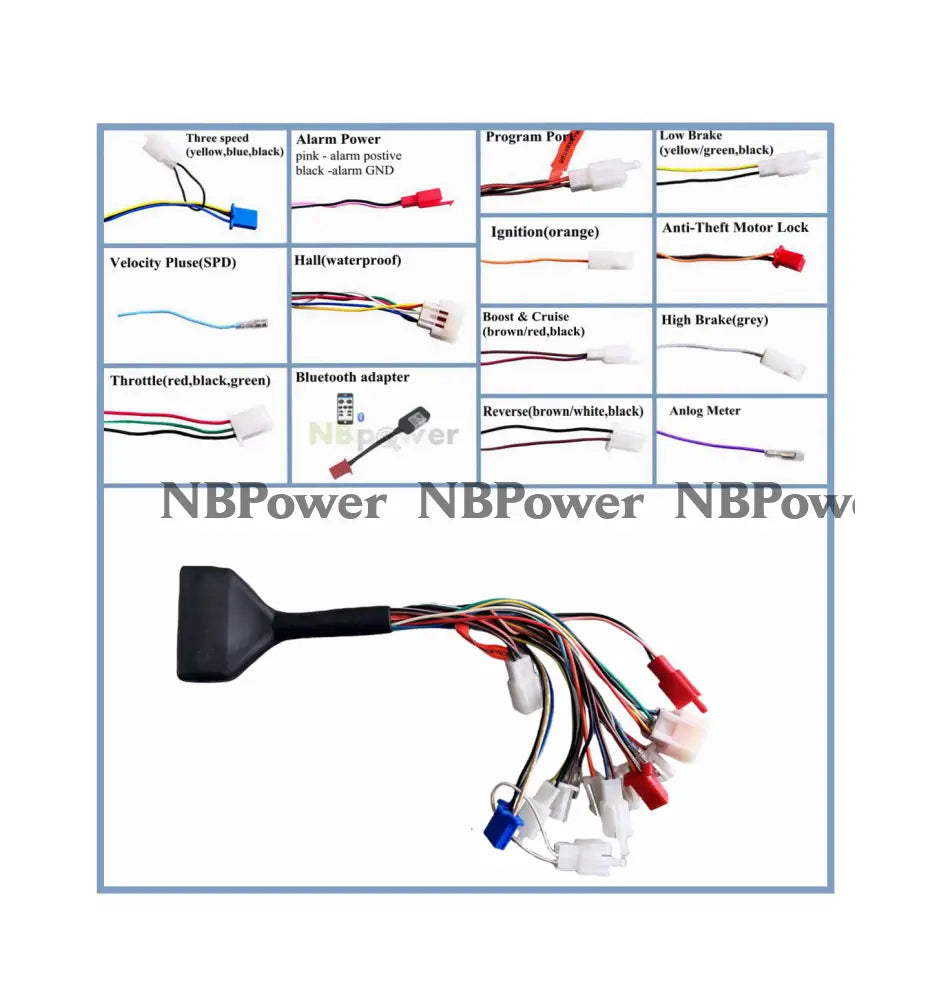

2. Below wire diagram only for reference, not mean you will receive all parts of them!!! what included exactly please refer to Packing List and the picture when you click the option!!!

P.S.

The controller colors are blue and black, randomly sent.

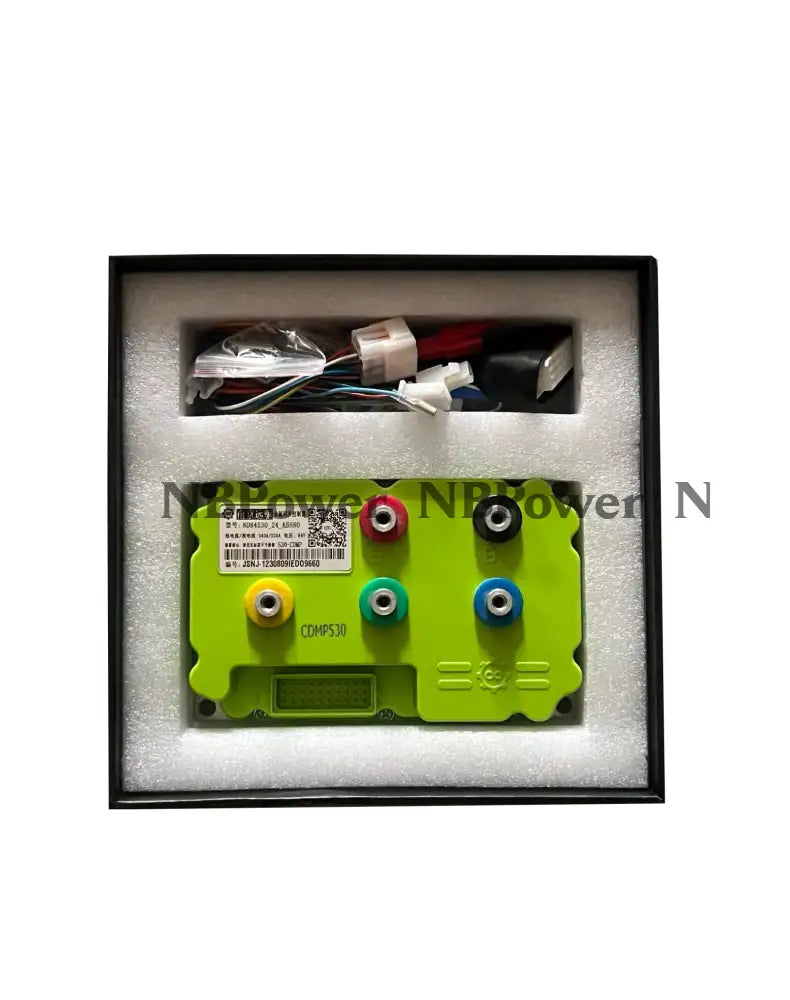

Packing List:

1 x Controller and wiring (controller color is random）

1 x Bluetooth （the controller with biult-in bluetooth option don't include this, no need this）

Please note
This link only includes the fardrive controller. If you need related accessories, we also sell them in our store. The purchase link is below：https://gmbji5-mp.myshopify.com/products/fardriver-vehicle-wiring-harness-plug-and-play-for-fardriver-hall-encoder-controller-electric-bike-controller-and-display-system;
Please pay attention when your purchase.

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

If you have any questions, please contact me，

WhatsApp:+86 15922995145，and I will reply as soon as possible.

Important Notice:

1. The mainline is for Hall Version Fardriver controller

2. Below wire diagram only for reference, not mean you will receive all parts of them!!! what included exactly please refer to Packing List and the picture when you click the option!
