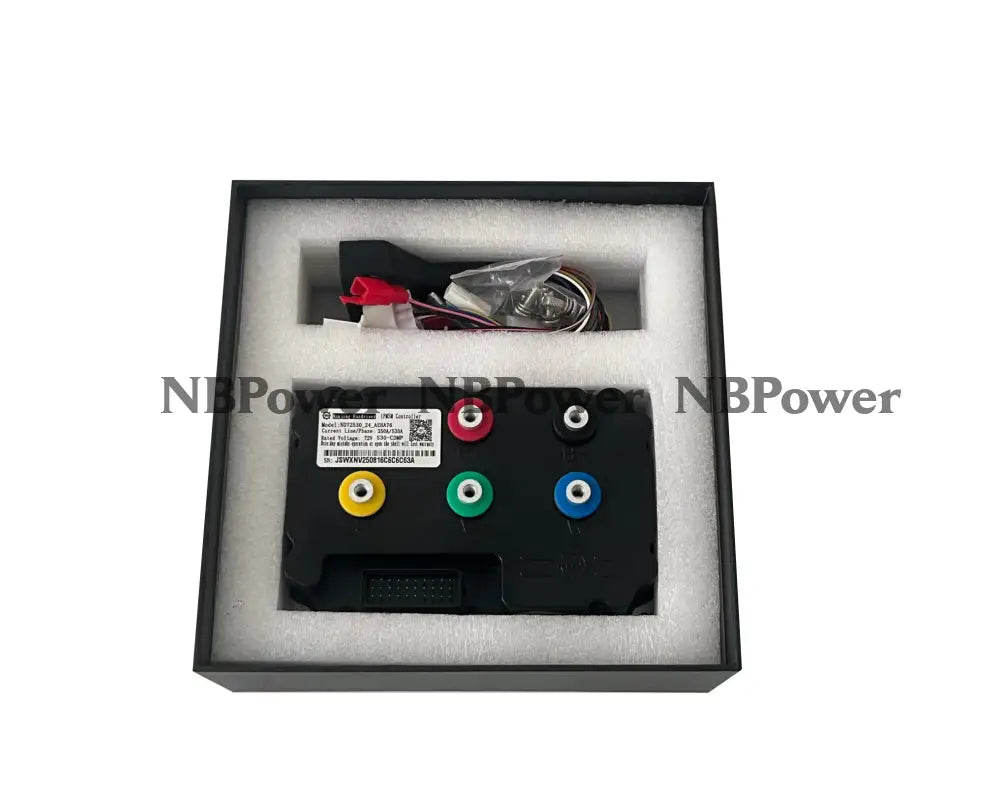

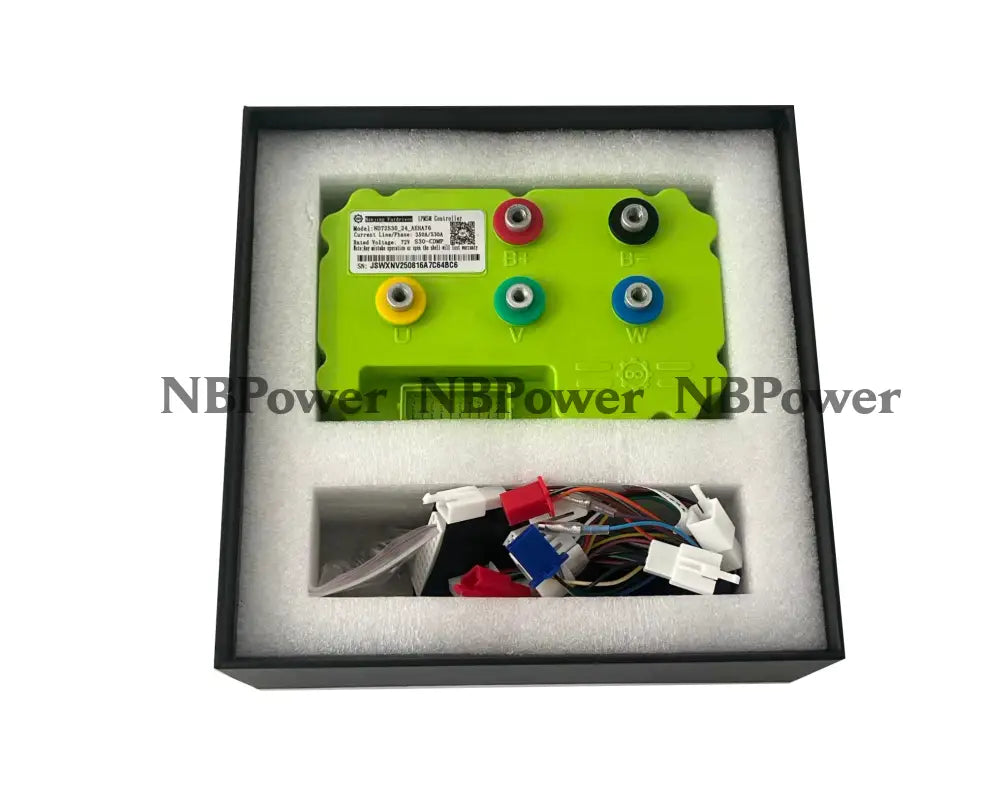

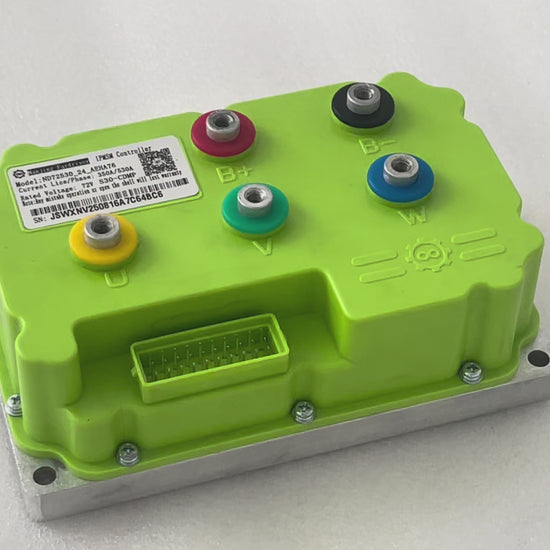

Fardriver Controller ND72530 ND84530 ND96530 Electric Scooter Moped BLDC PMSM Motor FOC Controller（Built-in-Bluetooth）

Nanjing Fardriver Controller
1  Model: ND72530
2  Working Communication: Hall Sensor
3  Available Rated Battery Voltage: 48V/60V/72V
4  Peak Battery Voltage: 88V
5  Available Motor Power: 4000W - 6000W
6  Defaut Throttle Working Voltage: 0V - 5V
7  Peak DC Current: 350A
8  Peak Phase Current: 530A
9  Mosfets Detail: 24 FET10 Weight: 2.5kgs

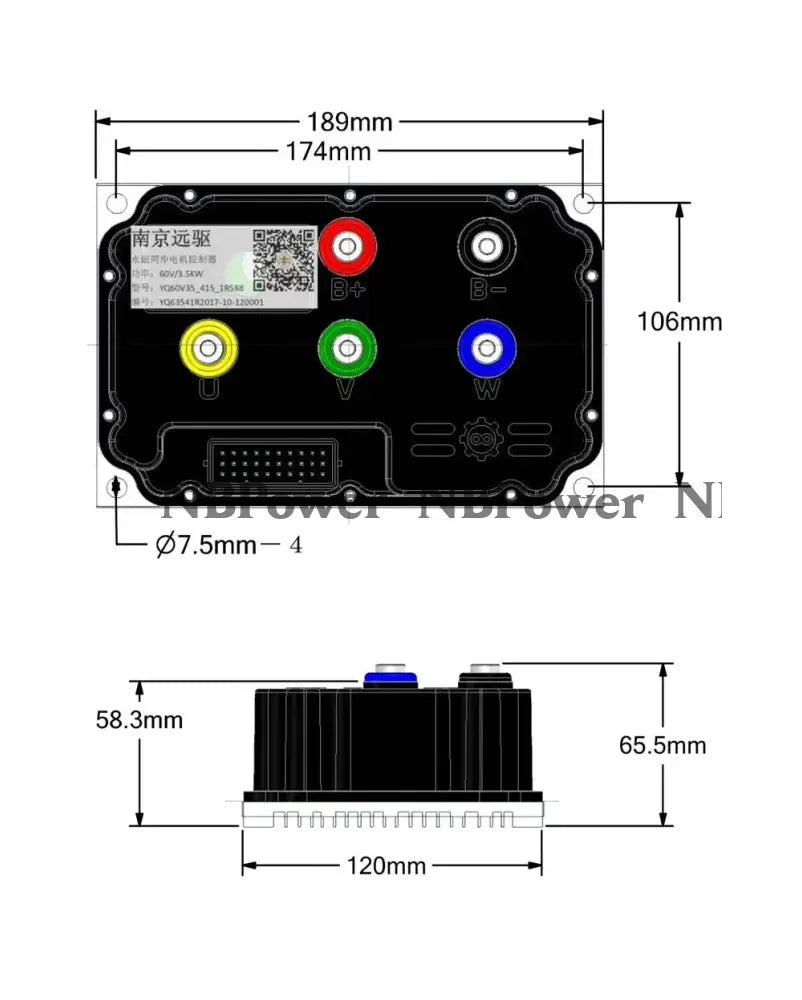

11    Instaliing Size: 189mm * 121mm * 65mm
12    Controller Design: Sine Wave BLDC
13    Case Material: Aluminum
14     Support    Programmable: PC & Phone
15    Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV

Please note
This link only includes the fardrive controller. If you need related accessories, we also sell them in our store. The purchase link is below：https://gmbji5-mp.myshopify.com/products/fardriver-vehicle-wiring-harness-plug-and-play-for-fardriver-hall-encoder-controller-electric-bike-controller-and-display-system;
Please pay attention when your purchase.

If you have any questions, please contact me，

WhatsApp:+86 15922995145

and I will reply as soon as possible.

Important Notice:

1. The mainline is for Hall Version Fardriver controller

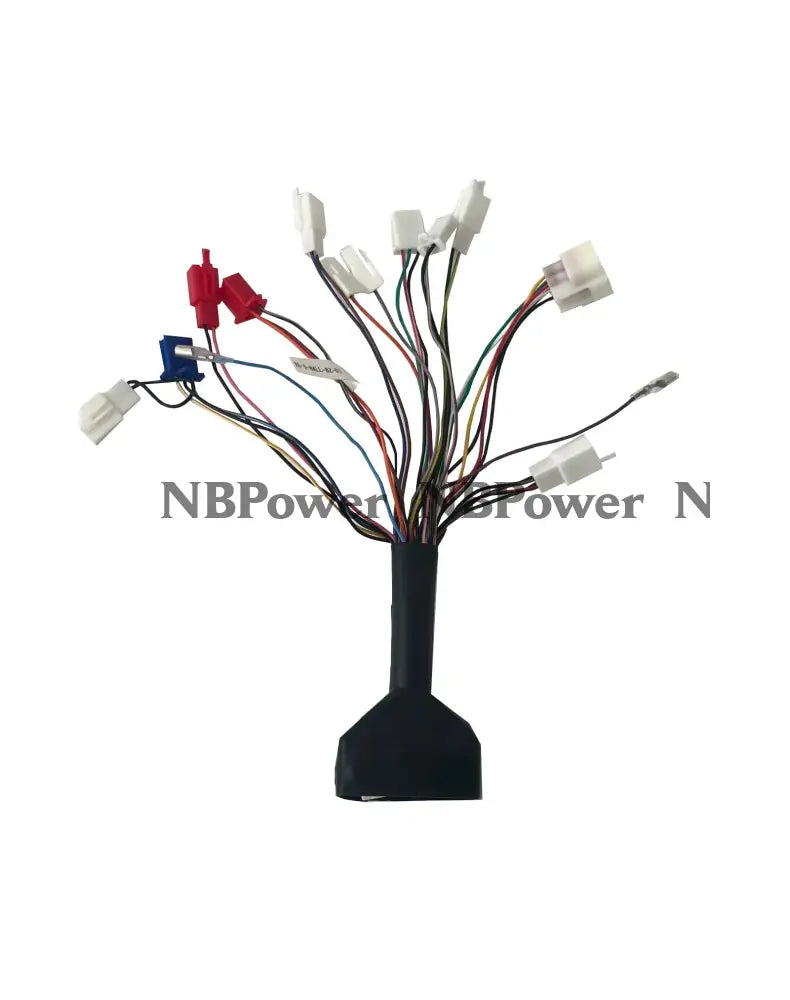

2. Below wire diagram only for reference, not mean you will receive all parts of them!!! what included exactly please refer to Packing List and the picture when you click the option!!!

APP Surface
