ND72680 FARDRIVER ;Nanjing Fardriver ND72680 60V-72V 350A DC sine wave electric scooter scooter Built-In-Bluetooth debugging programming motor controller

Fardriver Controller
1    Model: ND72680
2    Working Communication: Hall Sensor
3      Available Rated Battery Voltage: 48V-72V
4      Peak Battery Voltage: 88V
5    Available Motor Power: 3000W - 6000W
6    Defaut Throttle Working Voltage: 0V - 5V
7    Peak DC Current: 350A
8    Peak Phase Current: 680A
9    Mosfets Detail: 30 FET
10    Weight: 2.4kgs

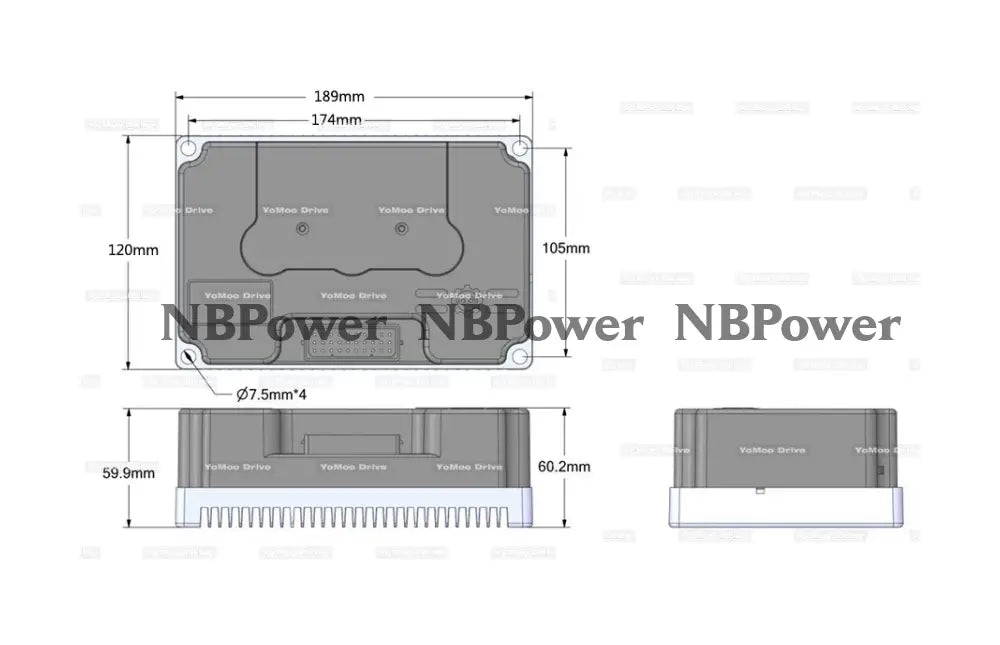

11    Instaliing Size: 189mm * 120mm * 60mm
12    Controller Design: Sine Wave BLDC
13    Case Material: Aluminum
14     Support    Programmable: PC & Phone
15    Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV

Please note
This link only includes the fardrive controller. If you need related accessories, we also sell them in our store. The purchase link is below：https://gmbji5-mp.myshopify.com/products/fardriver-vehicle-wiring-harness-plug-and-play-for-fardriver-hall-encoder-controller-electric-bike-controller-and-display-system;
Please pay attention when your purchase.

If you have any questions, please contact me，

WhatsApp:+86 15922995145

and I will reply as soon as possible.

Important Notice:

1. The mainline is for Hall Version Fardriver controller

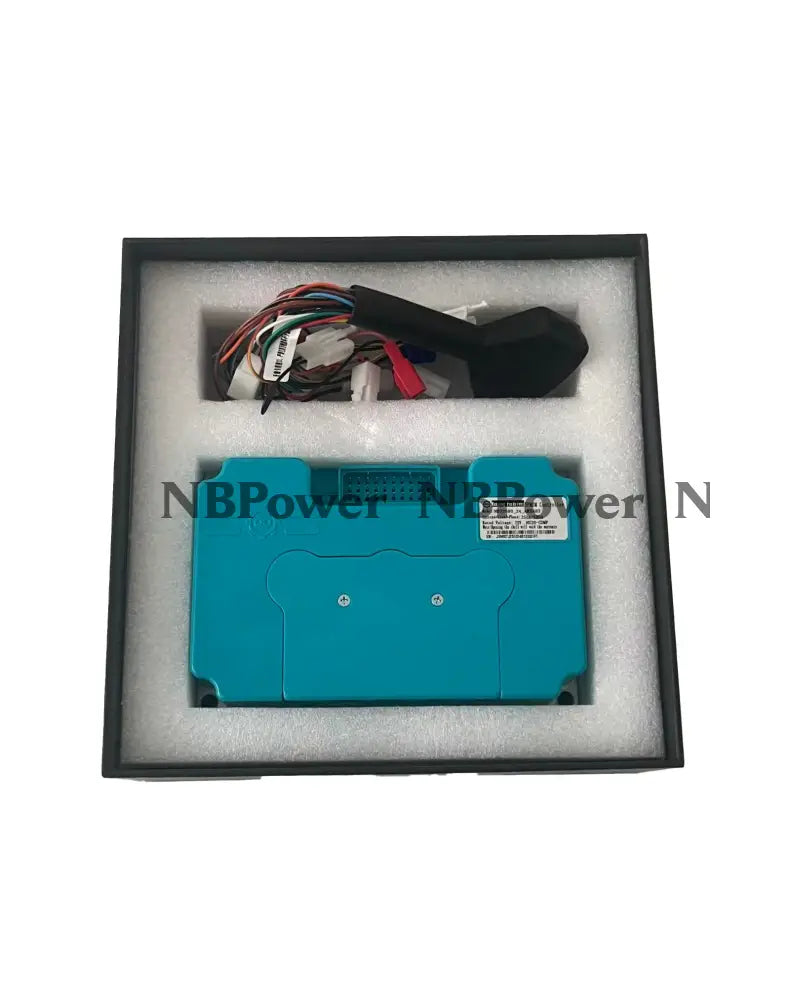

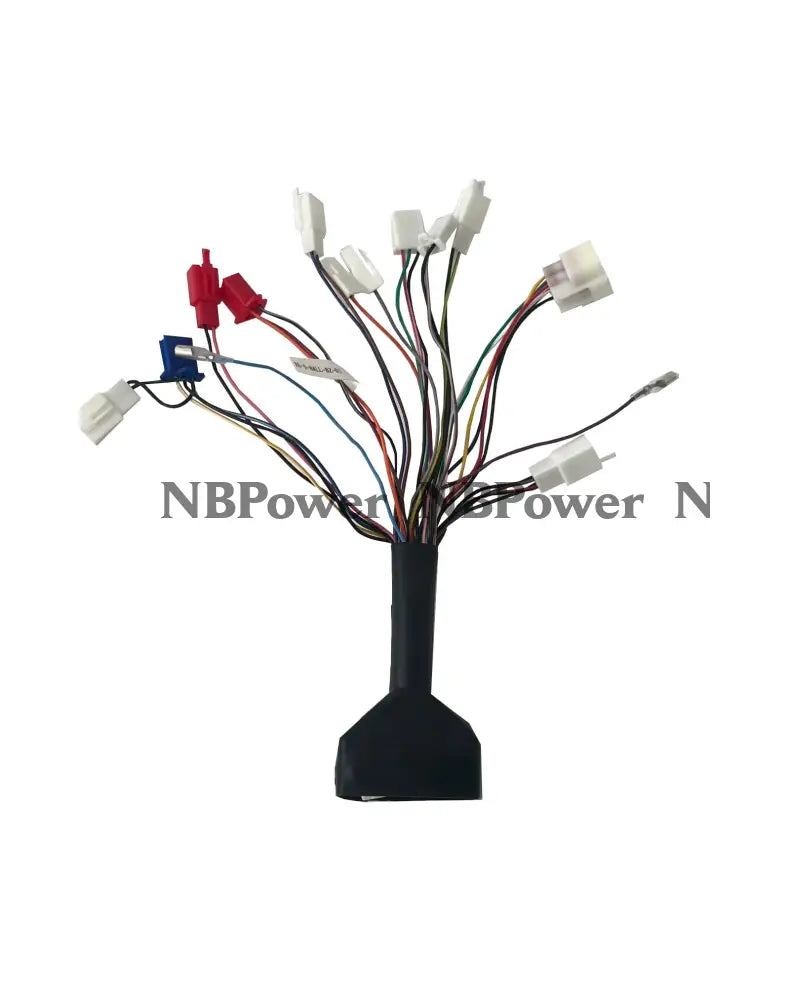

2. Below wire diagram only for reference, not mean you will receive all parts of them!!! what included exactly please refer to Packing List and the picture when you click the option!!!

APP Surface
