96V 8000W 450A BLDC Motor Controller Fardriver ND96850 High Efficiency Reverse 6000W~8000W for E-Scooter Electric Motor ATV

Key Features

1). All the raw materials are imported, using high-performance Moss tube

2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board

3). Small in size

4). High efficiency, low temperature rise, small running current

5). With self-learning function, excellent commonality

6). The app compatible with Android and Apple

7). With flux weakening function.(The product does not contain magnetism)

Main Specification:

1. Model Number: ND96850 ( ND96850B is encoder version,pls. choose it if your motor with encoder )

2. Max. Bus Current: 450A

3. Max. Phase Current: 850A

4. Working Voltage: 48V/60V/72V

5. Peak voltage: 88V

6. Compatible Motor Power:8000W-10000W

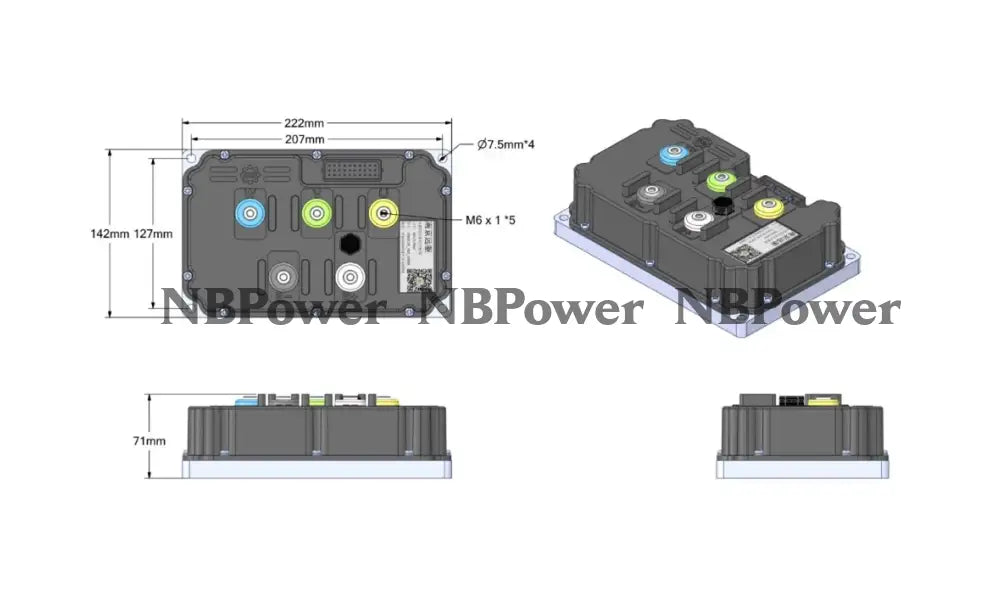

7. Size: 222mm*142mm*71mm

P.S.

1. The controller colors are blue and black, randomly sent.

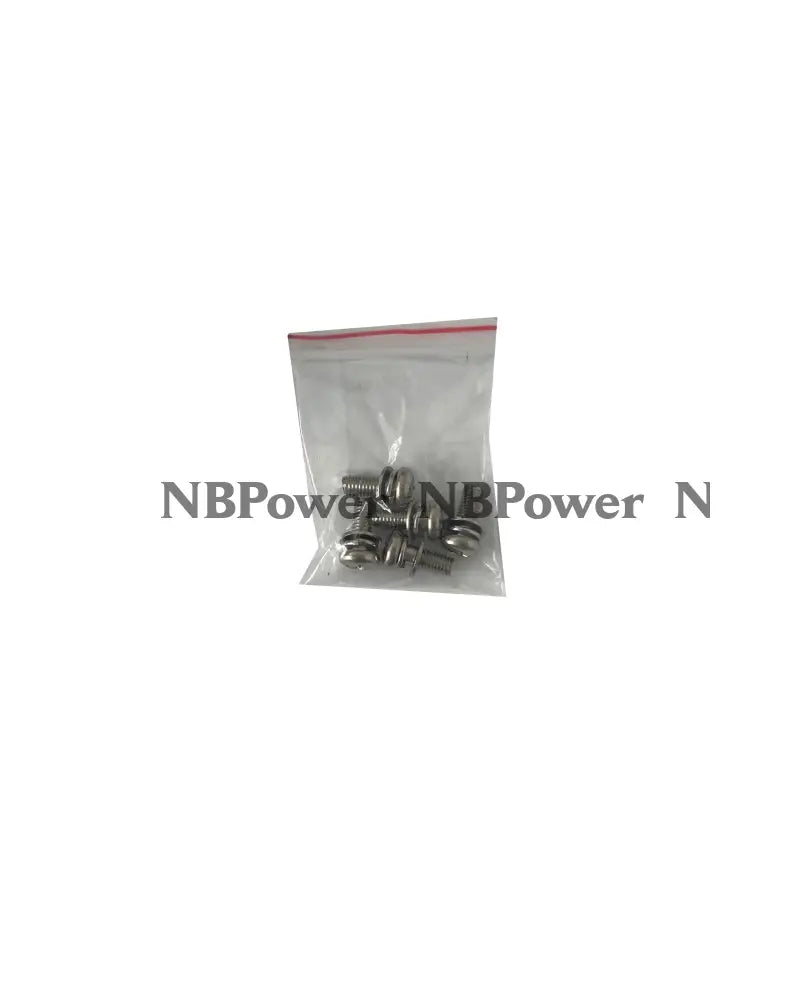

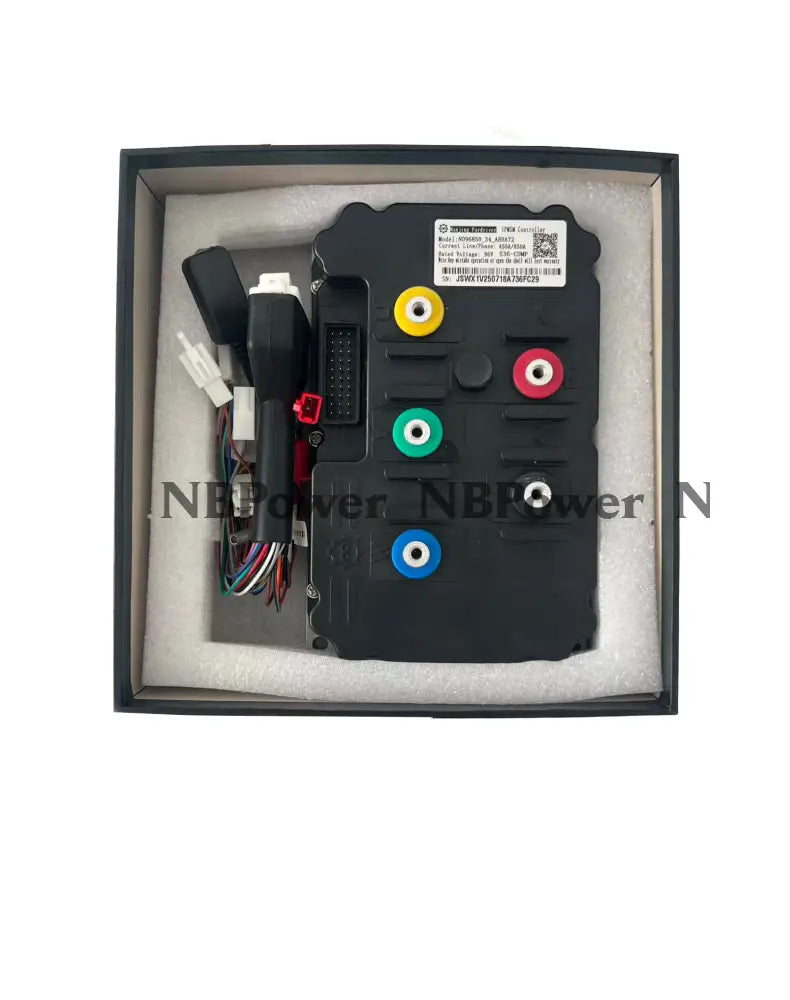

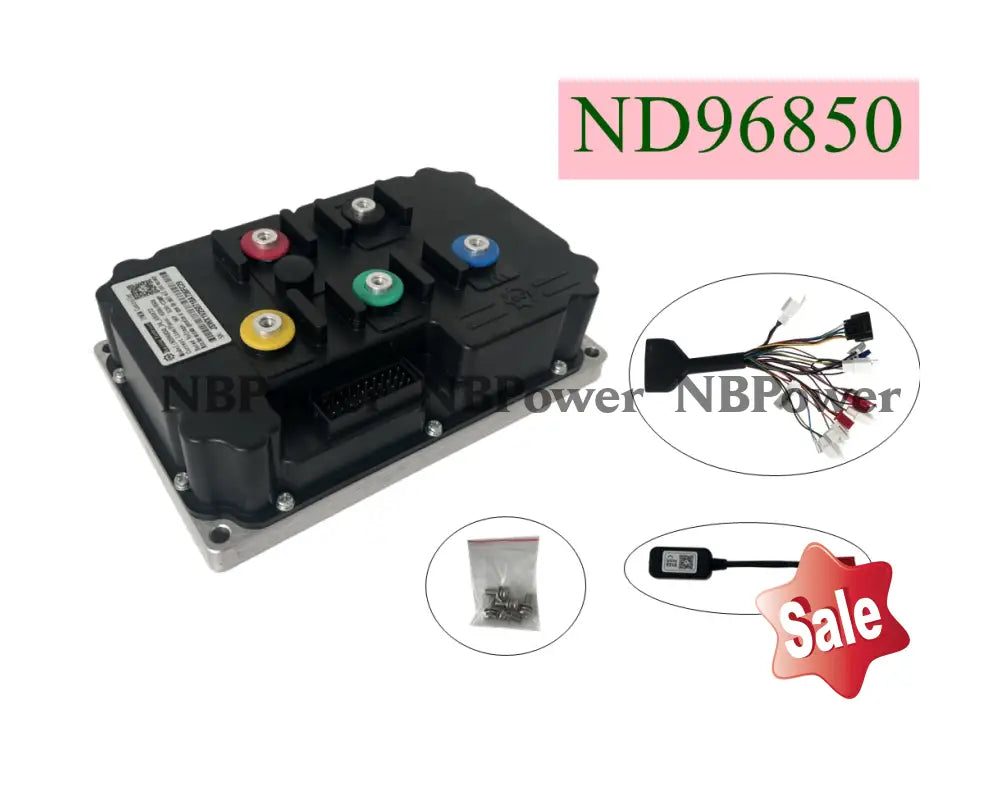

2. Controller include harness, screws, and bluetooth adaptor. ( like the following picture )

Please note
This link only includes the fardrive controller. If you need related accessories, we also sell them in our store. The purchase link is below：https://gmbji5-mp.myshopify.com/products/fardriver-vehicle-wiring-harness-plug-and-play-for-fardriver-hall-encoder-controller-electric-bike-controller-and-display-system;
Please pay attention when your purchase.

If you have any questions, please contact me，

WhatsApp:+86 15922995145

and I will reply as soon as possible.

Important Notice:

1. The mainline is for Hall Version Fardriver controller
2. Below wire diagram only for reference, not mean you will receive all parts of them!!! what included exactly please refer to Packing List and the picture when you click the option!!!
