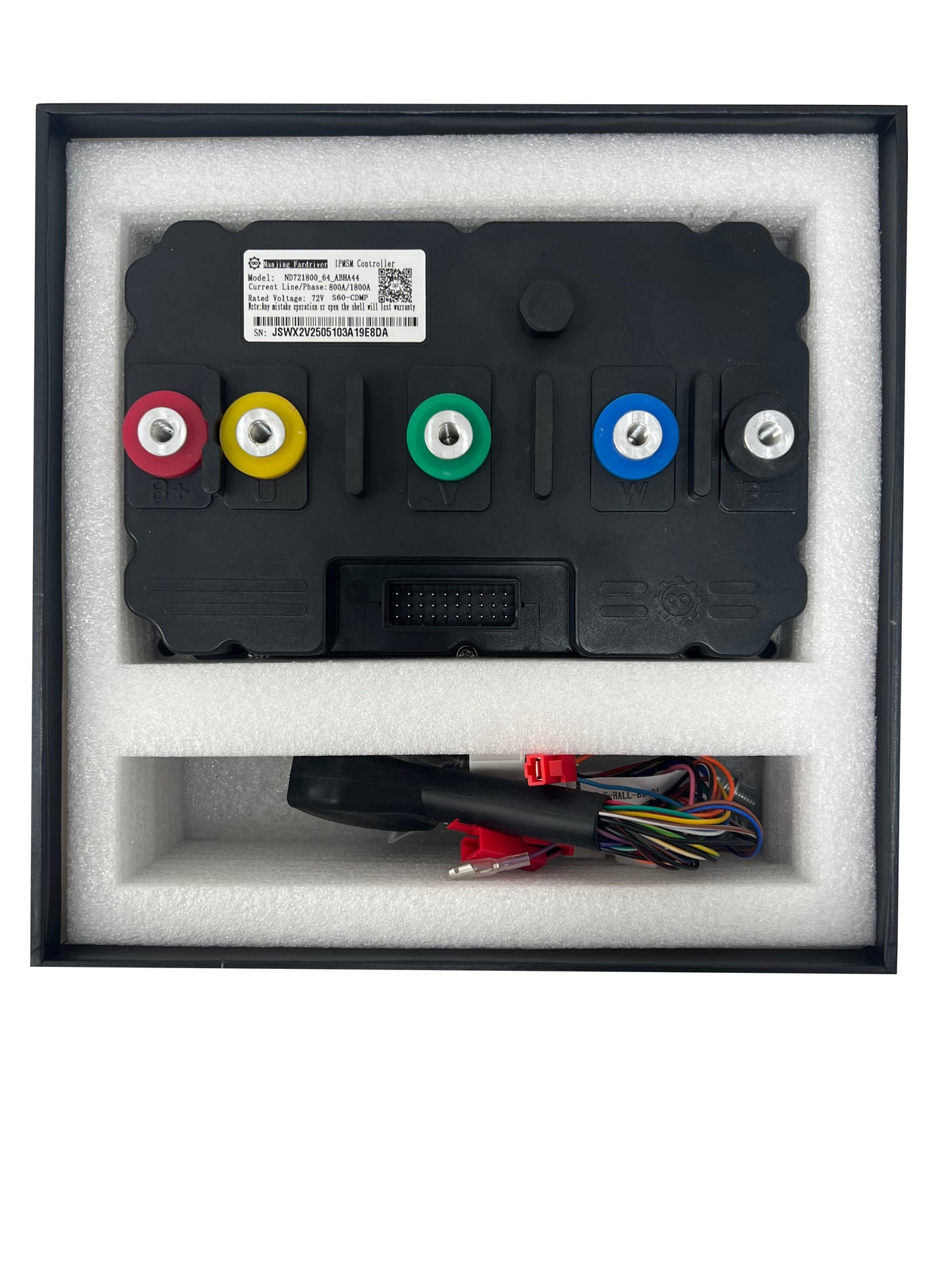

Powerful Fardriver ND721800 DC 800A Phase Current 1800A 10KW-12KW PMSM BLDC Sine Wave E-Motorcycle E-Car Motor Controller with bluetooth adapter

Key  Features

The ND series sine wave controller is a high-end high-power permanent magnet synchronous motor controller with the advantages of high quality, high efficiency, and intelligence. It is suitable for vehicle applications of various Hall motors.
It is suitable for middle and high speed motorcycles with in-wheel motors, mid-mounted motors, and high-end electric tricycles.
Using high-quality fully imported MOS core, full metal shielding and aluminum die heat dissipation structure, the hardware
architecture and software implementation are perfectly matched and refined.

General SPEC

Nanjing Fardriver Controller
1    Model: ND721800
2    Working Communication: Hall Sensor
3      Available Rated Battery Voltage: 48V/60V/72V
4      Peak Battery Voltage: 88V
5    Available Motor Power: 10KW - 15KW
6    Defaut Throttle Working Voltage: 0V - 5V
7    Peak DC Current: 800A
8    Peak Phase Current: 1800A
9    Mosfets Detail: 60 FET
10    Weight: 5kgs
11    Instaliing Size: 238mm * 155mm * 72mm
12    Controller Design: Sine Wave BLDC
13    Case Material: Aluminum
14     Support    Programmable: PC & Phone
15    Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV,Car

P.S.

The controller colors are blue and black, randomly sent.

Packing List:

1 x Controller and wiring (controller color is random）

1 x Bluetooth （the controller with biult-in bluetooth option don't include this, no need this）

Please note
This link only includes the fardrive controller. If you need related accessories, we also sell them in our store. The purchase link is below：https://gmbji5-mp.myshopify.com/products/fardriver-vehicle-wiring-harness-plug-and-play-for-fardriver-hall-encoder-controller-electric-bike-controller-and-display-system;
Please pay attention when your purchase.

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

If you have any questions, please contact me，

WhatsApp:+86 15922995145，and I will reply as soon as possible.

Important Notice:

1. The mainline is for Hall Version Fardriver controller

2. Below wire diagram only for reference, not mean you will receive all parts of them!!! what included exactly please refer to Packing List and the picture when you click the option!!!

P.S.

The controller colors are blue and black, randomly sent.

Packing List:

1 x Controller and wiring (controller color is random）

1 x Bluetooth （the controller with biult-in bluetooth option don't include this, no need this）

Please note
This link only includes the fardrive controller. If you need related accessories, we also sell them in our store. The purchase link is below：https://gmbji5-mp.myshopify.com/products/fardriver-vehicle-wiring-harness-plug-and-play-for-fardriver-hall-encoder-controller-electric-bike-controller-and-display-system;
Please pay attention when your purchase.

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

If you have any questions, please contact me，

WhatsApp:+86 15922995145，and I will reply as soon as possible.

Important Notice:

1. The mainline is for Hall Version Fardriver controller

2. Below wire diagram only for reference, not mean you will receive all parts of them!!! what included exactly please refer to Packing List and the picture when you click the option!
