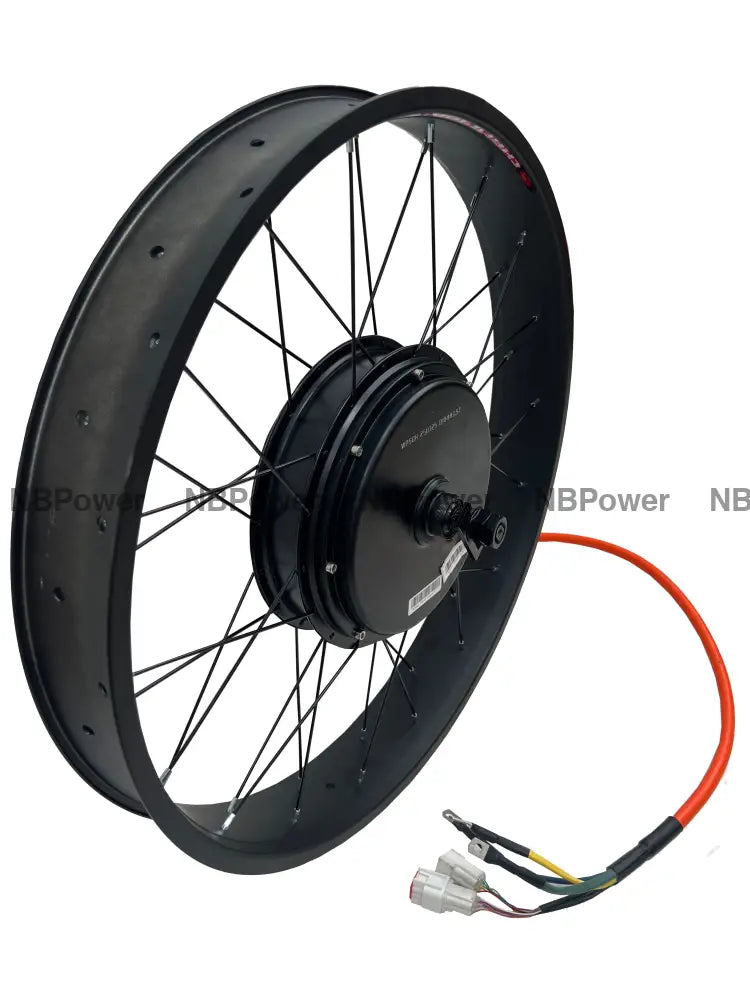

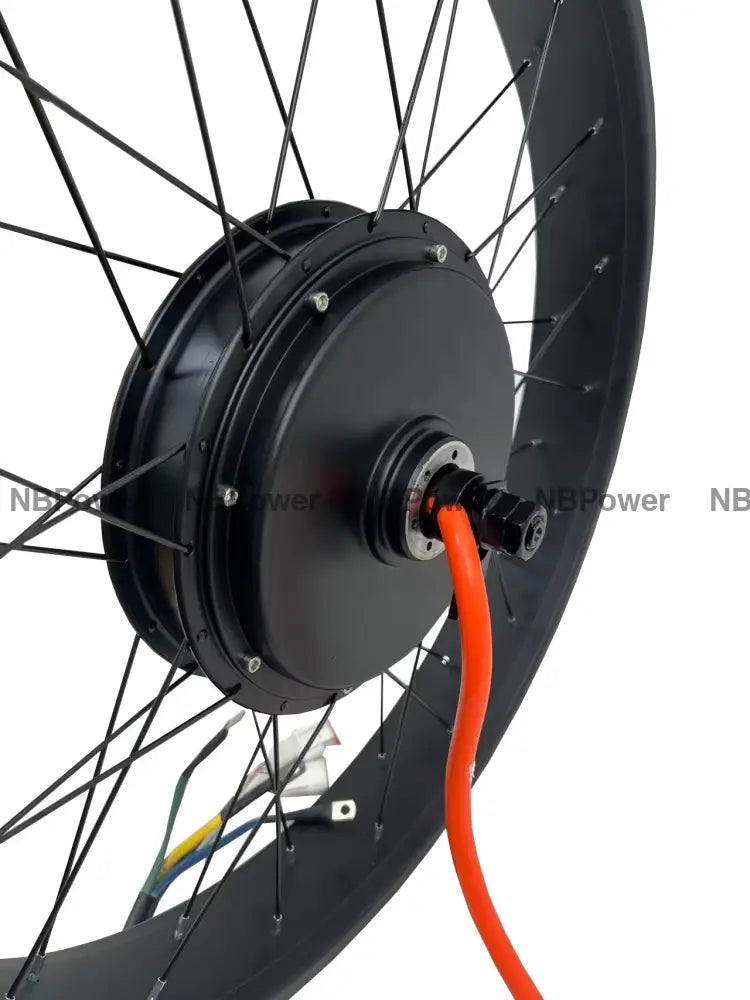

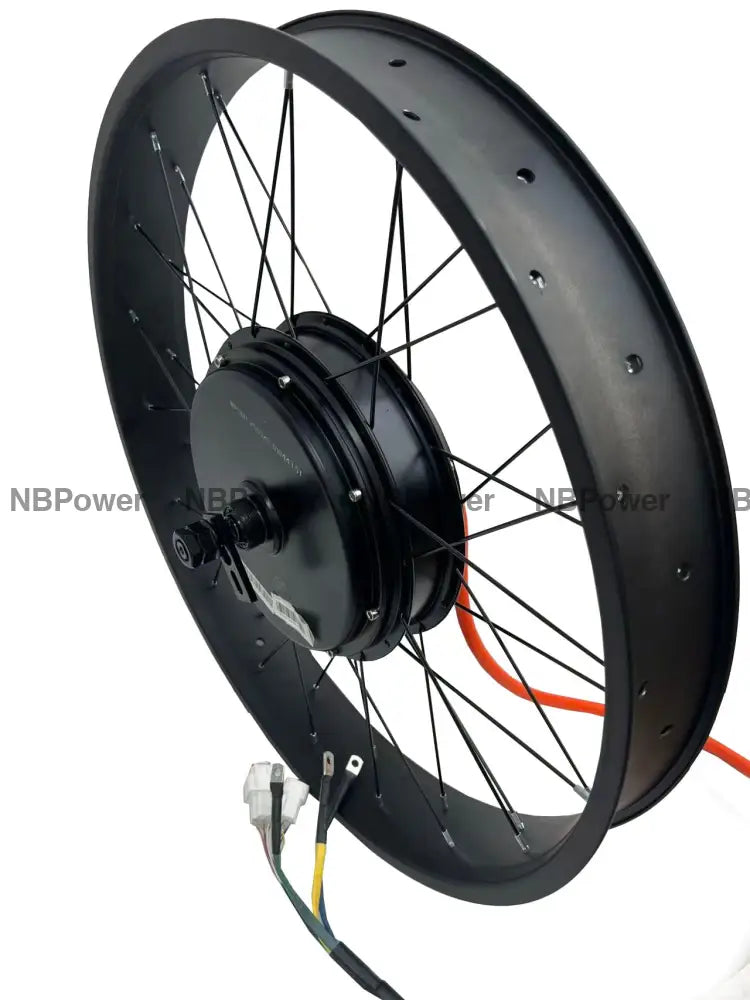

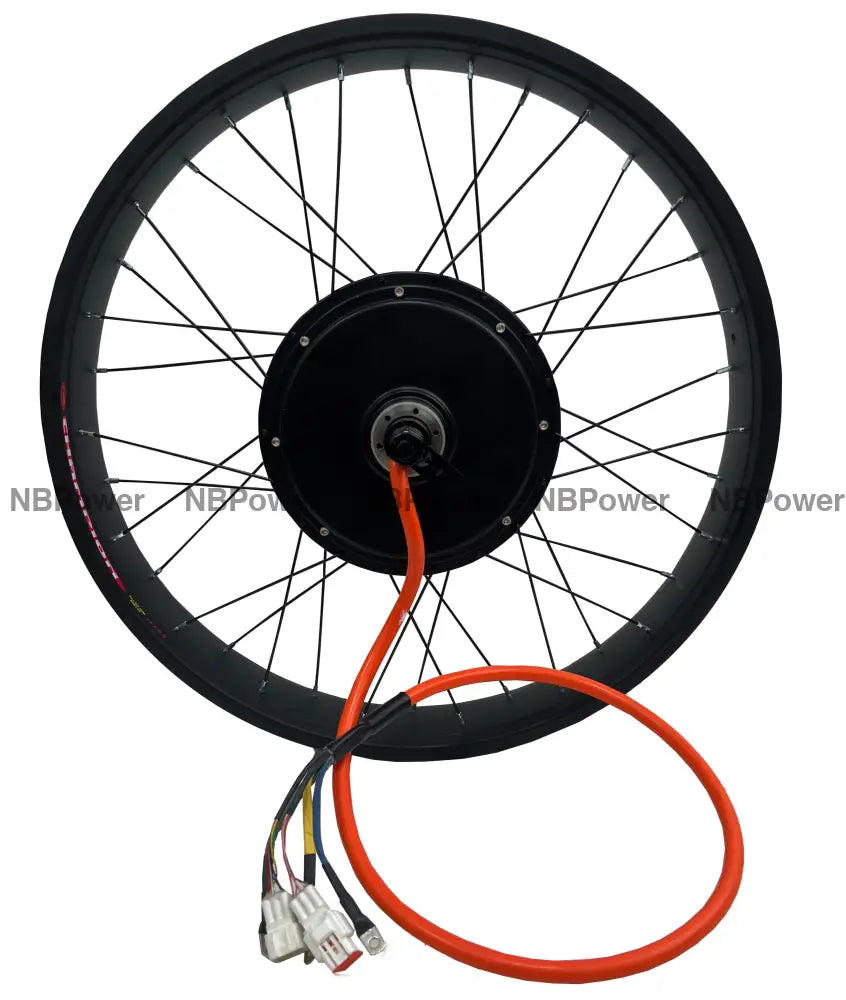

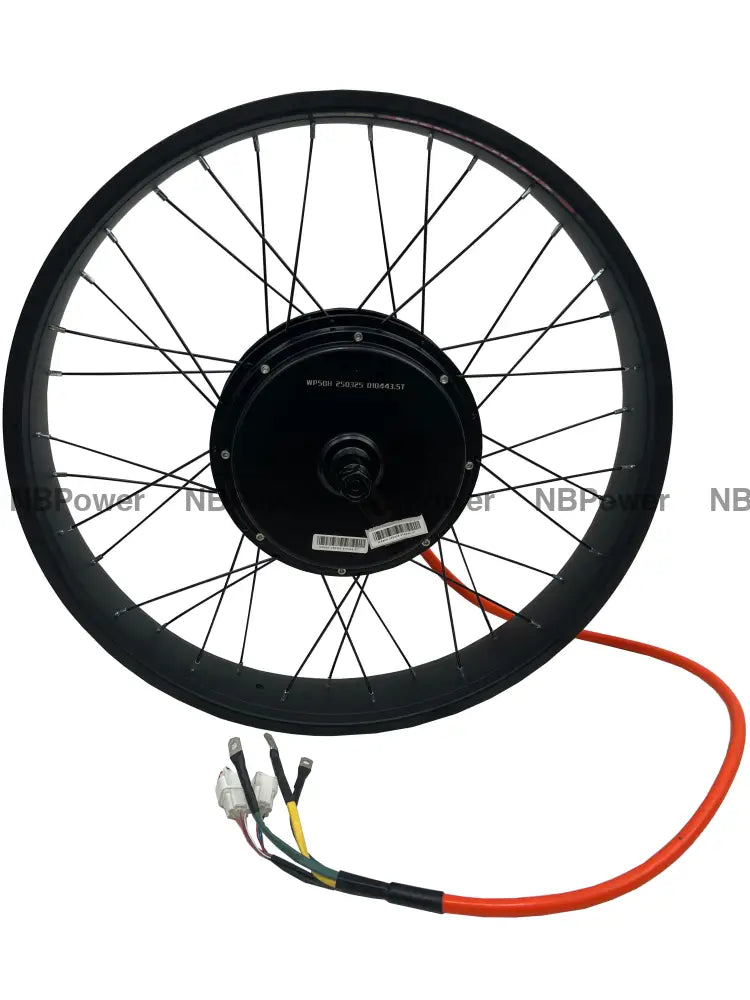

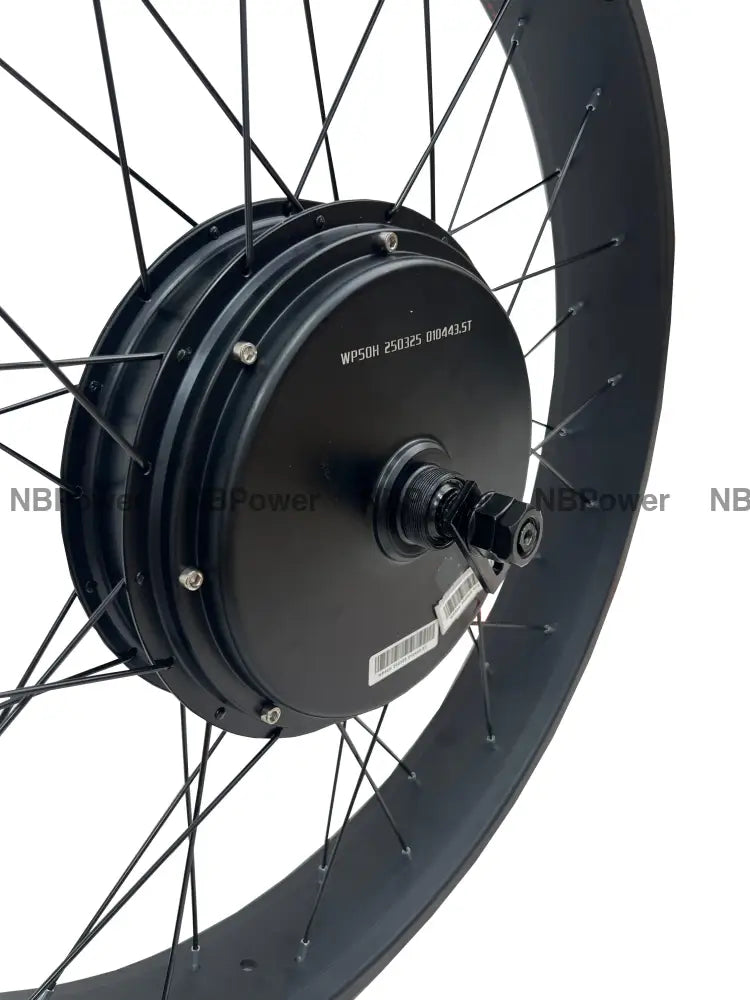

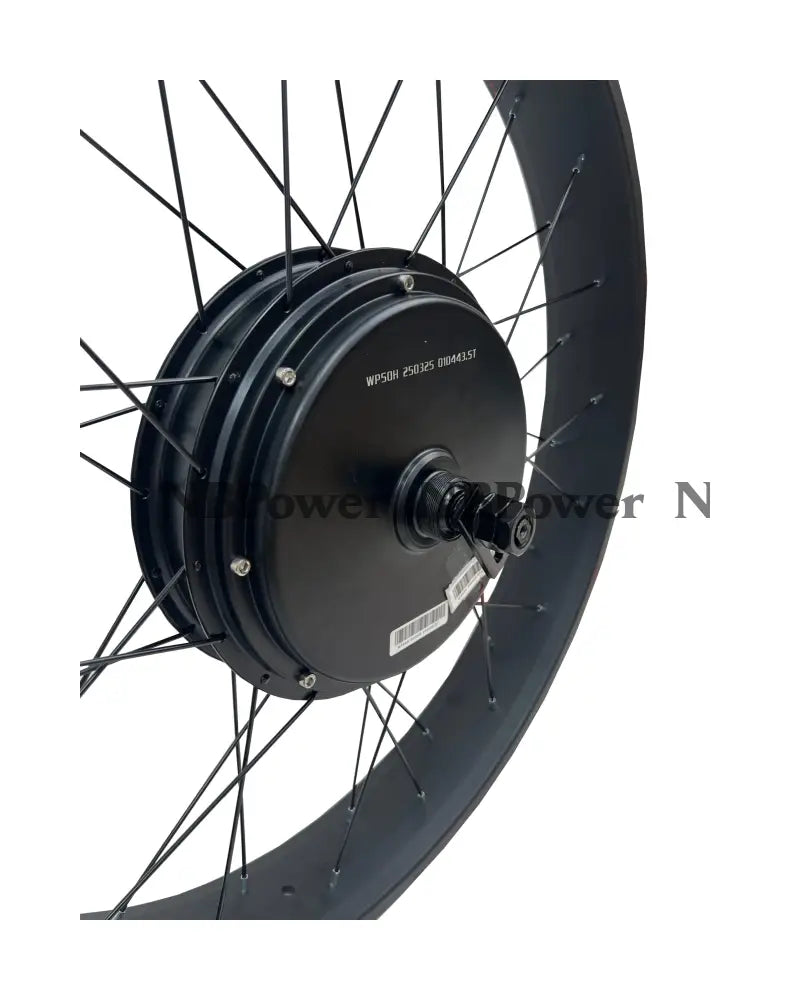

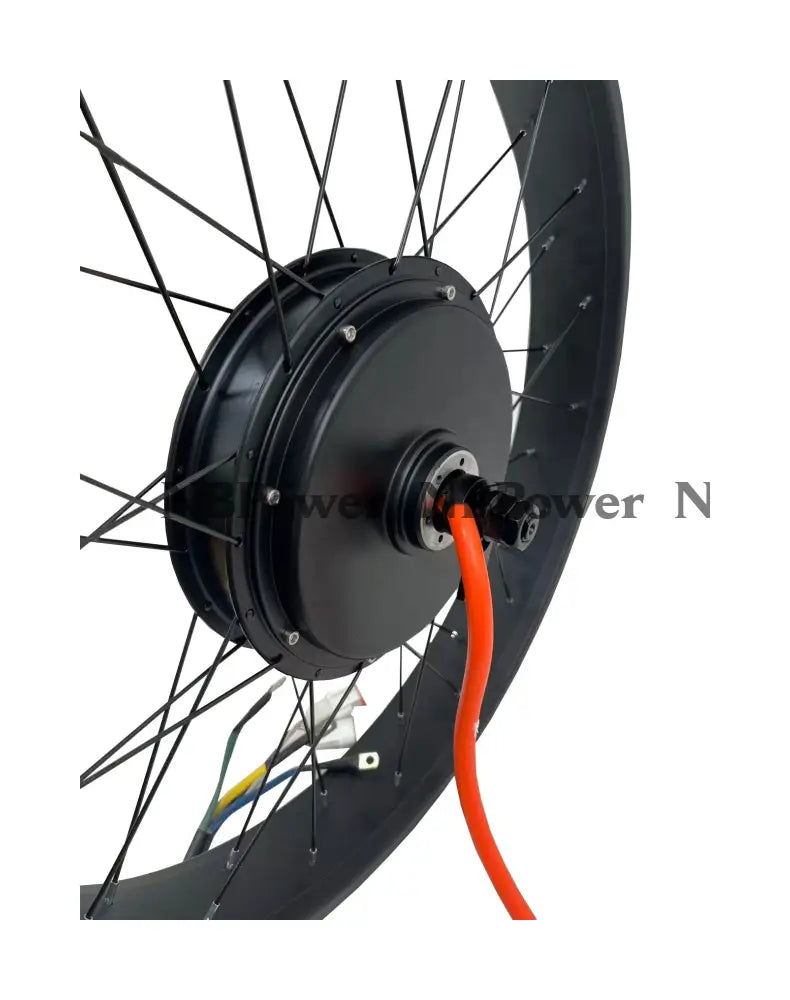

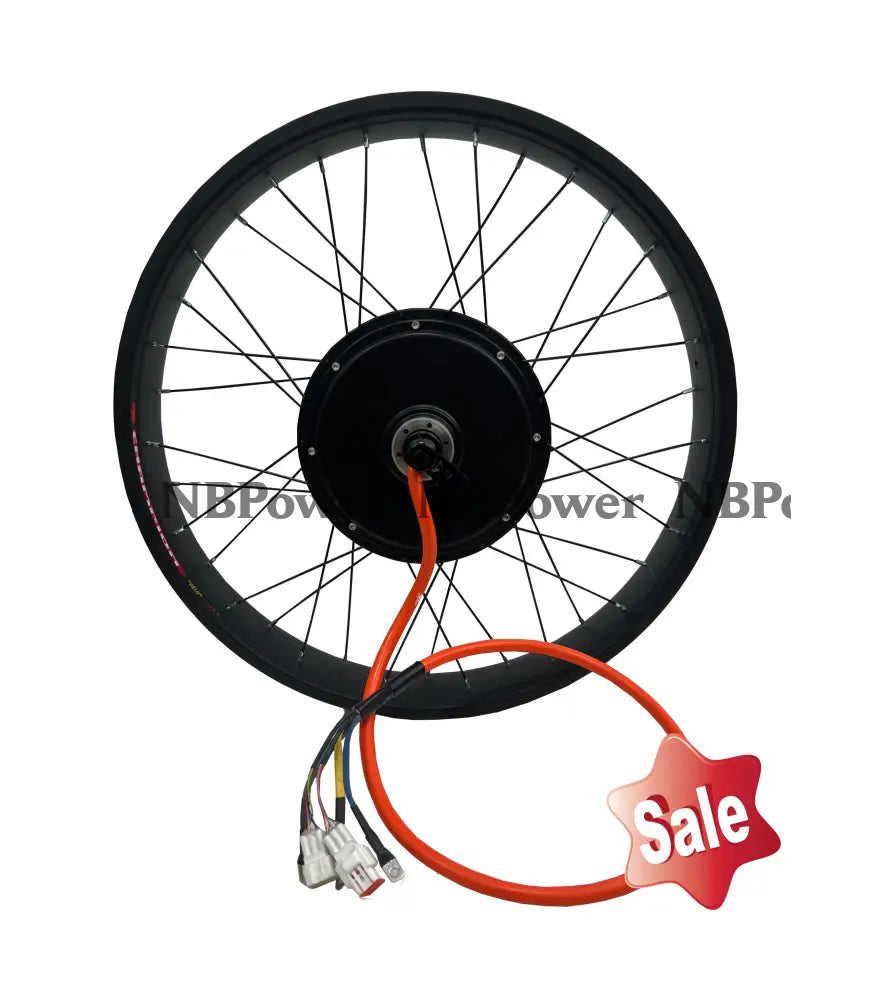

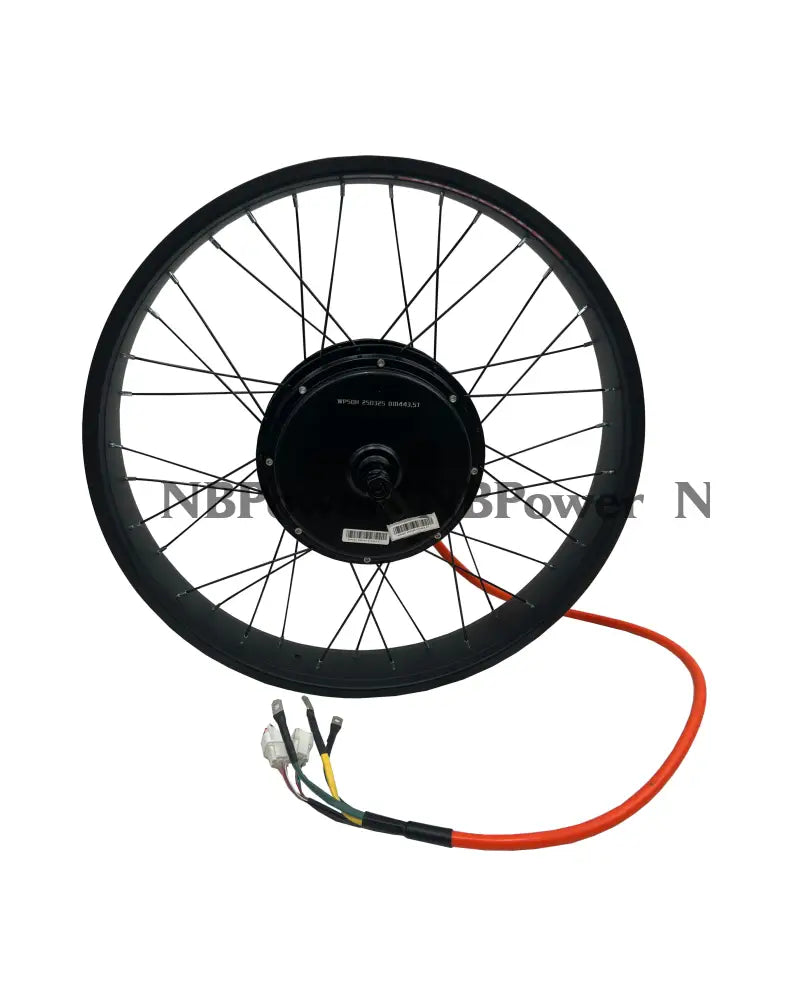

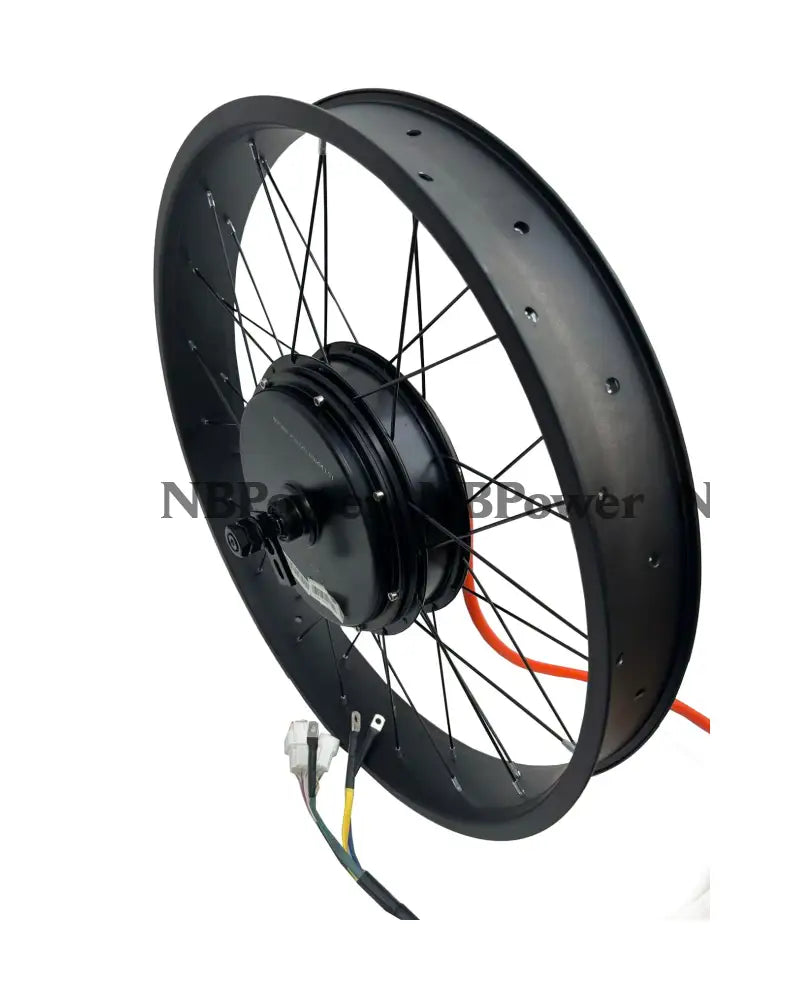

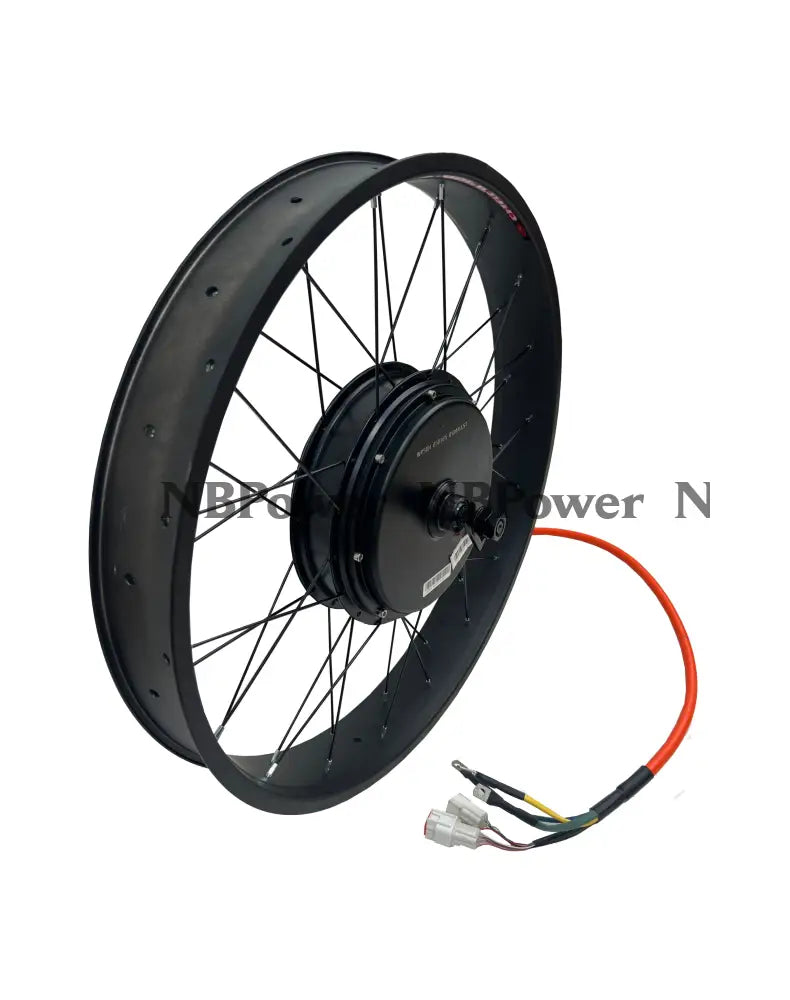

Transform your bike into a powerful electric vehicle with our premium QS 205 5000W in-wheel hub motor. Perfect for fat tire bikes and high-performance e-bike builds.
Key Features:
Powerful Performance: 5000W rated power, 10000W peak power for exceptional acceleration
Premium Build: Aluminum core stator with 91% efficiency rating
Weather Resistant: IP65 waterproof grade for all-weather riding

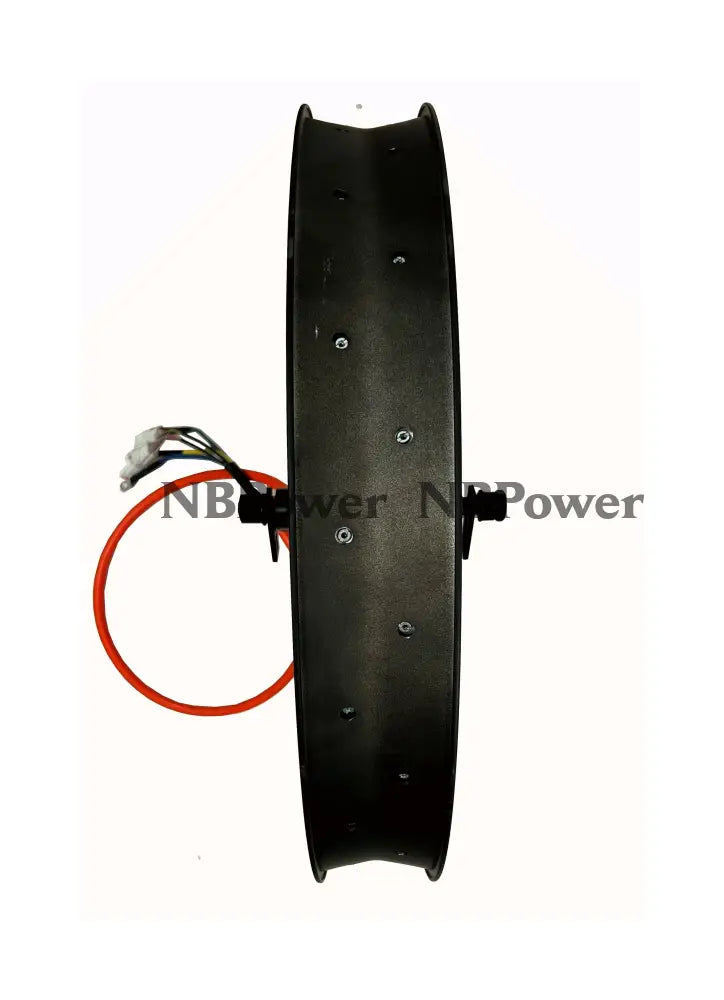

Complete Package: Includes 100mm width rim and spokes for easy installation
Technical Specifications:
Motor Type: BLDC In-Wheel Hub Motor with double axle design
Compatible Tire Sizes: 26*4.0
Rated Voltage: 72V system
Maximum Torque: Up to 220N.M (5T version)

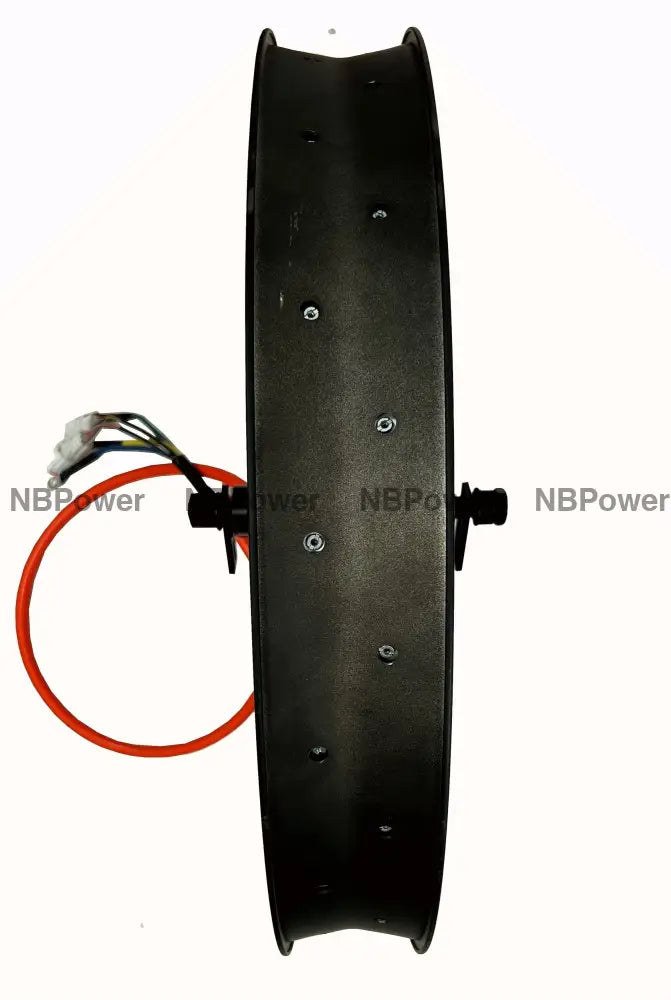

Dropout Width: 150mm rear compatibility
Brake System: Disc brake ready
Temperature Range: 70-120°C operating, 150°C peak
5000W Motorwheel

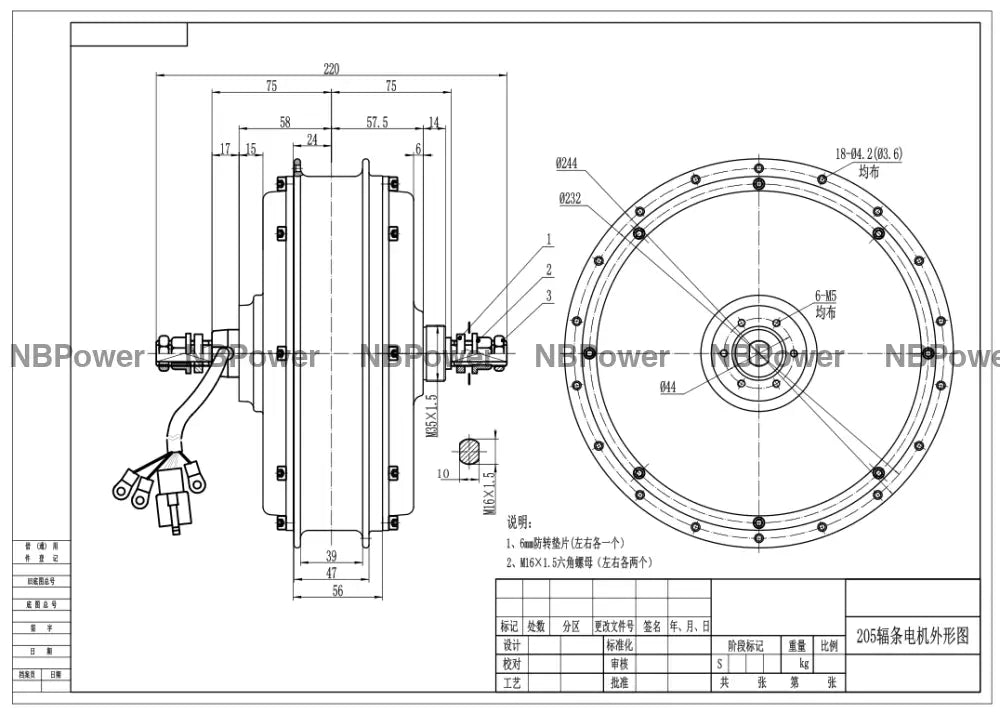

1. Motor Type: BLDC In-Wheel Hub Motor 2. Motor Design: Double Axle with Rim(integrated) 3. Matched Tire: 20inch 24inch 26inch 4. PCD: 6*44mm 5. Stator: Aluminum Core 6. Rated Power: 5000W 7. Peak Power: 10000W in few seconds 8. Rated Voltage: 72V 9. Speed:3T: 960RPM 3.5T: 840RPM 4T: 720RPM 5T: 650RPM 10. Drop-outs: 150mm 11. Max Torque:3T: 160N.M 3.5T: 180N.M 4T: 200N.M 5T: 220N.M 12. Max Efficiency: approx 91% 13. Suggest Peak Phase Current: N/A 14. Thermic Probe: KTY83/122(as default) 15. Working Temperature: 70-120℃, peak 150℃ 16. Brake Type: Disc Brake 17. Hall Sensor: Dual hall set with waterproof connector 18. Phase Wire:2*5mm²Cross 19. Hall Sensor Phasing Angle: 120 degree 20. Waterproof Grade: IP65
