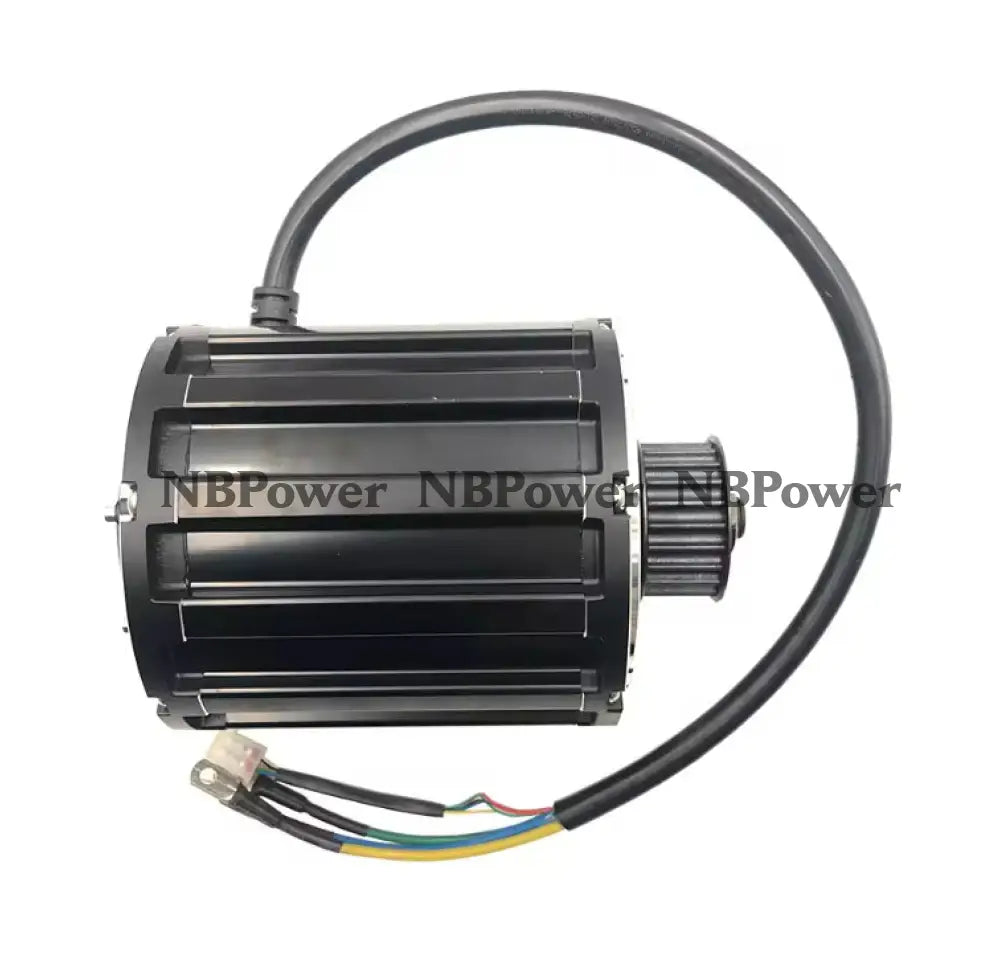

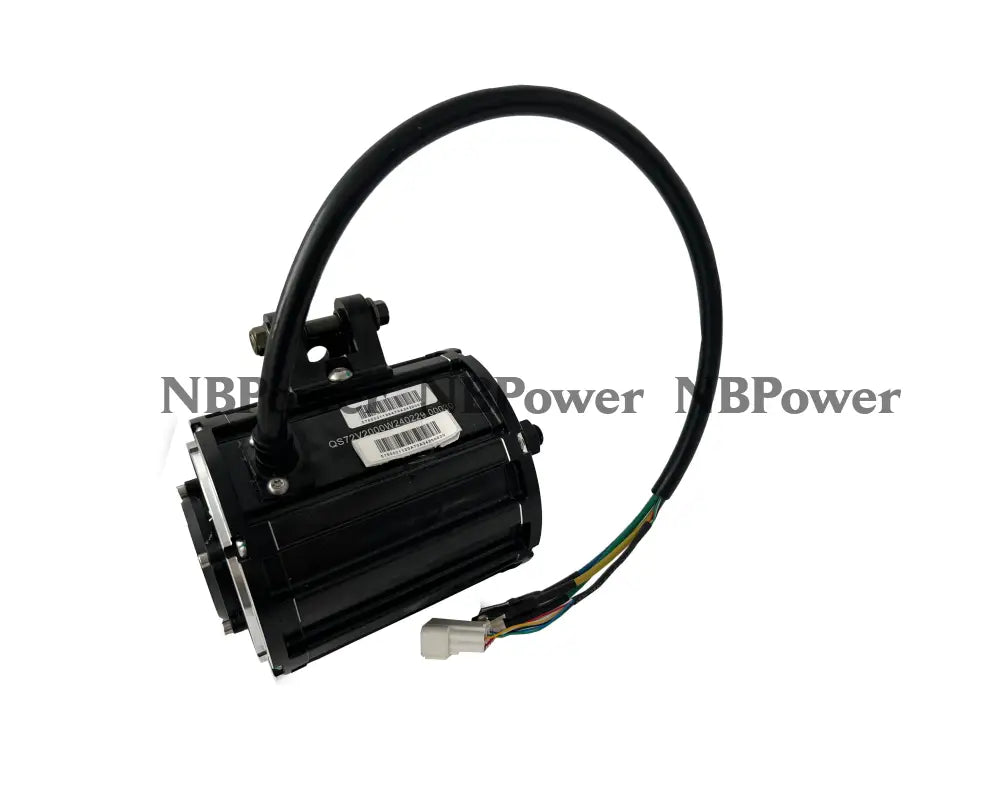

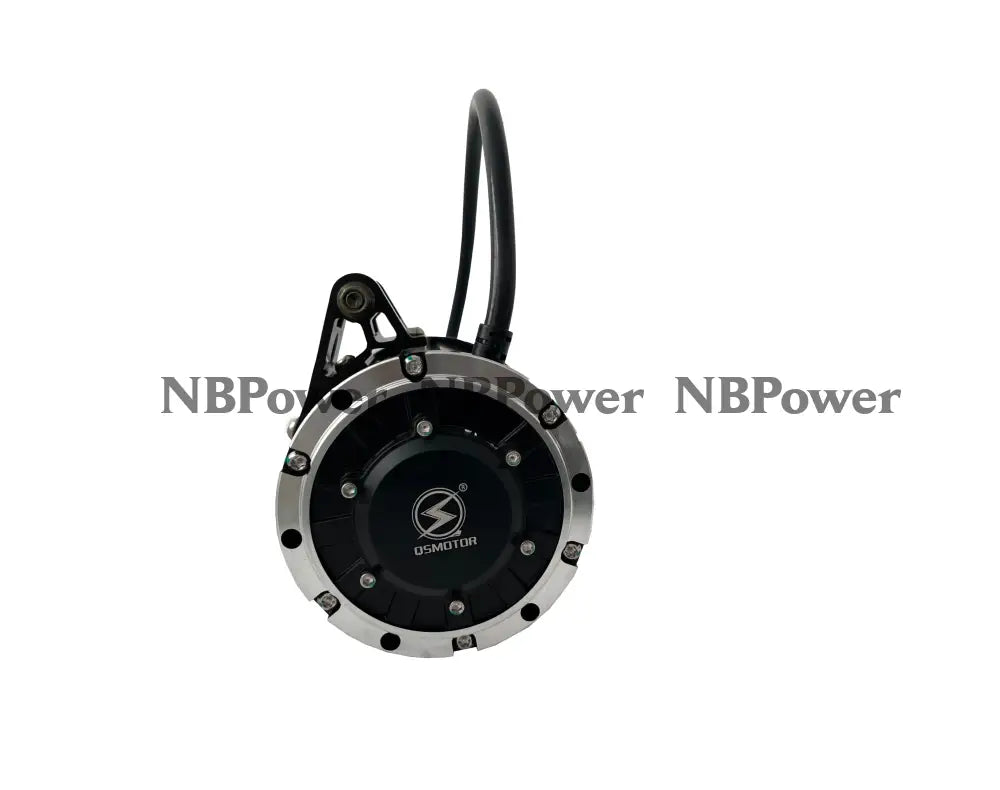

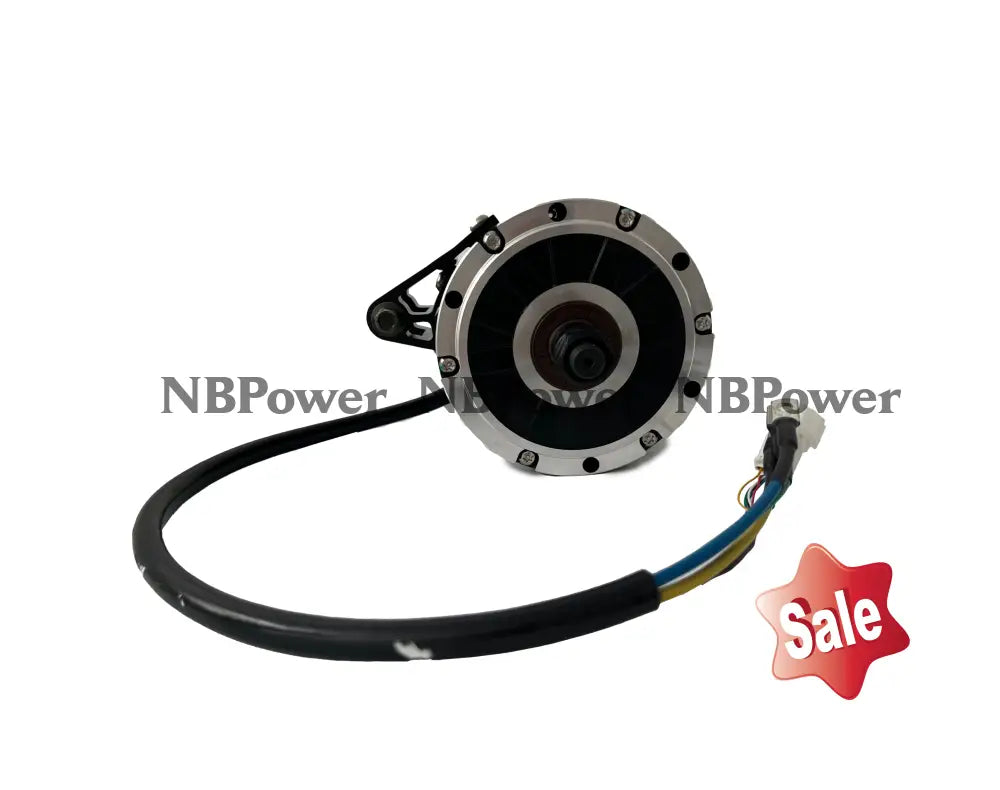

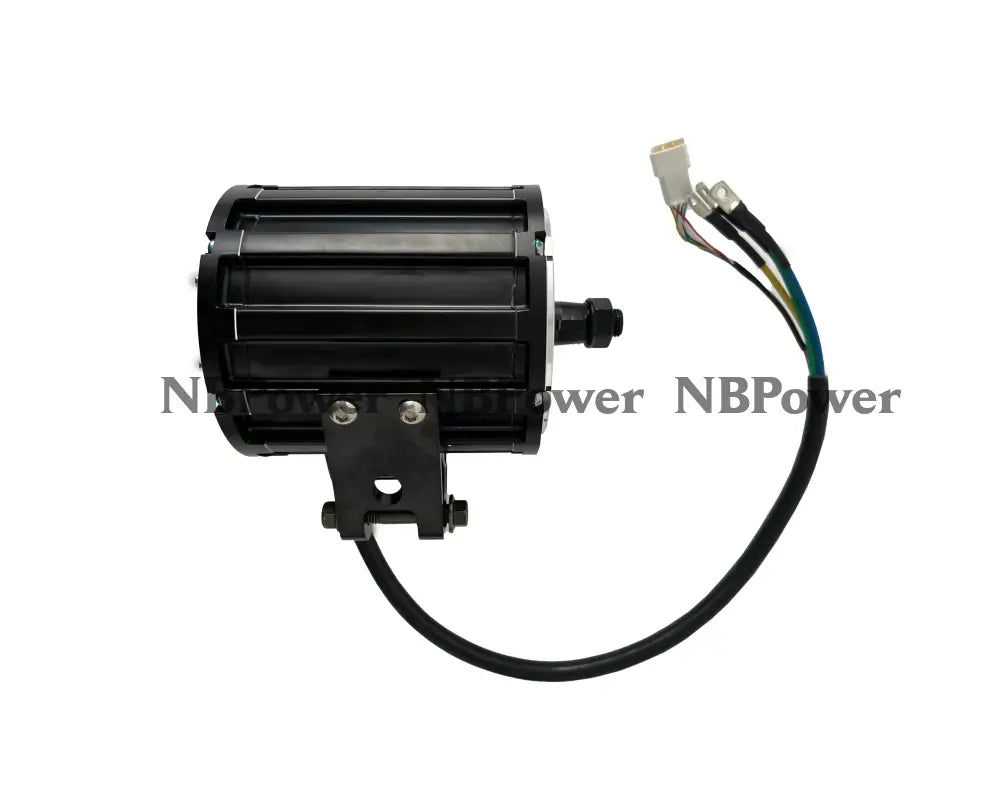

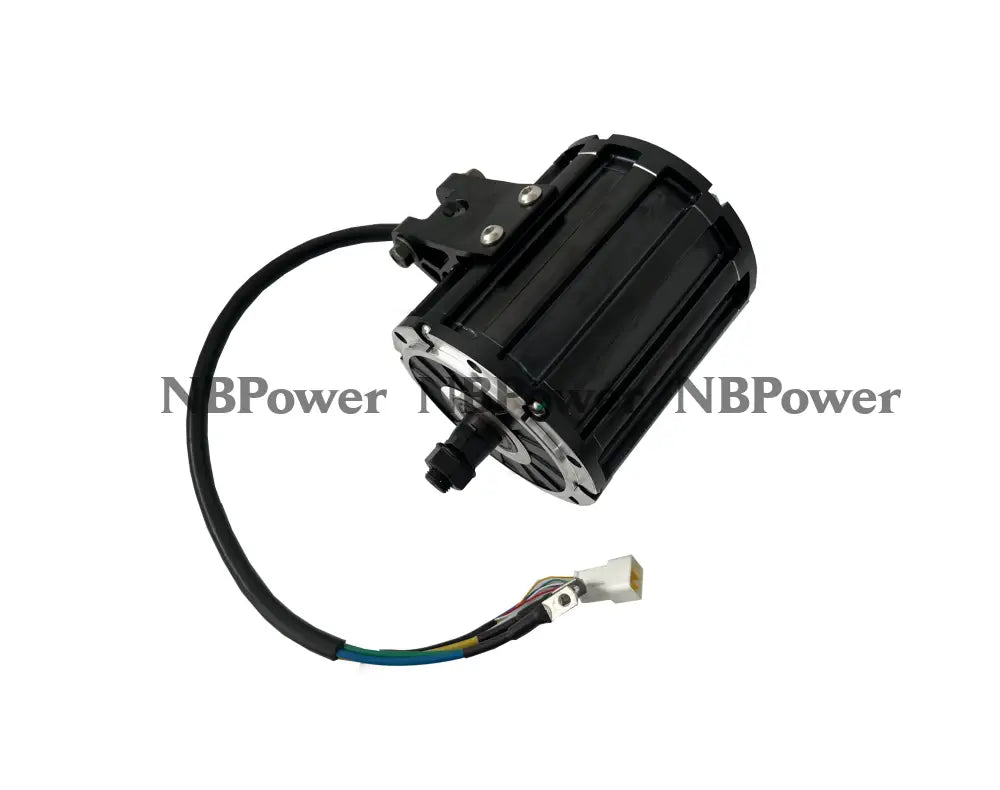

QS Motor 2000W Mid Drive PMSM Motor - Professional E-bike Conversion Kit
Transform your bicycle into a powerful electric bike with this high-performance QS Motor 2000W mid-drive system. Featuring advanced PMSM (Permanent Magnet Synchronous Motor) technology with internal gear reduction for optimal torque delivery.
Key Specifications:
Motor Type: PMSM Motor with Hall Sensor
Rated Power: 2000W
Rated Voltage: 72V
Max Torque: 216.7N.m (with 1:4.77 reduction ratio)
Max Efficiency: ~93%
No-Load Speed: 3200RPM (4600RPM peak with flux weakening)
Waterproof Grade: IP67
Weight: 8.35kg
Advanced Features:
Single Hall Set with waterproof connectors
5 pole pairs, 70mm magnet height
Peak Battery Current: 80A (72V)
Peak Phase Current: 250A (72V)
Working Temperature: 70-130℃ (peak 150℃)
Air cooling system
8mm² phase wire
Perfect For:
High-performance e-bike conversions
Mountain bike upgrades
Professional e-bike manufacturing
Heavy-duty cycling applications
Experience unmatched power and efficiency with this premium motor system that delivers smooth, reliable performance for the most demanding rides.
1. Motor Spec:
Motor Type: PMSM Motor With Hall Sensor Single Hall Set with waterproof connectors Rated Power: 2000W Rated Voltage: 72V No-Load Speed: 3200RPM, 4600RPM peak with flux weakening Magnet Height: 70mm, 5 pole pairs Max Torque: approx 45.4N.m without Reduction ratio, approx 216.7N.m with 1:4.77 Reduction ratio Max Efficiency: approx 93% Peak Battery Current: 80A (72V) Peak Phase Current: 250A (72V) Working Temperature: 70-130℃ , peak 150 ℃ Motor Phase Angel: 60° Waterproof Grade: IP67 Cooling: Air cooling Phase wire: 8mm² Color: Black N.W./G.W.: approx 8.35kg/10.5kg Package Dimension: 31cm*31cm*31cm
