QS165 72V 50H Reduction 10000W Encoder Vision PMSM Mid Drive Motor,FarDriver ND961000B Controller,TFT-5 Display Kit
QS165 72V 50H Reduction 10000W Encoder Vision PMSM Mid Drive Motor,FarDriver ND961000B Controller,TFT-5 Display Kit
Regular price
$1,169.00 USD
Regular price
Sale price
$1,169.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

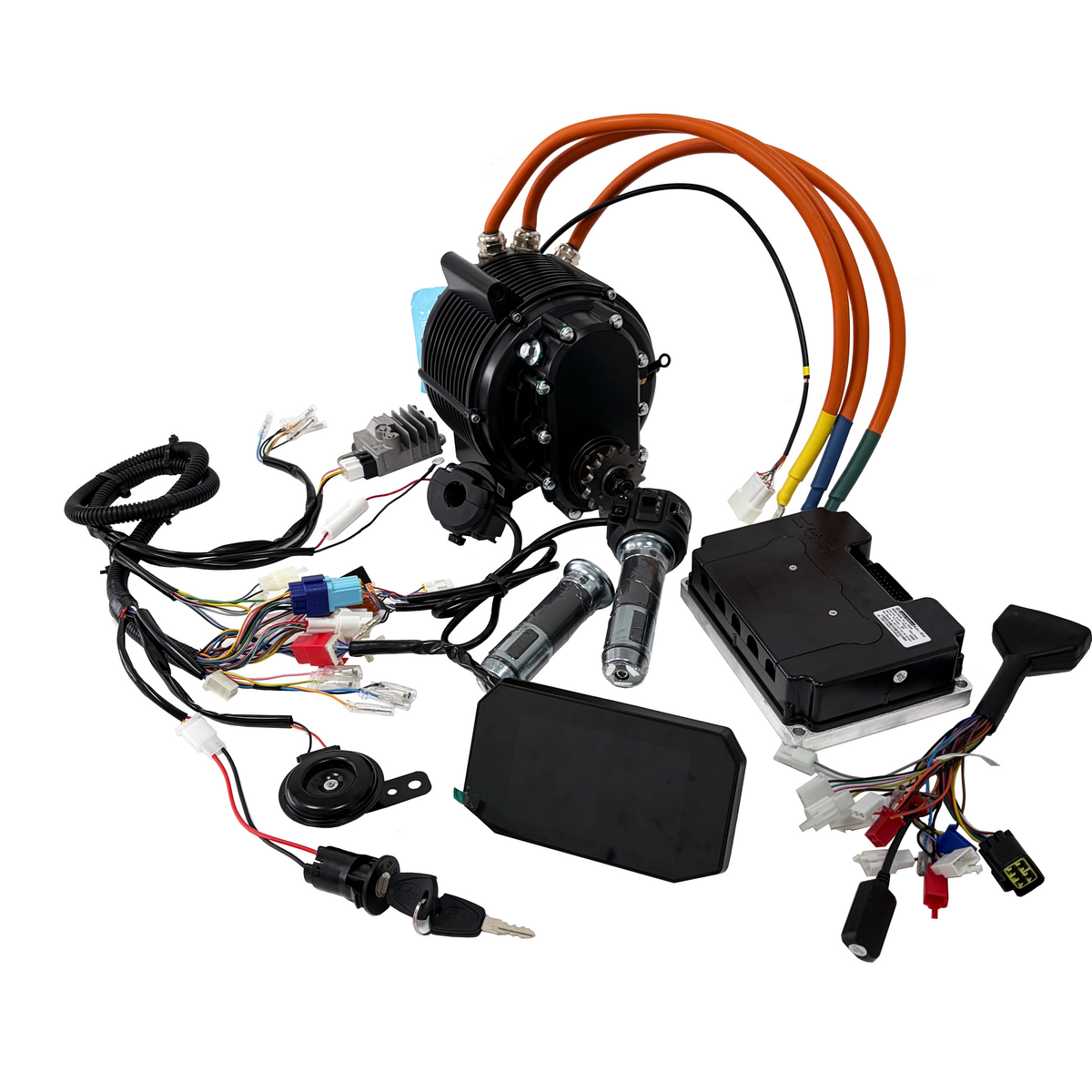

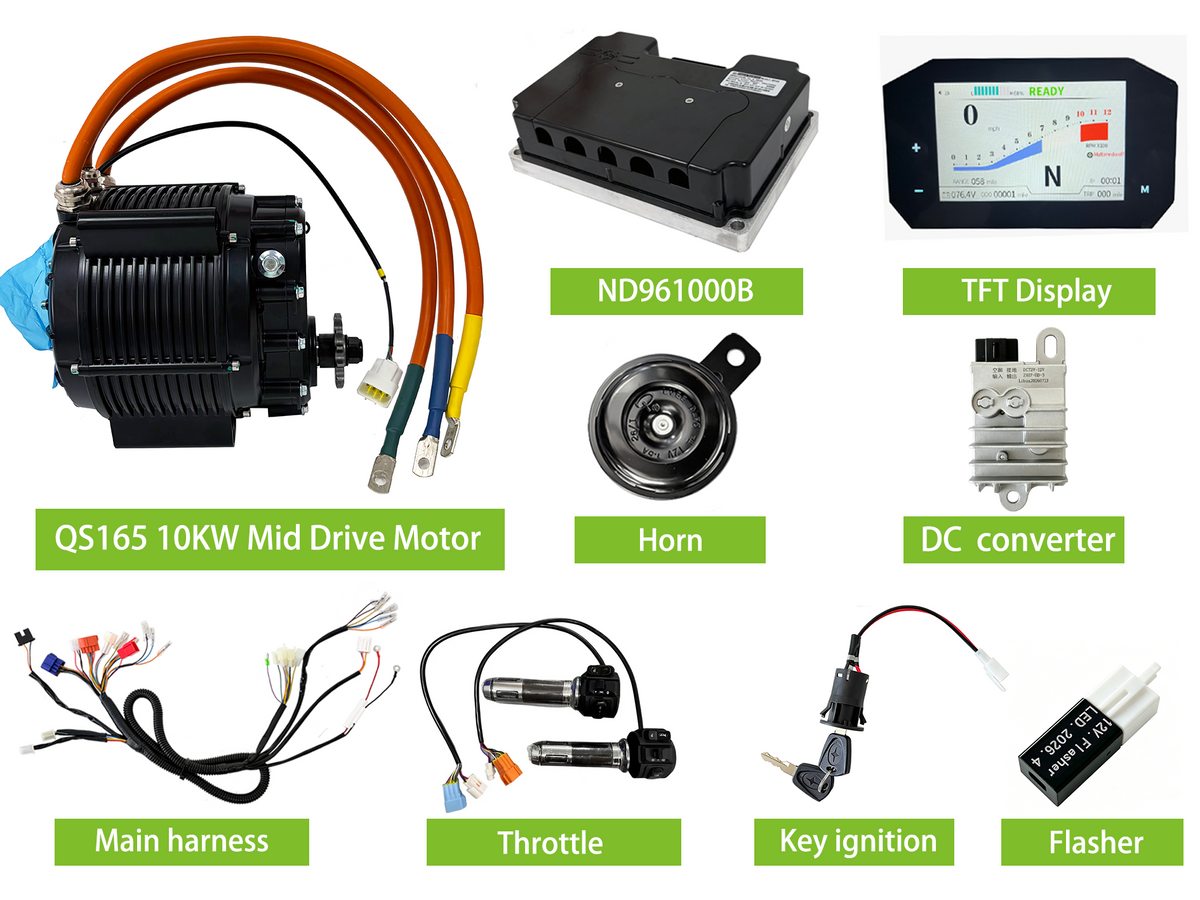

What you will receive
1. QS165 72V 50H 10000W Mid Drive Motor（Encoder vision）
2. Fardriver ND961000B Controller
3. TFT Display

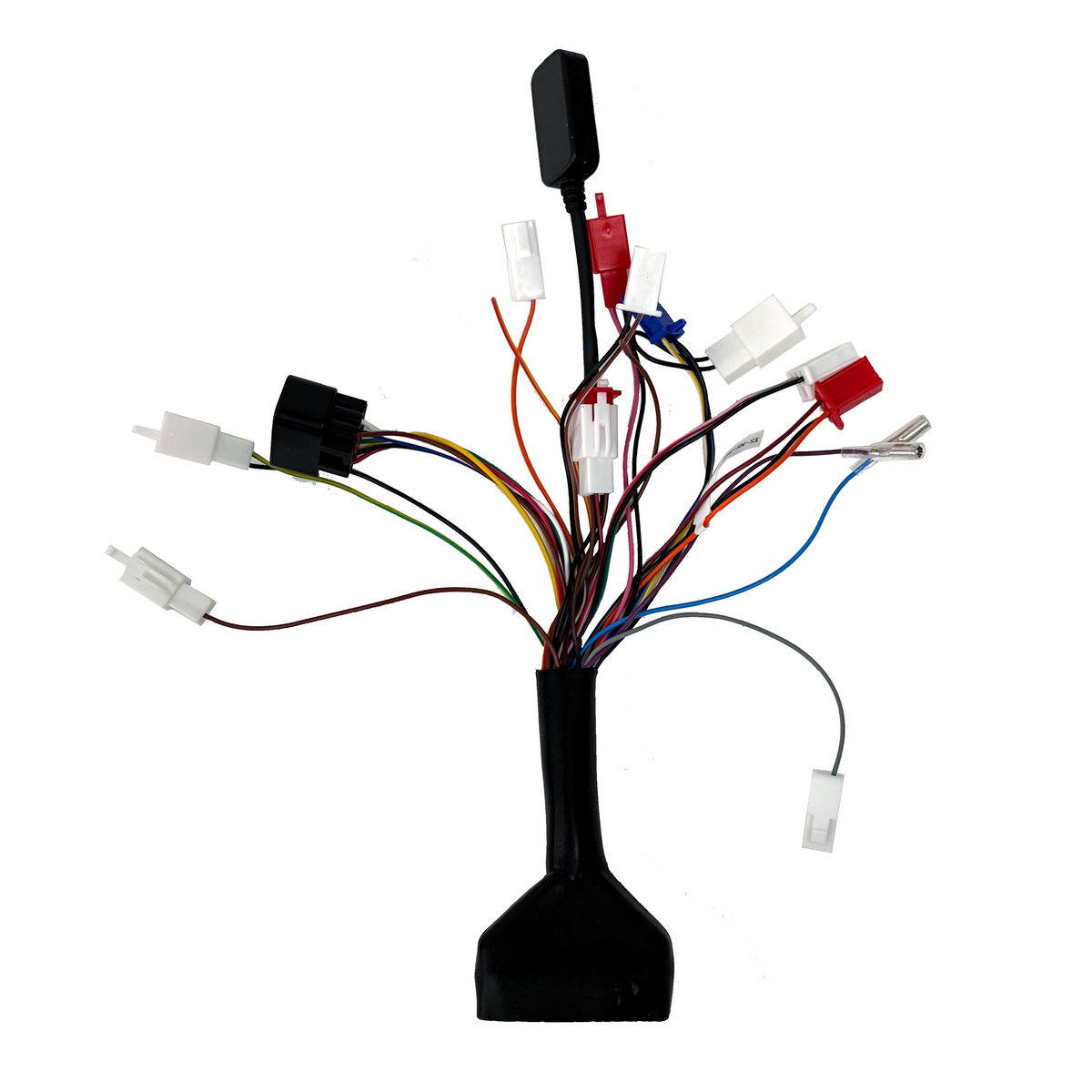

4. Main Connection Harness
5. Multifunctional Motorcycle‑Style Throttle
6. Electric Key Lock
7. Flasher
8. Horn
9. 12V DC-DC Converter
DETAILED SPECIFICATIONS

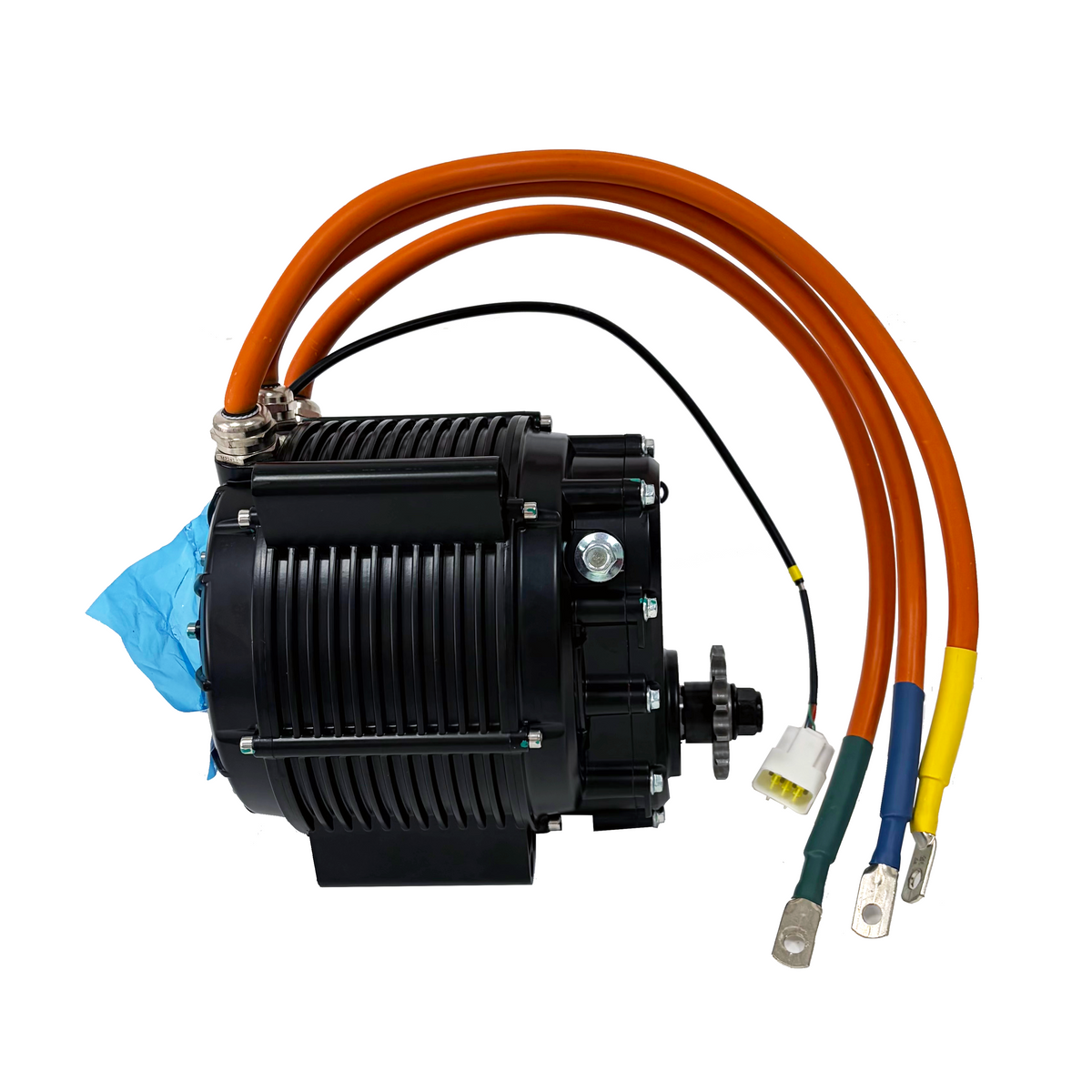

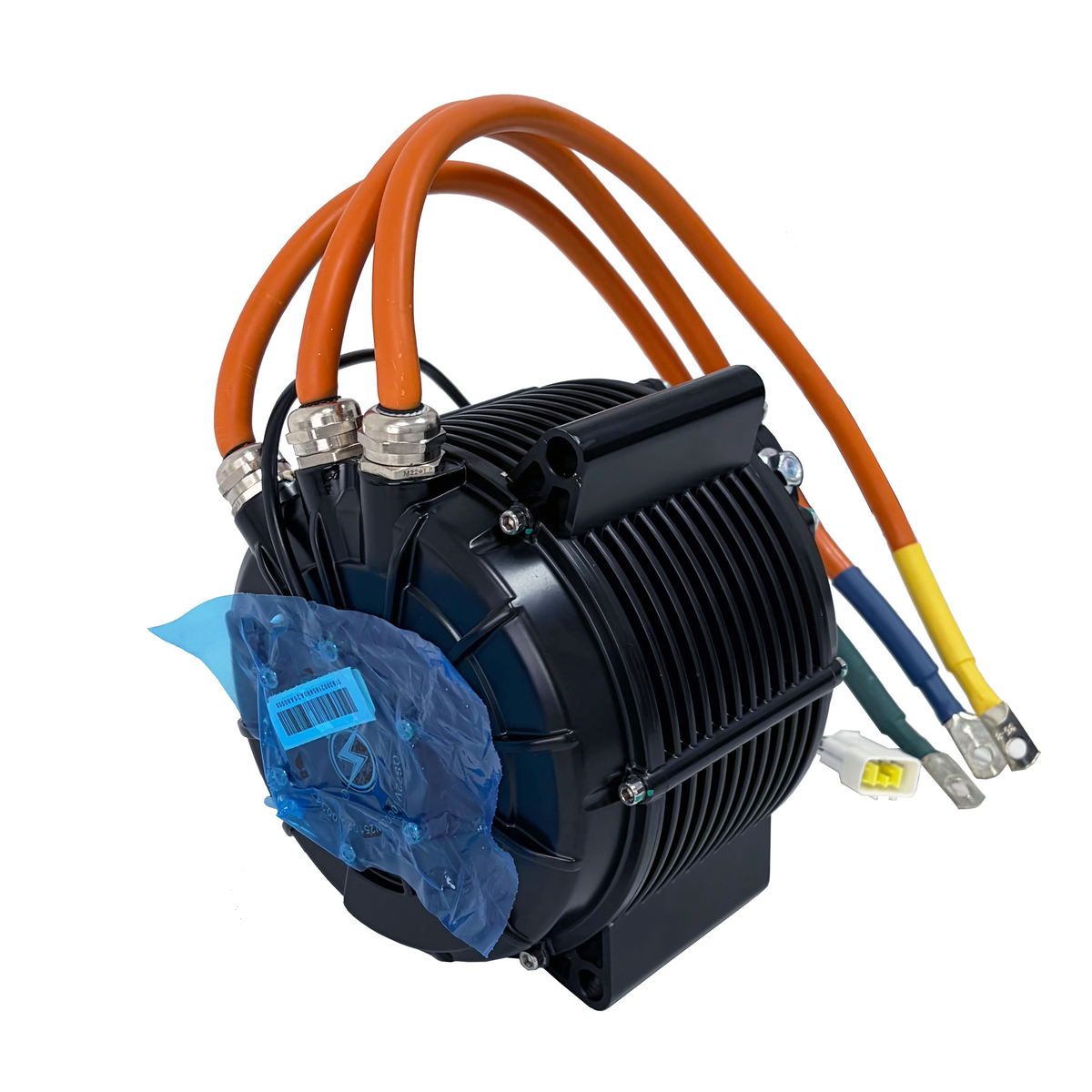

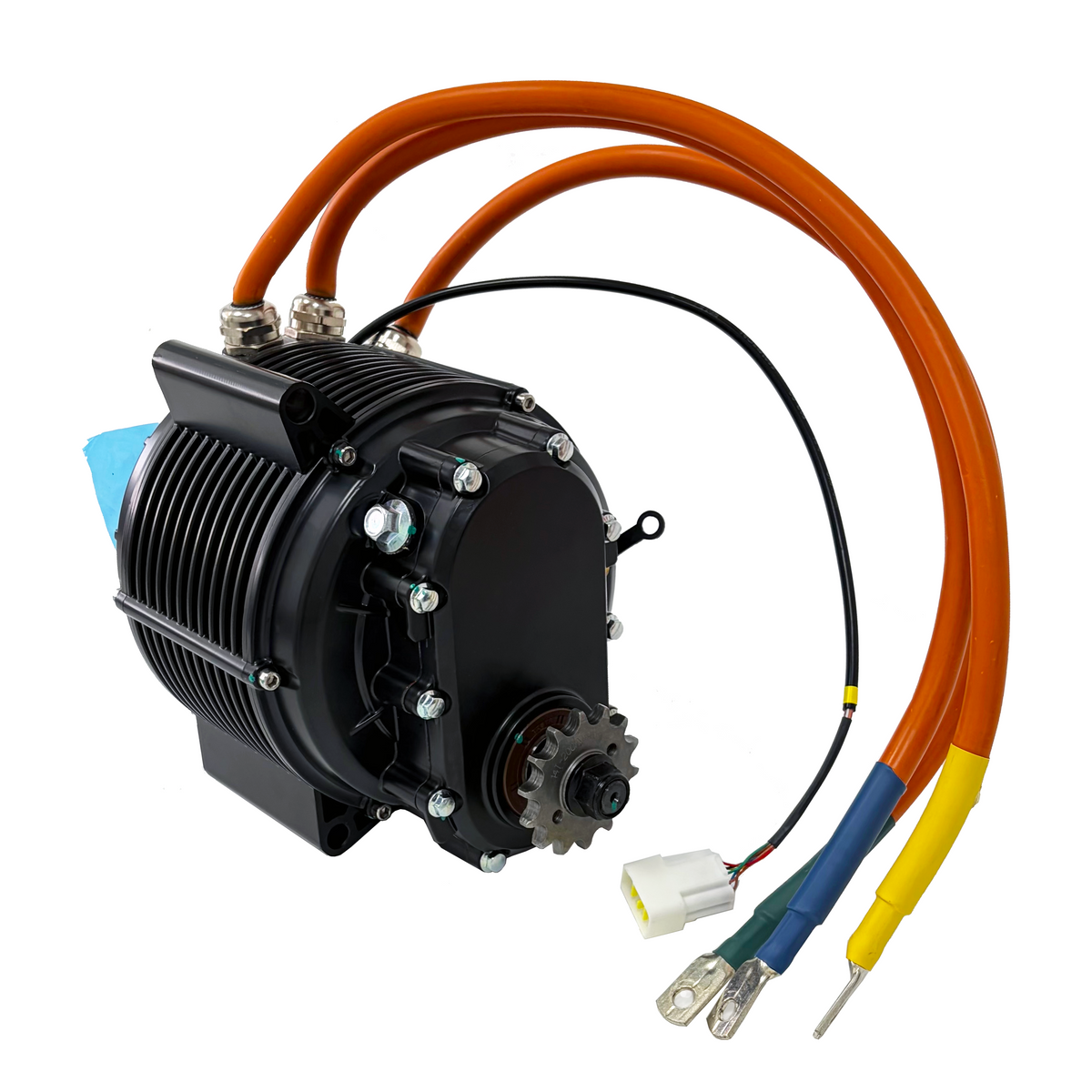

QS165 72V 50H 10000W Mid Drive Motor
| Parameter | Specification |
|---|---|
| Model | QS165 50H |
| Power Output | 10000W |
| Voltage | 72V |
| Motor Type | PMSM (Permanent Magnet Synchronous Motor) |
| Weight | 11.7kg |
| Mounting Type | Mid-Drive System |
| Feedback Systems | Encoder (50H Technology) |

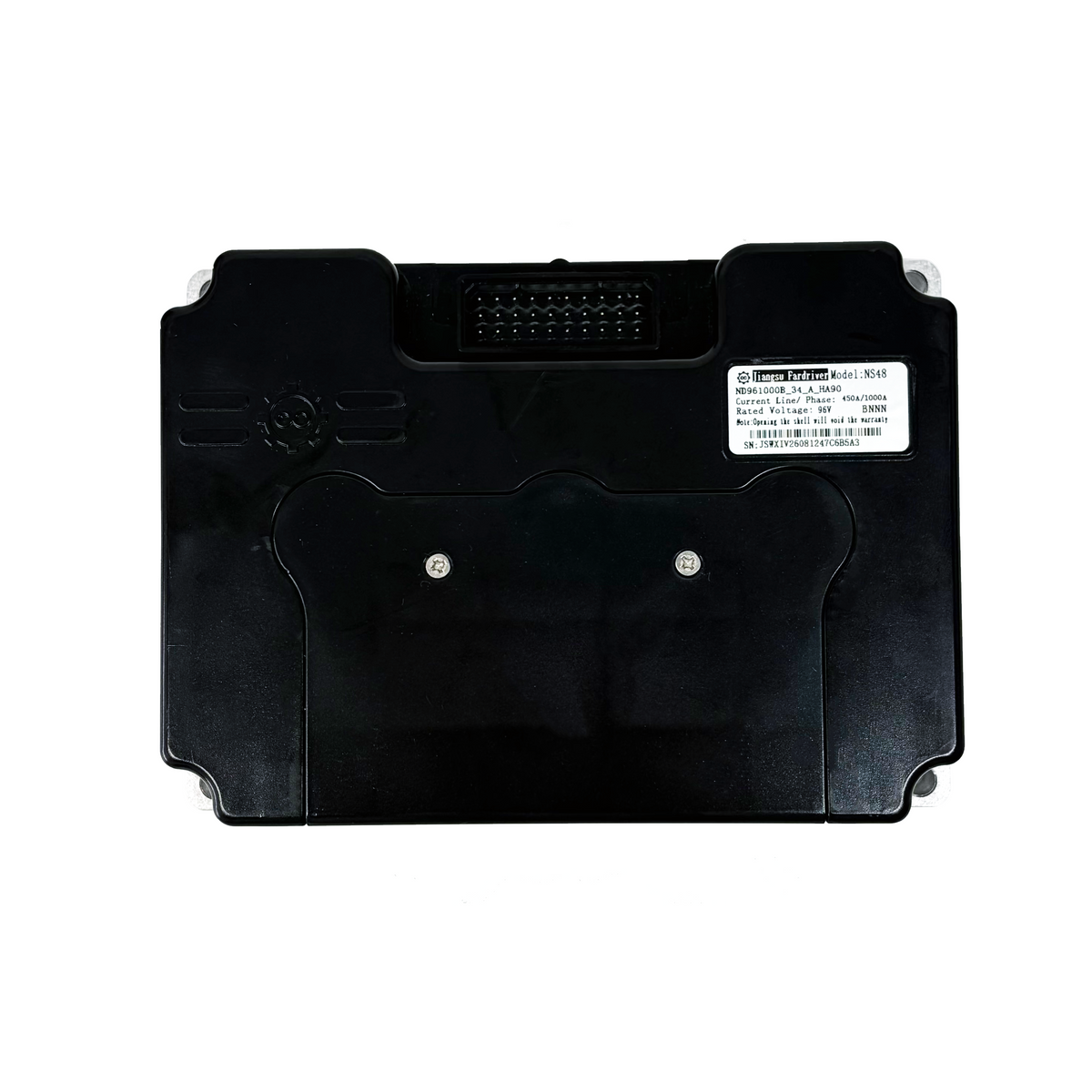

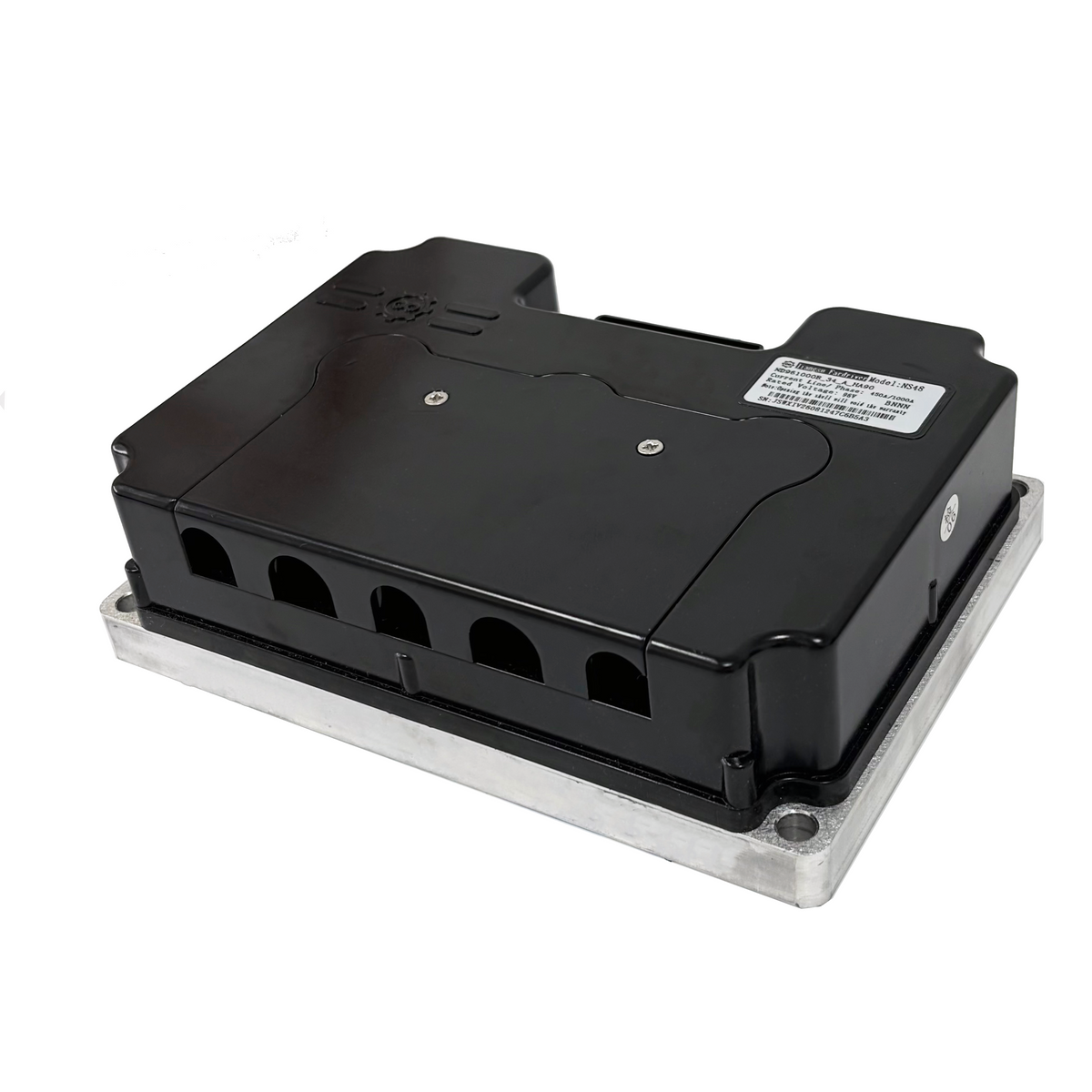

ND961000B
1.Model: Fardriver Controller ND961000B
2.Working Communication: Encoder Vision
3.Available Rated Battery Voltage: 48V/52V/60V/72V/96V
4.Peak Battery Voltage: 115V
5.Available Motor Power: 8000W
6.Defaut Throttle Working Voltage: 0V - 5V
7.Peak DC Current: 500A
8.Peak Phase Current: 1000A
9.Mosfets Detail: 48 FET
10.Weight: 3kgs
11.Instaliing Size: 189mm * 136mm * 55mm
12.Controller Design: Sine Wave BLDC
13.Case Material: Aluminum
14.SupportProgrammable: PC & Phone
