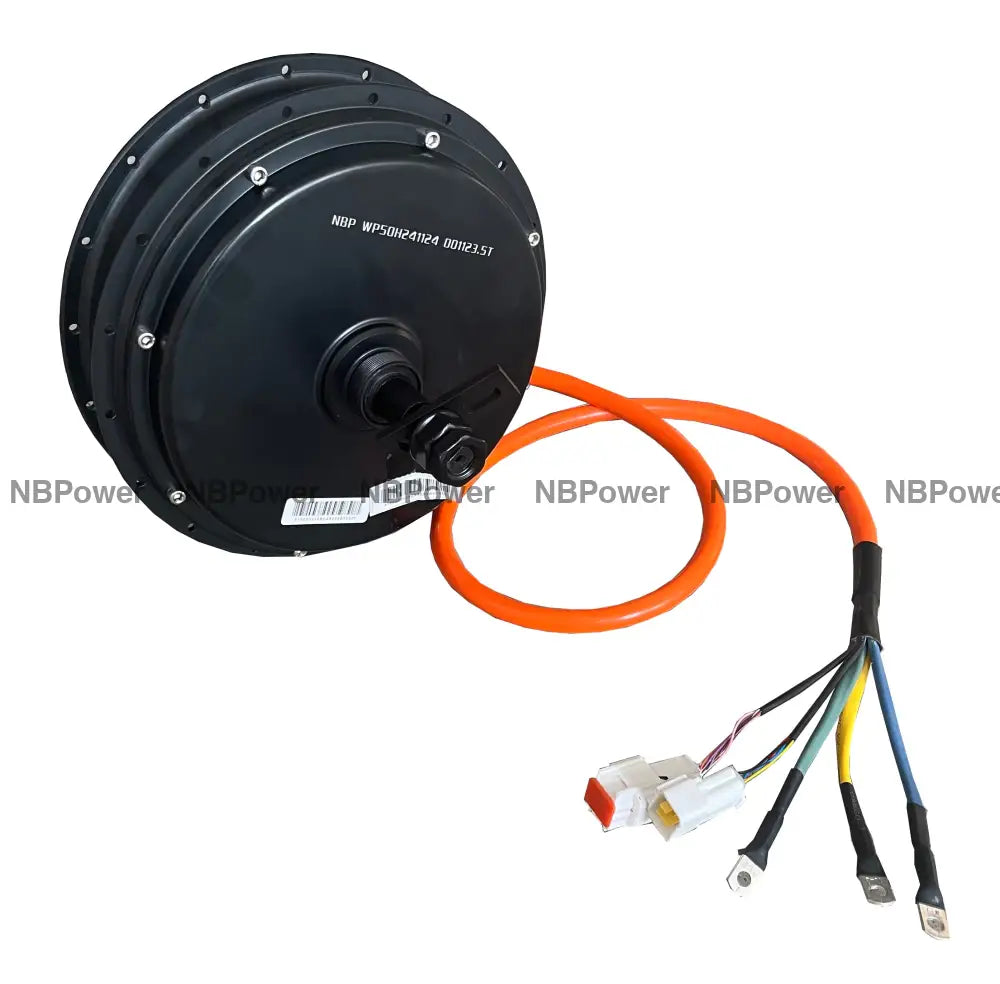

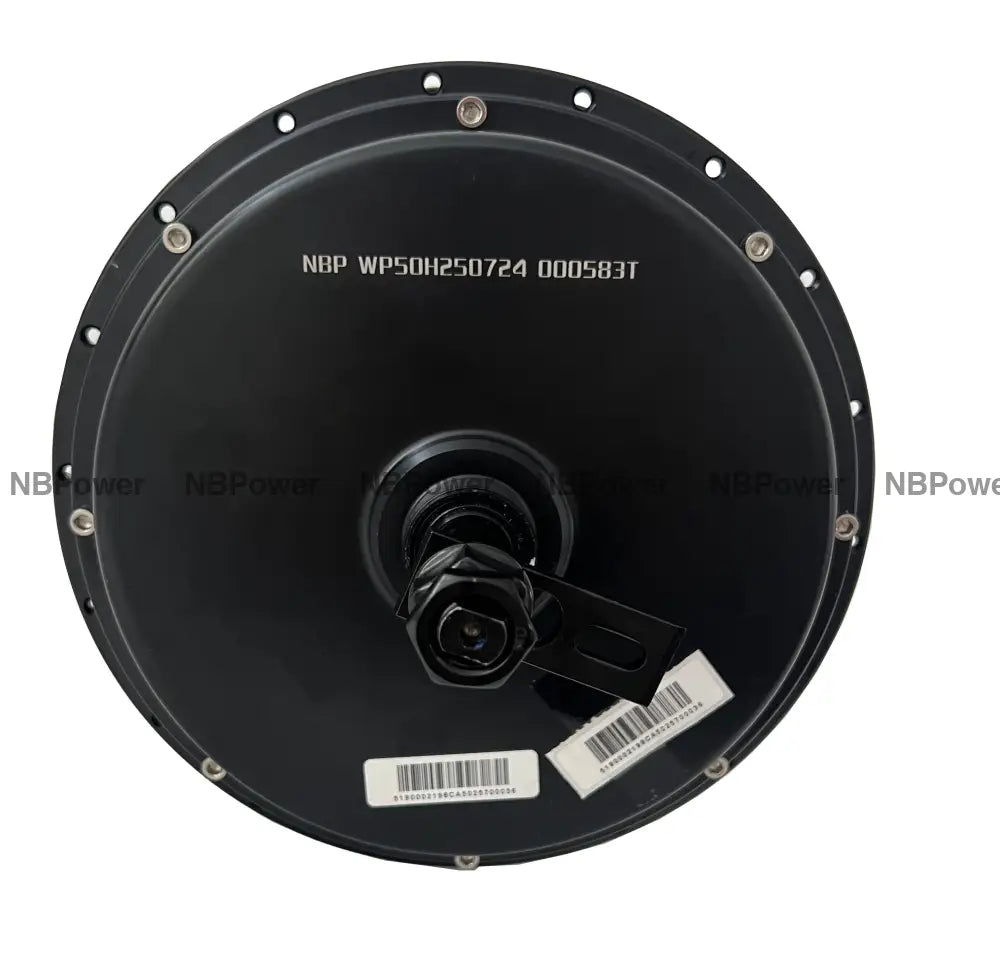

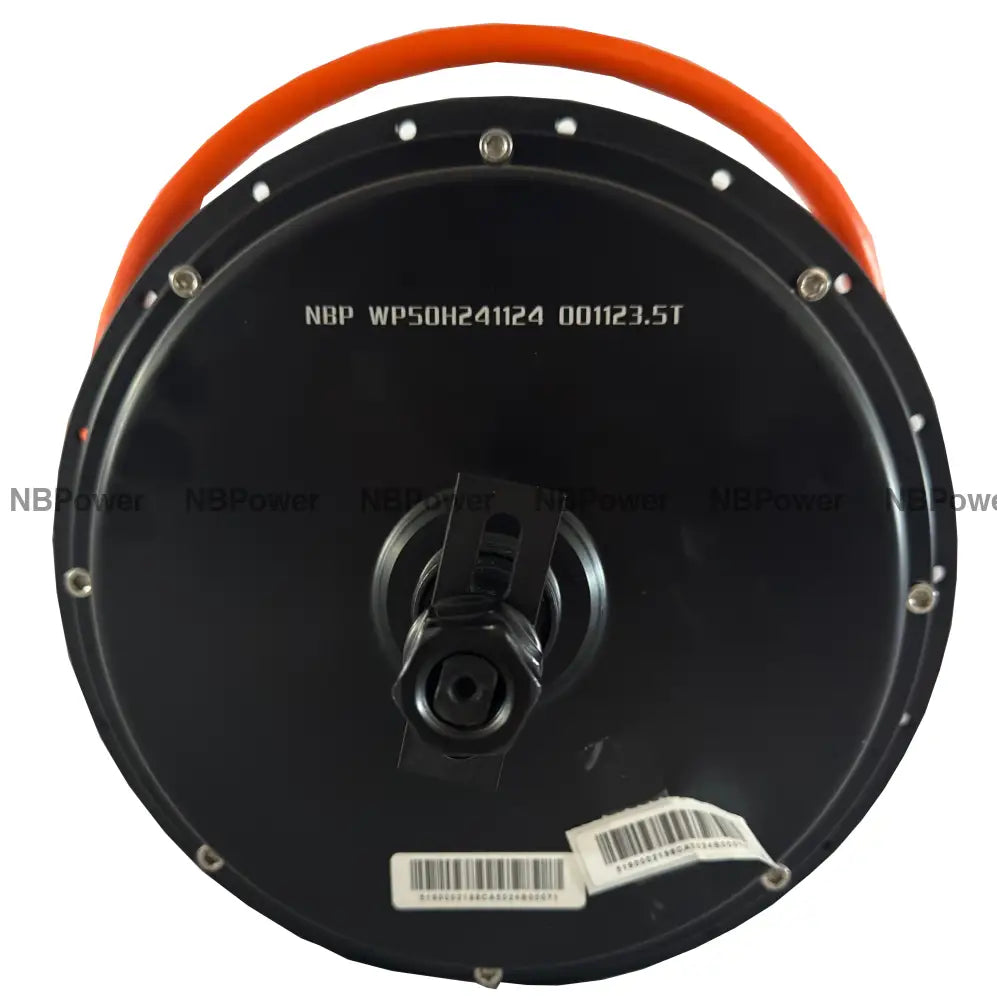

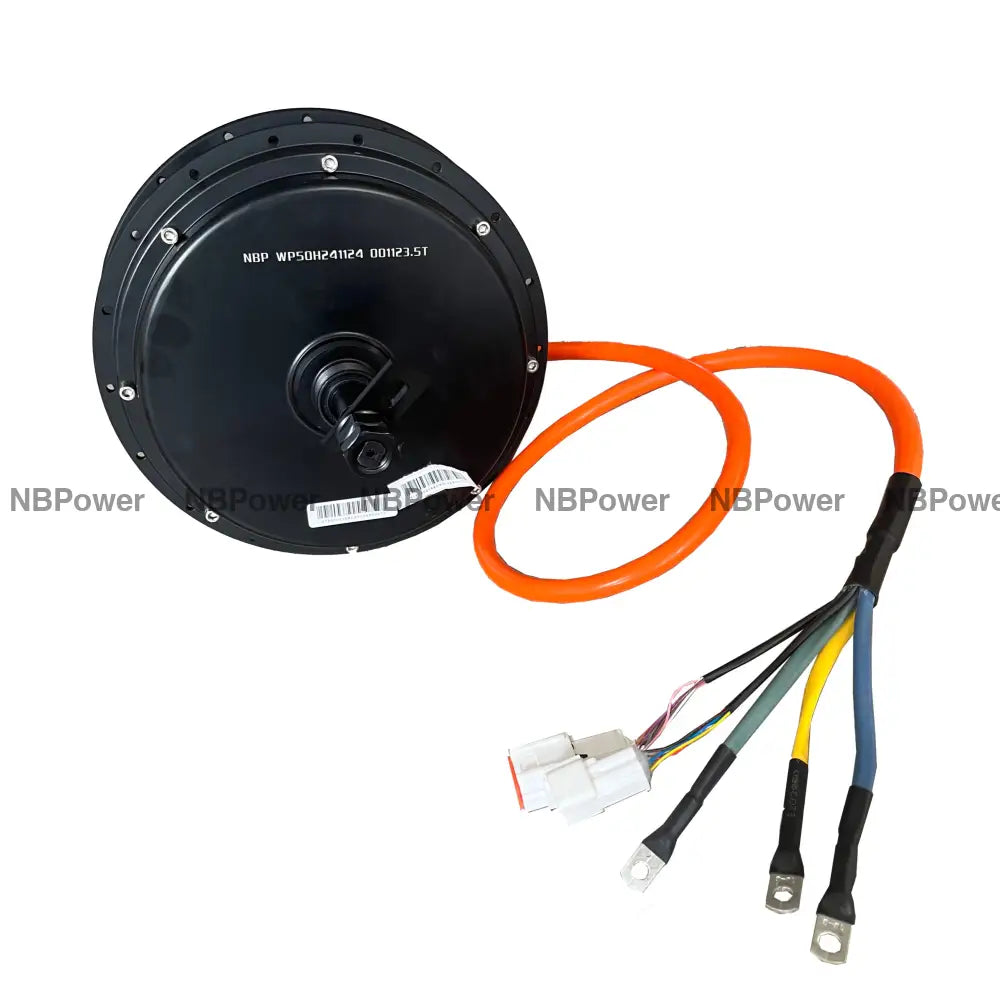

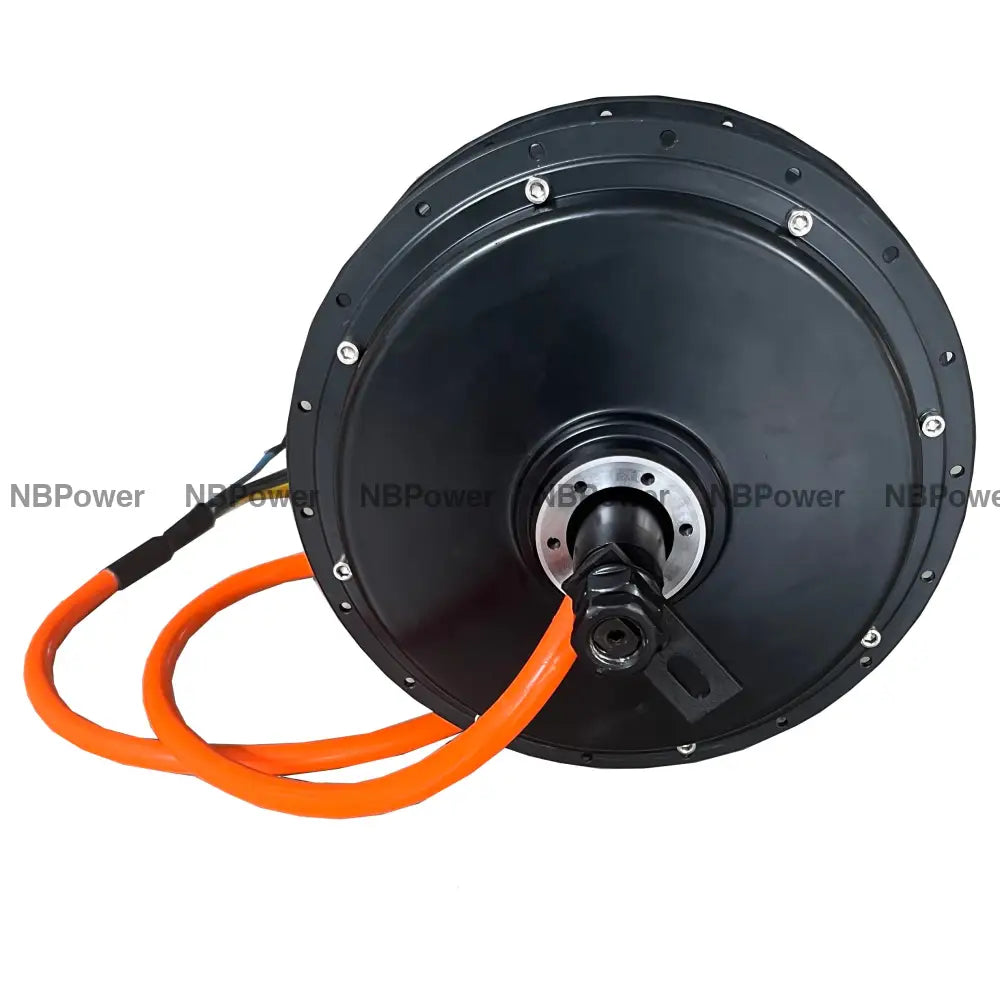

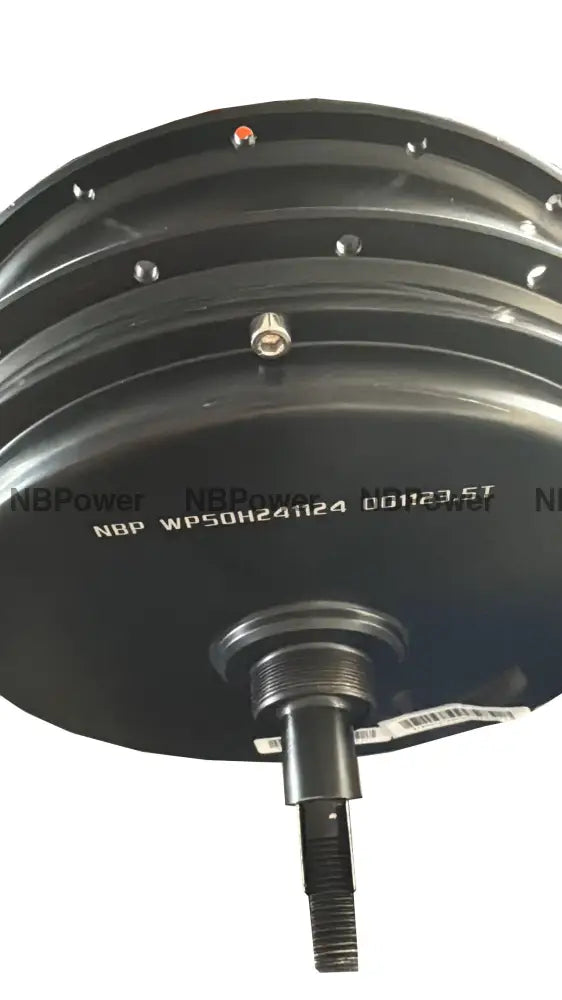

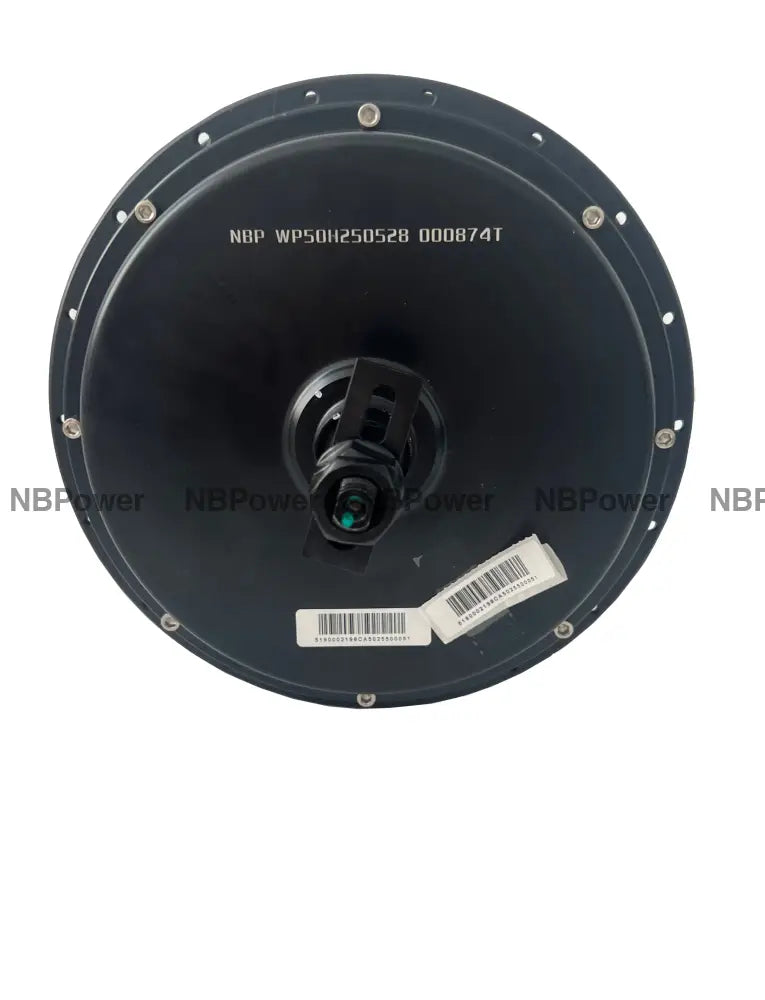

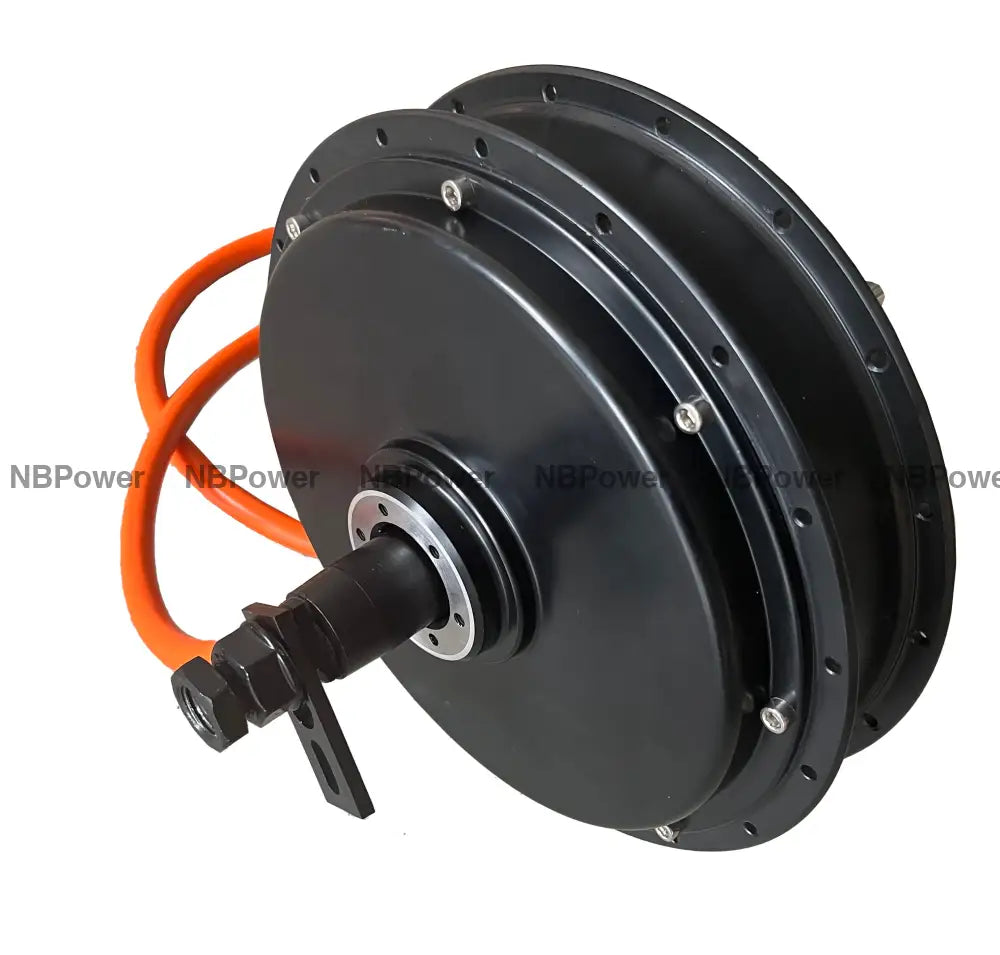

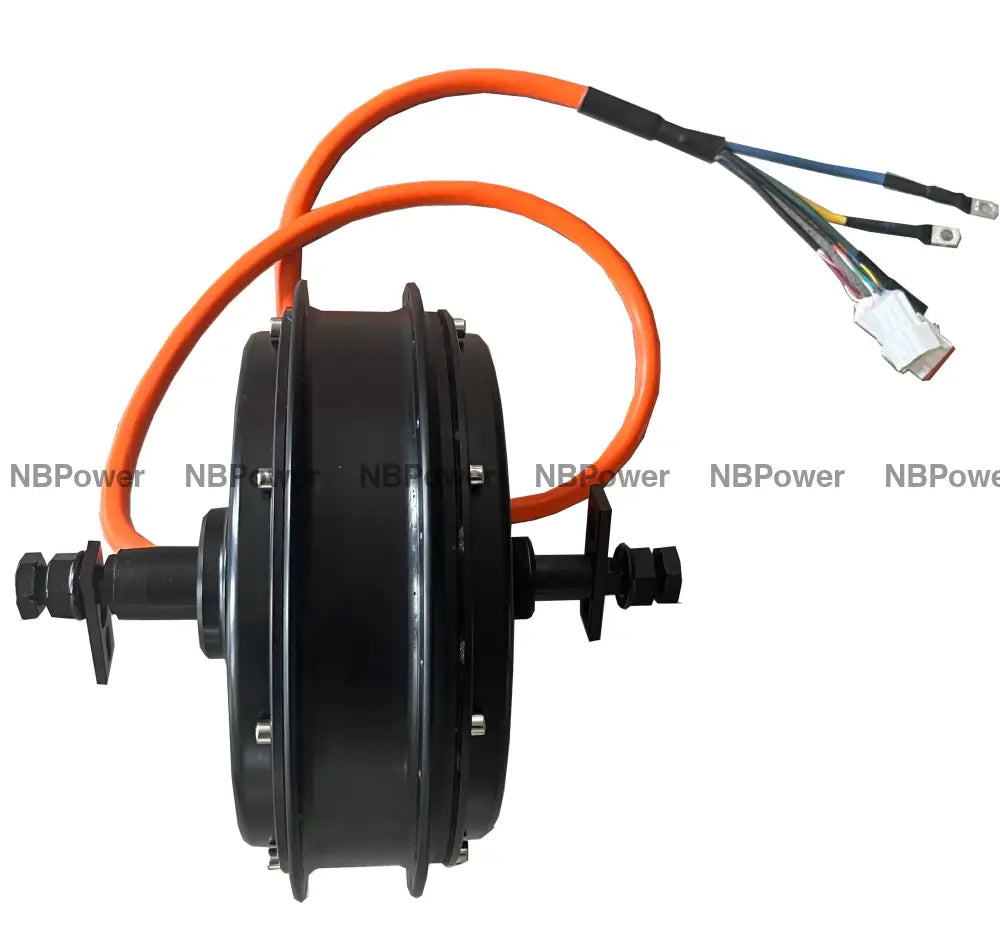

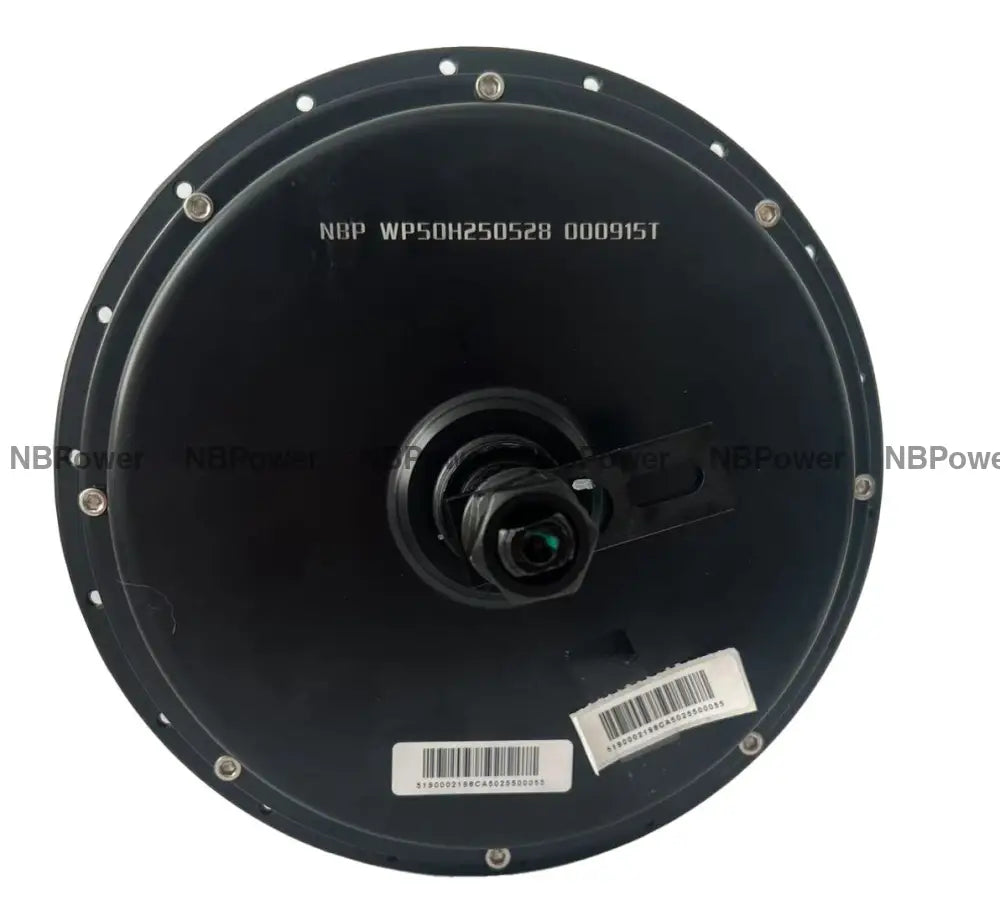

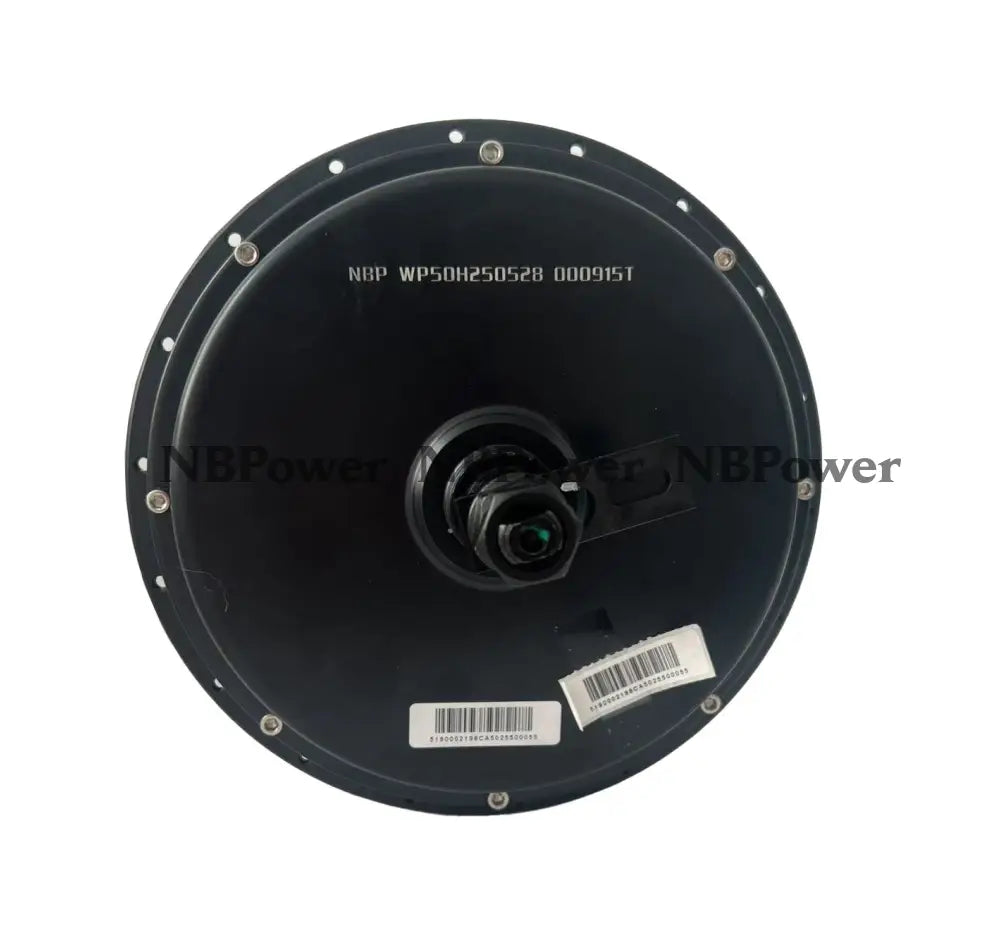

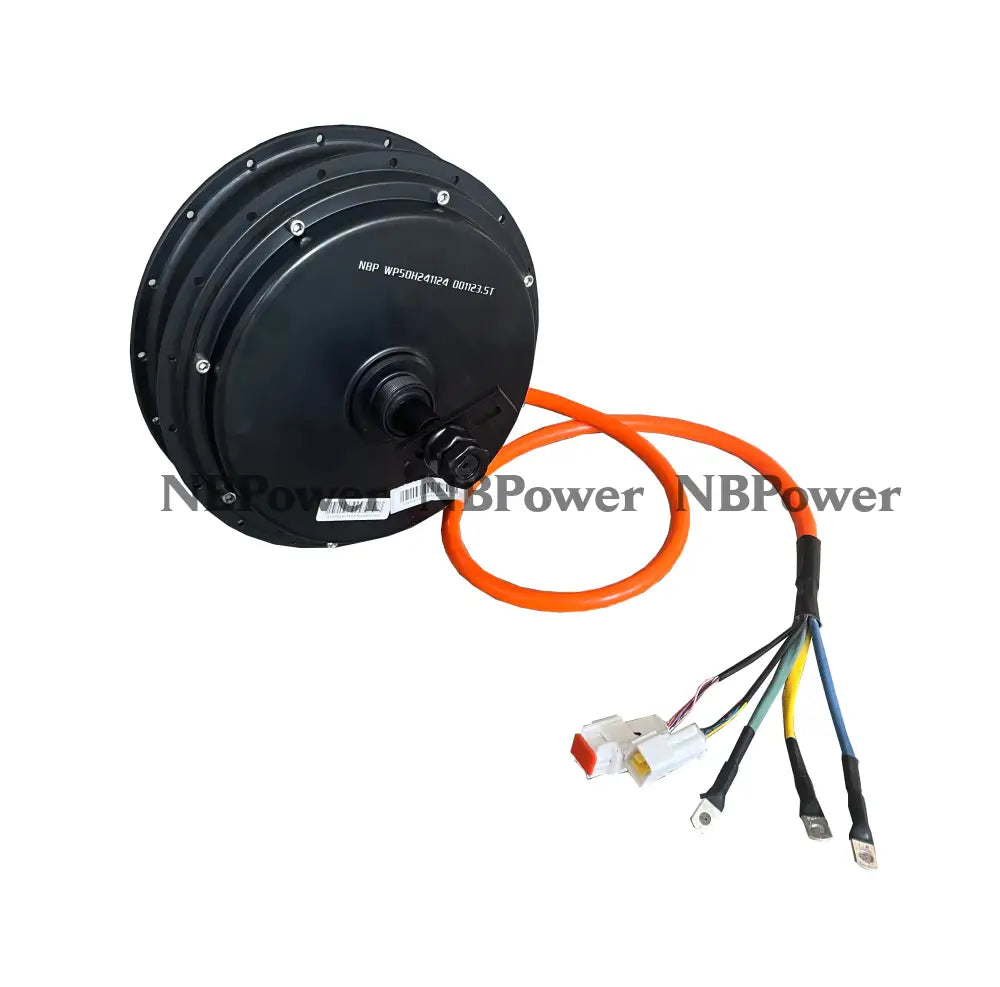

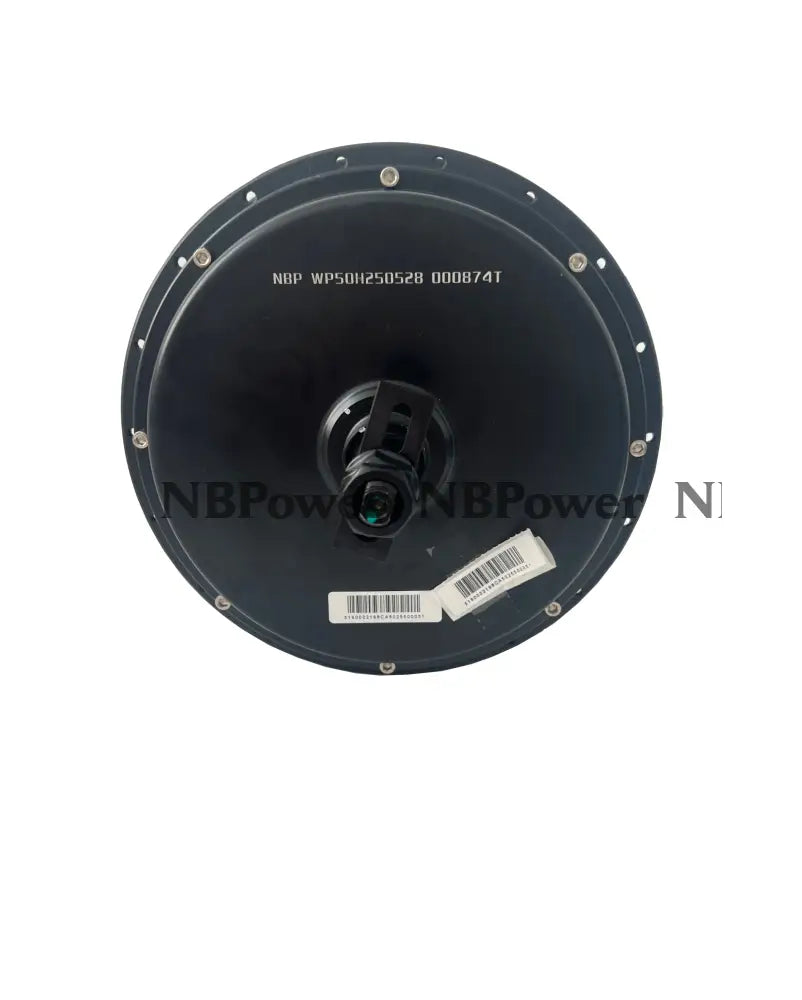

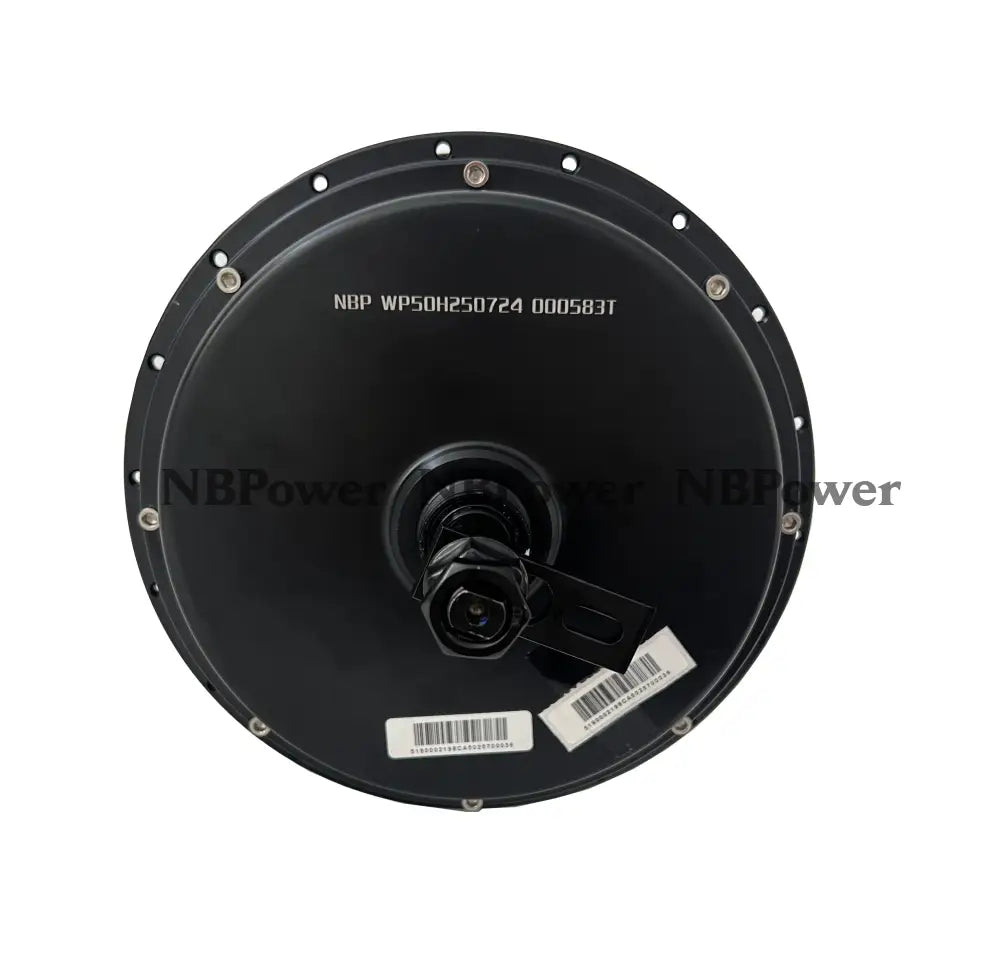

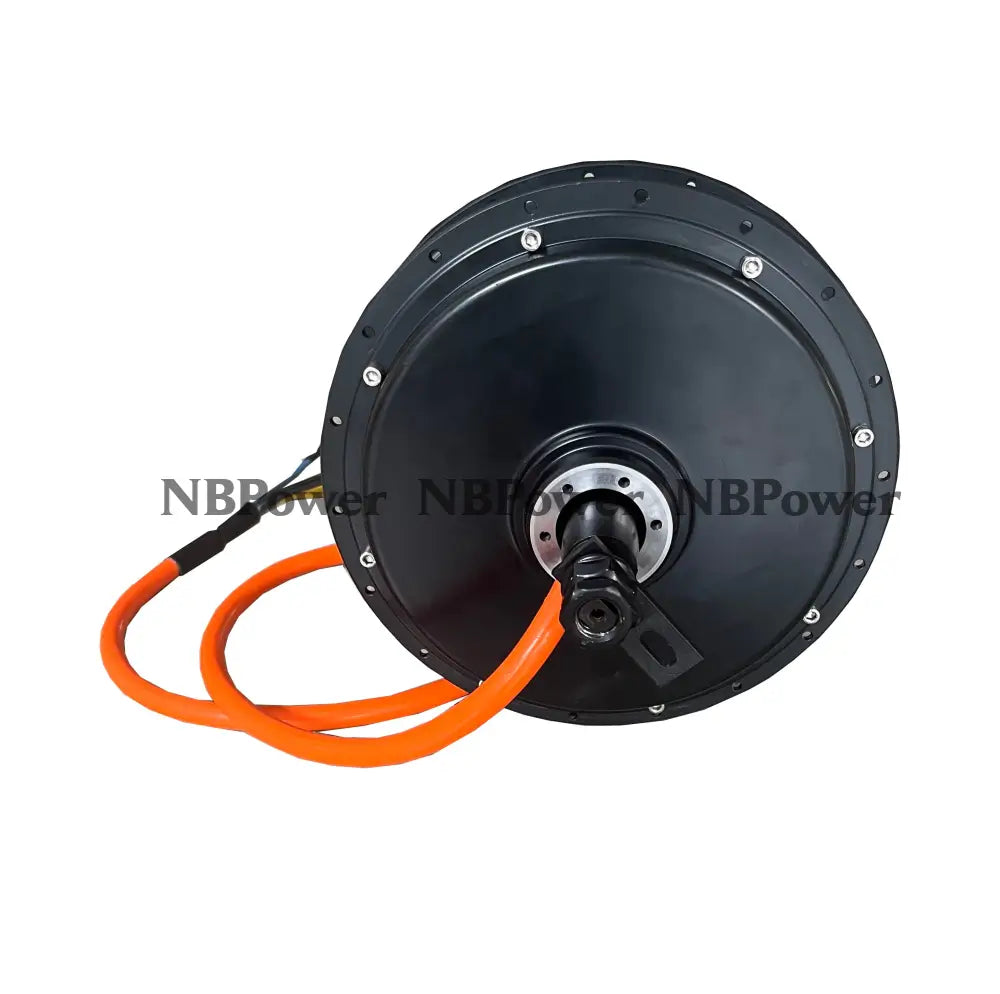

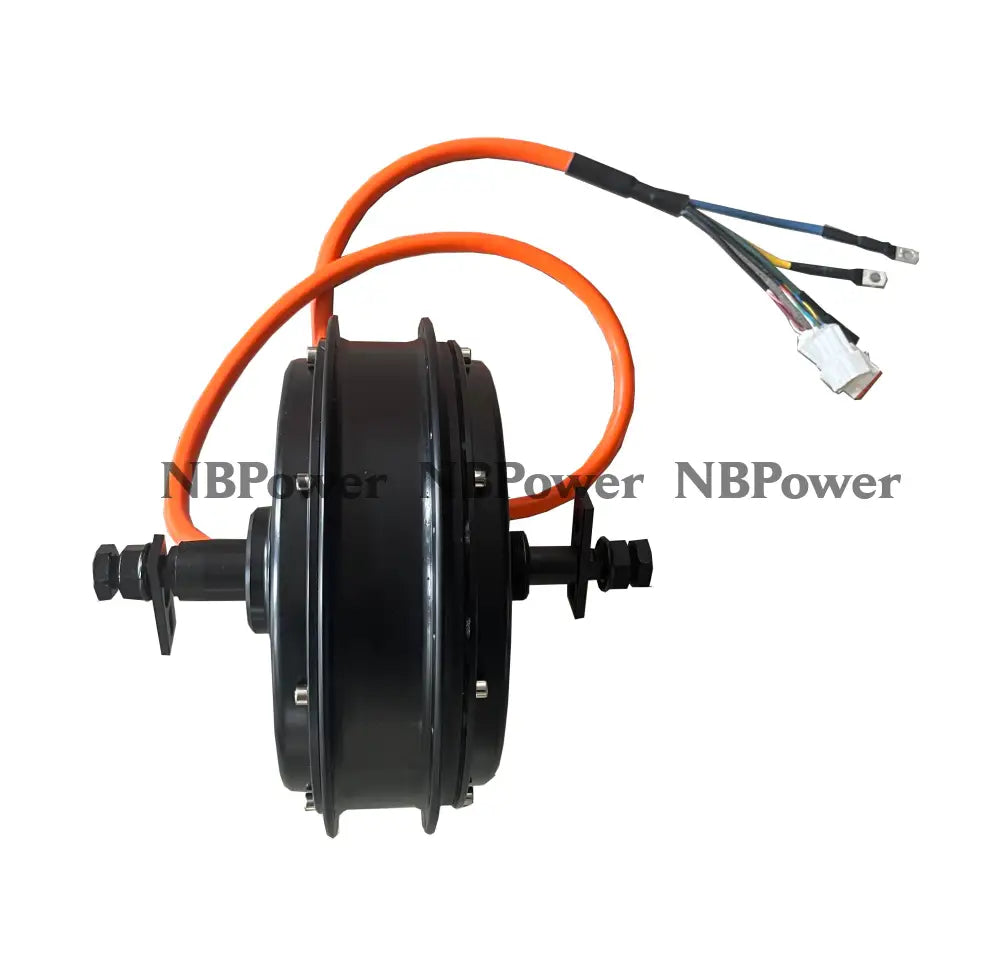

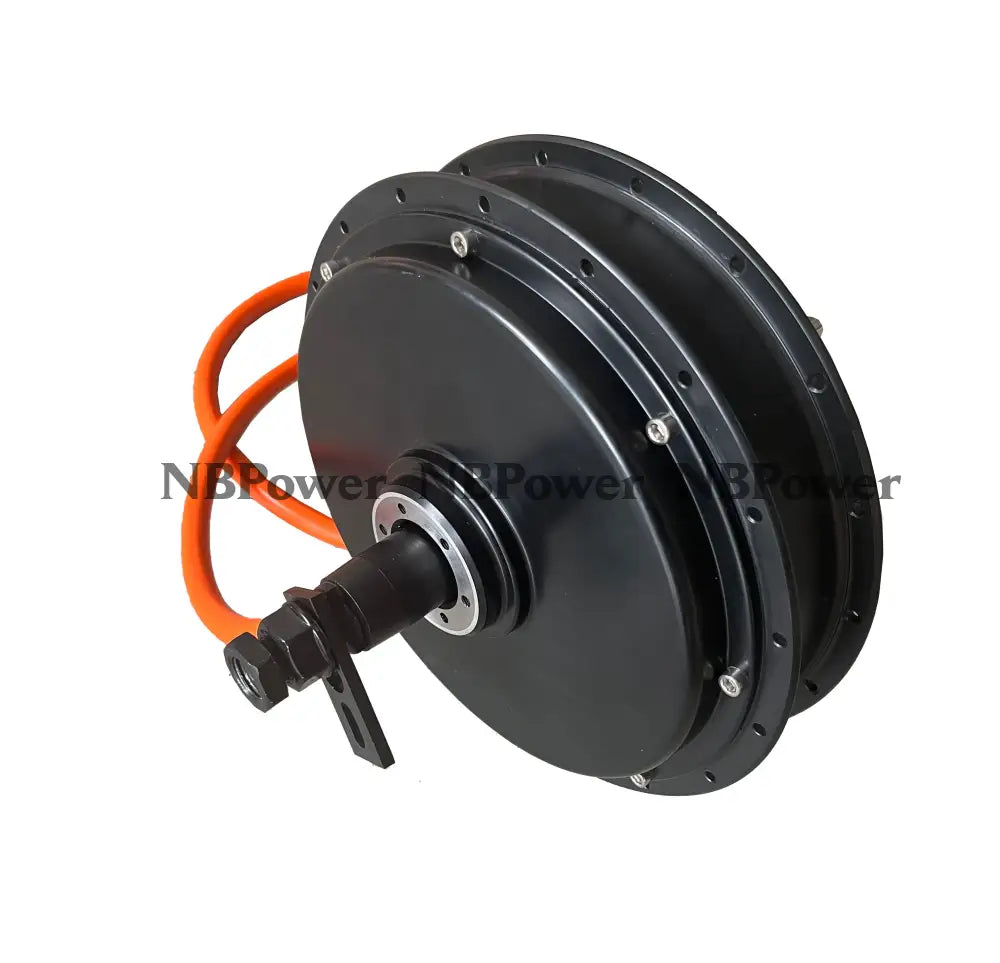

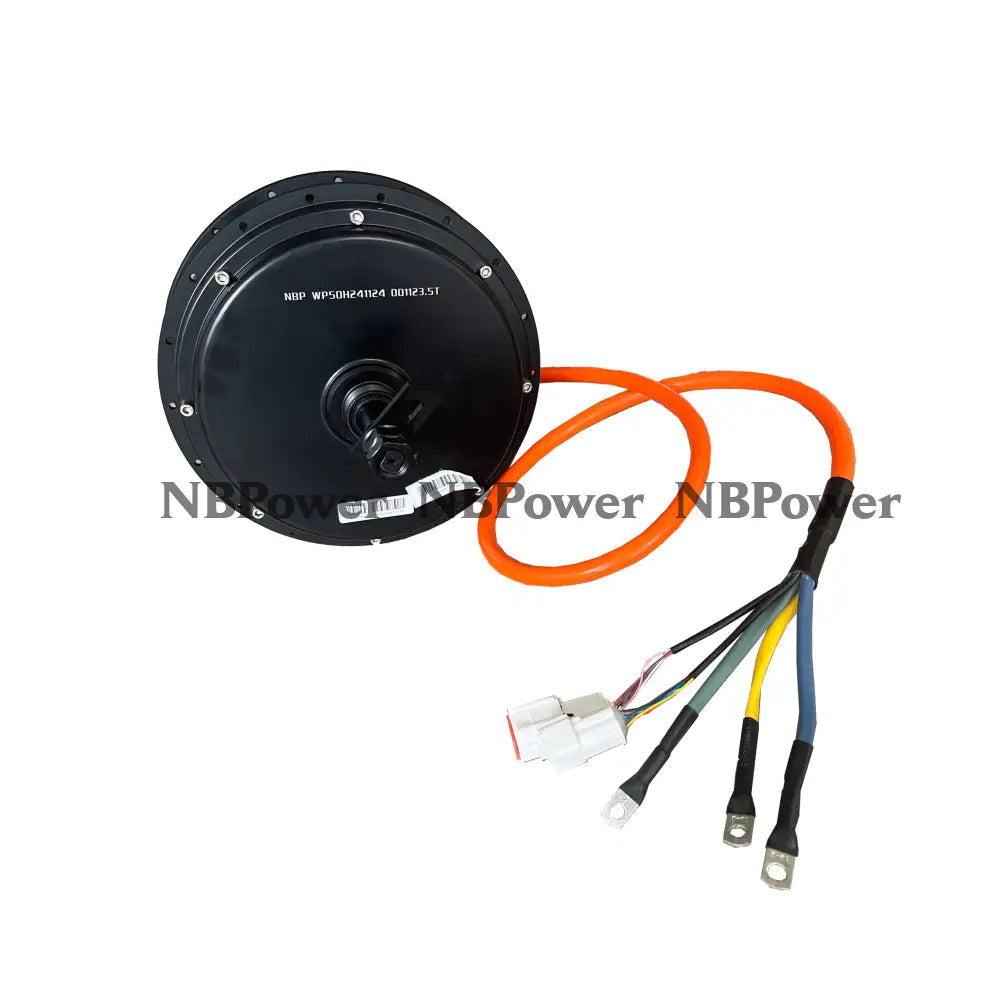

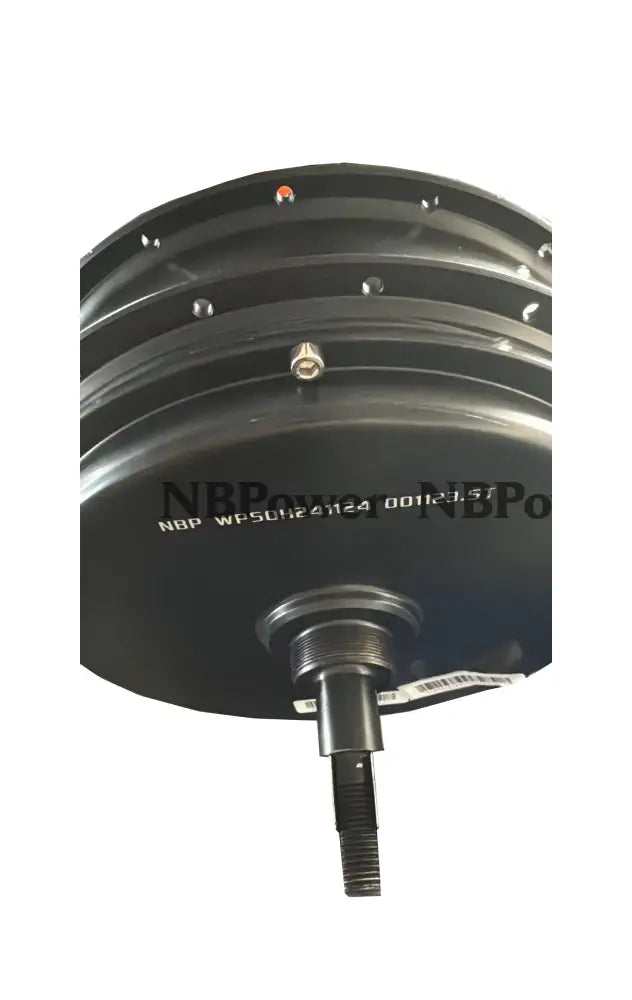

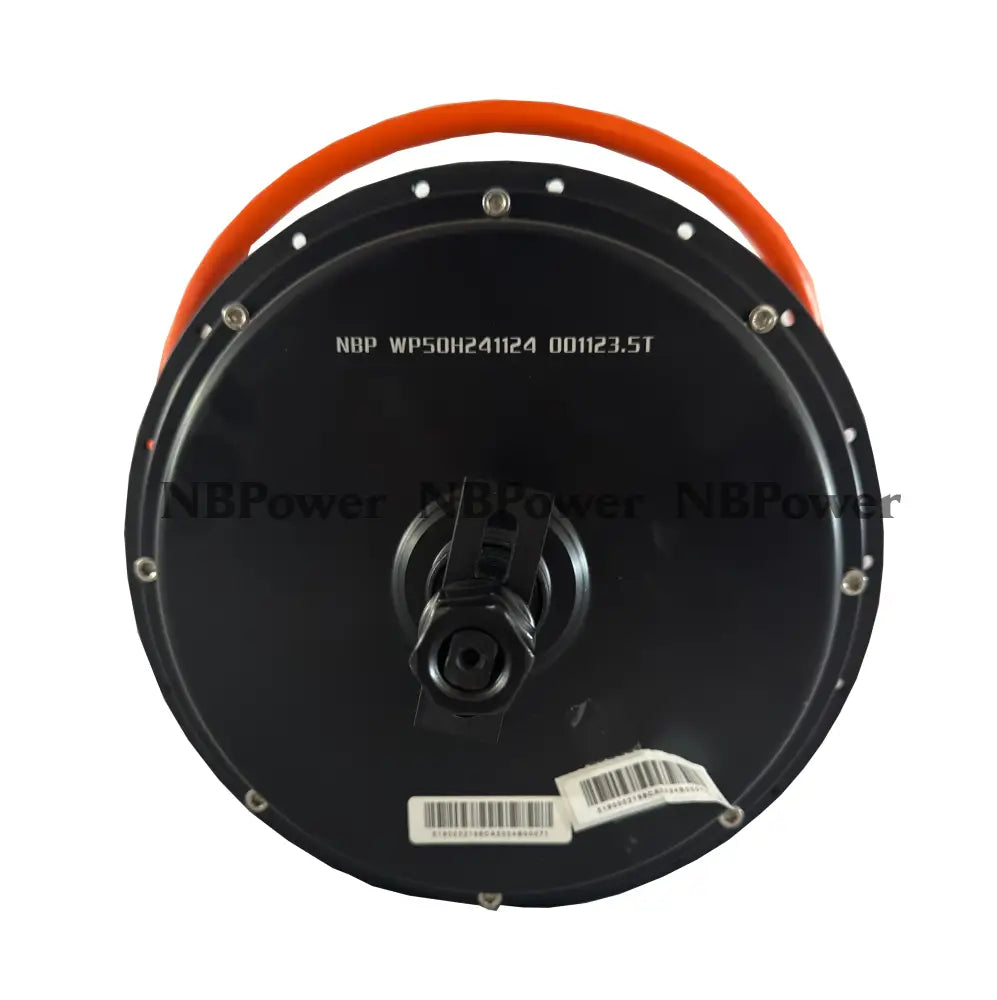

QS205 50H 190mm 72V 5000w Fat Bike Brushless Hub Motor For Electric Bicycle Fat Ebike Hub Motor 60-100KPH

 QS205 50H 190mm 72V 5000w Fat Bike Brushless Hub Motor for Electric Bicycle Fat Ebike Hub Motor 60-100kph

1. Motor Type: BLDC In-Wheel Hub Motor
2. Motor Design: Double Axle with Rim

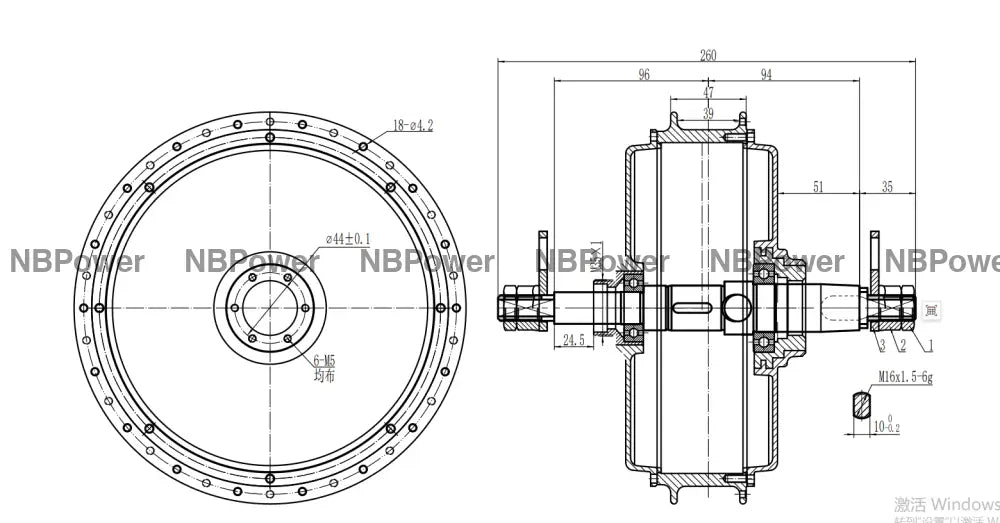

3. PCD: 6*44mm
4. Stator: Aluminum Core
5. Rated Power: 5000W
6. Peak Power: 10000W in few seconds
7. Rated Voltage: 72V
8. Speed:3T:1020RPM 3.5T: 840RPM4T: 770RPM5T: 650RPM
9. Dropouts: 190mm
10. Max Torque:3T:160N.M 3.5T: 180N.M 4T: 200N.M 5T: 220N.M
11. Max Efficiency: approx 91%
12. Suggest Peak Phase Current: N/A
13. Thermic Probe: KTY83/122(as default)
14. Working Temperature: 70-120℃, peak 150℃
15. Brake Type: Disc Brake
16. Hall Sensor: Dual hall set with waterproof connector
17. Phase Wire:2*5mm²Cross
18. Hall Sensor Phasing Angle: 120 degree
19. Waterproof Grade: IP65
