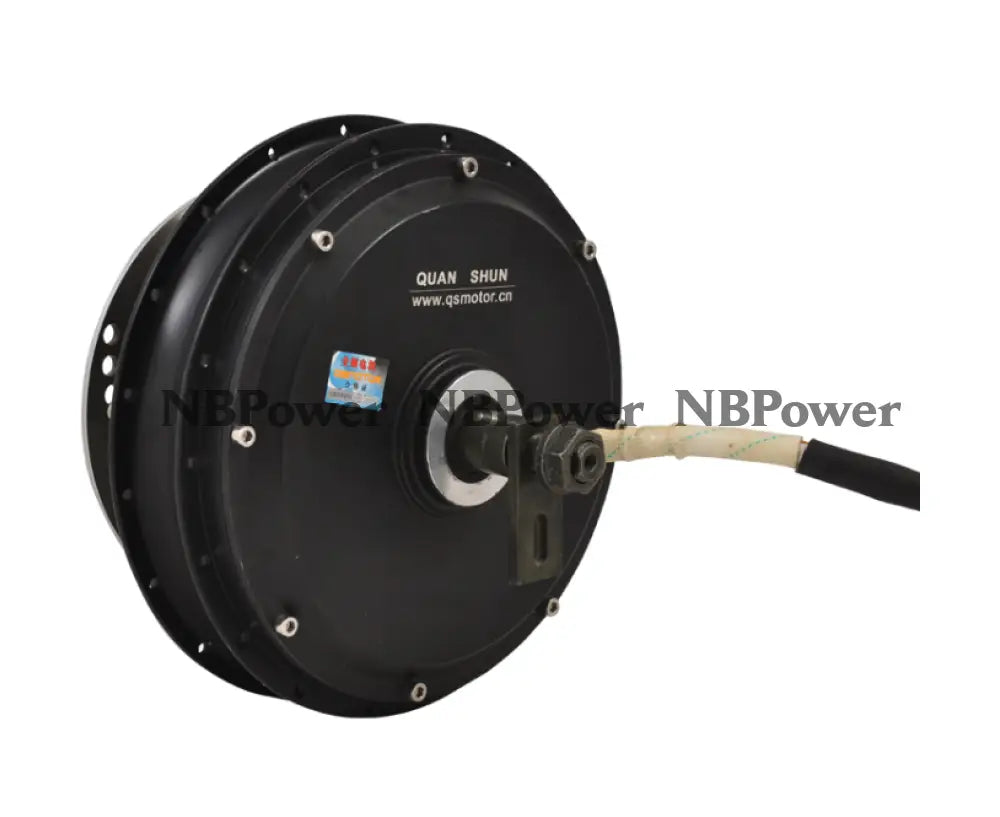

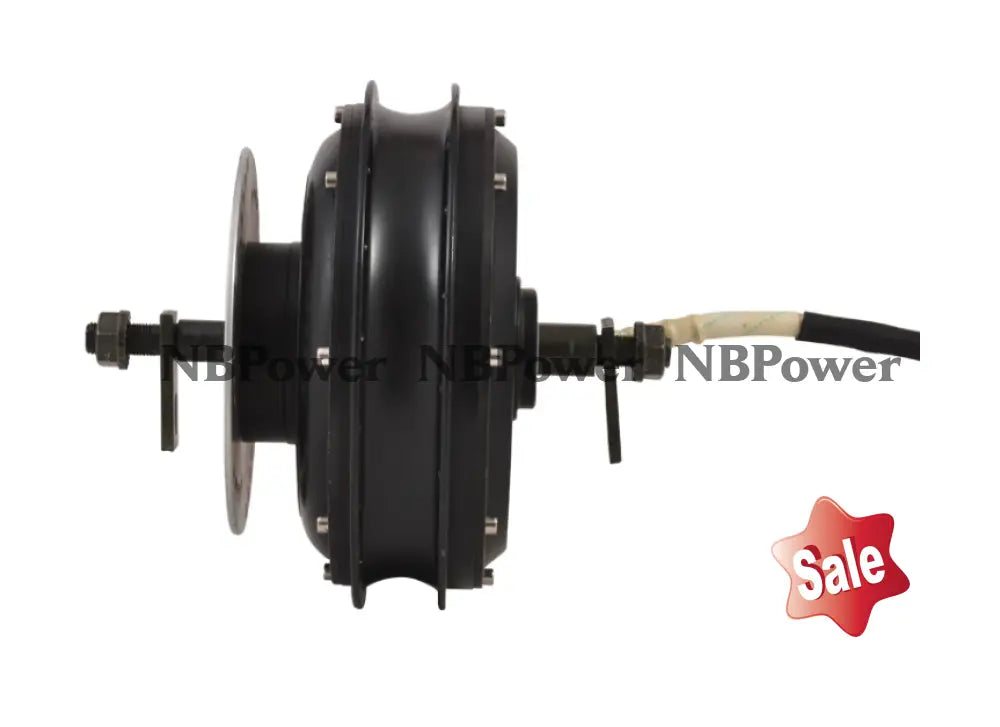

QS205 Motor 3000W QS205 V3 Moped Spoke Hub Motor for Electric Motorbike

It’s QS electric In-Wheel Scooter Spoke Hub Motor for Conversion Kits, which power range from 500w to 3000w rated, drop-outs 200mm with scooter disc brake.

Especially suit for electric bicycle/scooter, max. speed for 60km/h to 100km/h.

  If you have interested in this product, you can contact with our sales directly.

 Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

 Product Description

1. Genearlly Spec:

• Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
• Brand: QS Motor, QSMOTOR

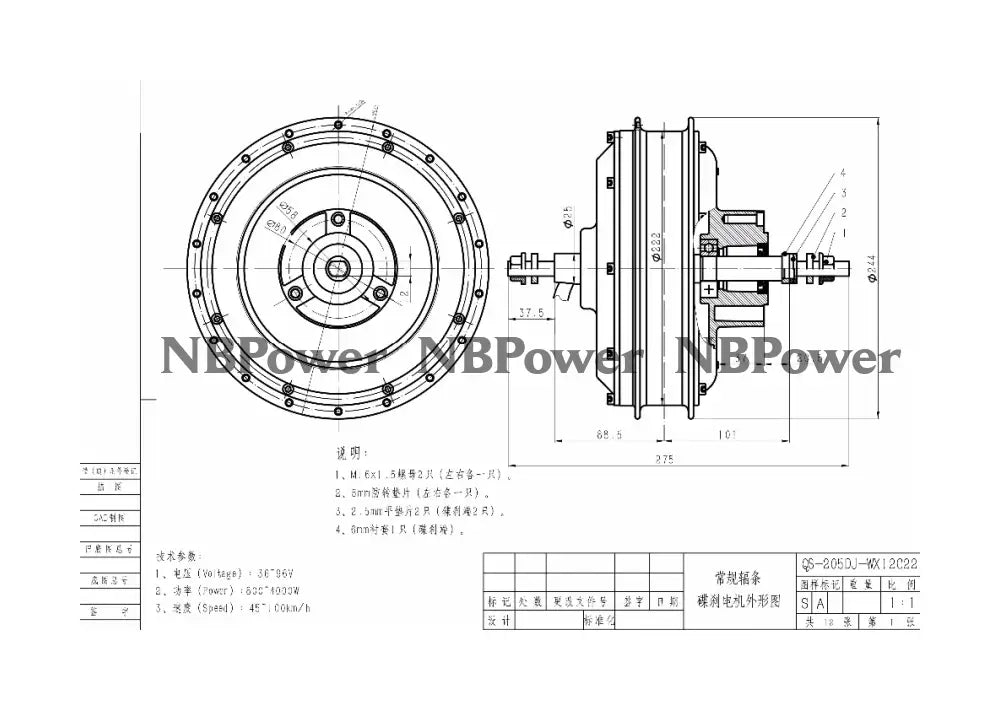

• Motor Design: Double axle without rim (not integrated), 36 spoke holes, OD 4.2mm
• Matching Rim size: 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.
• Magnet Height: 50mm,
• Stator: Aluminmum Core
• Rated Power: 3000W (could be 14000W peak in few seconds)
• Rated Voltage: 72V as default (48V-96V, optional)
• Speed: 80KPH as default (24-100KPH, optional)
• kV: 9.31/11.80/15.13/16.67 etc.
• Max Torque: approx 182N.m
• Max Efficiency: 86-91%
• Continuous Battery Current: 52A (72V)
• Peak Battery Current: 104A (72V)
• Suggest Peak Phase Current: 196-245A (depend on the kV)
• Thermic Probe: KTY83/122
• Working Temperature: 70-120℃ , peak 150 ℃

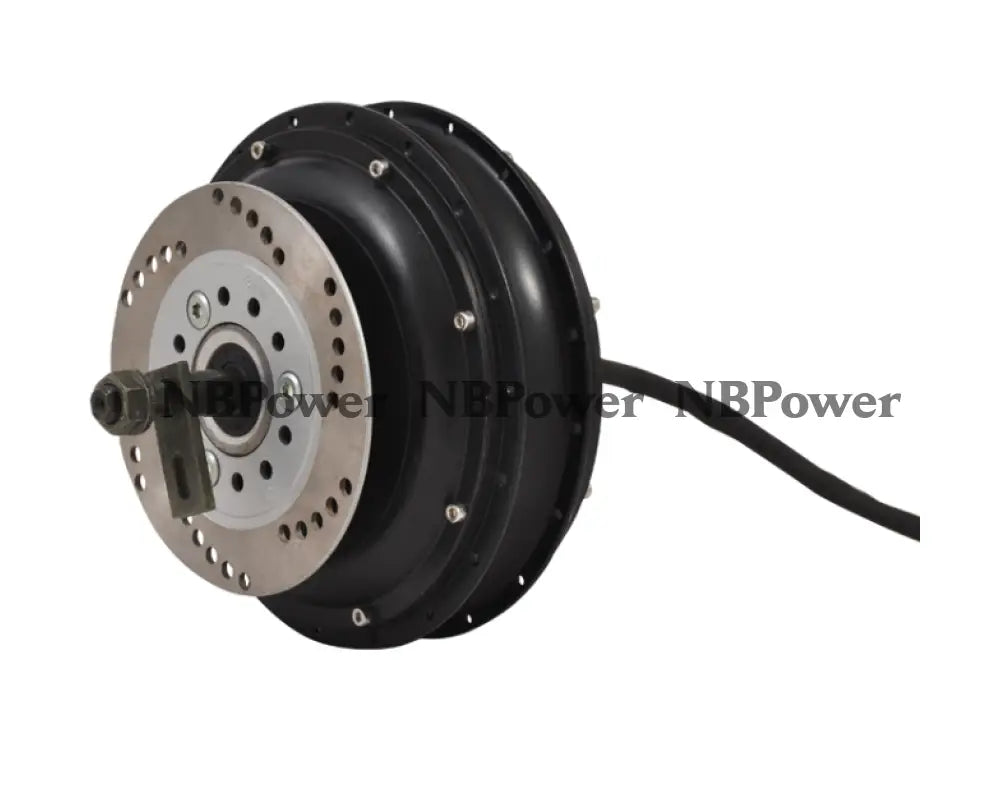

• Brake type: Scooter Disc brake, PCD3*80mm(as default)
• Drop-outs/Rear Fork Width for installation: 200mm
• 14mm english thread length for single/3 speed freewheel
• 10mm axle flats
• Dual Hall Set with waterproof connectors
• 10mm⊃2; Cross Section of Phase Wire (not include insulation layer)
• Hall Sensor Phasing angle: 120 degree
• Waterproof Grade: IP65
• Color: Black (as default), White/Luminous (extra $5.0)
• N.W./G.W.: 12.5kg/14.0kg   Package Dimension: 34cm*34cm*33cm/pcs
