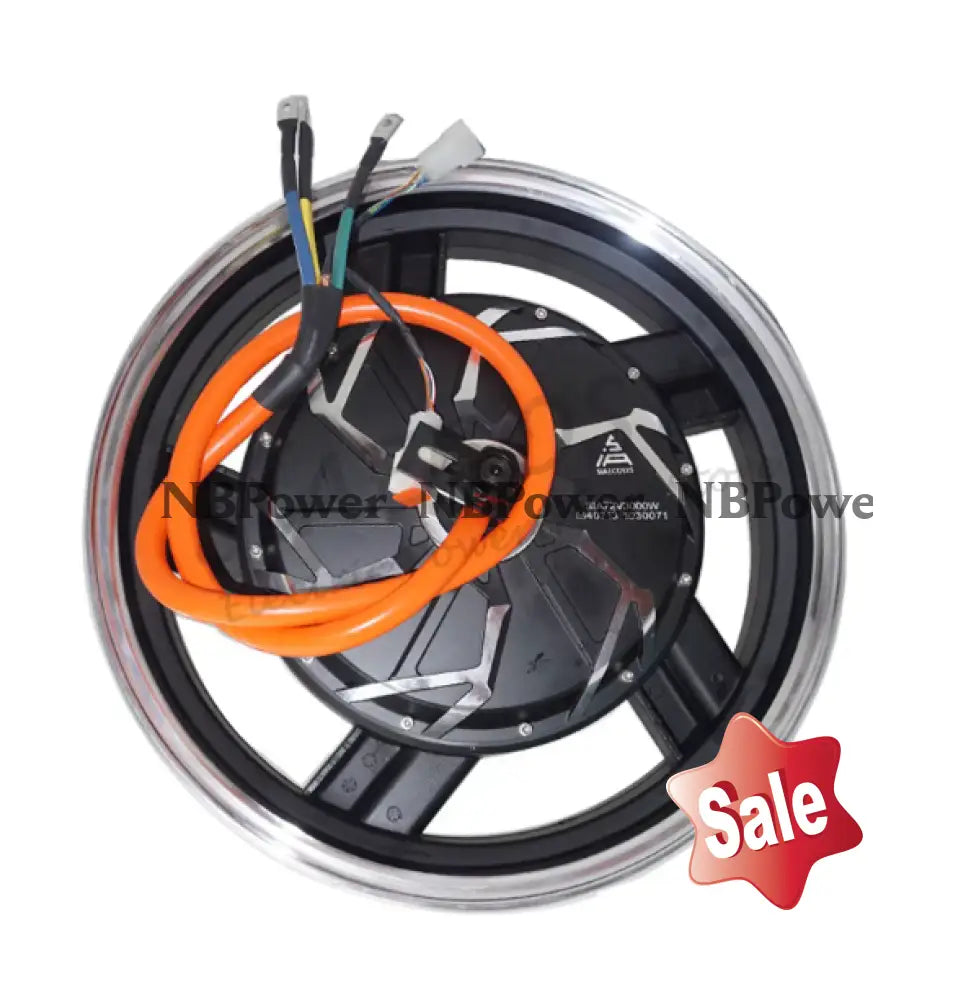

QS206 17*3.5inch 2000W 200mm dropout V4 72V 70KPH Electric In Wheel Hub Motor

Motor for motorcycle 2000W V4 QS260 17 inch 72V 70KPH Electric In Wheel Hub Motor

Motor for motorcycle 17inch E-scooter Wheel hub motor, it could be used for electric scooter, electric motorcycle.

260 motor means the diameter of iron ring of rotor is 260mm.

 If you have interested in this product, you can contact with our sales directly.

What’s app: +86 15922995145

 Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

 Product Description

1. Genearlly Spec:

• Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor
• Brand: QS Motor, QSMOTOR
• Motor Design: Double axle with 17inch moped rim (integrated)
• Rim Size:17×3.5inch(Narrow Tire as default), matched tire: 130/70-17 etc
• Magnet Height: 35mm, 16 pole pairs
• Stator: Aluminum Core
• Rated Power: 2000W
• Speed: 30KPH-80KPH, it’s customized, genearlly we will design as 72V70KPH.
• Work voltage range: 48V-120V, will be 72V as default.
• Max Torque approx 190.0N.m
• Thermic Probe: KTY83-122 (as default, optional)
• Max Efficiency approx 88%
• Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm
• Drop-outs: 200mm
• Dual Halls with waterproof connectos(One for spare, in case of damage)
• 16mm² Phase Wire
• Waterproof Grade: IP65

• Color: Black Bar (As default)

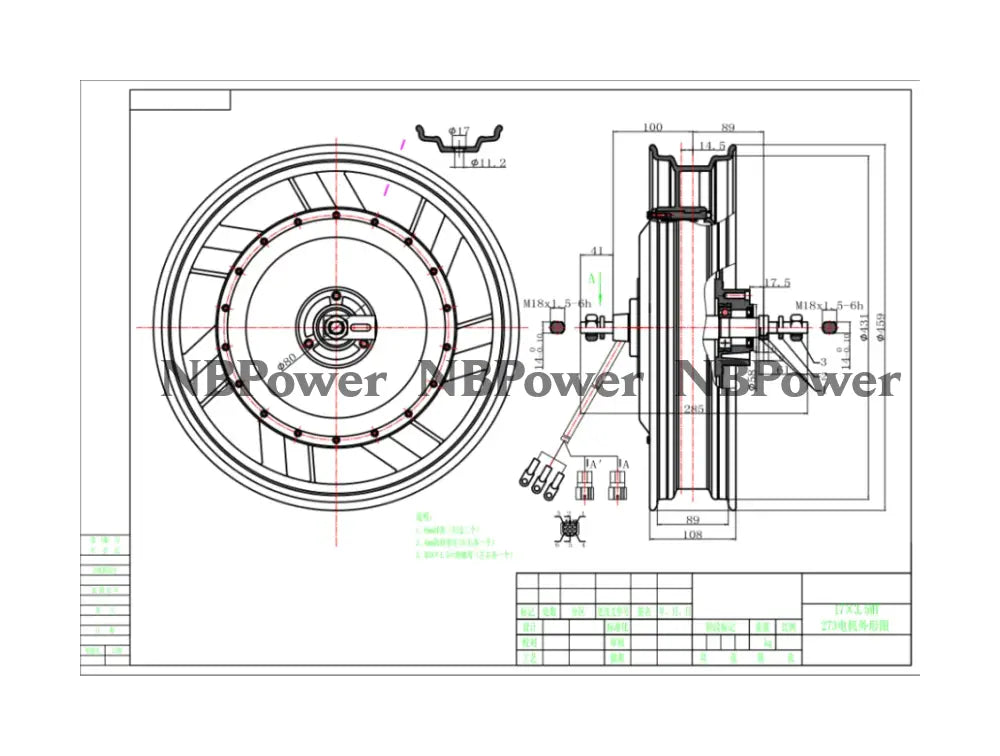

 Drawing

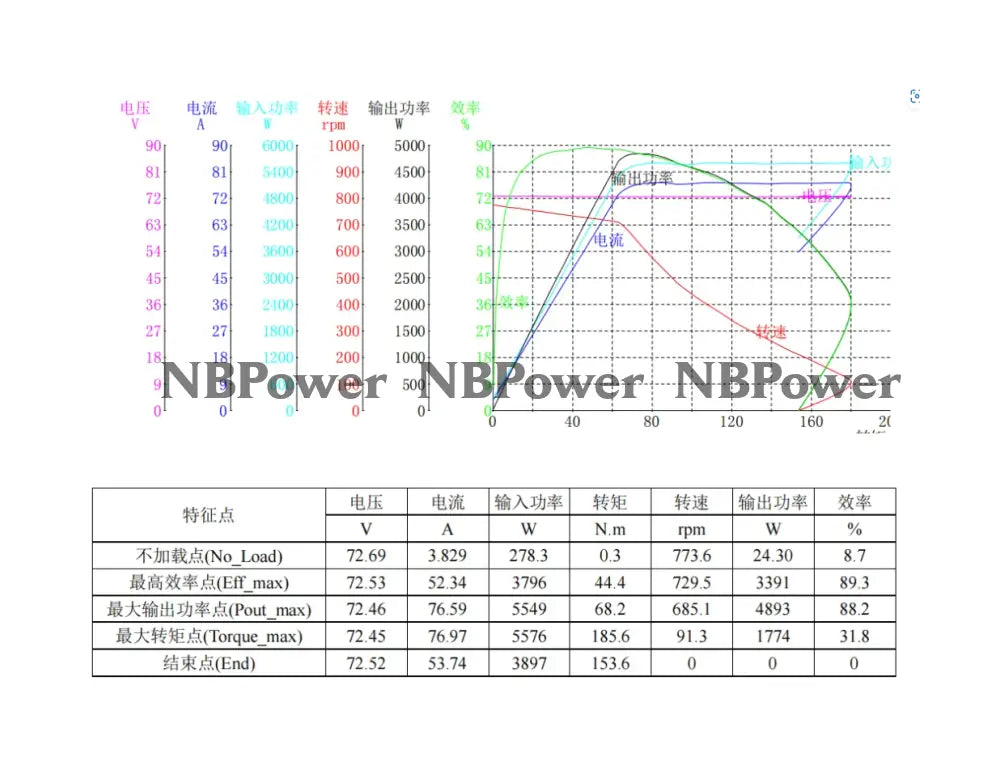

 Test Report
