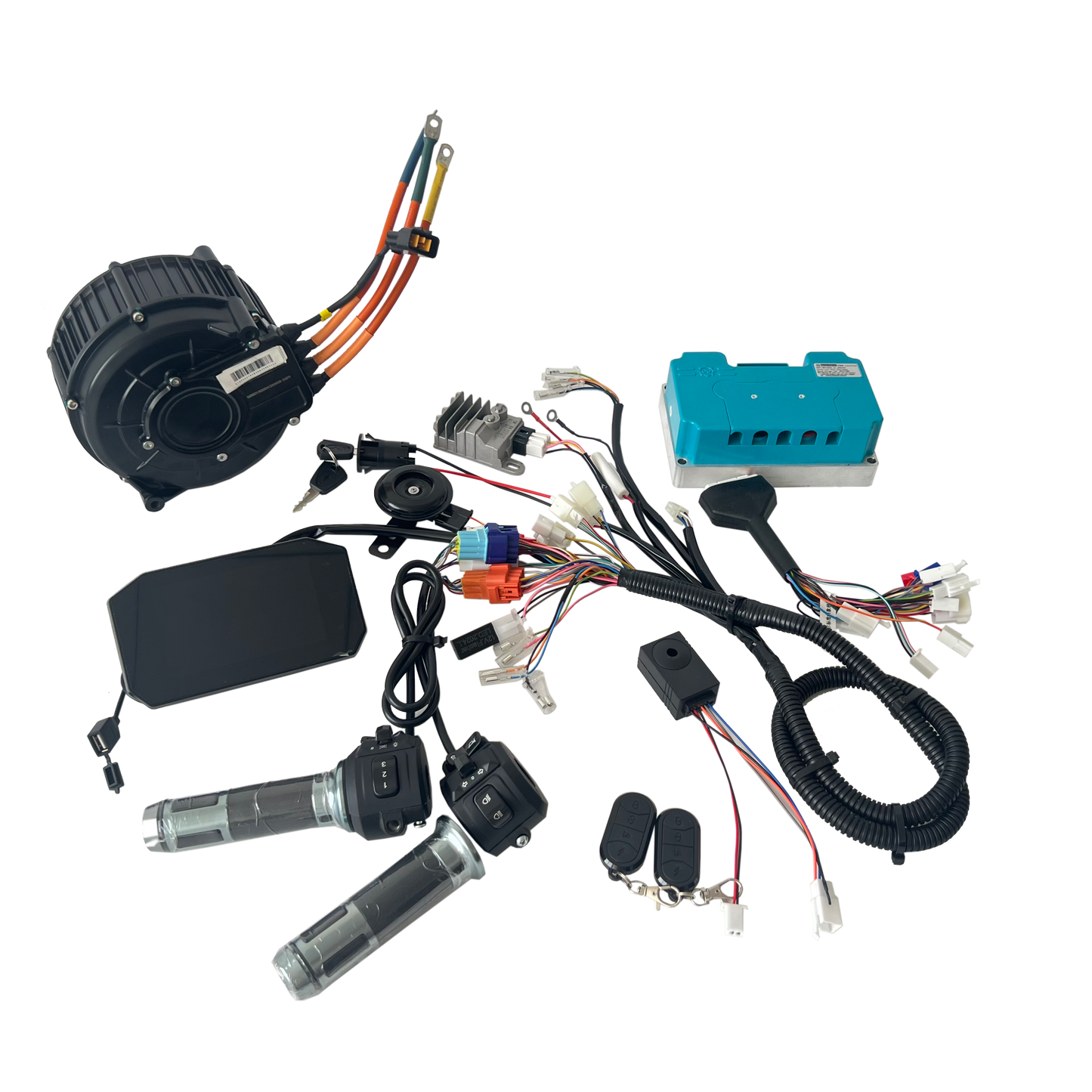

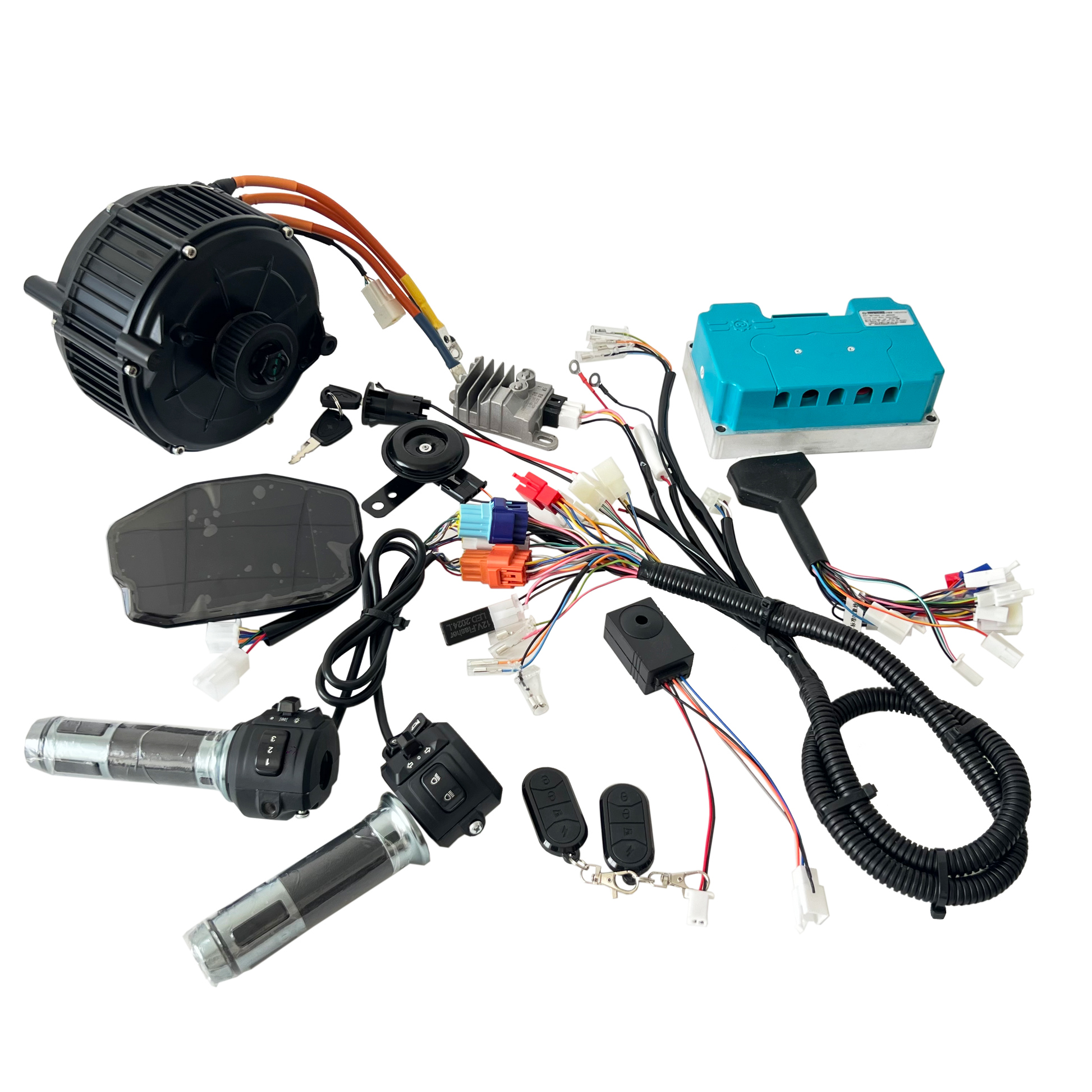

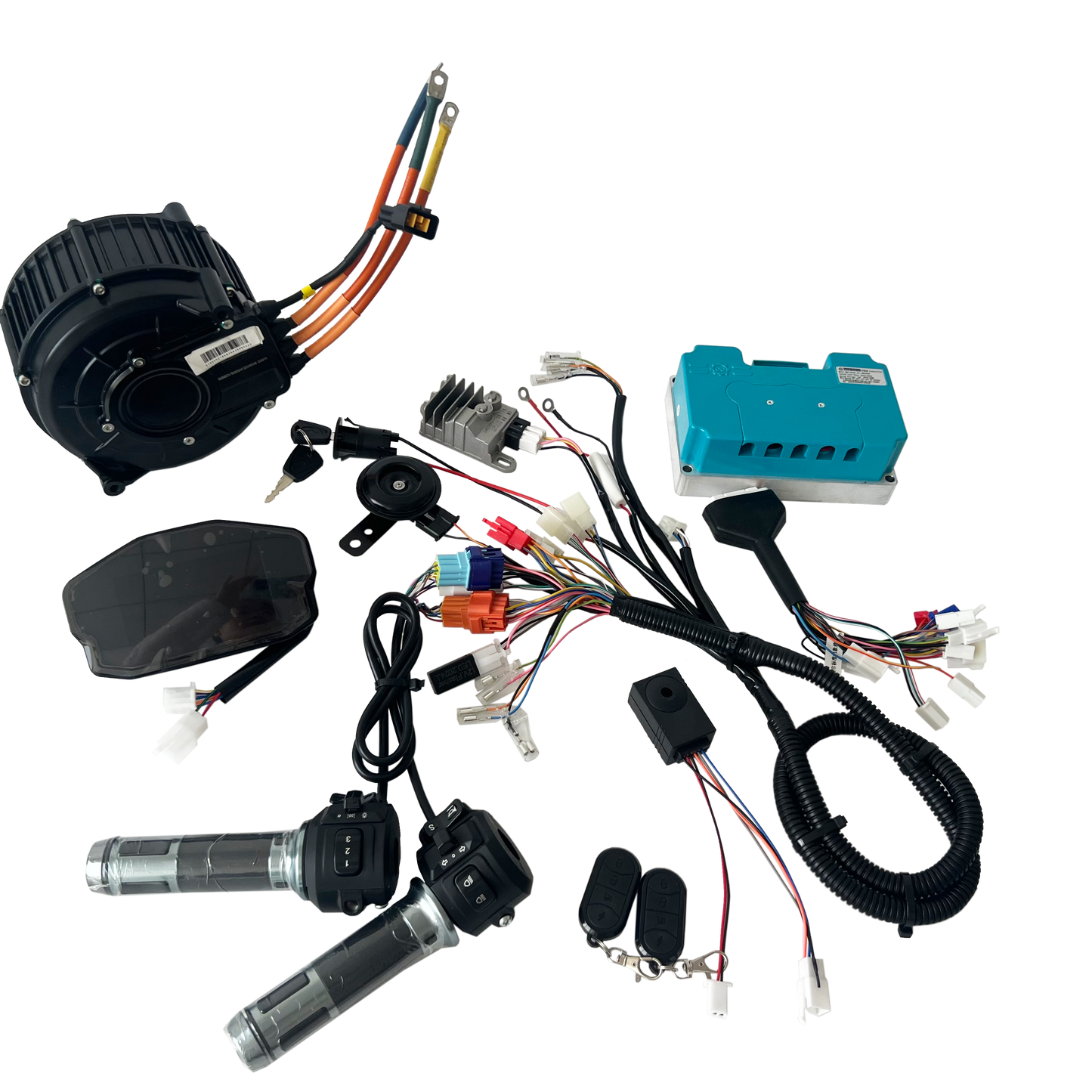

What you will receive

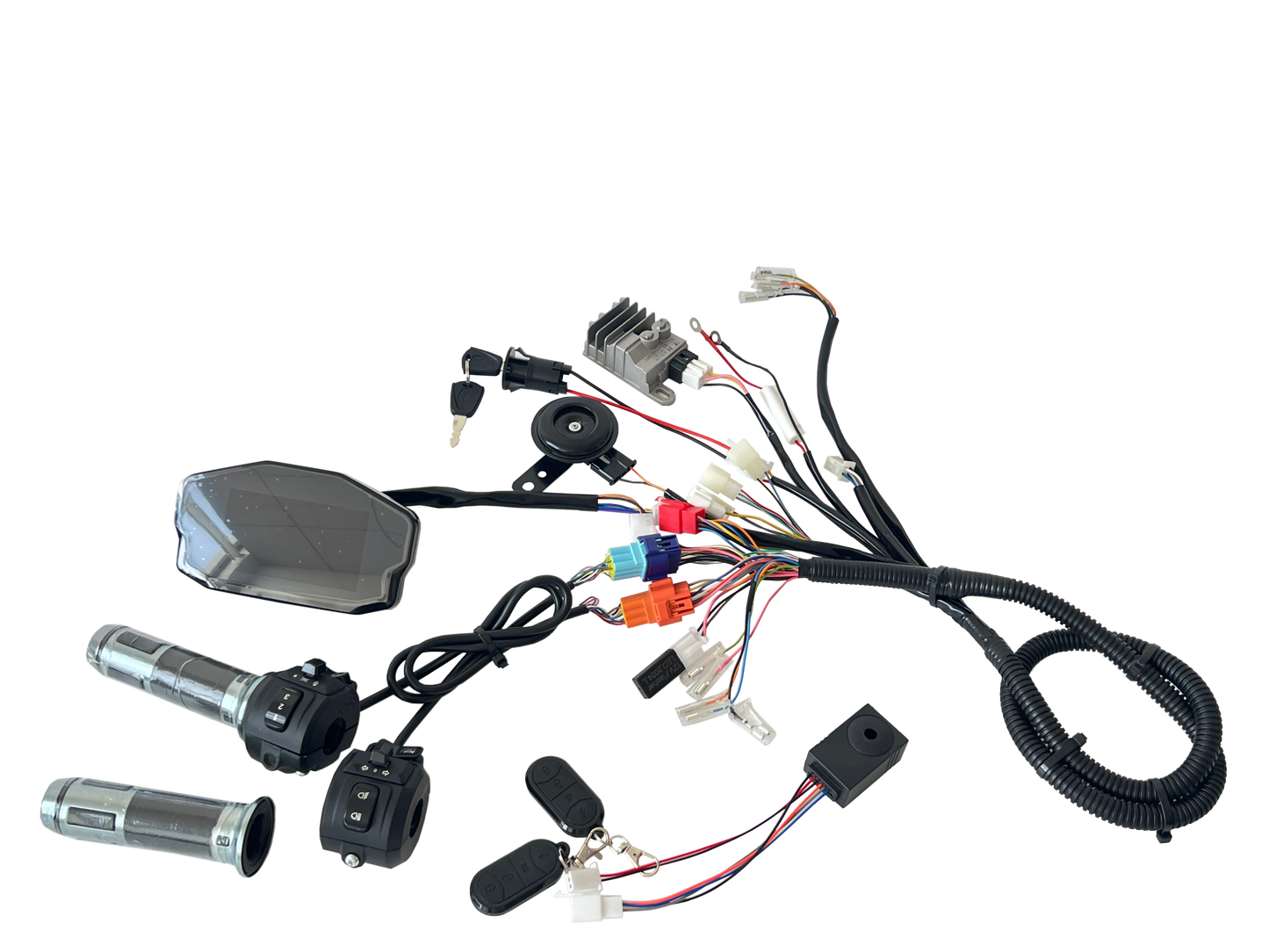

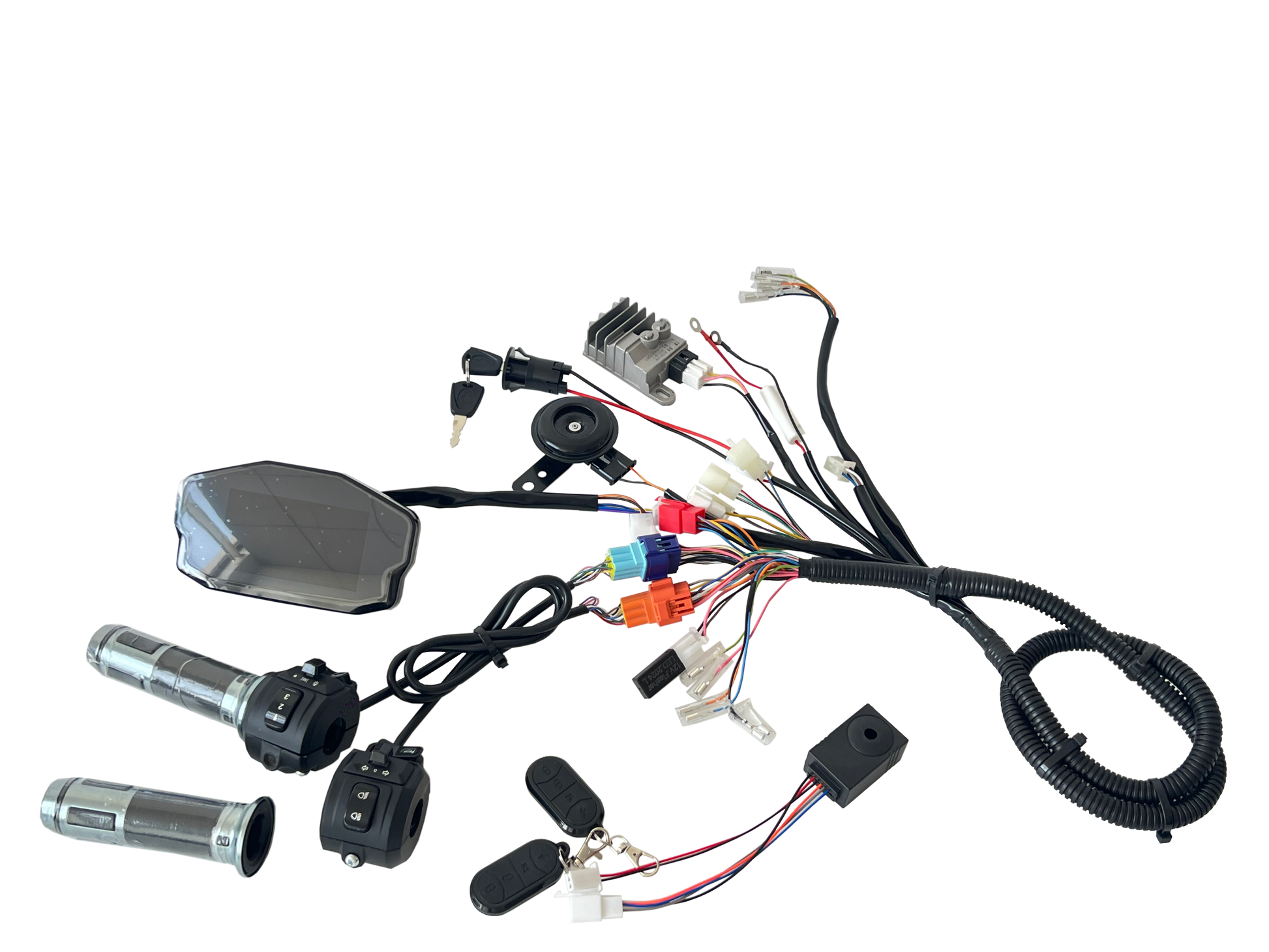

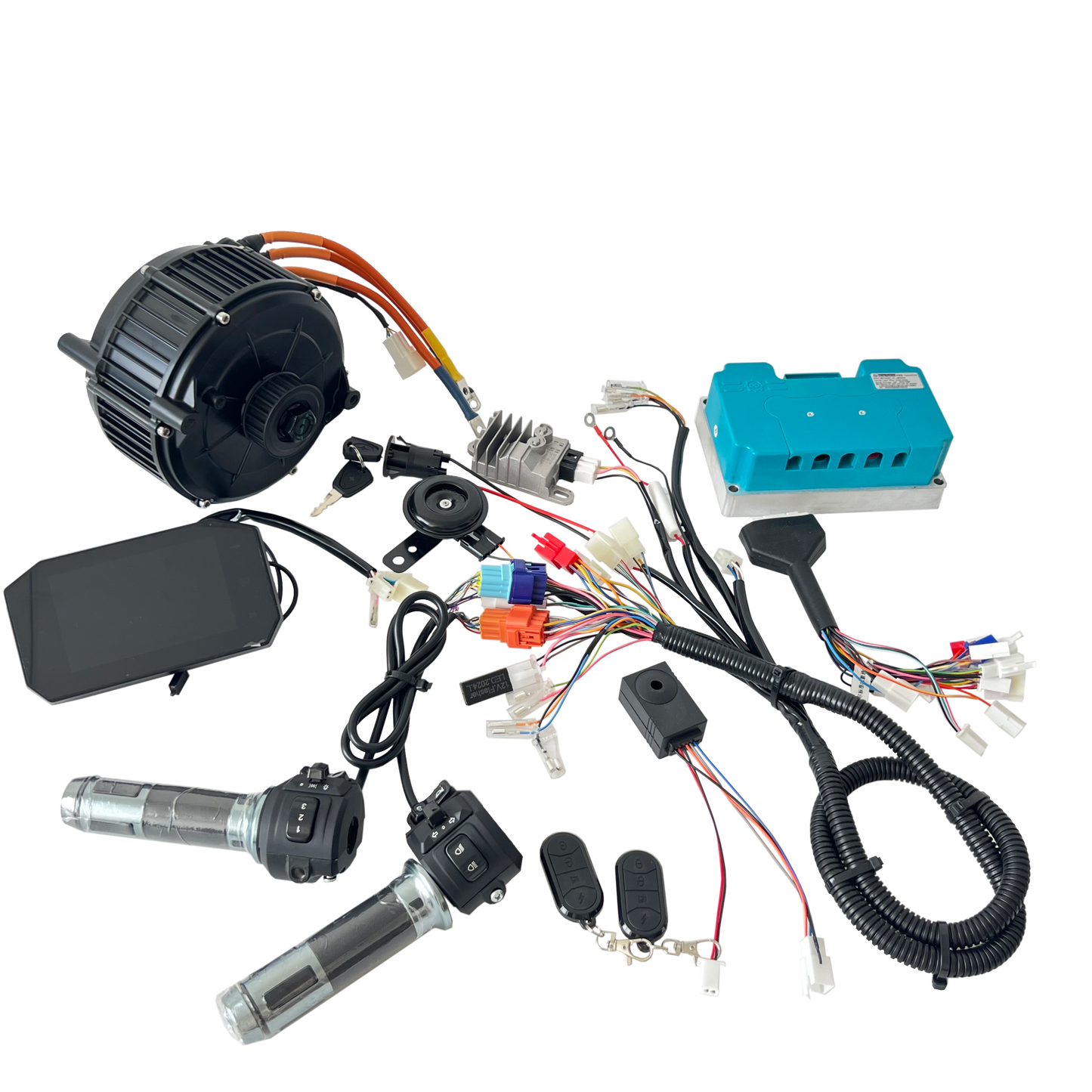

Option 1：Hall Version + DKD Display

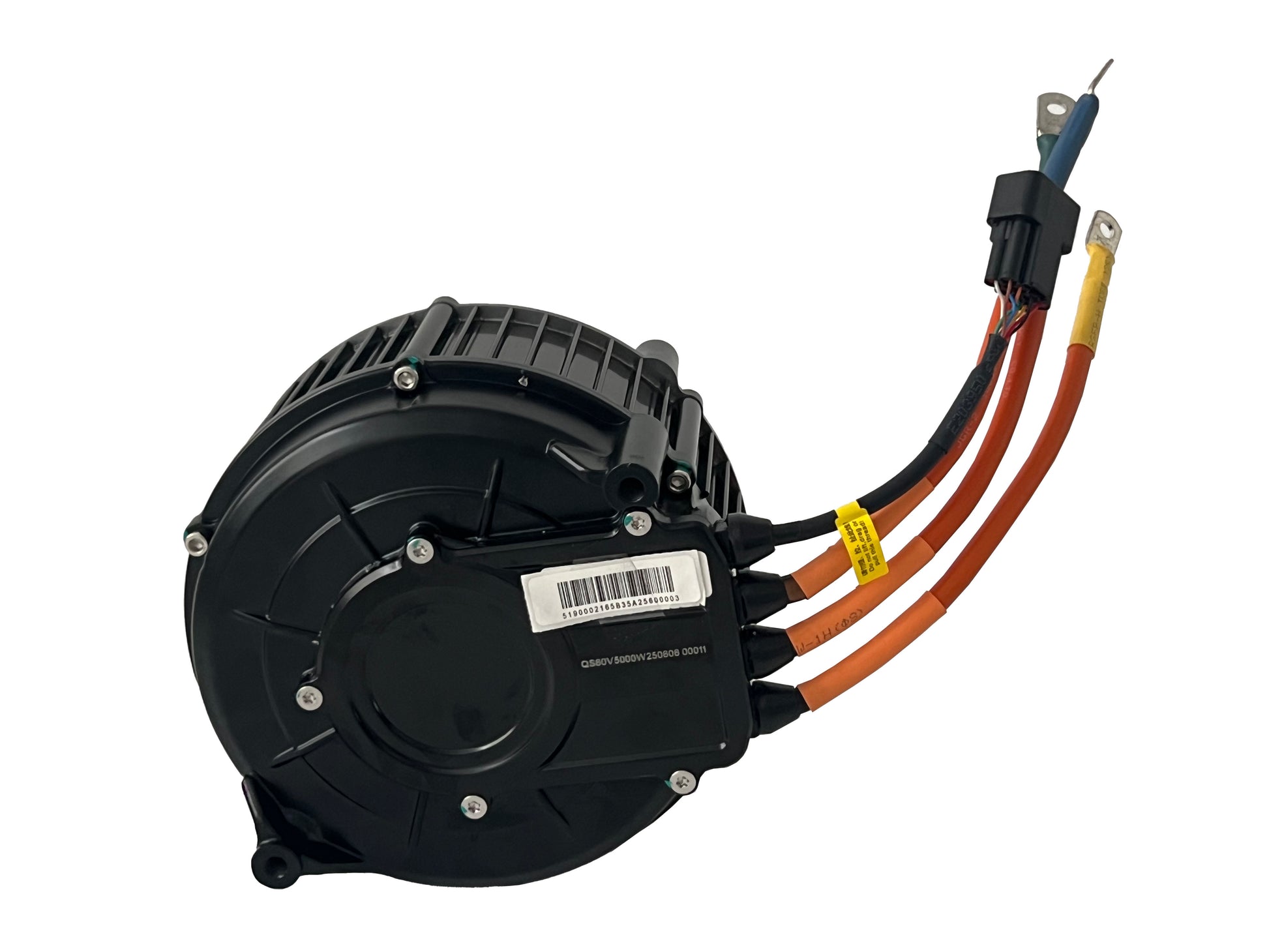

QS165 V2 72V 35H Mid‑Drive Motor (Hall Version)
Nanjing Fardriver ND72680 Controller

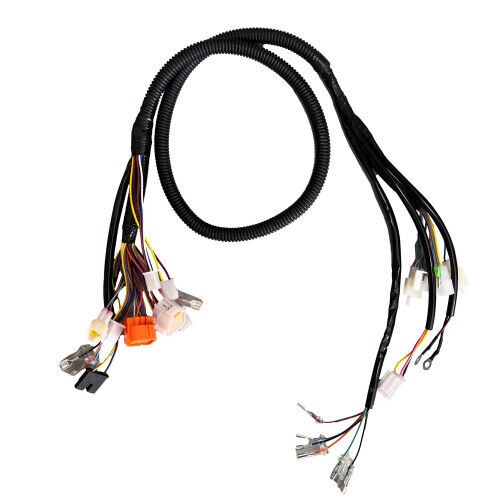

Main wiring harness

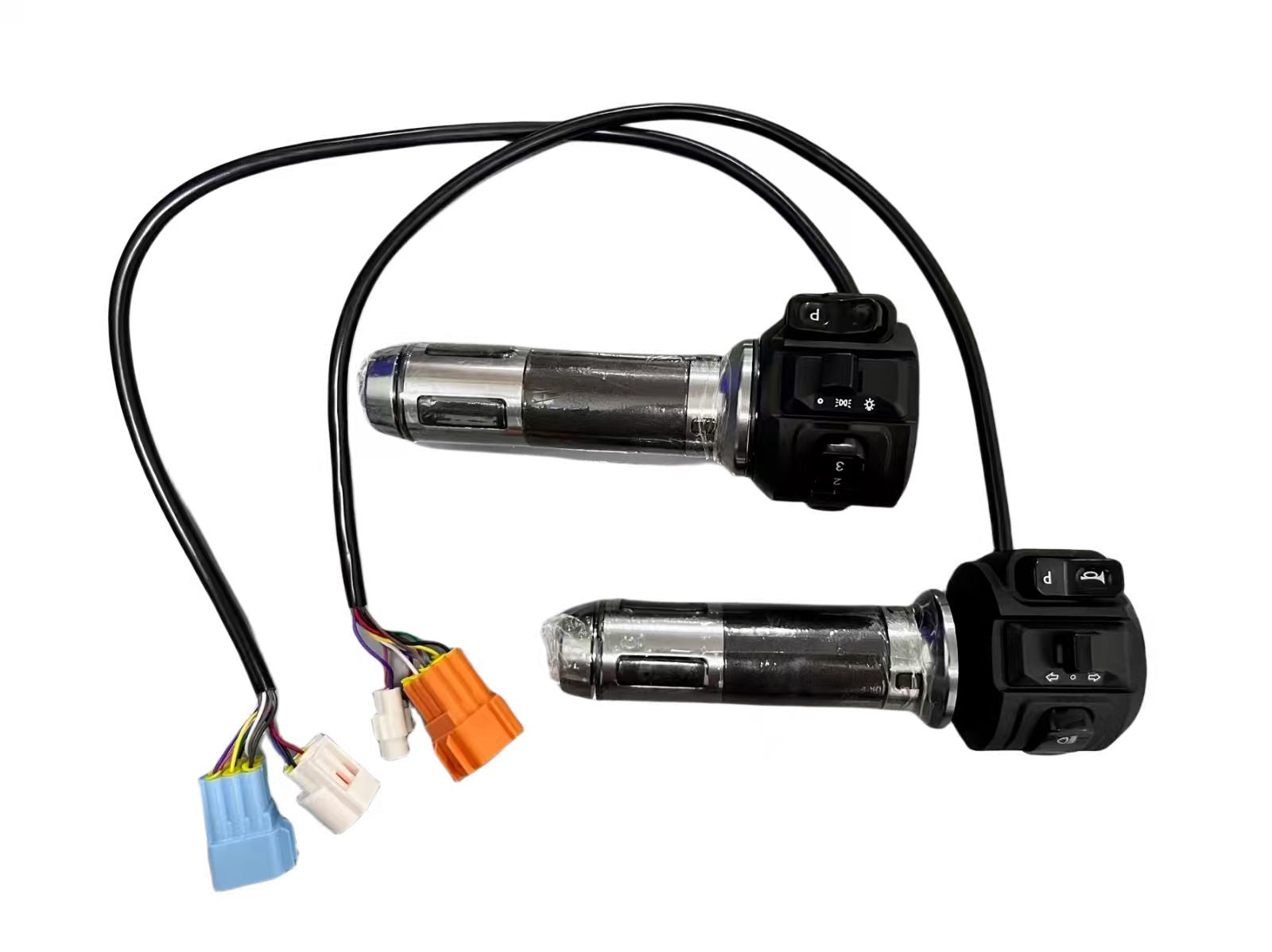

Motorcycle‑style throttle grip
Ignition key lock
Anti‑theft alarm system

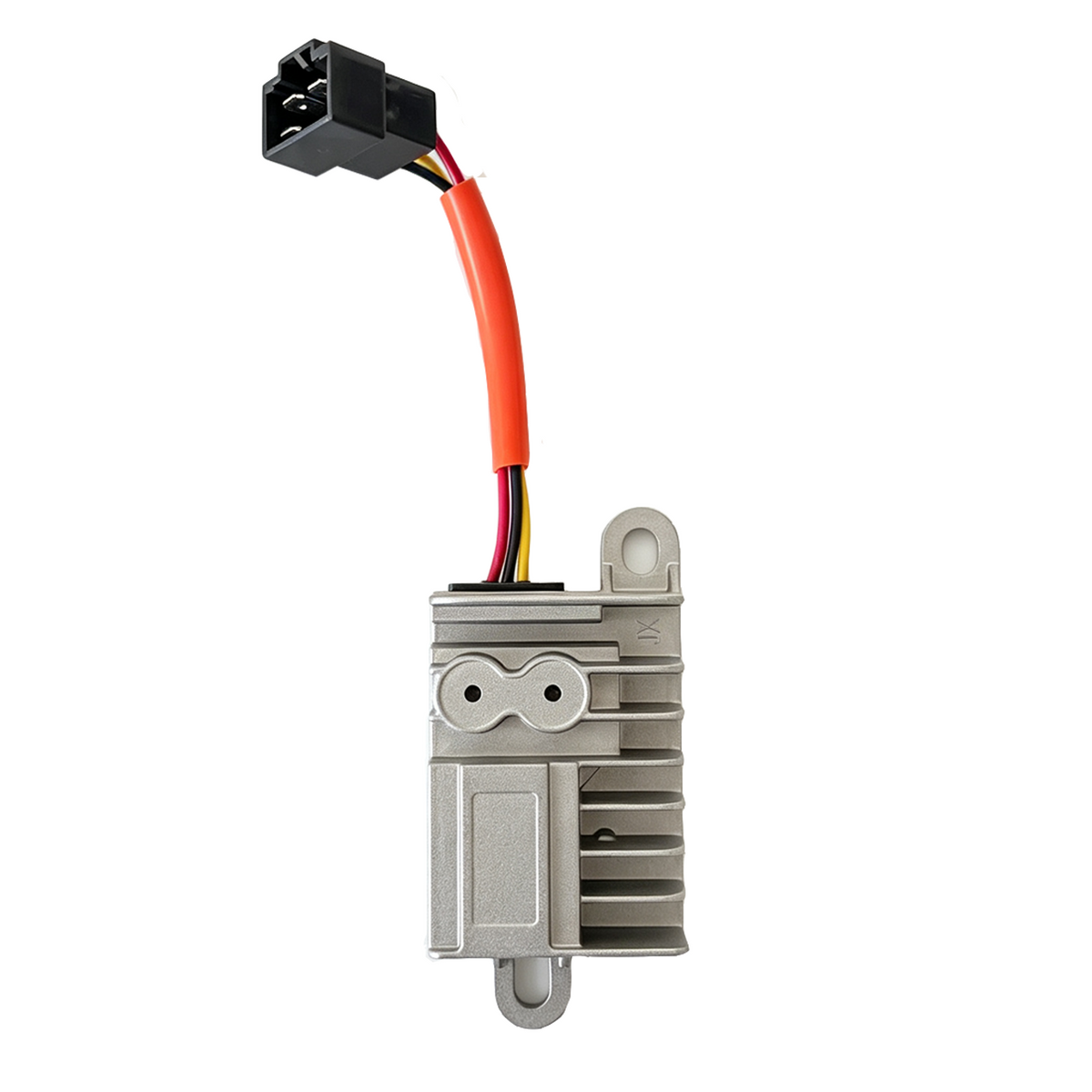

DC‑DC converter
Flasher relay

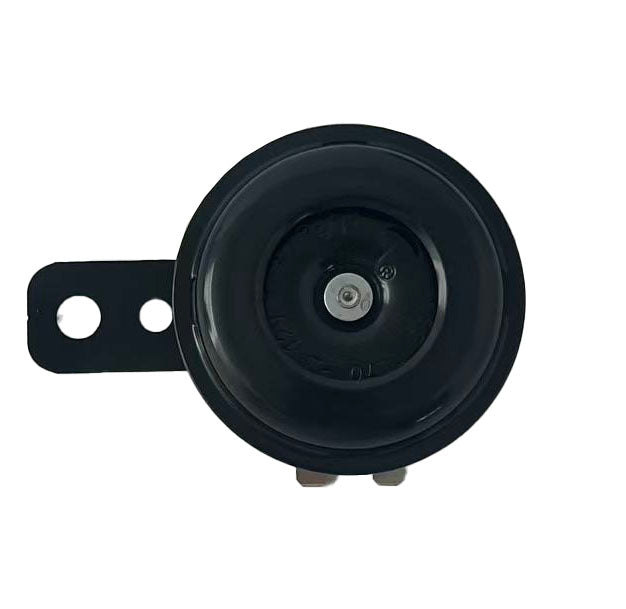

Horn

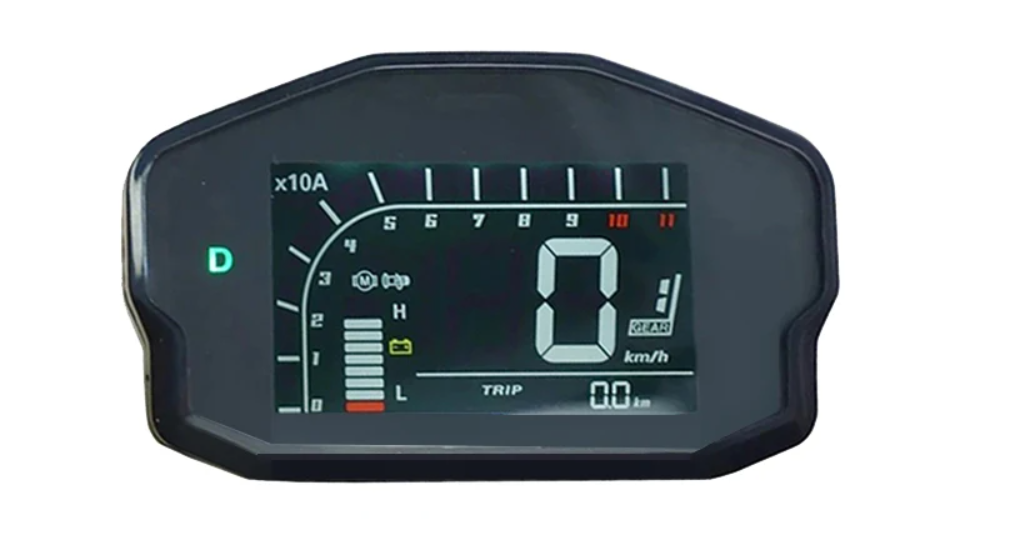

DKD Display

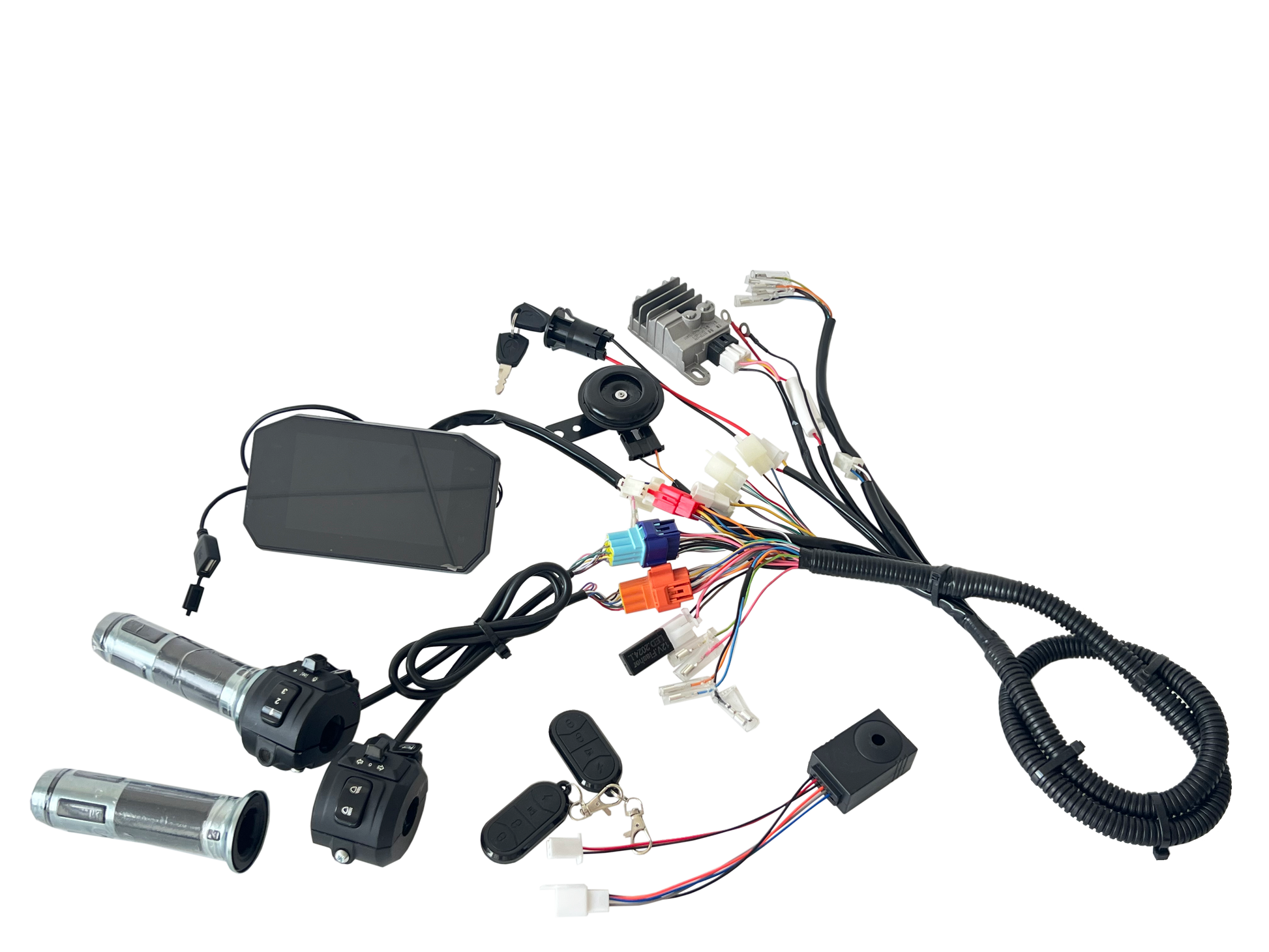

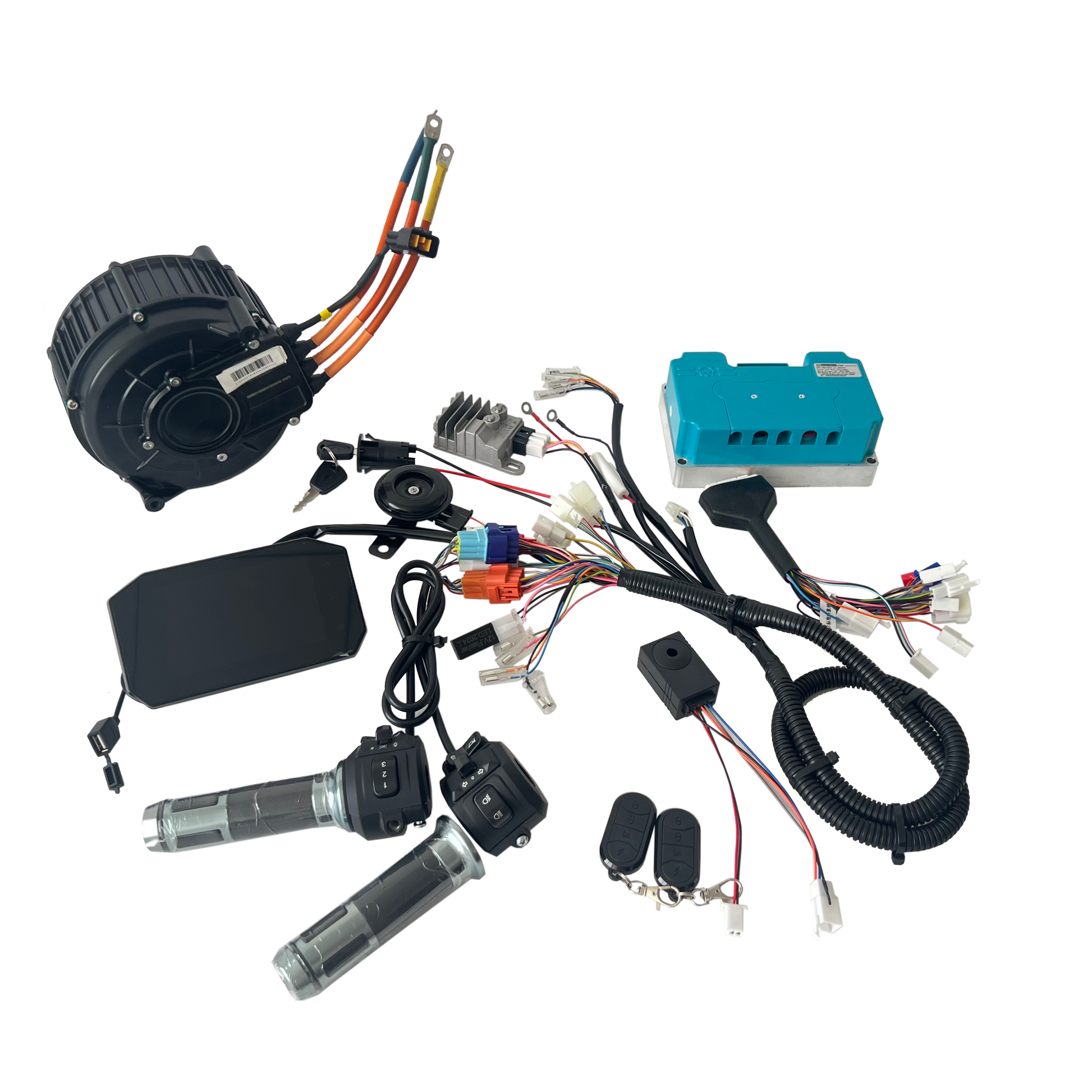

Option 2：Hall Version + TFT-5 Display
QS165 V2 72V 35H Mid‑Drive Motor (Hall Version)
Nanjing Fardriver ND72680 Controller
Main wiring harness
Motorcycle‑style throttle grip
Ignition key lock
Anti‑theft alarm system
DC‑DC converter
Flasher relay
Horn

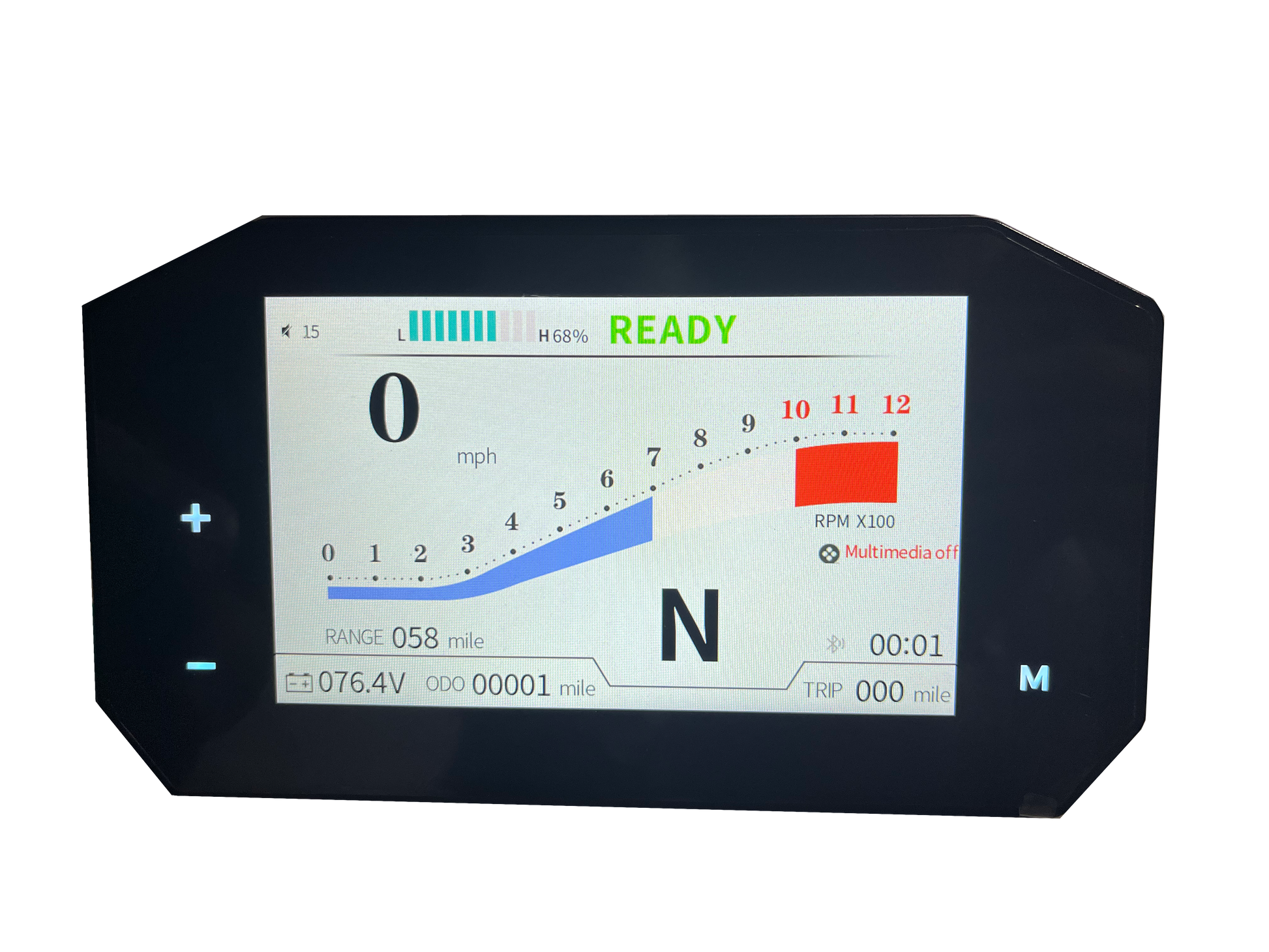

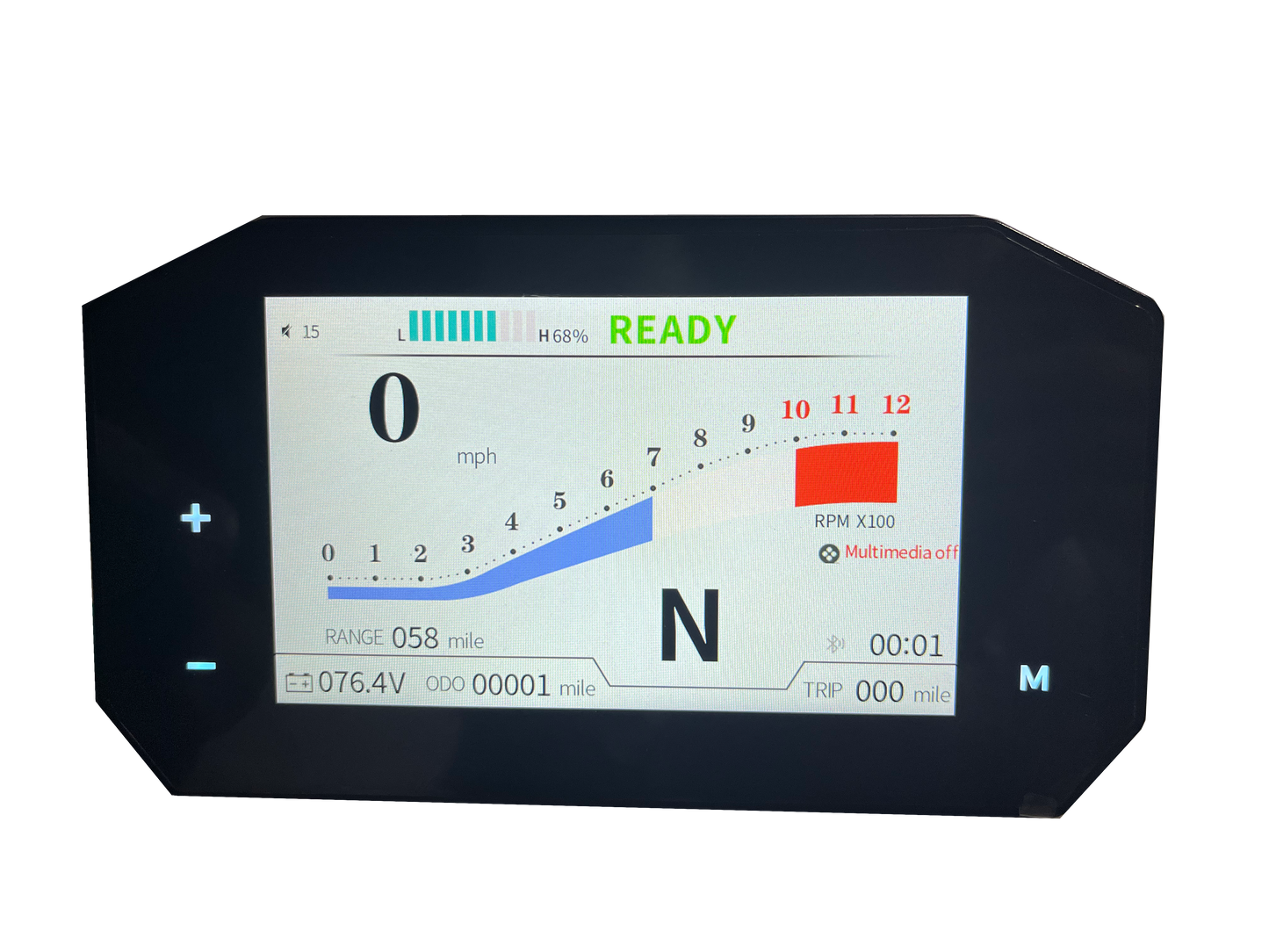

TFT‑5 Display
Option 3：Encoder Version + DKD Display
QS165 V2 72V 35H Mid‑Drive Motor (Encoder Version)
Nanjing Fardriver ND72680 Controller
Main wiring harness
Motorcycle‑style throttle grip
Ignition key lock
Anti‑theft alarm system
DC‑DC converter
Flasher relay
Horn
DKD Display
Option 4：Encoder Version + TFT-5 Display
QS165 V2 72V 35H Mid‑Drive Motor (Encoder Version)
Nanjing Fardriver ND72680 Controller
Main wiring harness
Motorcycle‑style throttle grip
Ignition key lock
Anti‑theft alarm system
DC‑DC converter
Flasher relay
Horn
TFT‑5 Display

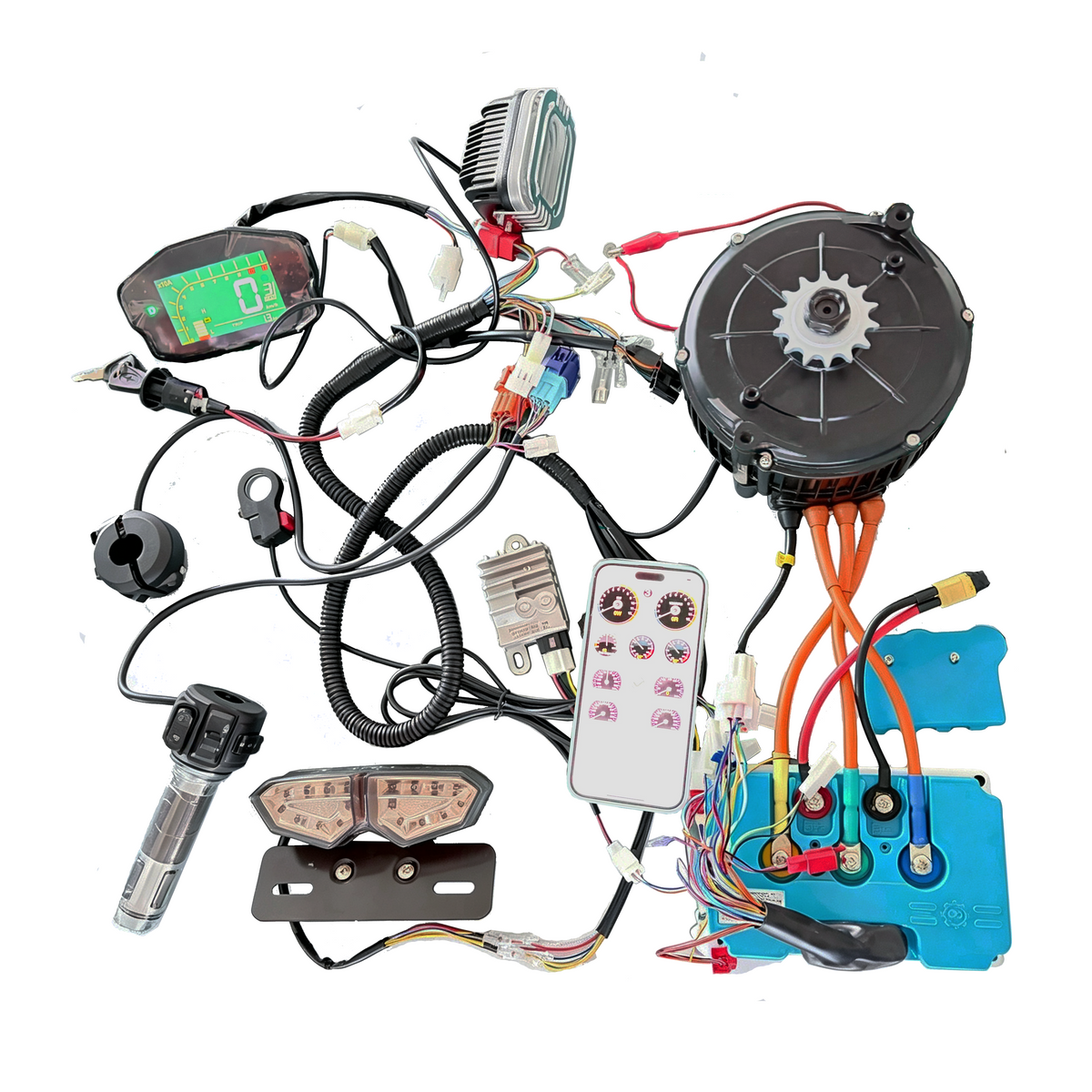

Option 5：Hall Version + DKD Display + Headlight + Taillight + Reverse Switch
QS165 V2 72V 35H Mid‑Drive Motor (Hall Version)
Nanjing Fardriver ND72680 Controller
Main wiring harness
Motorcycle‑style throttle grip
Ignition key lock
Anti‑theft alarm system
DC‑DC converter
Flasher relay
Horn
DKD Display

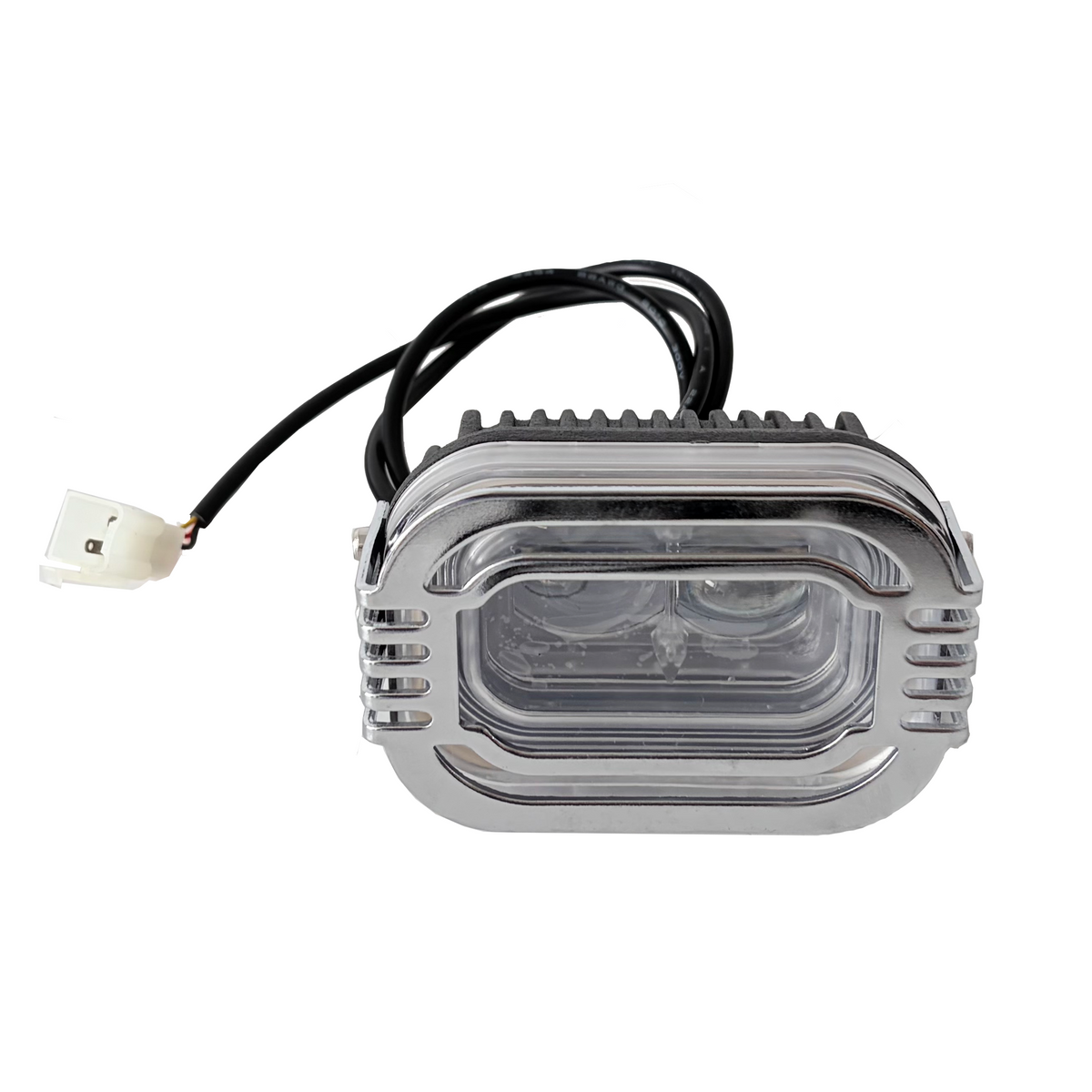

Headlight

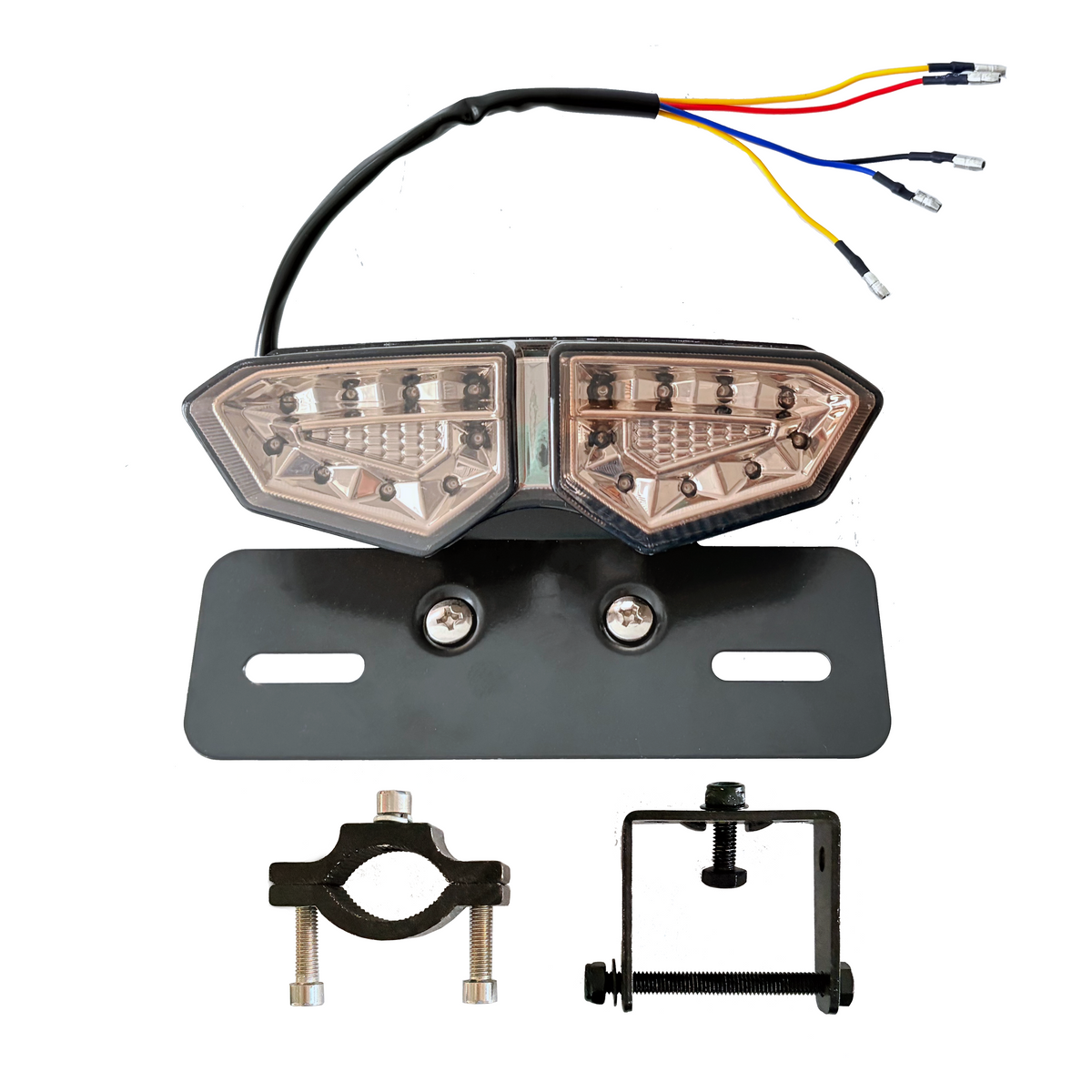

Taillight

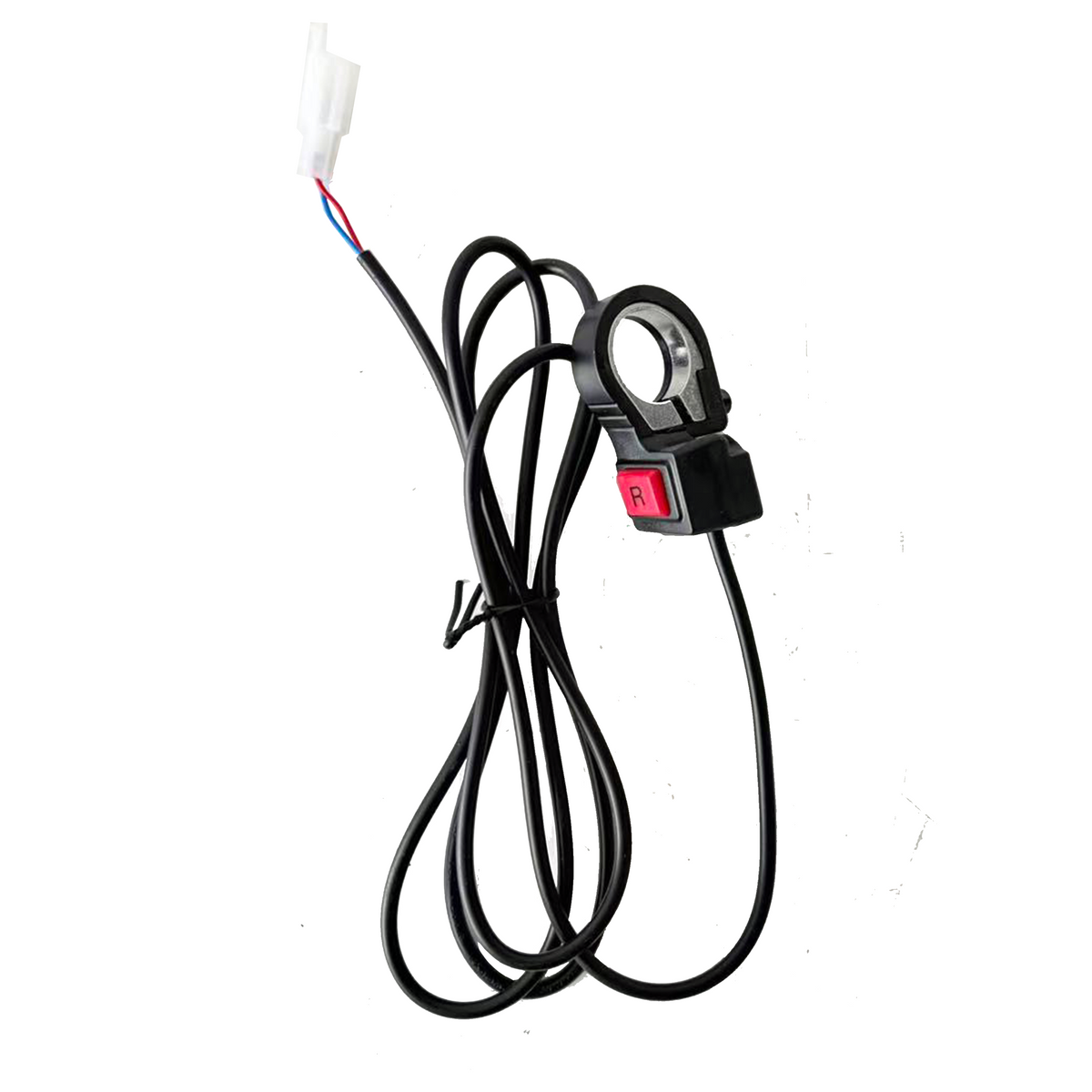

Reverse switch
Product Overview:
| Item |
Details |
| Product Name |

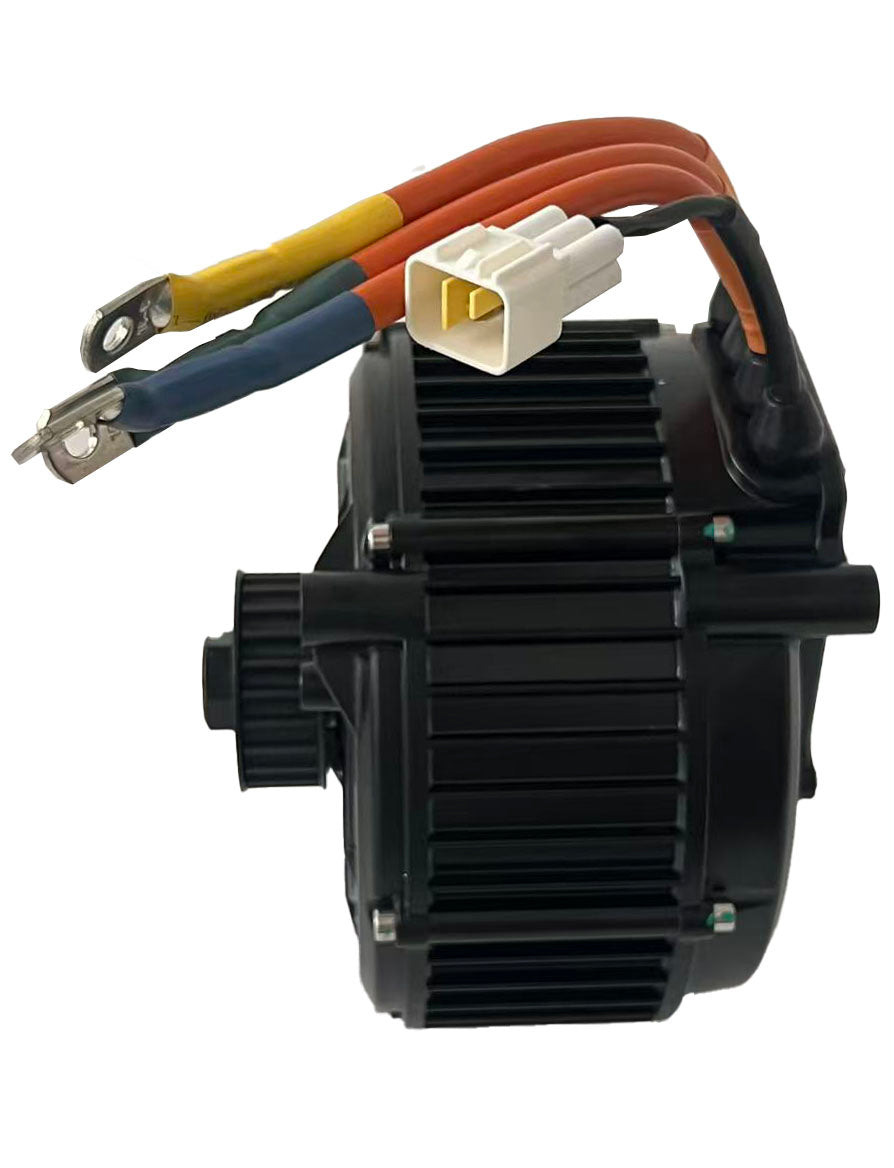

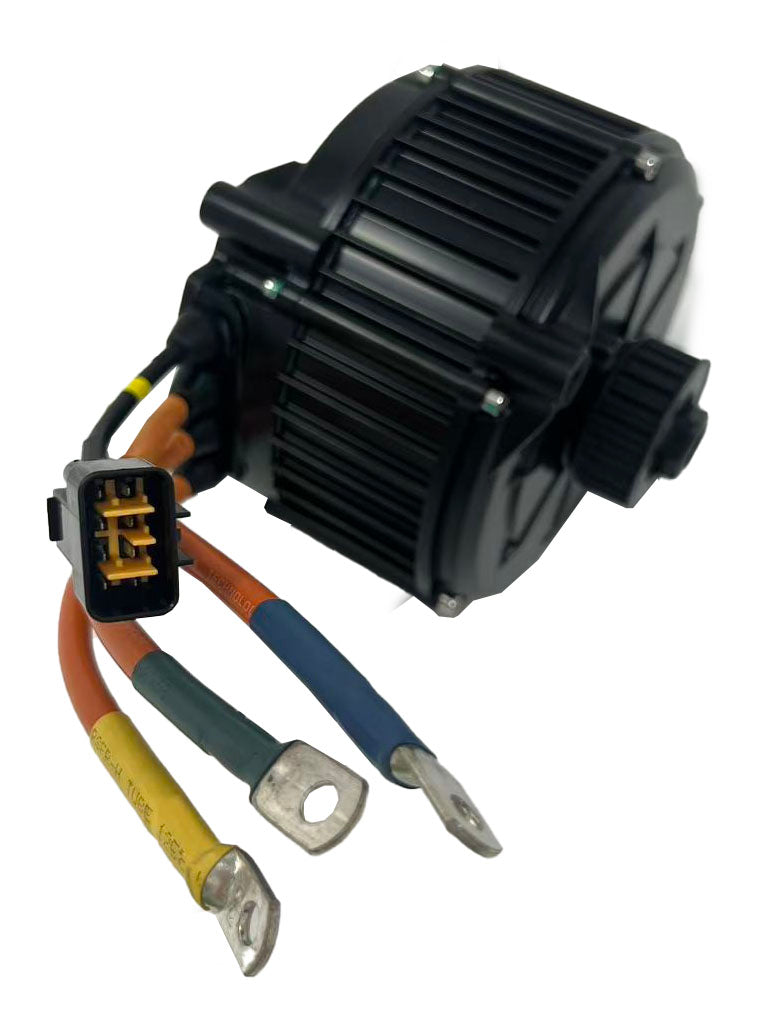

QS Motor QS165 5000W V2 35H 72V Mid Drive Motor |
| Brand |
QS Motor |
| Application |
High-performance electric motorcycles |
| Feedback System |
Hall sensor and Encoder (dual system) |

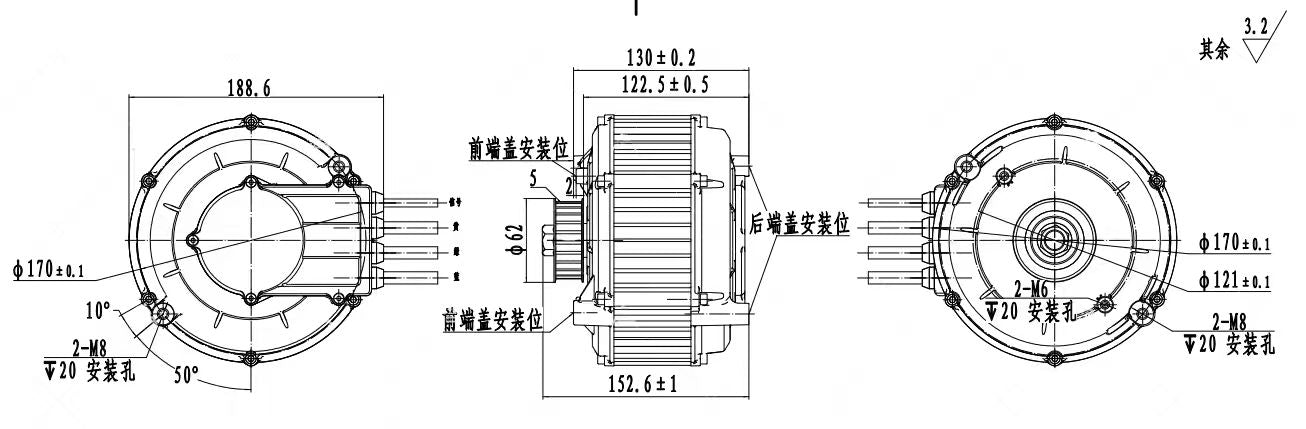

Technical Specifications:
| Parameter |
Specification |
| Model |
QS165 V2 35H |
| Power Output |
5000W |
| Voltage |
72V |
| Motor Type |
PMSM (Permanent Magnet Synchronous Motor) |
| Weight |
8kg |
| Mounting Type |
Mid-Drive System |
| Feedback Systems |
Hall Sensor + Encoder (V2 Technology) |

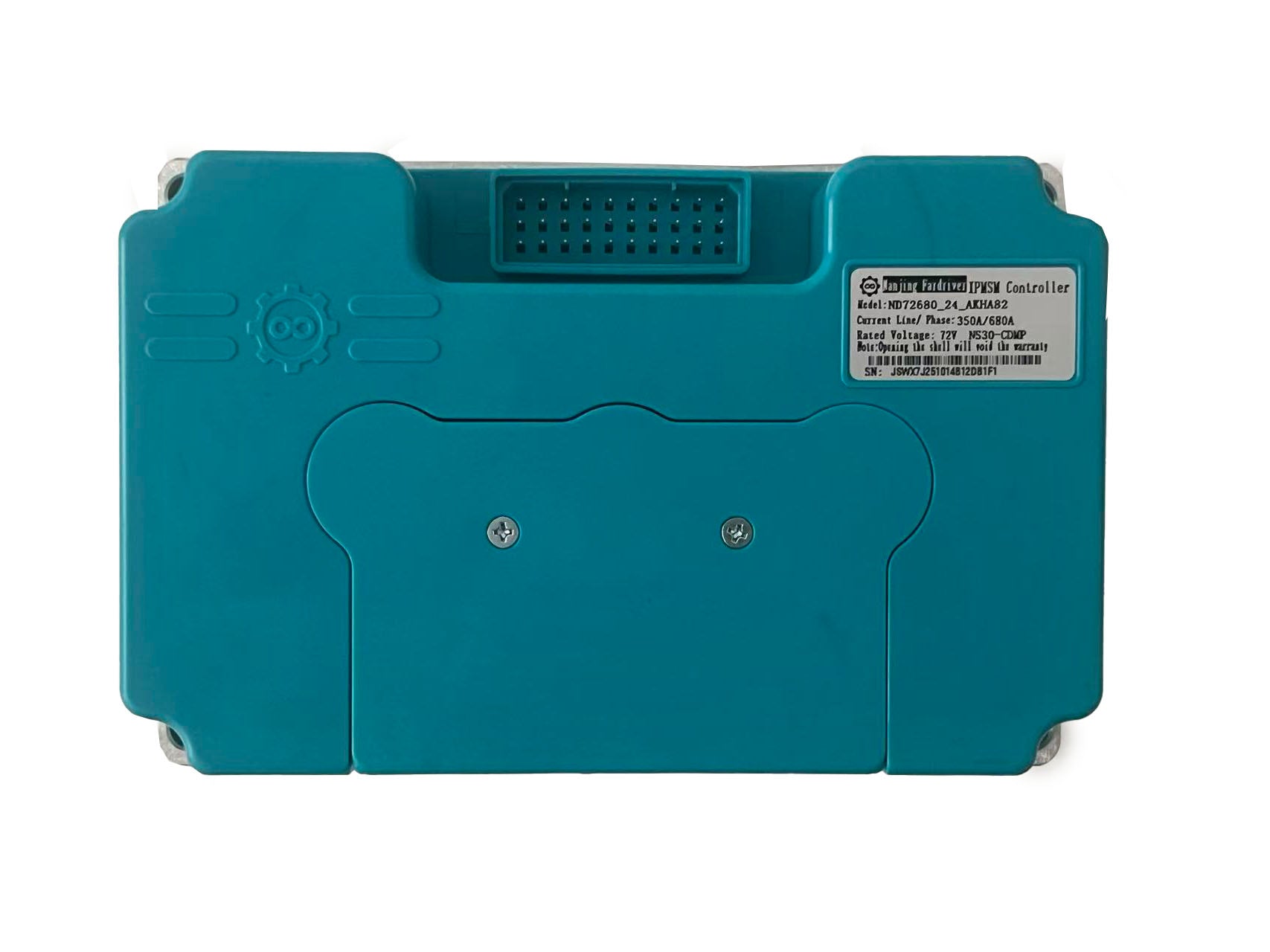

Fardriver Controller
1 Model: ND72680
2 Working Communication: Hall Sensor
3 Available Rated Battery Voltage: 72V
4 Peak Voltage: 88V
5 Available Motor Power: 4000W - 6000W
6 Defaut Throttle Working Voltage: 0V - 5V
7 Max DC Current: 350A
8 Peak Phase Current: 680A
9 Mosfets Detail: 30 FET
10 Weight: 3.1kgs

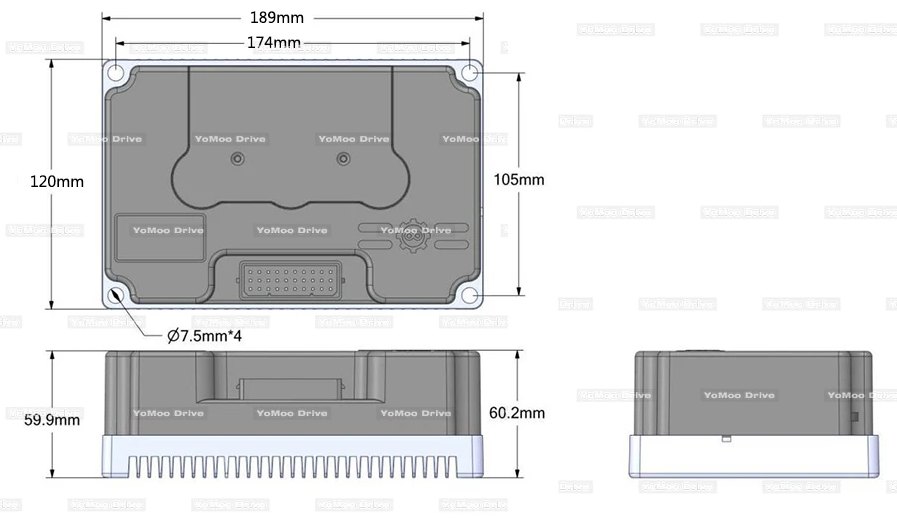

11 Instaliing Size: 189mm * 120mm * 60mm
12 Controller Design: Sine Wave BLDC
13 Case Material: Aluminum
14 Support Programmable: PC & Phone
15 Suitable for electric bike, scooter, motorcycle, tricycle, kart, ATV
