UK warehouse;135mm dropout 3000W Motorwheel with single freewheel ; MTX rim with Rear 3000W Ebike kit with 80A dual mode controller ,UKC1 color display ,alarm lock ebike parts

Complete 3000W E-bike Conversion Kit - Professional Grade

Transform your mountain bike into a high-performance electric bike with this complete professional conversion kit!

Complete Kit Includes:

• 3000W Hub Motor: High-performance BLDC motor with 135mm dropout spacing
• 80A Dual Mode Controller: Advanced sine wave controller for smooth power delivery
• UKC1 Color Display: Professional LCD display with speed, battery, and trip data
• Alarm Lock System: Built-in anti-theft security with remote control
• MTX Rim & Spokes: Durable rim compatible with multiple wheel sizes
• Single Freewheel: Smooth pedal-assist and regenerative braking
• Complete Wiring Harness: All cables and connectors included

Motor Specifications:

• Rated Power: 3000W (Peak: 6000W)
• Voltage: 72V rated (48V compatible)
• Speed: Up to 90km/h (72V) / 70km/h (48V)
• Torque: 100N.M maximum
• Efficiency: 88% maximum
• Dropout: 135mm rear fork width
• Waterproof: IP54 rating
• Total Weight: 23kg complete kit

Controller Features:

• 80A maximum current output
• Dual mode operation (speed/torque)
• Regenerative braking capability
• Over-voltage and over-current protection
• Temperature monitoring

Perfect For:

• Mountain bike conversions
• High-speed e-bike builds
• Off-road electric biking
• Professional e-bike projects
• Custom electric bike builds

Everything you need for a professional e-bike conversion - motor, controller, display, security, and all accessories in one complete package!

3000w Motor Specification:
1. Motor Type: BLDC Hub Motor with Permanent Magnet
2. Motor design: Double axle out
3. Spoke hole: 3.4mm x 36pcs
4. Matching Rim:20inch-29inch
5. Rated Power:3000W
6. Peak Power:6000W
7. Rated Voltage: 72V
8. Speed: 70km/h(48v voltage),90km/h(72v voltage)
9. Max No-load RPM:960RPM
10. Max Torque:100N.M
11. Max Efficiency: 88%
12. Brake type: Disc brake
13. Rear Fork width for installation: 135mm
14. Winding Core material: Steel
15. Cross Section of Phase wire: 6 mm2
16. Hall sensor phasing angle: 120 degree
17. Max. Working Temperature: 70 degree, Peak 120 degree
18. Waterproof Grade: IP54

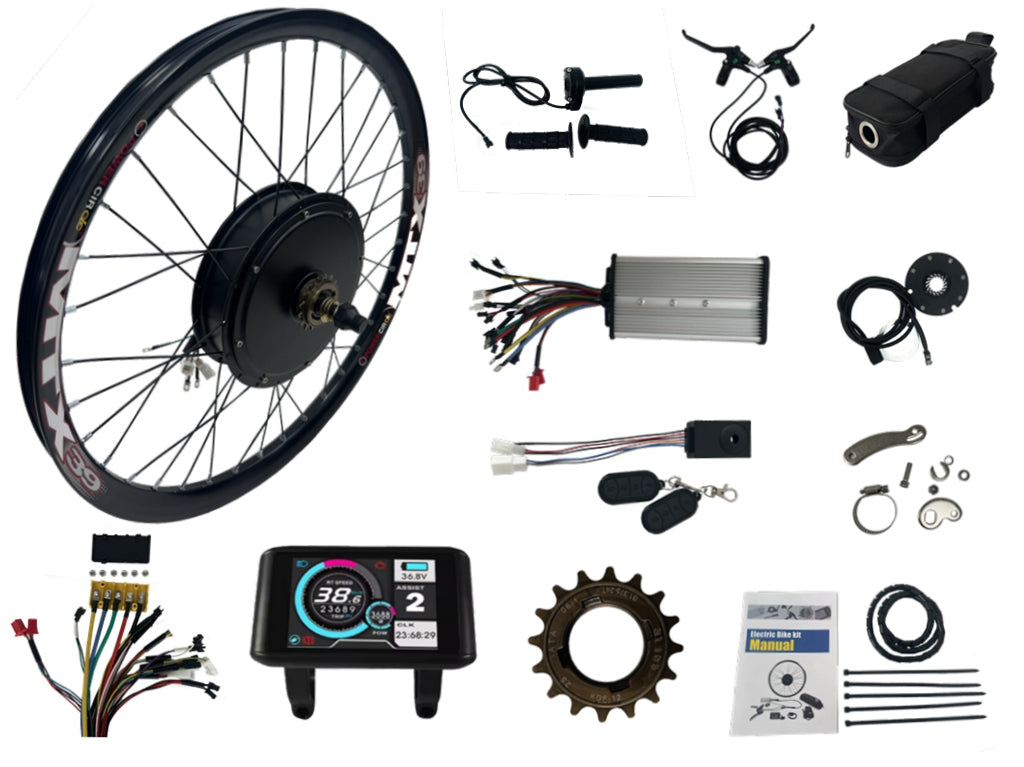

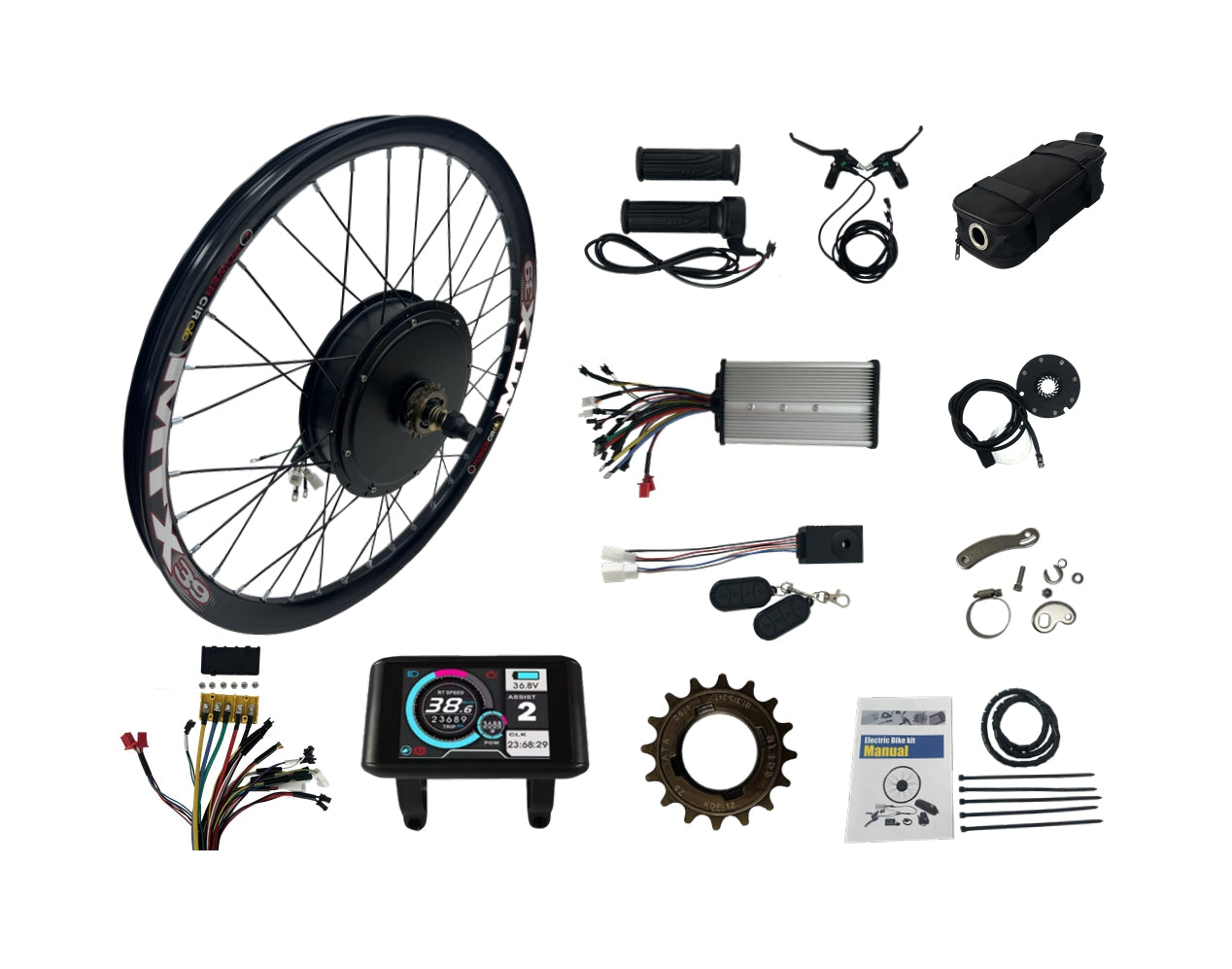

135mm dropout Rear  48-72V 3000W Ebike kit
1)135mm dropout Rear 48-72V 3000W  motorwheel with spokes
2) 20/24/26/27.5/28/29/700C MTX  rim for choose
3)48-72V 80A Dual mode sine wave contoller
4)UKC1 color display
5) full twist throttle (if need thumb throttle or half twist throttle ,please contact us )
6)brake lever
7)8 magnet PAS
8) controller bag

9）toque arm

10) single freewheel

11)alarm lock
12)tie and manual
