USA Warehouse:20*4.0 170-175mm Dropout 100mm Width Rim With QS 3T /3.5T/4T/5T 5000W Fat MotorWheel With Single Freewheel

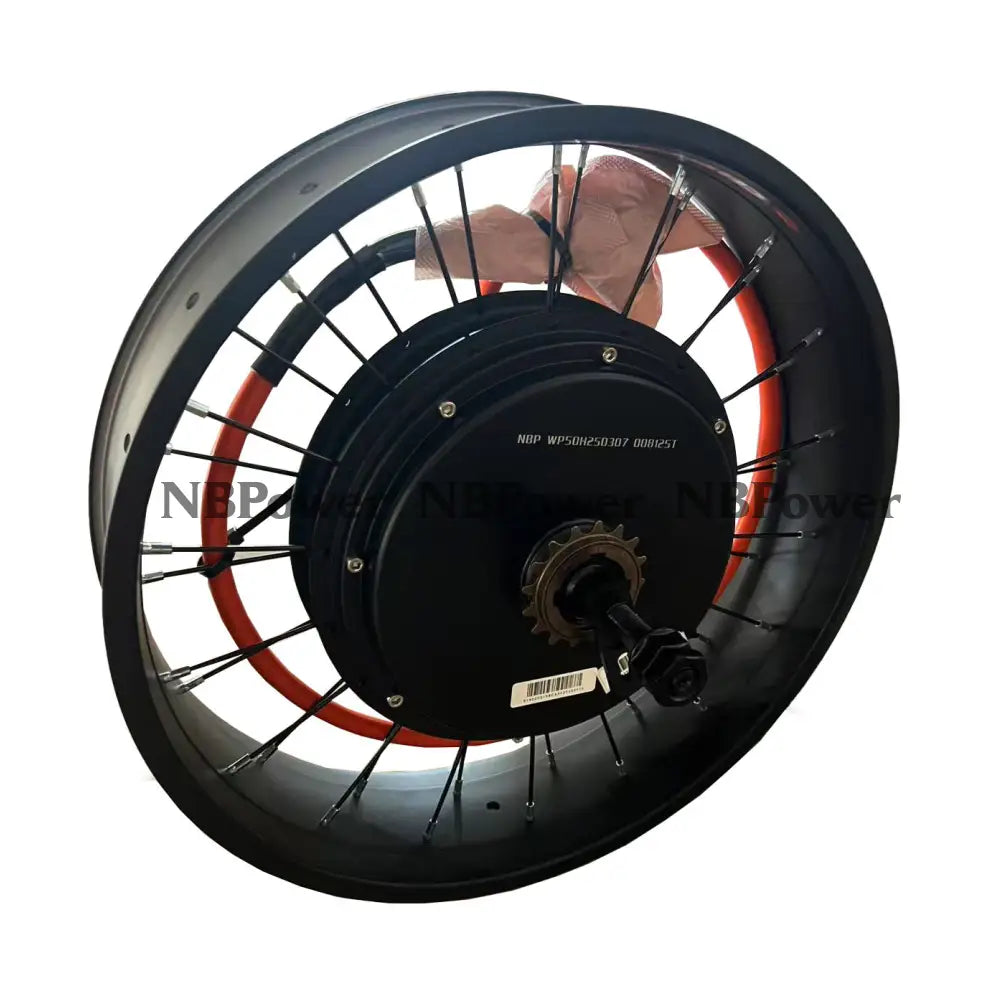

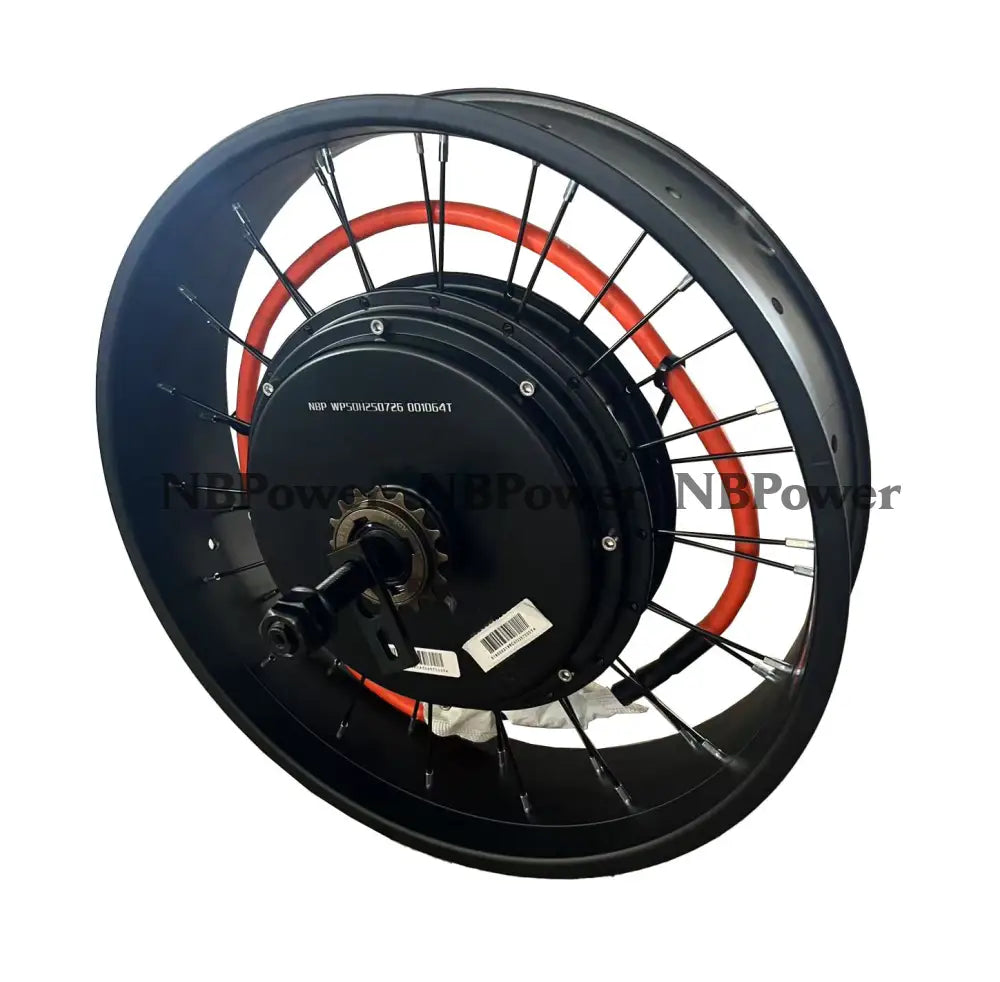

20*4.0 100mm  width rim with QS 3T /3.5T/5T 170mm dropout 5000W Fat motorwheel with single freewheel

1. Motor Type: BLDC In-Wheel Hub Motor
2. Motor Design: Double Axle with Rim
3. Matched Tire: 20inch
4. PCD: 6*44mm
5. Stator: Aluminum Core
6. Rated Power: 5000W
7. Peak Power: 10000W in few seconds
8. Rated Voltage: 72V
9. Speed:3T: 1020RPM  3.5T: 840RPM 5T: 650RPM
10. Dropout: 170mm
11. Max Torque:3T: 160N.M  3.5T: 180N.M   5T: 220N.M
12. Max Efficiency: approx 91%
13. Suggest Peak Phase Current: N/A
14. Thermic Probe: KTY83/122(as default)
15. Working Temperature: 70-120℃, peak 150℃
16. Brake Type: Disc Brake
17. Hall Sensor: Dual hall set with waterproof connector
18. Phase Wire:2*5mm²Cross
19. Hall Sensor Phasing Angle: 120 degree
20. Waterproof Grade: IP65
