26/27.5/29 inch MTX Rim Rear 150-155mm Dropout 3000W Motorwheel with 7 speed freewheel , 80A Dual mode Sine Wave controller ,SW900 Color Display and other parts
3000W E-Bike Conversion Kit — Built for Power, Engineered to Last
Take your bicycle to the next level with this professional-grade 3000W hub motor wheel kit. Whether you're tackling steep mountain trails or building a high-speed commuter, this complete conversion kit delivers the torque, speed, and reliability serious riders demand.

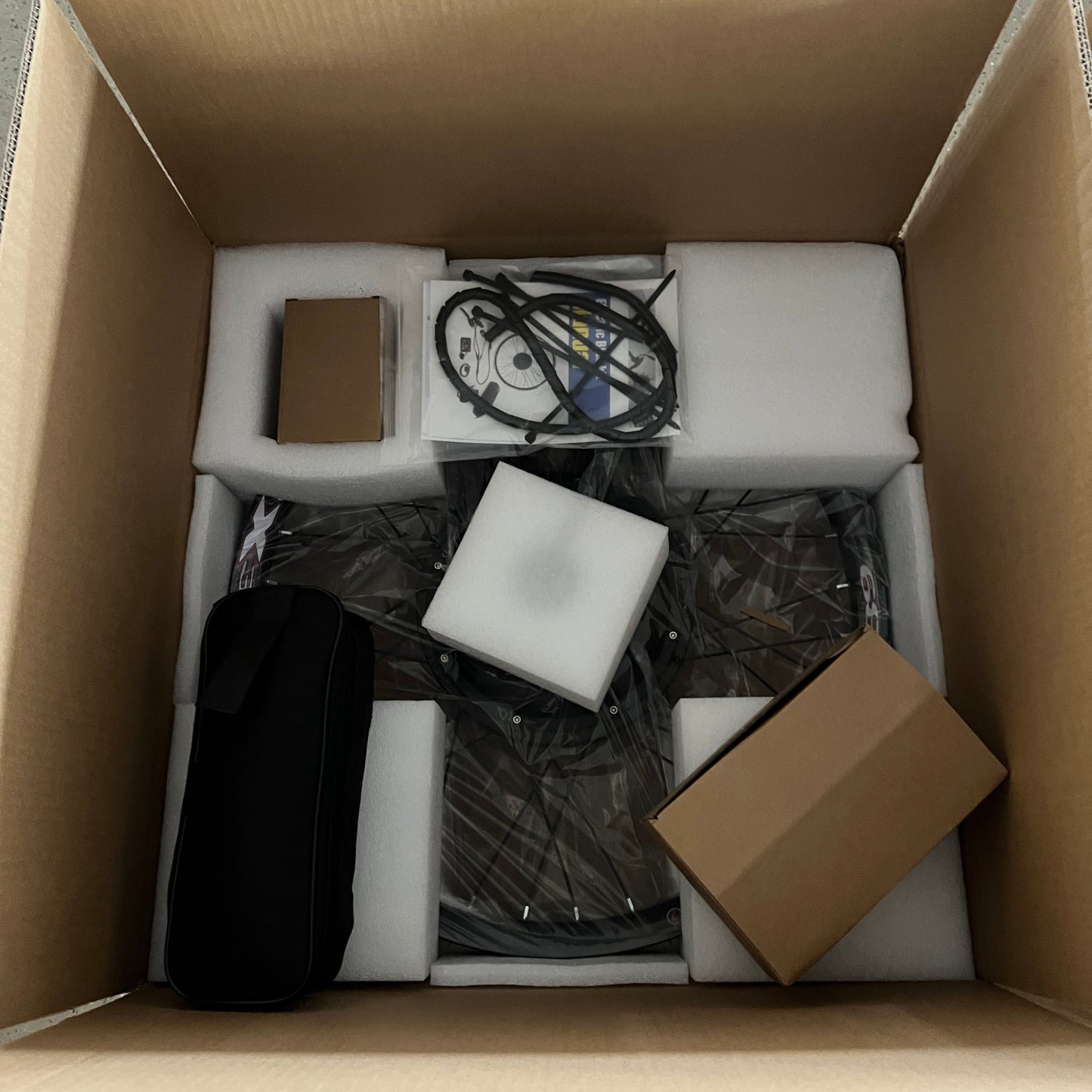

What's Included
26 / 27.5 / 29 inch MTX rim with 3000W BLDC hub motor (150–155mm dropout)
80A dual-mode sine wave controller
SW900 color LCD display
7-speed freewheel
Throttle with key lock
Hydraulic brake levers (with motor cut-off)
PAS (Pedal Assist Sensor)
5-pin display extension cable
M16 axle nuts & washers
Alarm lock system
Complete wiring harness
Motor Specifications
Motor Type
BLDC Hub Motor, Permanent Magnet
Rated Power
3000W (Peak: 6000W)
Rated Voltage
72V (48V compatible)
Top Speed
70 km/h @ 48V | 90 km/h @ 72V
Max Torque
100 N·m
Max RPM
960 RPM (no-load)
Efficiency
Up to 88%
Dropout Width
150–155mm (rear)
Spoke
3.4mm × 36H, double axle-out design
Phase Wire
6mm² cross-section
Hall Sensor
120° phasing angle
Waterproof Rating
IP54
Operating Temp
70°C continuous | 120°C peak
Compatible Rim Sizes
20–29 inch
Brake Type
Disc brake compatible
Weight
18 kg
Perfect For
Mountain bike and fat bike high-power conversions
Long-distance commuter e-bike builds
Cargo and heavy-load electric bike projects
Riders upgrading from lower-wattage systems
Note: Battery sold separately. Compatible with 48V–72V lithium battery packs. Shipping cost is calculated at checkout — sea and air freight options available.
